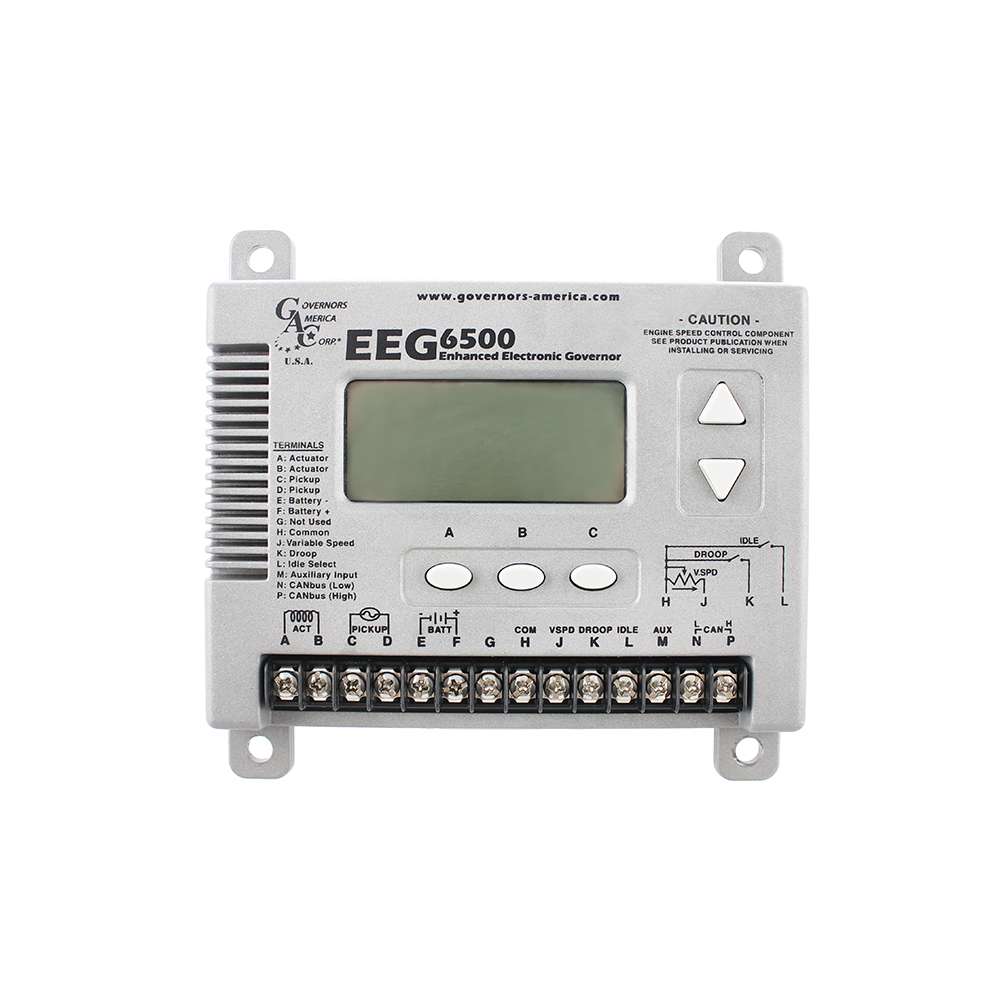

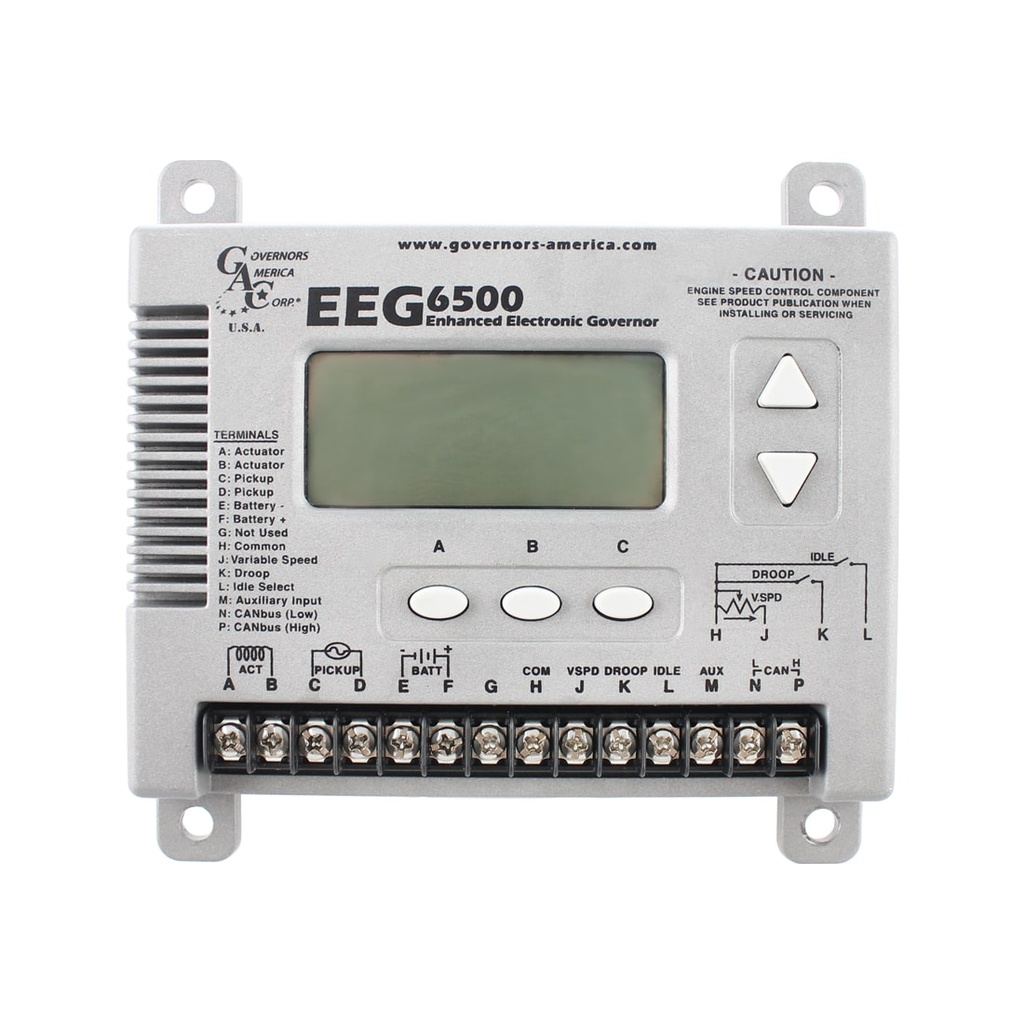

GAC EEG6500 Enhanced Electronic Controller Original

https://powermaster.odoo.com/web/image/product.template/9688/image_1920?unique=7f347d4

Multi-VDC / Built-In Display / Terminal Strip / Gaseous or Diesel / Fixed Speeds or Resistive Variable Speed Input

$ 405.49 405.49 USD $ 405.49

$ 405.49

Not Available For Sale

This combination does not exist.

Contact Us
Speed Controls EEG6500

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE
12-24 V DC
POWER CONSUMPTION

  70 mA MAX continuous plus actuator current

WEIGHT
1.8 POUNDS

SIZE
5 x 6 x 0.7 Inches

AMBIENT TEMPERATURE

-40 to 185 °F [-40 to 85 °C]

TESTING

 100% Functional Tested

SPEED SENSOR SIGNAL

1.0 - 60.0 V RMS

MOUNTING

Any Position, Vertical Preferred

  • Performance - ◖ Isochronous Operation: ±0.25 % ◖Speed Range / Governor: 100 Hz - 12 kHz (200-6000 RPM w/ 120 tooth flywheel) continuous ◖Idle Adjust: Up to 1500 RPM ◖Speed Trim Range: Programmable 0 - 100 %, (default = 5 %) ◖Droop Range: 1 - 25 % regulation ◖Speed Trim: Programmable ± 120 Hz
  • Input / Output - ◖DC Supply: 12-24 V DC Battery Systems (7.0 to 32.0 V DC) ◖Polarity: Negative Ground (Case isolated) ◖Power Consumption: 70 mA MAX continuous plus actuator current ◖Speed Sensor Signal: 1.0 - 60.0 V RMS ◖Actuator Current Range: 10 A MAX ◖Load Share/Synchronizer Input:  0-10 V DC (5 V nominal, reversed, 100 Hz / V) ◖Reverse Power Protection: Yes ◖Transient Voltage Protection: 60 V


  • Environmental - ◖Ambient Temperature: -40 to 185 °F [-40 to 85 °C] ◖Relative Humidity: up to 95% ◖All Surface Finishes : Fungus-Proof and Corrosion-Resistant
  • Reliability - ◖Vibration: 7 G, 20-100 Hz ◖Shock: 20 g Peak ◖Testing: 100 % Functional Test
  • Physical - ◖Dimension: 5 x 6 x 0.7 Inches ◖Weight: 1.8 POUNDS ◖Mounting: Any Position, Vertical Preferred
  • Compliance / Standards - ◖Agency : CE, (EN55011, EN50081-2 and EN50082-2) ◖Communications: SAE J1939 (Optional)

GAC’s EEG6500 Series Enhanced Electronic Governor is designed to regulate engine speed on diesel and gasoline reciprocating engines. With flexibility, precision, and accurate control of governed speed, the EEG is designed for industrial engine applications from generator sets and mechanical drives, to pumps or compressors.
