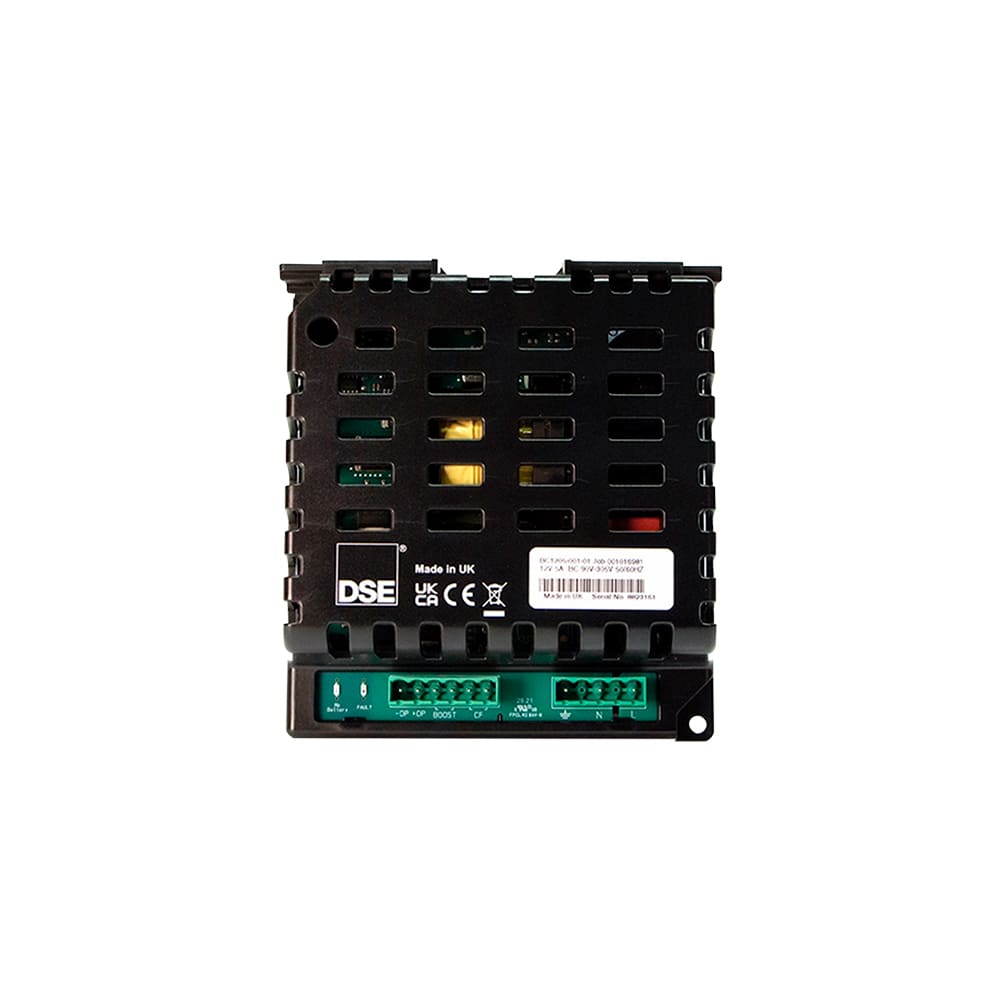

DSE BC2405-01 Battery Charger Original

https://powermaster.odoo.com/web/image/product.template/9730/image_1920?unique=46226a2

24Volt 5Amp

BC2405 24V 5A battery charger

$ 153.11 153.11 USD $ 153.11

$ 153.11

Not Available For Sale

This combination does not exist.

Contact Us
DSE Battery Charger DSEPower 24v BC2405

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

VOLTAGE RANGE

  90 V to 305 V (L-N)




PRODUCT VARIANTS

BC2405-01 – 24 Volt 5 Amp Battery Charger






WEIGHT
 0.6 POUNDS
SIZE
2 x 5 x 5 Inches



STORAGE TEMPERATURE RANGE
-40 °F to +185 °F
AUTOMATIC FLOW MODE RETURN

  Prevents overcharging battery damage.

CONSTANT VOLTAGE

Provides flexibility for operation with various battery type technologies.

CELL CHARGE BOOST AND EQUALIZING

Helps to improve battery life and operating performance.

  • Voltage Range - ◖90 V to 305 V (L-N)
  • Frequency Range - ◖45 Hz to 65 Hz
  • DC Output - ◖5 A DC 24 V DC ◖Ripple And Noise : <3% Vo ◖Effciency : >80%
  • Regulation - ◖Line : <1% ◖Load :<4% Vo
  • Protections - ◖Short Circuit Reverse Polarity


  • Dimensions - ◖ Horizontal (W x H x D) : 5.1” x 5.45” x 2.0” ◖Vertical DIN Mounted (W x H x D) : 2.0” x 5.1” x 5.45” ◖Vertical Clip Mounted (W x H x D) : 2.0” x 5.55” x 5.45”
  • Operating Temperature Range - ◖-25 °C to +80 °C (with de-rating) (-13 °F to +176 °F)
  • Storage Temperature Range - ◖-40 ºC to +85 ºC (-40 °F to +185 °F)



  • The DSEBC2405 is designed to be permanently connected to a battery, to ensure it maintains a full charge. The charger includes LED indicators on the front that show when there is no battery connected and if a fault condition is present.
  • The chargers continue to operate during cranking & running and have been designed to accept multiple AC voltage connections. The robust design makes the charger ideally suited to a wide range of markets including heavy and light industrial environments.



  • Provides advanced flexibility.
  • Prevents damage to the charger and battery, to provide secure and reliable operation.
  • Ensures the charger resumes operation without needing to be manually reset.
  • Ensures the battery maintains enough power at all times.
  • Adds increased flexibility to the product.
  • Increases the current output available.



AC SUPPLY

FREQUENCY RANGE

VOLTAGE RANGE

90 V to 305 V (L-N)

DC OUTPUT

5 A DC 24 V DC

RIPPLE AND NOISE

<3%

EFFICIENCY

>80%

REGULATION

LINE

>1%

LOAD

<4%

PROTECTIONS

Short Circuit

Reverse Polarity
