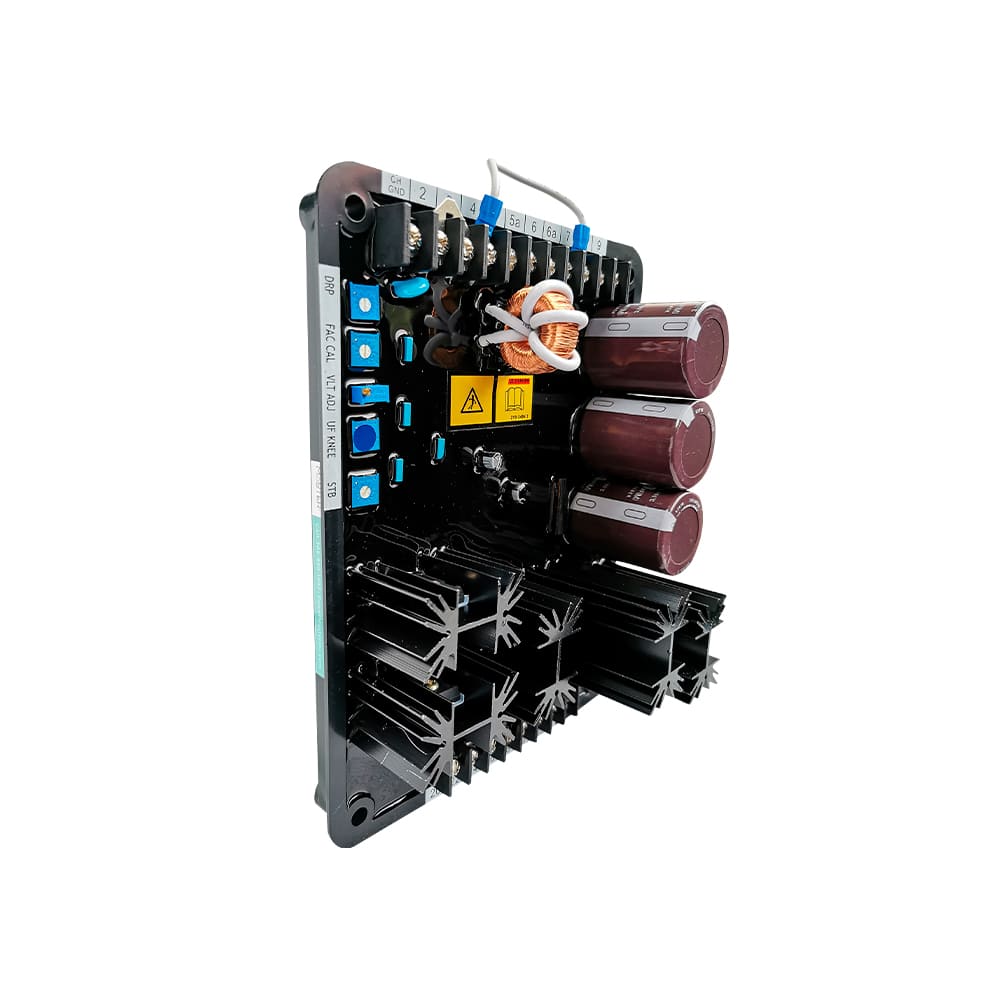

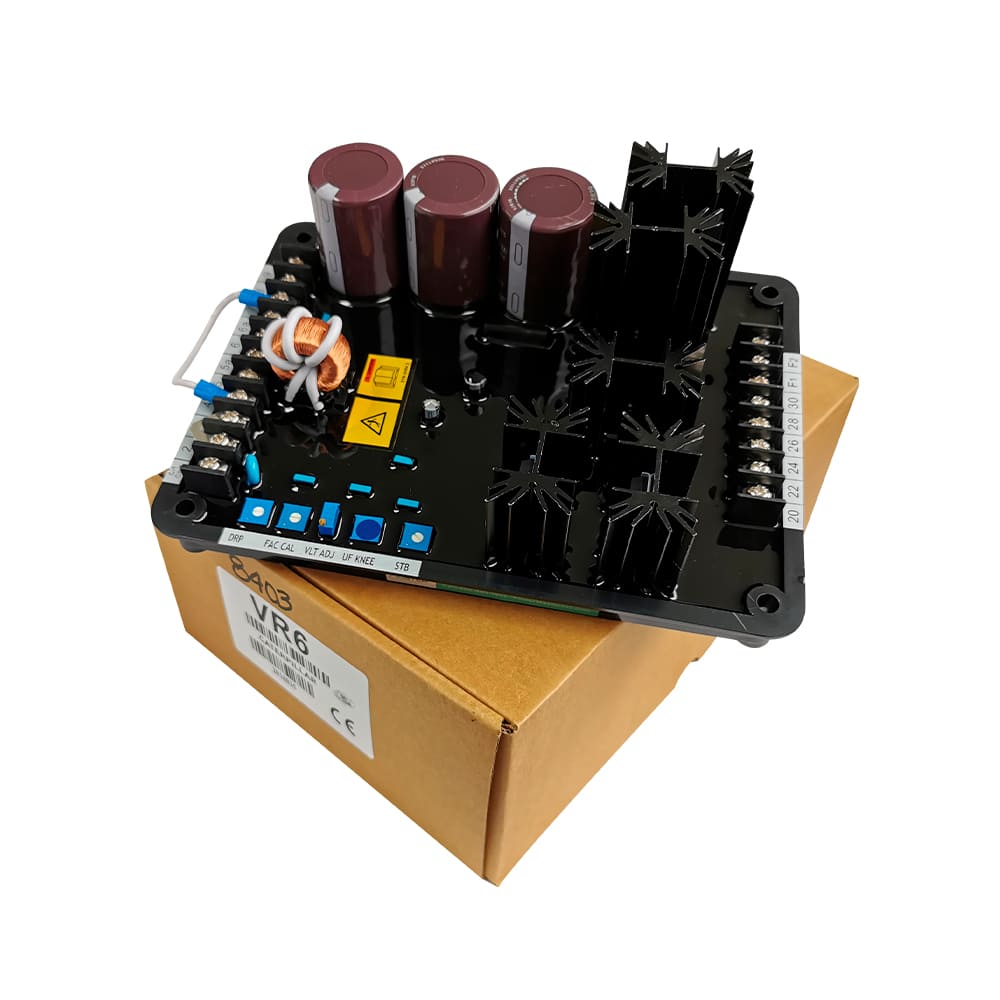

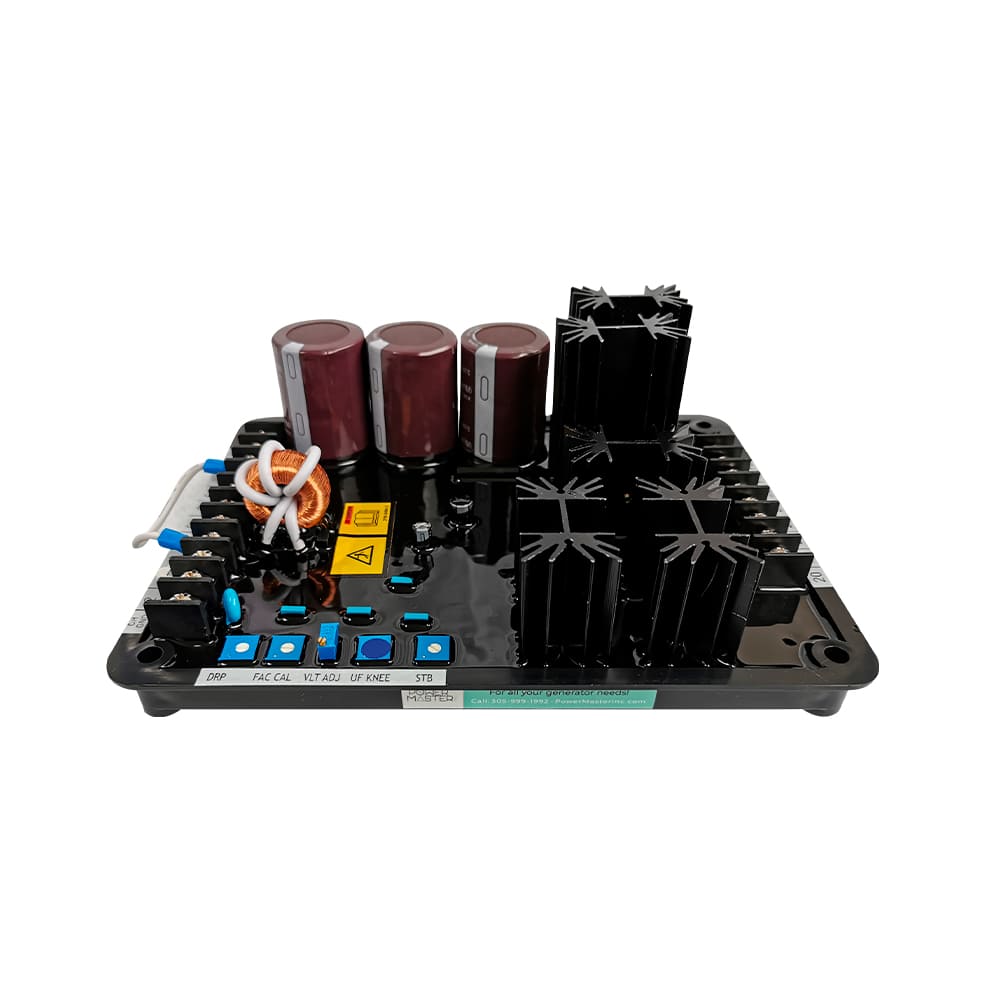

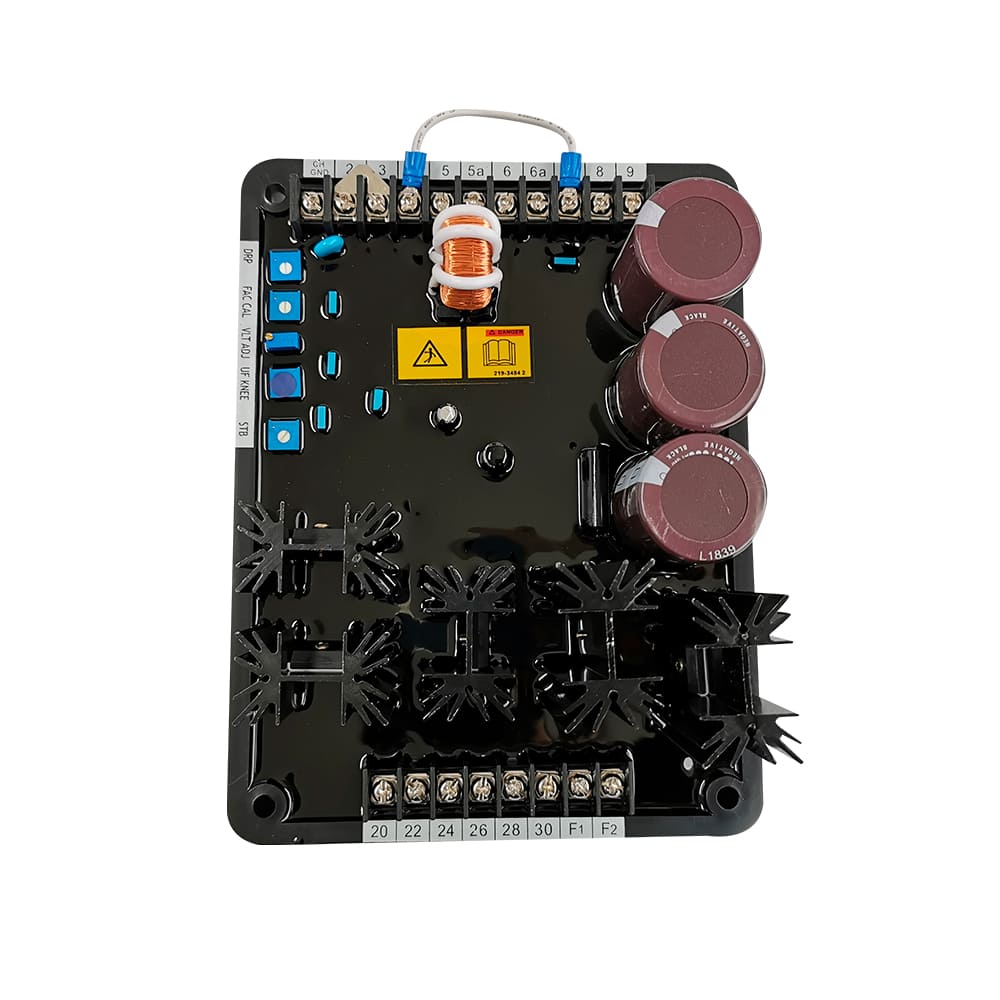

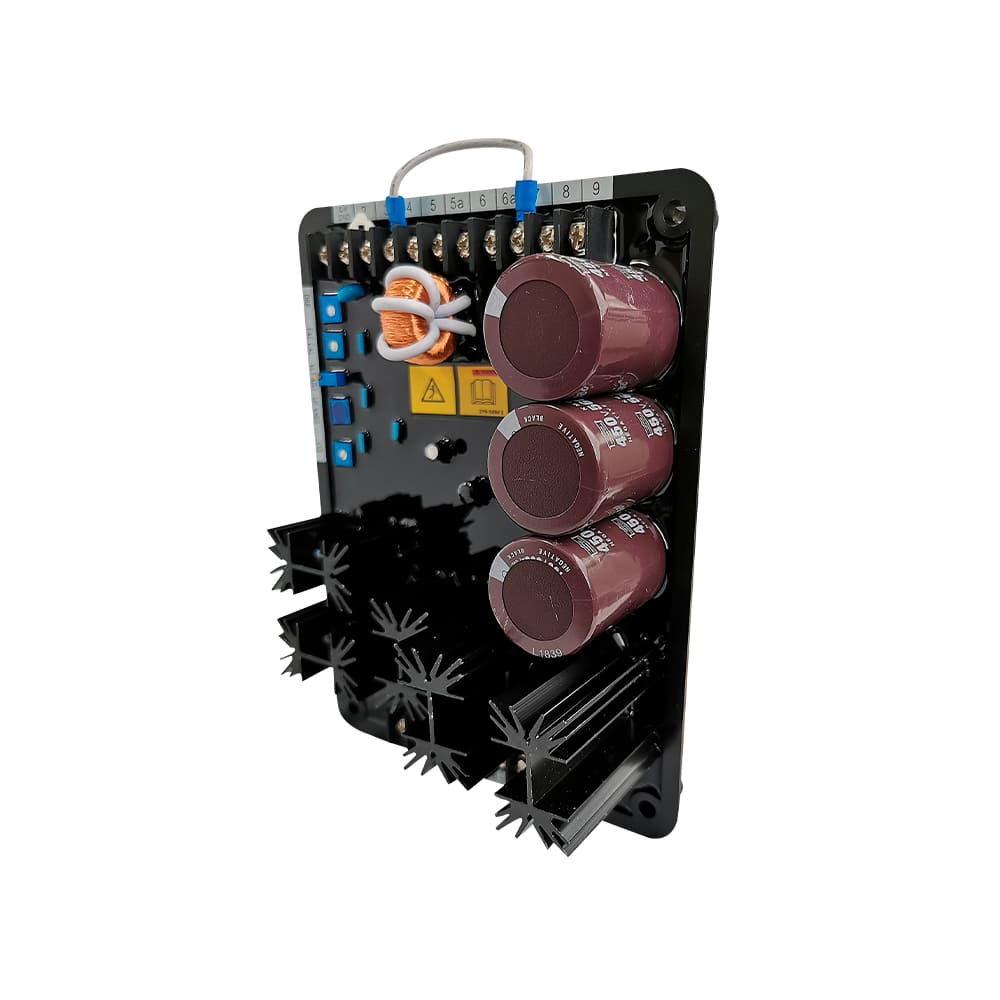

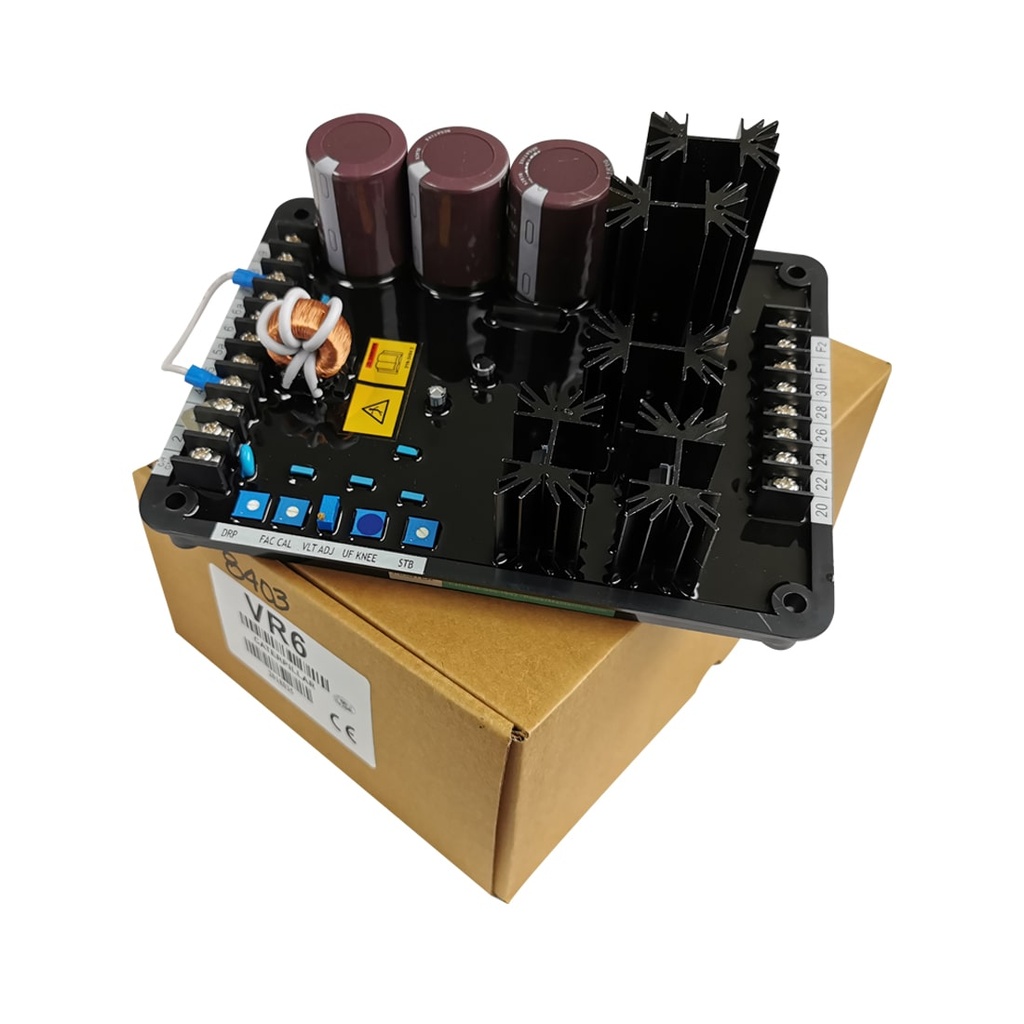

PMI VR6 Automatic Voltage Regulator

https://powermaster.odoo.com/web/image/product.template/9614/image_1920?unique=5f4aa6b

Power Master

VR6 Automatic Voltage Regulator. 180-280 Vac, 50/60 Hz 1 OR 3 phase CT input: 1 or 5 Aac 50/60 Hz

$ 120.99 120.99000000000001 USD $ 120.99

$ 120.99

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



INPUT

180-280 Vac, 50/60 Hz, 1 OR 3 phase







OUTPUT

65 Vdc @ 12 Adc







WEIGHT

3 POUNDS

SIZE

   11 x 7 x 4 Inches







ACC INPUT

+/- 3 Vdc





The VR6 AVR are contained in an encapsulated plastic case, and regulator controls the DC exciter field power ofconventional, 50 or60 HZ brushless generators. Regulation is provided by sensing the generator output voltage,converting it to a DC signal and comparing the signal to a reference voltage signal.

POWER DISSIPATION

50 watt.max

VIBRATION

Withstands 0.5 g’s at frequencies between 18and 2000 Hz in three mutually perpendicularplanes

GENERATOR EXCITATION

SE or PM

  • Input - 180-280 Vac, 50/60 Hz, 1 OR 3 phase
  • Output - 65 Vdc @ 12 Adc
  • PMG Excited - 63-105 Vac 100/240 Hz 3 phase
  • Sensing input - 180-240 Vac, 50/60 Hz 1 OR 3 phase
  • CT input - 1 or 5 Aac 50/60 Hz
  • ACC input - +/- 3 Vdc
  • 4 mounting holes
  • 1 Year Warranty
  • Ambient operating temperature - –40°C to +70°C
  • Storage temperature range - –40°C to +85°C
  • Power dissipation - 50 watt.max
  • Shock - Withstands up to 20 g’s
  • Vibration - Withstands 0.5 g’s at frequencies between 18and 2000 Hz in three mutually perpendicularplanes.
  • Voltage rating - 240 VAC (480V and 120V sensing transformer kits available)
  • Generator excitation - SE or PM
  • Exciter field resistance - 3 to 10Ω




The VR6 AVR are contained in an encapsulated plastic case, and regulator controls the DC exciter field power of conventional, 50 or60 HZ brushless generators. Regulation is provided by sensing the generator output voltage,converting it to a DC signal and comparing the signal to a reference voltage signal.

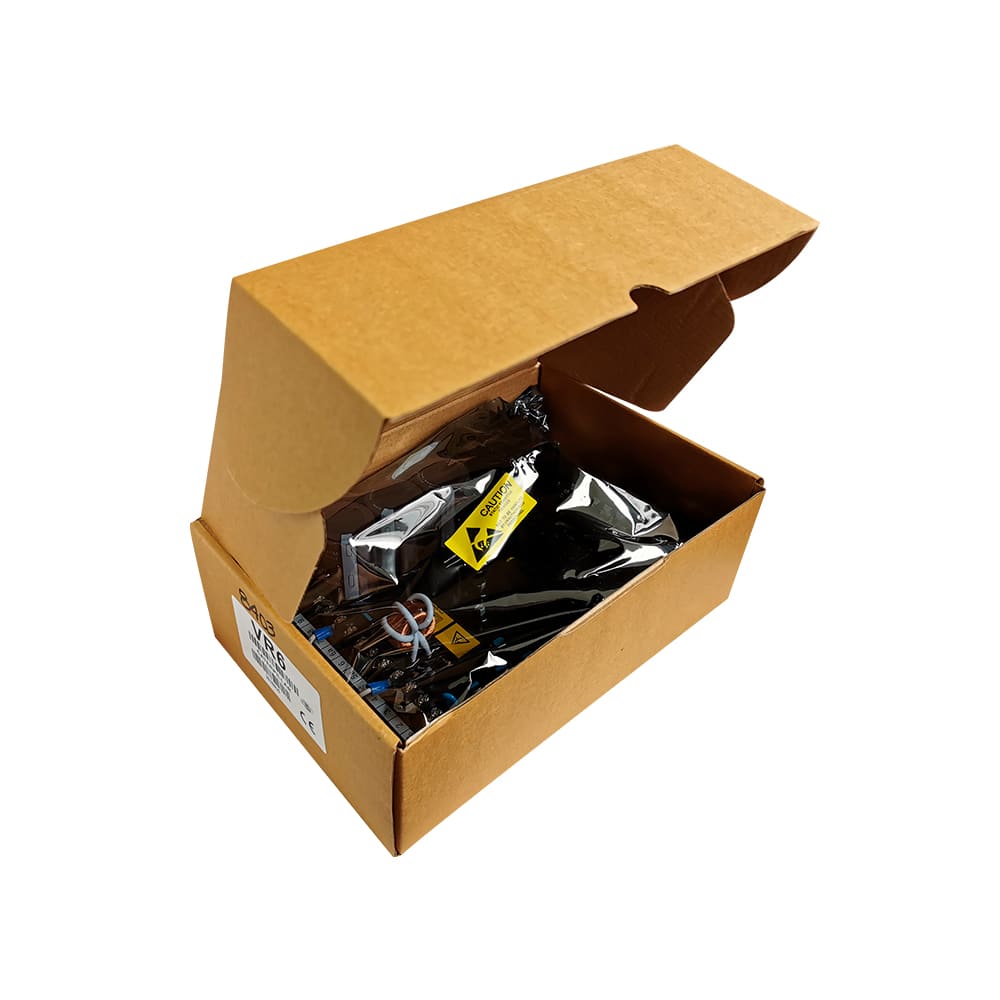

External voltage adjust rheostat: 10k ohm, 2 W, potentiometer Regulation accuracy:±0.5% Average responding Voltage drift:±1% voltage variation for a 40° C (104° F) change. Frequency compensation:1 or 2 V/Hz jumper selectable with knee adjustable from 45 Hz to 65 Hz. Package Include: 1 x AVR VR.
