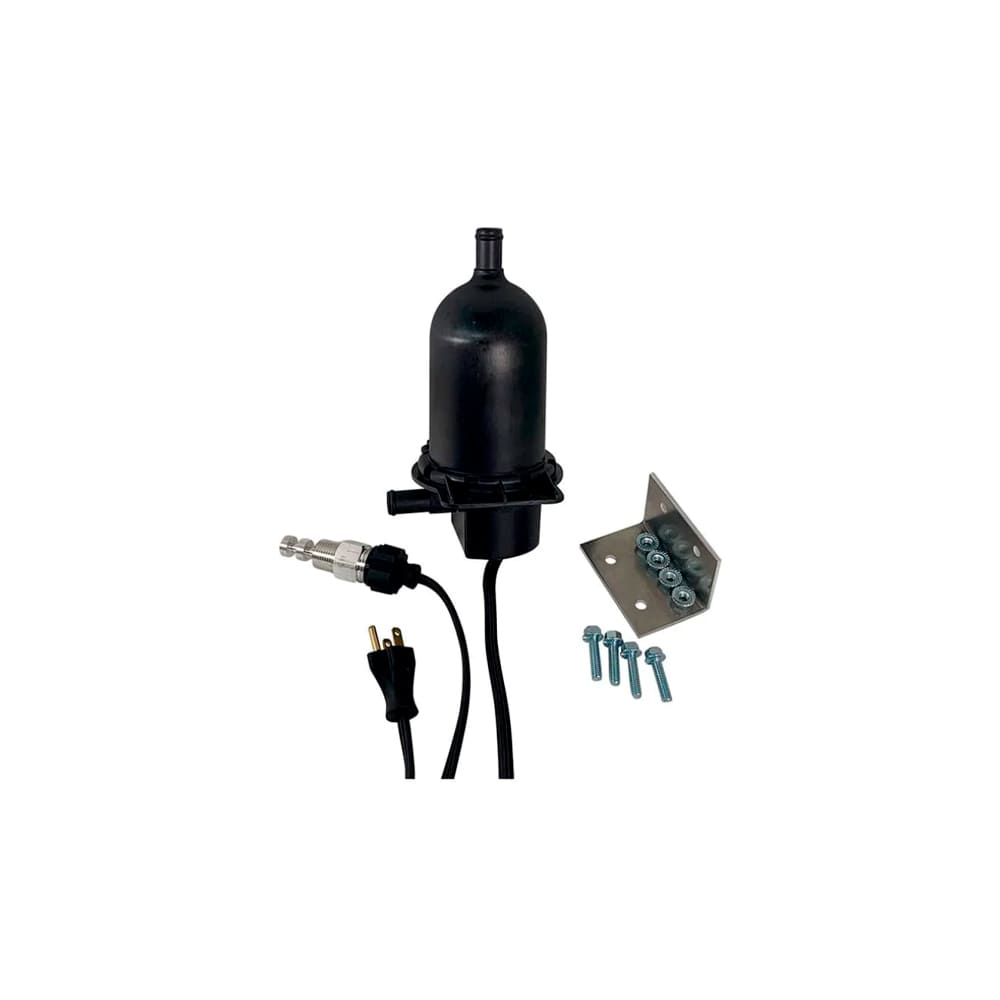

Hotstart TPS181GT12-001 Original Engine Heater

https://powermaster.odoo.com/web/image/product.template/9693/image_1920?unique=e4a7f61

Engine Heater - 1800w - 120v - 120-140F - Remote thermostat

$ 243.99 243.99 USD $ 243.99

$ 243.99

Not Available For Sale

This combination does not exist.

Contact Us
Engine Heater Hotstart TPS181GT12-001

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER SUPPY

120 V 1.8kW 15Amps 60Hz

ENGINE DISPLACEMENT

350 – 500 CID (5.7 – 8.2L)

WEIGTH

1,6 POUNDS

SIZE

8 x 5 x 5 Inches

TEMPERATURE RANGE

ON : 120°F (49°C)
OFF : 140°F (60°C)



Engine Displacement: 350 – 500 CID (5.7 – 8.2L)

Volts: 120v – kW: 1.5 – AMPS: 12.5 – 60Hz

Temperature Range: Remote thread-in fixed temperature thermostat



PROVEN DESIGN​
Depend on consistent, reliable heating with the proven design of the TPS thermosiphon heater.
​EASY INSTALLATION
The TPS’s inlet and outlet positions allow for quick and simple installations, reducing complicated plumbing requirements.
​VERSATILE & ADAPTABLE
The TPS can be configured for almost any weather-protected application.
  • Power Supply - ◖120 V 1.8 kW 15Amps 60Hz
  • TPS System - ◖Phase : single-phase (1 Ø) ◖Voltage : 120 V ◖Ingress : IP41 ◖Tank Material : Polyphenylene Sulfide (PPS) ◖Heating Element Material : Incoloy 800 ◖Min./Max. Ambient Temp : -40–40 °C (-40–104 °F) ◖Certification UL/C-US-listed, CE-compliant
  • TPS Coolant - ◖Fluid Type : Water Coolant mix (50% water/50% glycol) ◖Heat Power* : 1.8 kW ◖Temp. Control : Fixed, 100–120°F (38–49°C) ◖Max. Pressure : 90 psi (620 kPa) ◖Inlet/Outlet : 0.625” hose barb (15.9 mm)
  • Temperature Range - ◖ON : 120°F (49°C)  ◖OFF :  140°F (60°C)

HOTSTART TPS engine heaters provide even heat distribution resulting in reduced engine wear, quick start-ups and reduced emissions. The compact design is ideal for locations that require minimal mounting space. Specs: Heating Element: Incoloy 800 Enclosure: IP41 Resists corrosion Fluid Capacity: 0.11 gal (0.42 L) Maximum Pressure: 90 psi (620 kPa) Inlet/Outlet Plumbing: 0.625” (15.9 mm) Tank Material: Polyphenylensulfid PPS L-C/US listed CE compliant. Power cord length on all models – 48” (1219mm).

Pre-Heat: Diesel and Gas engines, construction equipment, trucks, marine and industrial applications

Heating Fluid: Engine Coolant, Water, other – No pump needed (thermosiphon principle)
