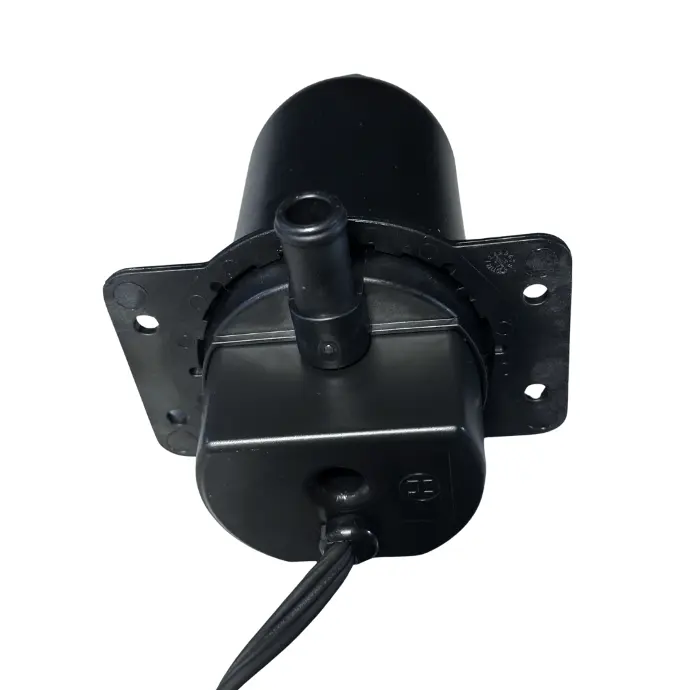

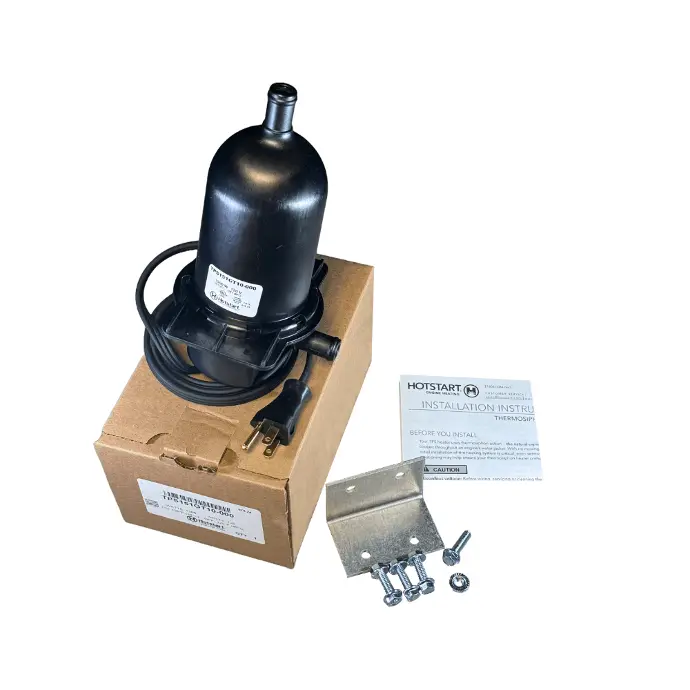

Hotstart TPS101GT10-000 Original Engine Heater

https://powermaster.odoo.com/web/image/product.template/9649/image_1920?unique=760df1f

Engine Heater - 1000w - 120v - 100-120F

$ 143.99 143.99 USD $ 143.99

$ 143.99

Not Available For Sale

This combination does not exist.

Contact Us
Engine Heater Hotstart TPS101GT10-000

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER SUPPLY

 120 V 1kW 8.4Amps 60Hz

ENGINE DISPLACEMENT
350 CID 5.7 L
WEIGTH

1,6 POUNDS

SIZE

8 x 5 x 5 Inches

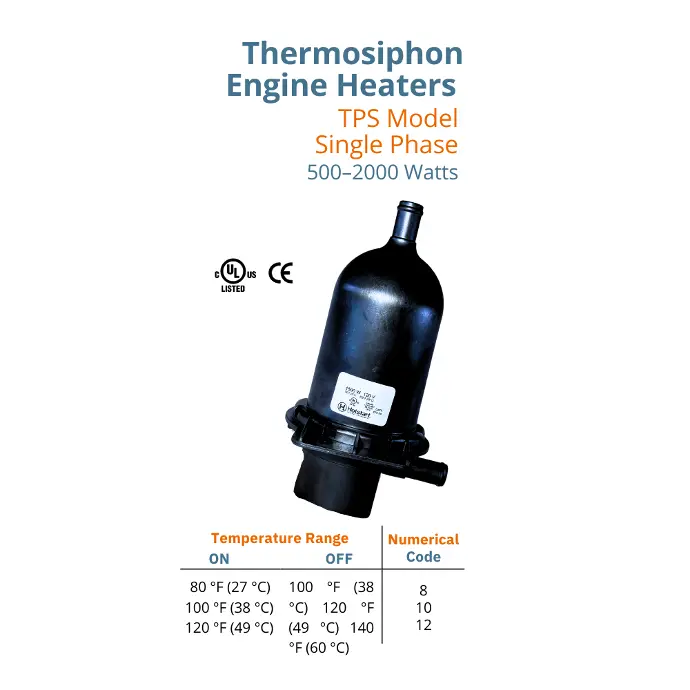

TEMPERATURE RANGE

ON: 100°F (38°C)
OFF: 120°F (49°C)


Pre-Heat: Diesel and Gas engines, construction equipment, trucks, marine and industrial applications

Heating Fluid: Engine Coolant, Water, other – No pump needed (thermosiphon principle)

Engine Displacement: 350 CID (5.7 L)

Volts: 120v – kW: 1 – AMPS: 8.4 – 60Hz

Temperature Range: ON: 100°F (38°C) – OFF 120°F (49°C)



​PROVEN DESING
Depend on consistent, reliable heating with the proven design of the TPS thermosiphon heater.
EASY INSTALLATION
The TPS’s inlet and outlet positions allow for quick and simple installations, reducing complicated plumbing requirements.
VERSATILE & ADAPTABLE
The TPS can be configured for almost any weather-protected application.
  • Power Supply - ◖120 V 1kW 8.4Amps 60Hz

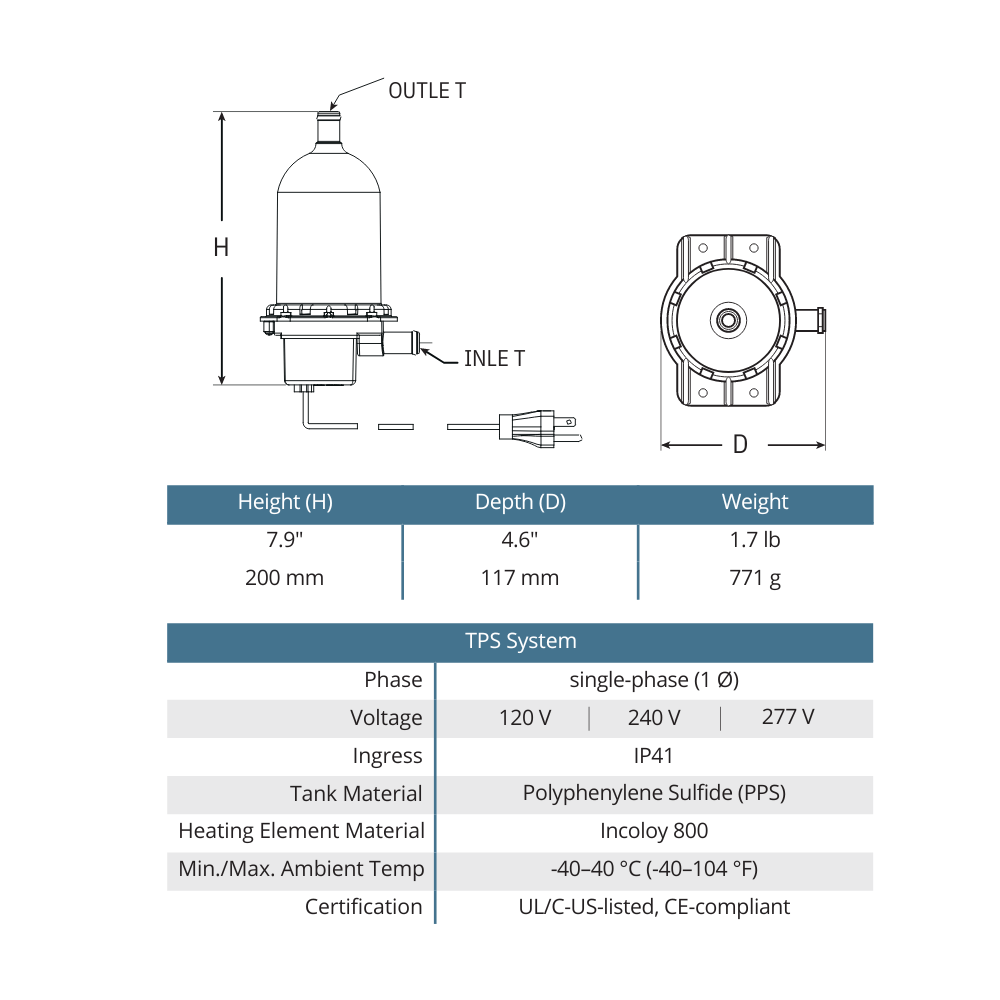

  • TPS System - ◖Phase : single-phase (1 Ø) ◖Voltage : 120V ◖Ingress : IP41 ◖Tank Material : Polyphenylene Sulfide (PPS) ◖Heating Element Material : Incoloy 800 ◖Min./Max. Ambient Temp : -40–40 °C (-40–104 °F) ◖Certification UL/C-US-listed, CE-compliant
  • TPS Coolant - ◖Fluid Type : Water Coolant mix (50% water/50% glycol) ◖Heat Power* : 1 kW ◖Temp. Control : Fixed, 100–120°F (38–49°C) ◖Max. Pressure : 90 psi (620 kPa) ◖Inlet/Outlet : 0.625” hose barb (15.9 mm)
  • Temperature Range  - ◖ON : 100°F (38°C) ◖OFF :  120°F (49°C)


HOTSTART TPS engine heaters provide even heat distribution resulting in reduced engine wear, quick start-ups and reduced emissions. The compact design is ideal for locations that require minimal mounting space. Specs: Heating Element: Incoloy 800 Enclosure: IP41 Resists corrosion Fluid Capacity: 0.11 gal (0.42 L) Maximum Pressure: 90 psi (620 kPa) Inlet/Outlet Plumbing: 0.625” (15.9 mm) Tank Material: Polyphenylensulfid PPS L-C/US listed CE compliant. Power cord length on all models – 48” (1219mm).

  • Pre-Heat: Diesel and Gas engines, construction equipment, trucks, marine and industrial applications
  • Heating Fluid: Engine Coolant, Water, other – No pump needed (thermosiphon principle)
