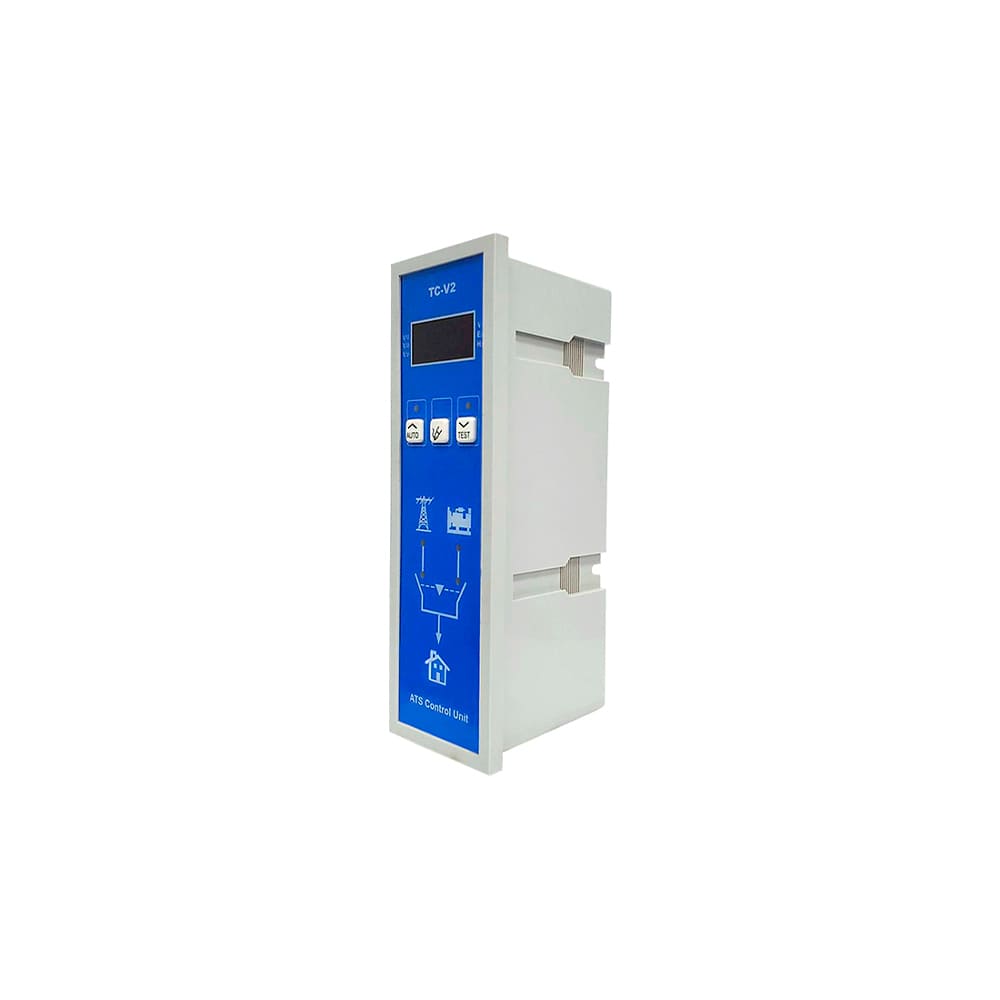

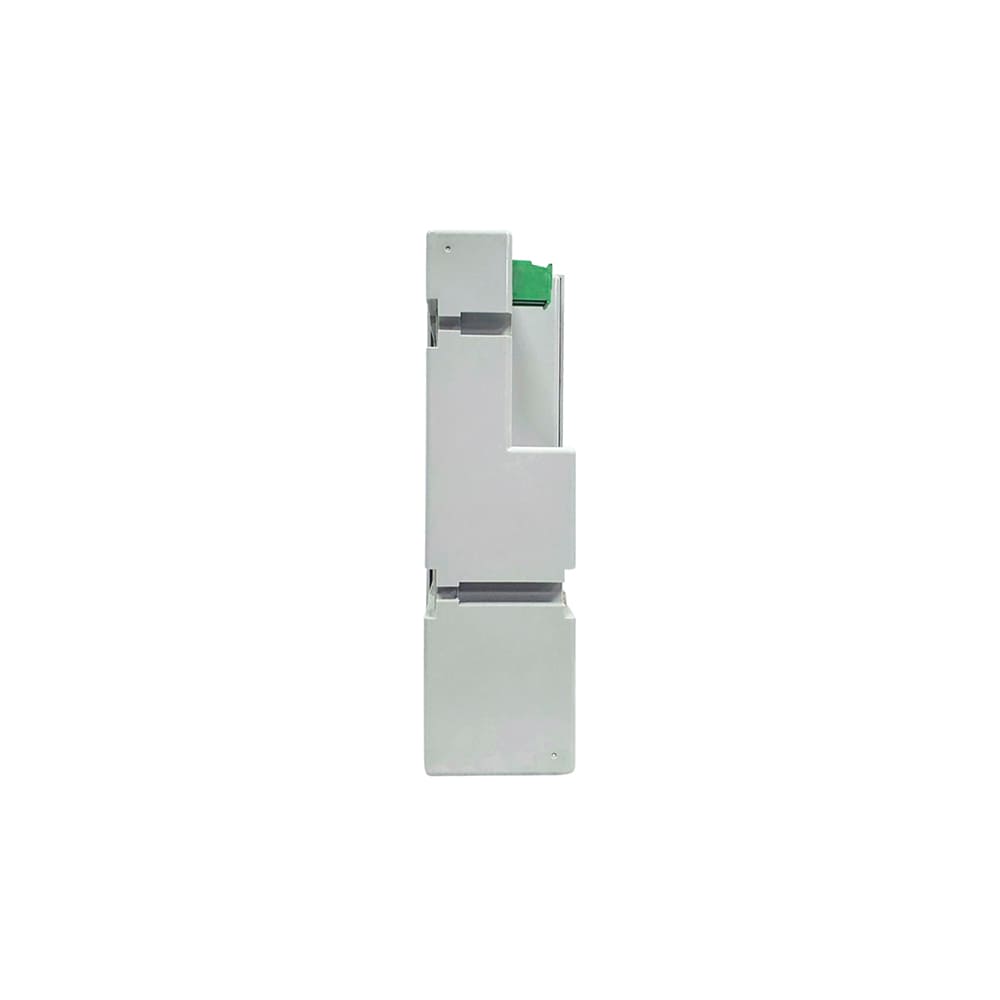

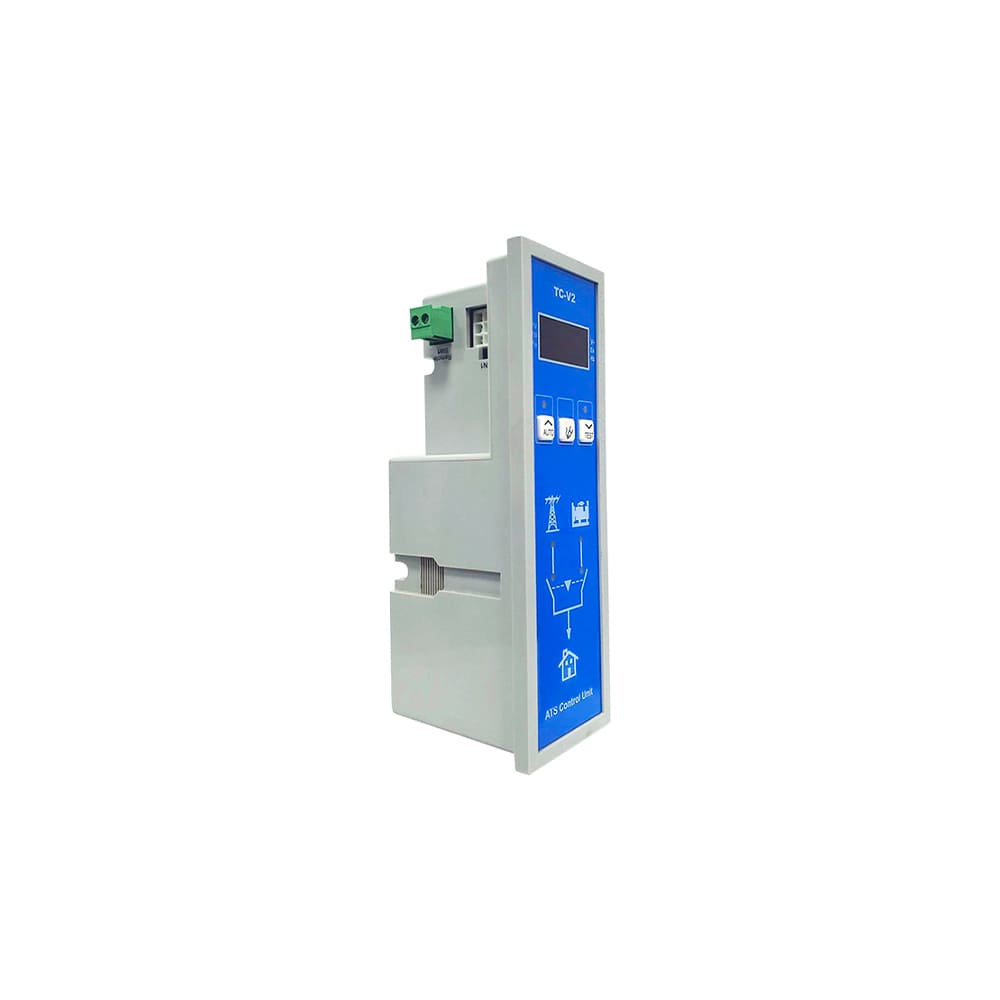

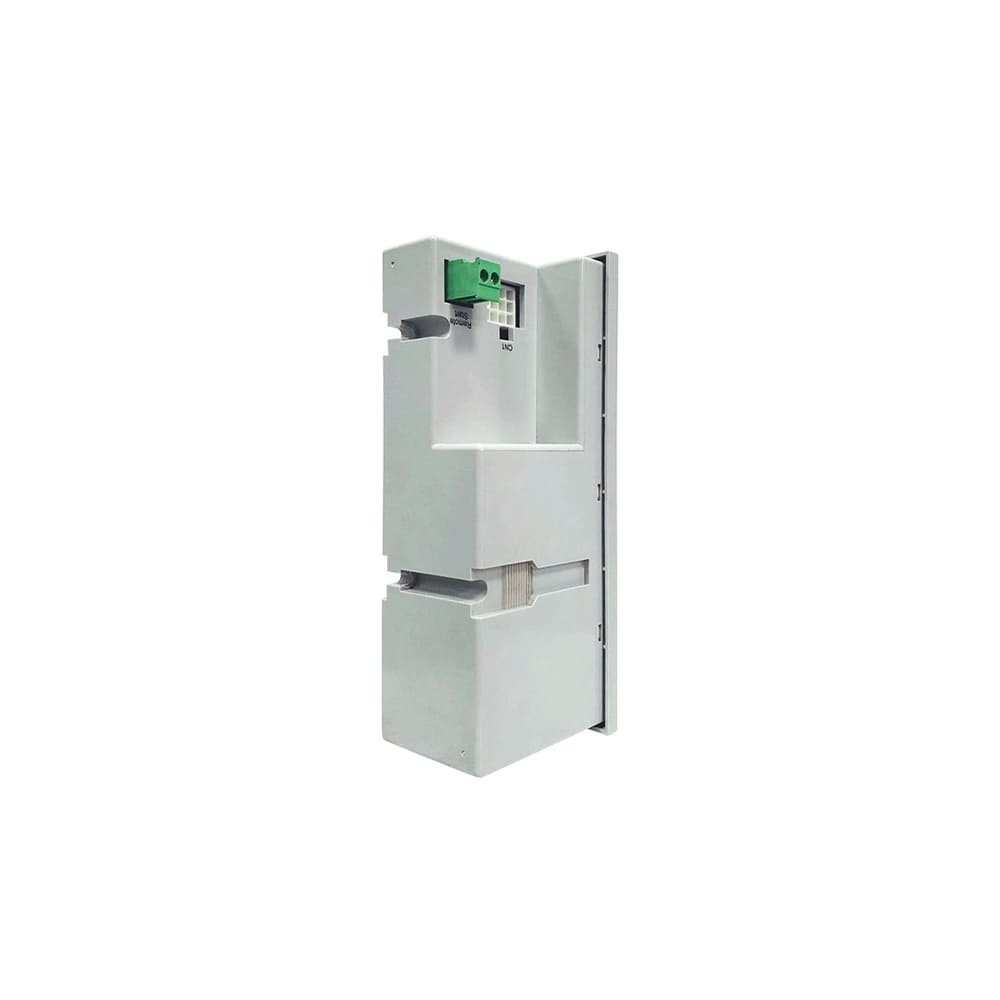

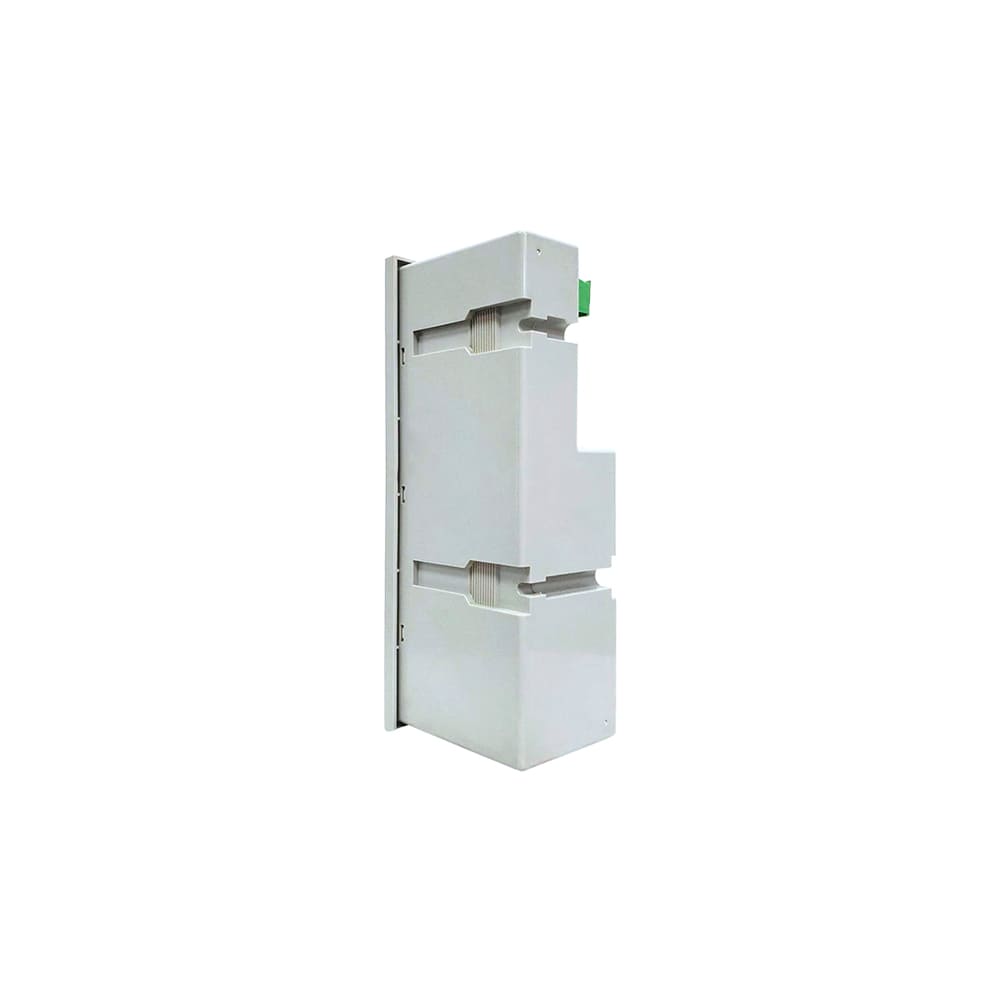

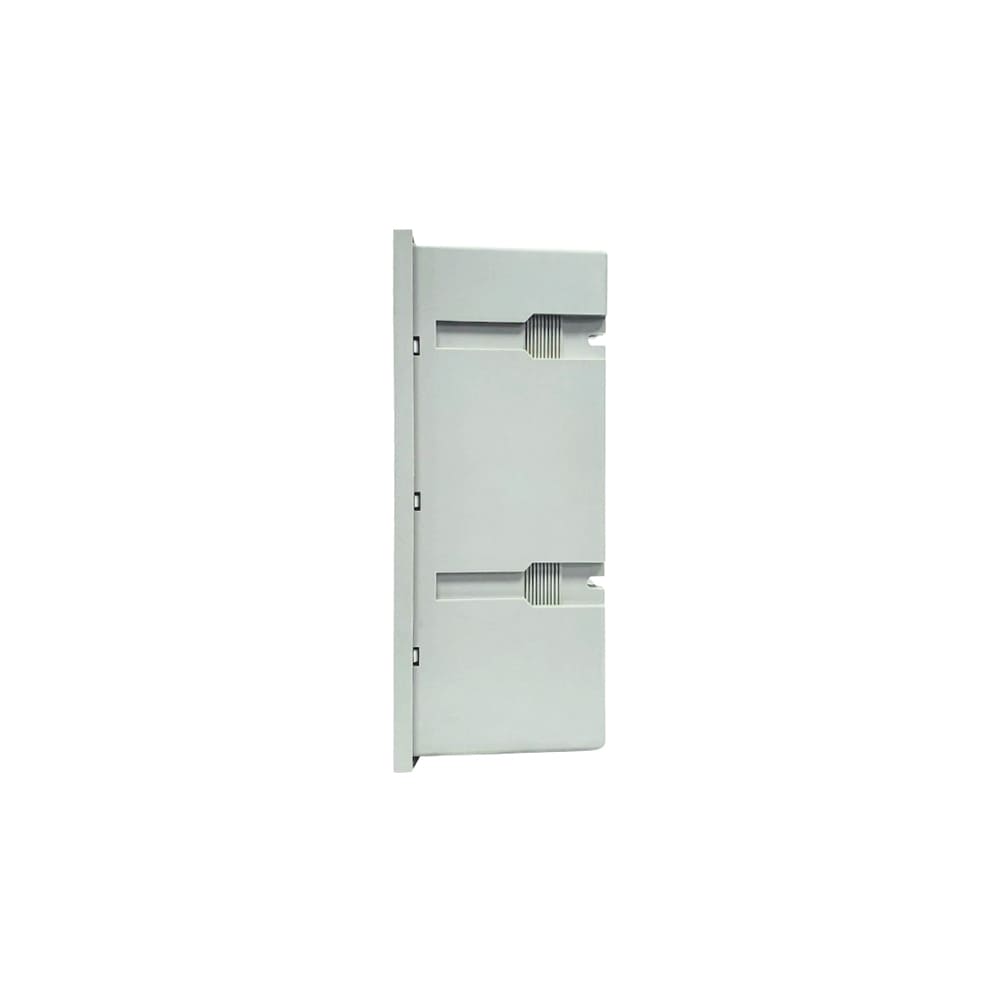

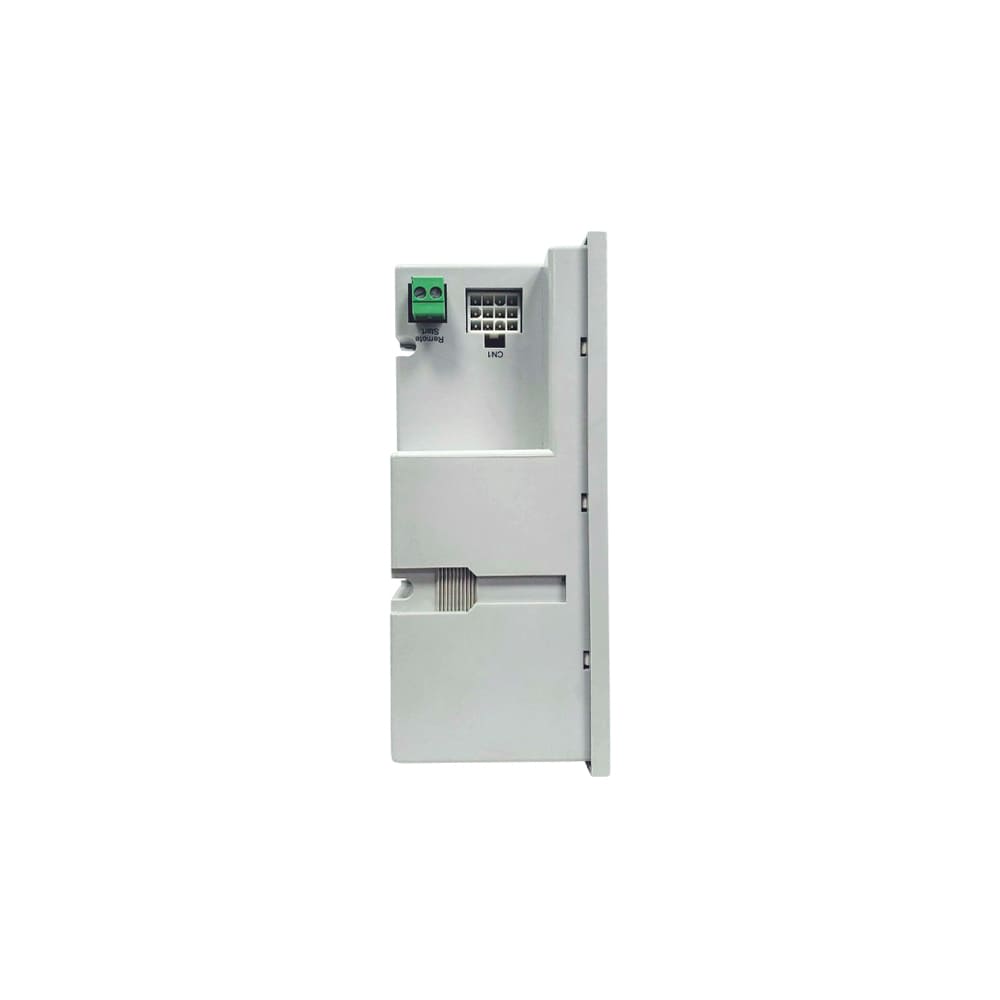

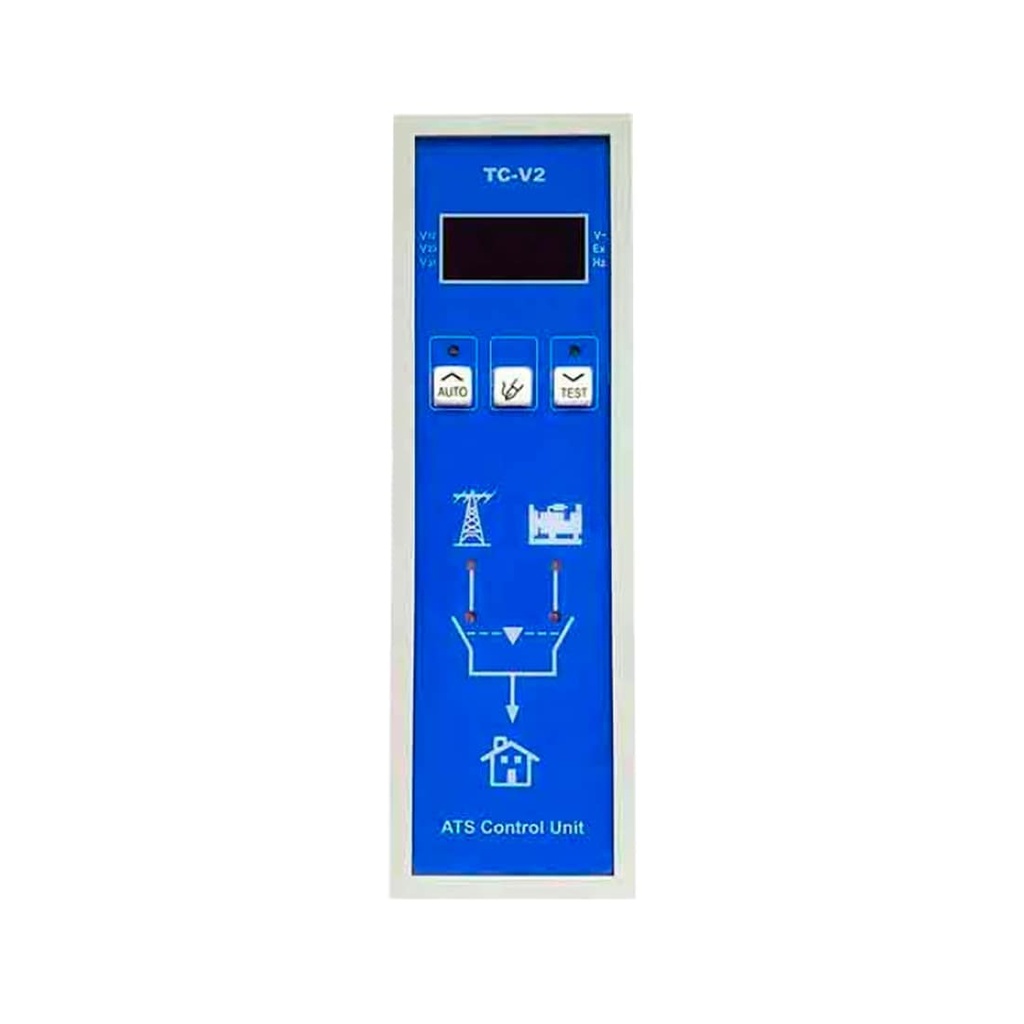

Power Master TC-V2 Controller

https://powermaster.odoo.com/web/image/product.template/9689/image_1920?unique=ea600e0

Digital control unit

$ 290.24 290.24 USD $ 290.24

$ 290.24

Not Available For Sale

This combination does not exist.

Contact Us
TC-V2 controller Transfer switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

 OVER VOLT SETTING

110 to 530 VAC (adjustable)

POWER CONSUMPTION

 < 1W

WEIGHT

2 POUNDS

SIZE

2.4 × 8 × 3 Inche​s

STANDBY ON CAPACITY

7A @ 250 VAC Max.

MONITOR EMERGENCY SOURCE

For single phase over and under voltages

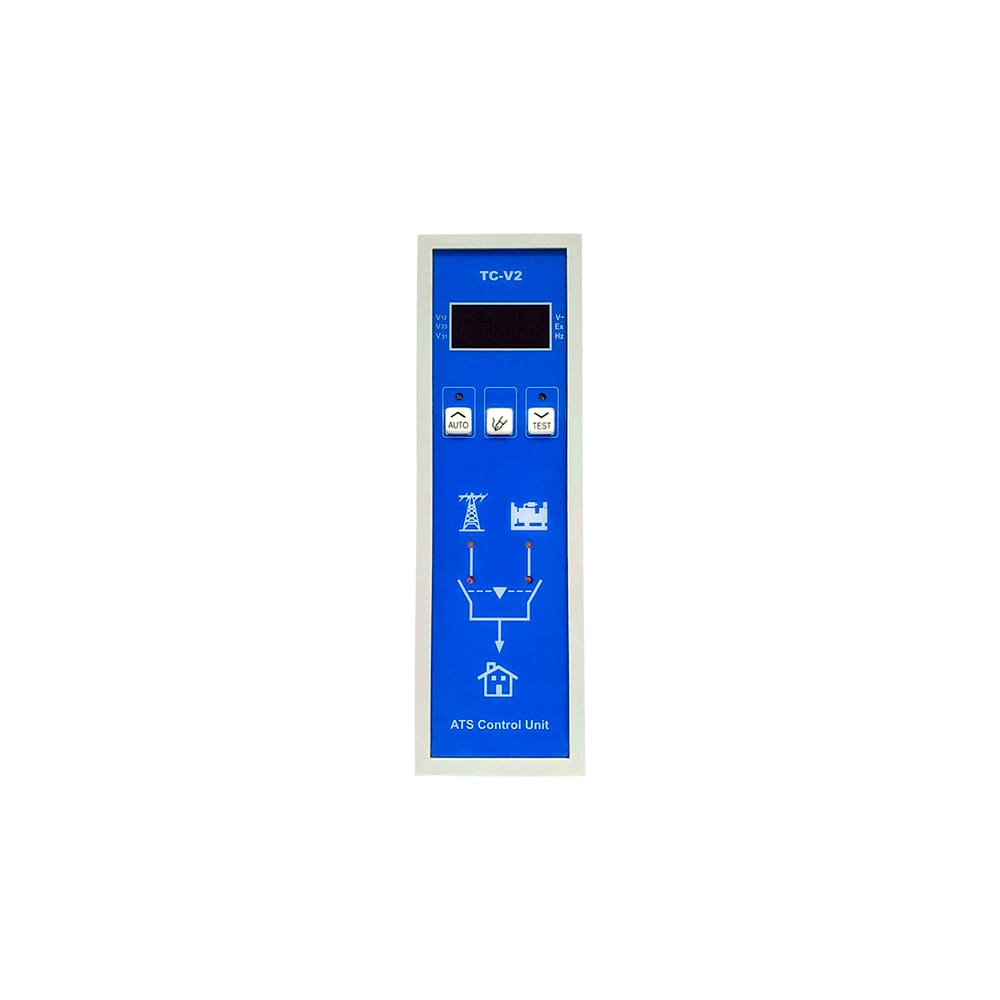

SHOW STATUS AND FAID ALARM

    LED’s on the front panel.

BUILT-IN 1 TO 4 WEEKS

  Exerciser timer.

  • Over Volt Setting - ◖110 to 530 VAC (adjustable)
  • Over Volt Reset - ◖1Below 10 VAC of the OV Setting.
  • Normal ON Capacity - ◖7A @ 250 VAC Max
  • Satndby ON Capacity - ◖7A @ 250 VAC Max
  • Remote Start Capacity - ◖6A @ 277 VAC / 6A @ 28 DC Max.


  • Power Consumption- ◖< 1W
  • ATS Class - ◖Class PC
  • Dimensions - ◖Weight: 2 POUNDS ◖Size: 2.4 x 8 x 3 Inches

The TC-V2 digital control unit offers programming flexibility to customize the ATS to different customer requirements.
