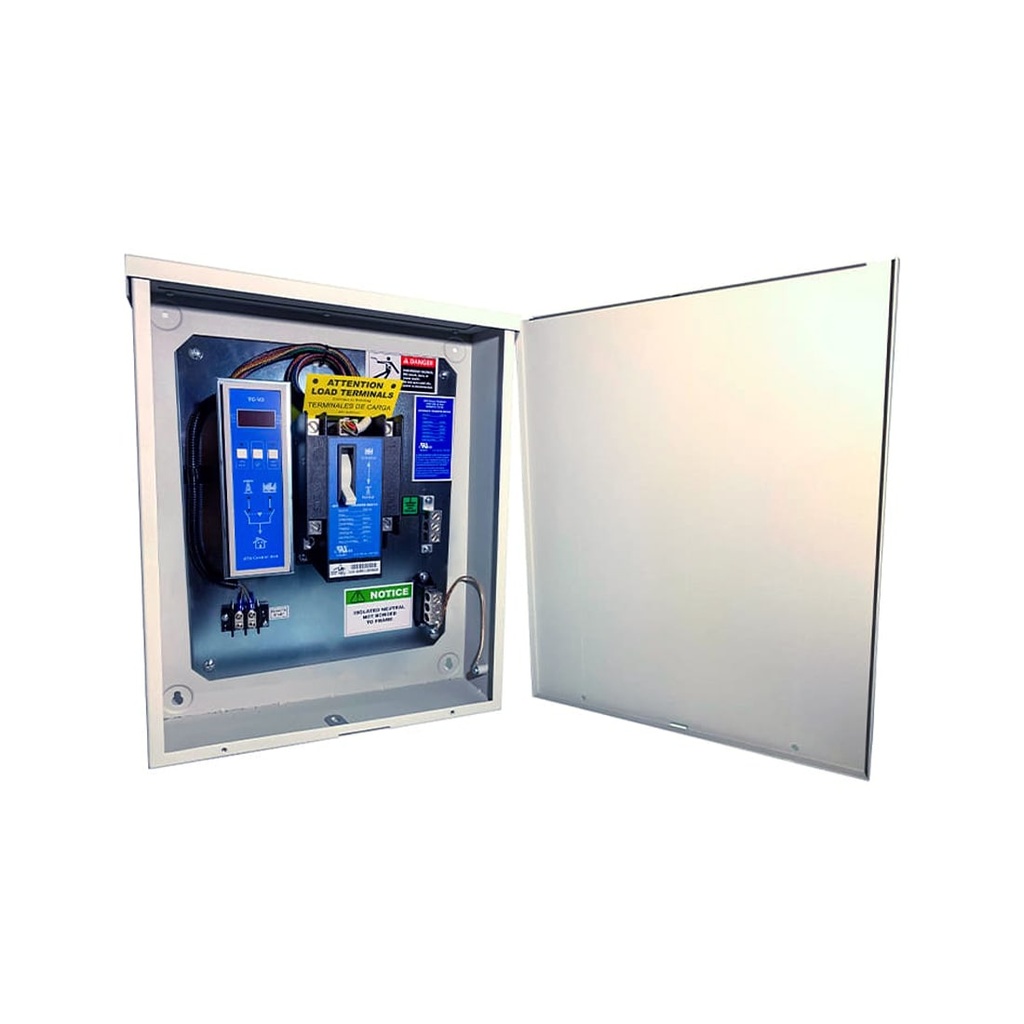

Power Master T-ATS3PC0150-22 Automatic Transfer Switch, and Enclosure / 3pole /150Amp

https://powermaster.odoo.com/web/image/product.template/10055/image_1920?unique=65a5609

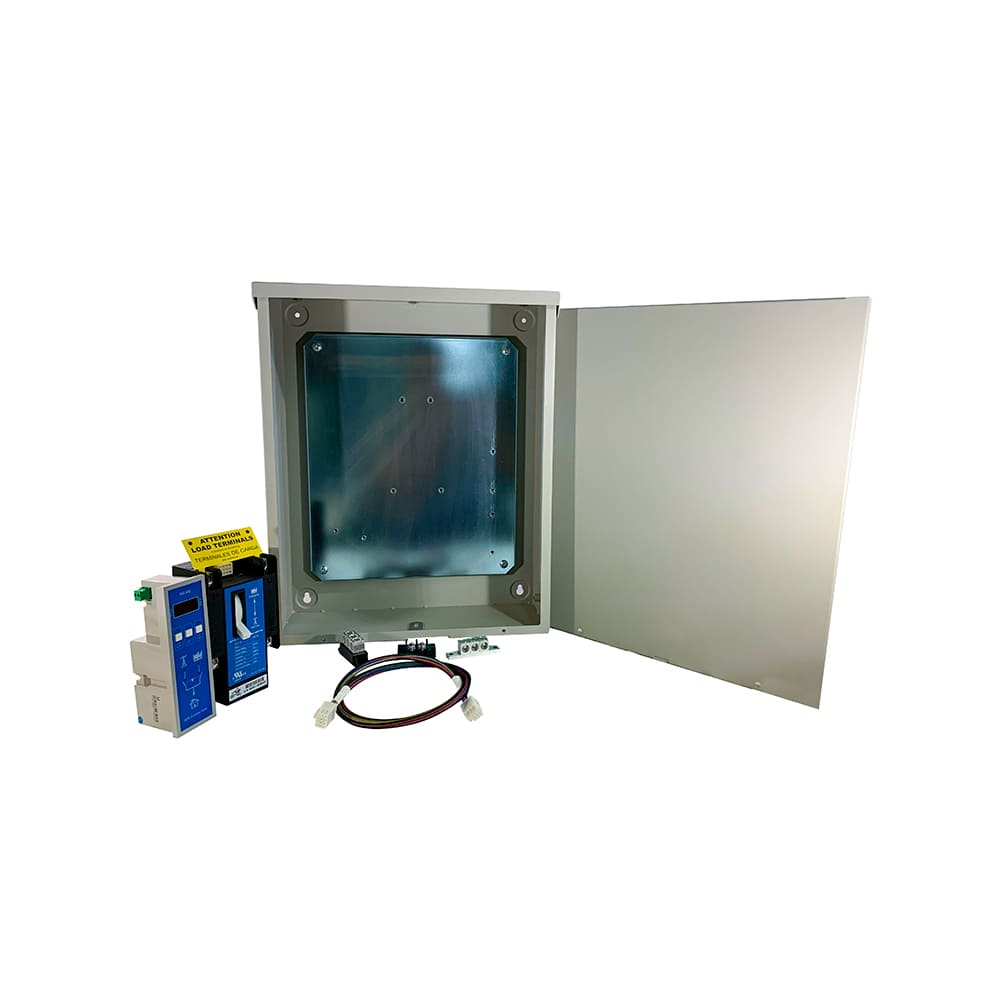

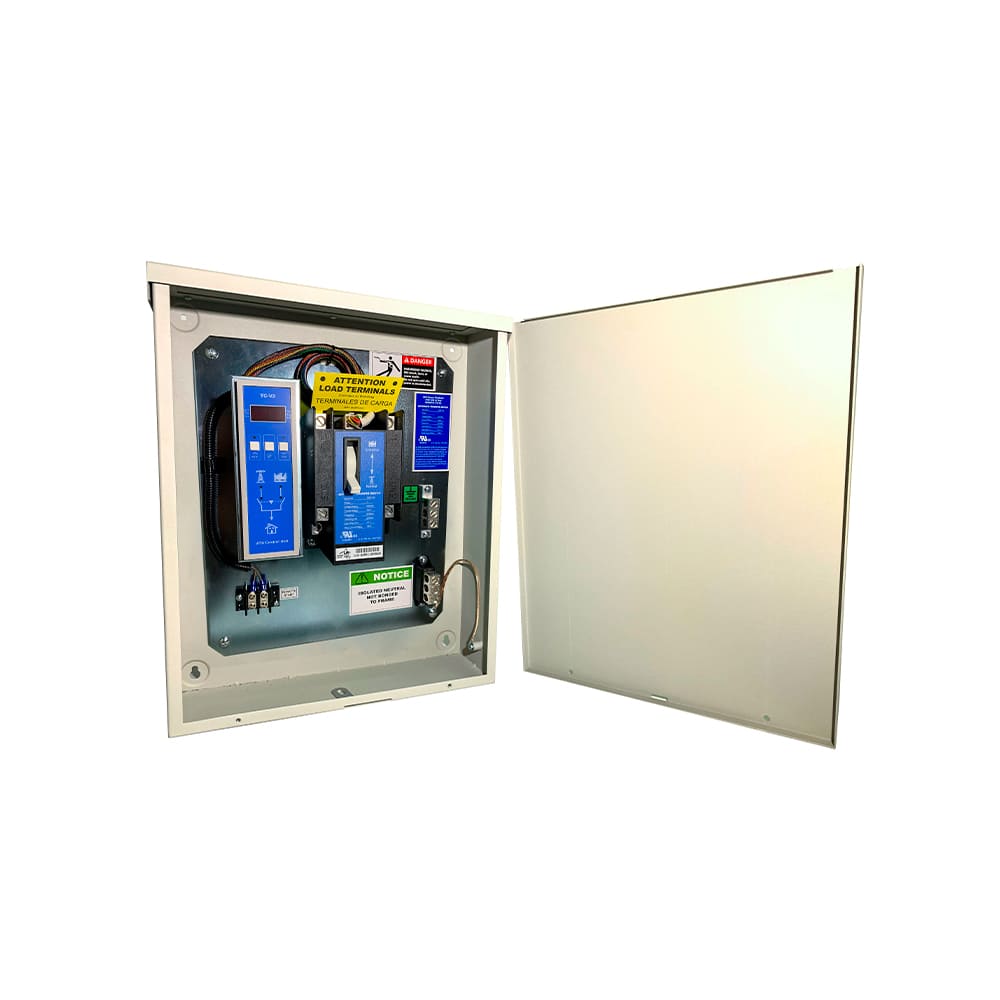

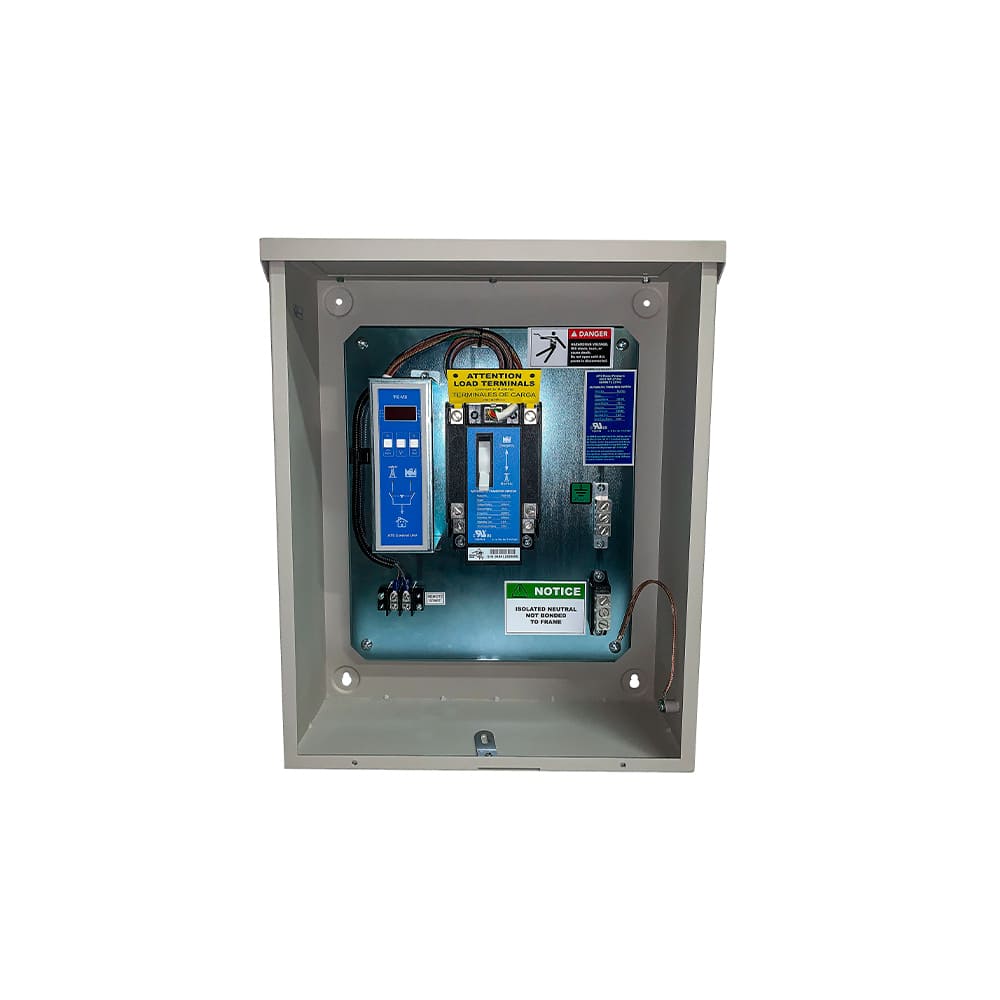

Automatic Transfer Switch, Controller and Enclosure / 3pole /150Amp

$ 1,218.69 1218.69 USD $ 1,218.69

$ 1,218.69

Not Available For Sale

This combination does not exist.

Contact Us
Automatic Transfer Switch ATS3PC0150-22

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

RATED VOLTAGE

120/240 VAC

SWITCH TYPE

Double throw with Neutral position

WEIGHT

27 POUNDS

SIZE

6 × 16 × 20 Inches

LIFE

6000 Times with Loads

ELECTRICALLY OR MANUALLY OPERATED

Mechanically held contacts.

ADJUSTABLE TIME

Delay in neutral position.

DESIGNED FOR MANY APPLICATIONS

On telecom industry or home ATS applications.

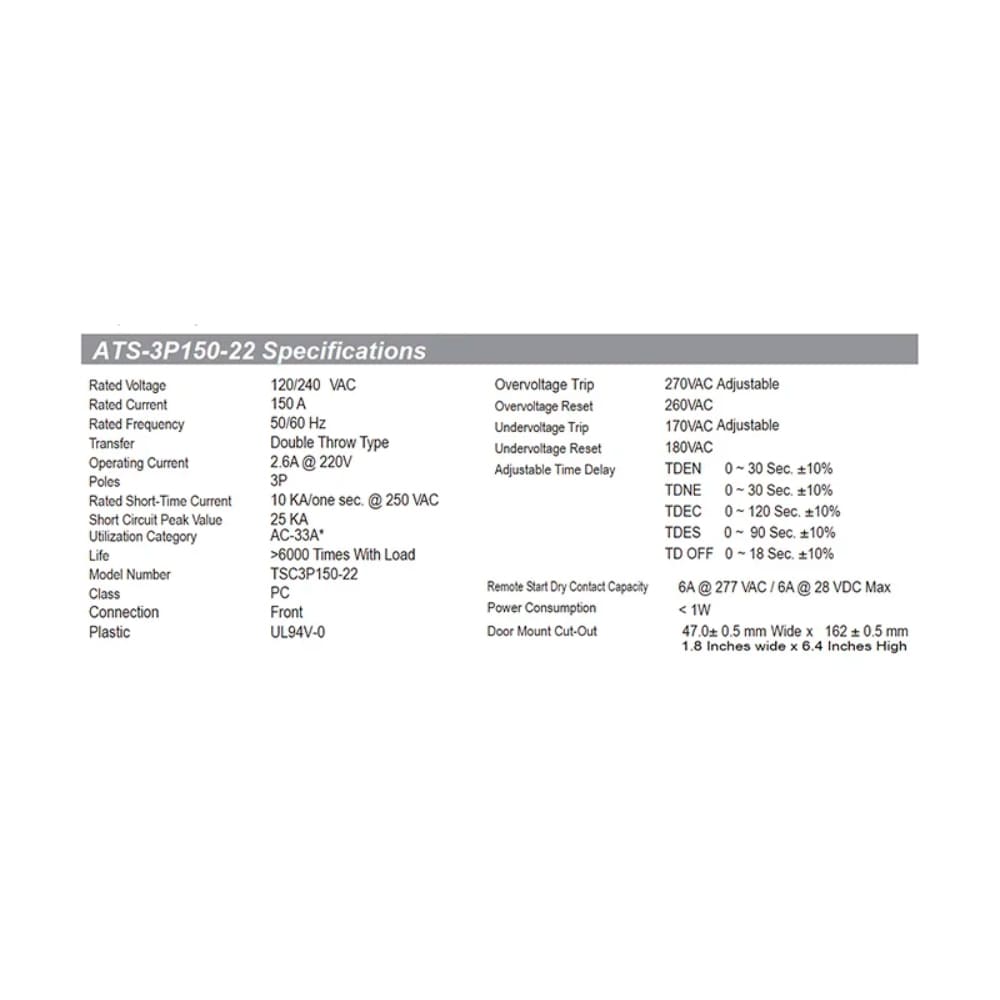

  • Rated Voltage - ◖120/240 VAC
  • Rated Current - ◖150 Amp
  • Rated Frequency - ◖50/60 Hz
  • Pole - ◖3 Poles
  • Switch Type - ◖Double throw with Neutral position
  • Operating Current - ◖2.6A @ 220V
  • Rated Short-Time Current - ◖ 10 KA / 1 sec. @ 250 Vac
  • Short Circuit Peak Value - ◖25 KA


  • Utilization Category - ◖AC-33A*
  • Life - ◖>6000 times / with load
  • ATS Class - ◖PC
  • Overvoltage Trip - ◖270 VAC adjustable
  • Overvoltage Reset - ◖260 VAC
  • Power Consumption - ◖ AC-33A*
  • Dimensions - ◖Weight: 27 POUNDS ◖Size: 6 x 16 x 20 Inches

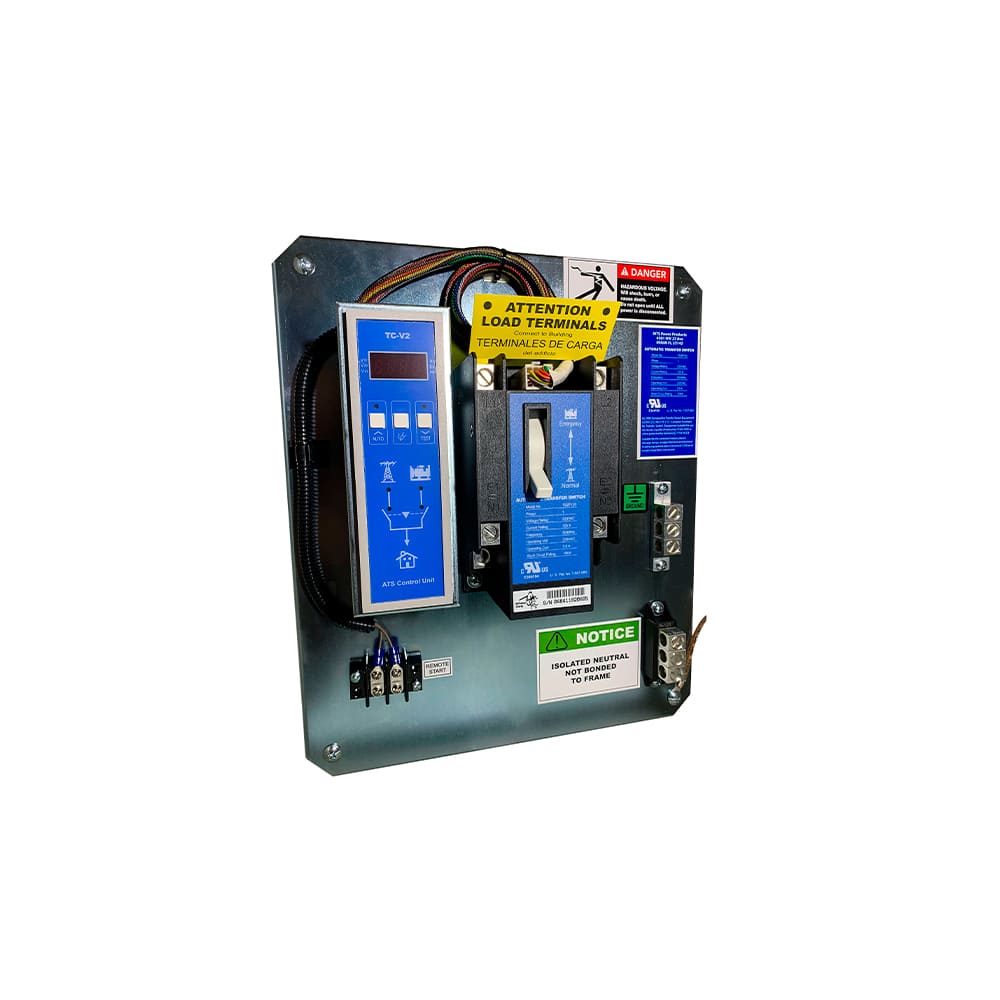

The ATS3PC0150 is a brand-new modularized design ATS Automatic Transfer Switch with enclosure. Ideal for residential power systems, with rated current of 125A and rated voltage 110 Vac or 220 Vac single phase to choose from, it is electrically of manually operated and all parts are made with UL 94V-0 plastic for highest safety standards. Indicator LEDs provide status information and fault conditions. Ideal for standby generator or other industrial applications.
