  3. Power Master T-ATS3PC0125-22 Automatic Transfer Switch, and Enclosure / 3pole /125Amp

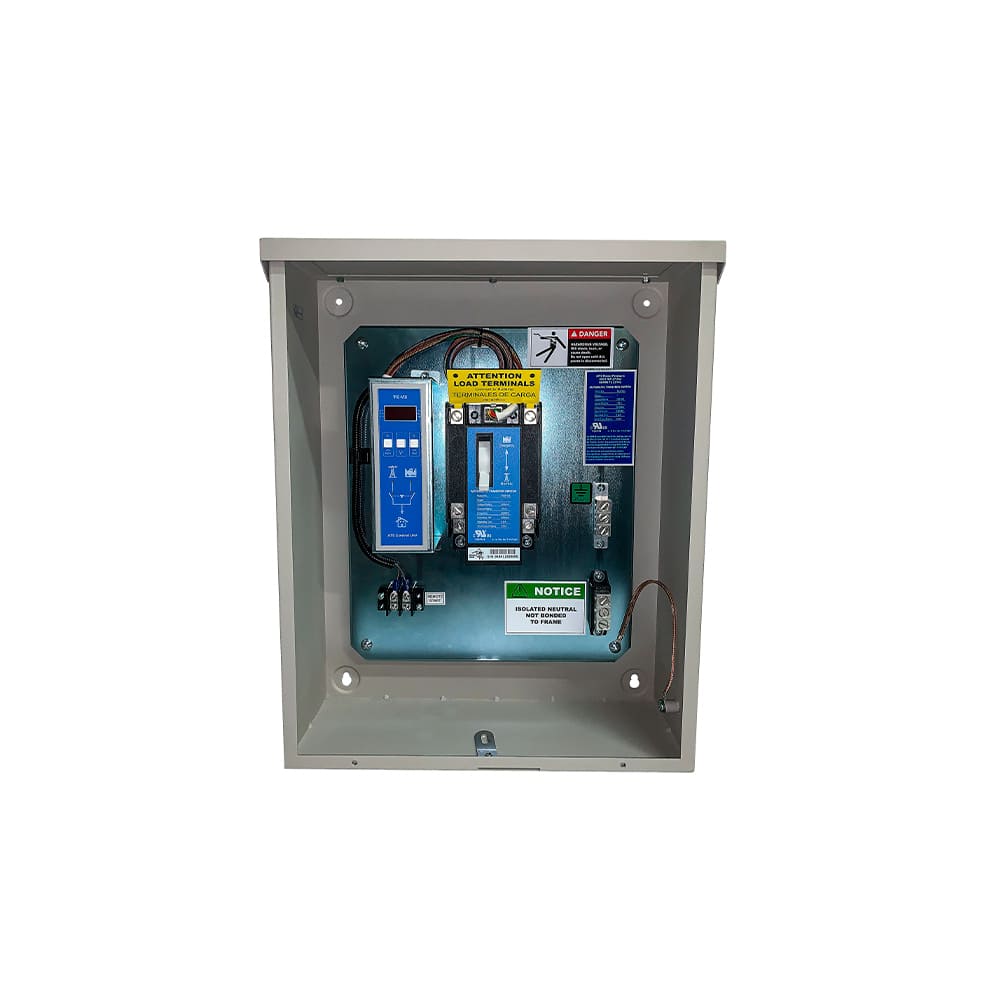

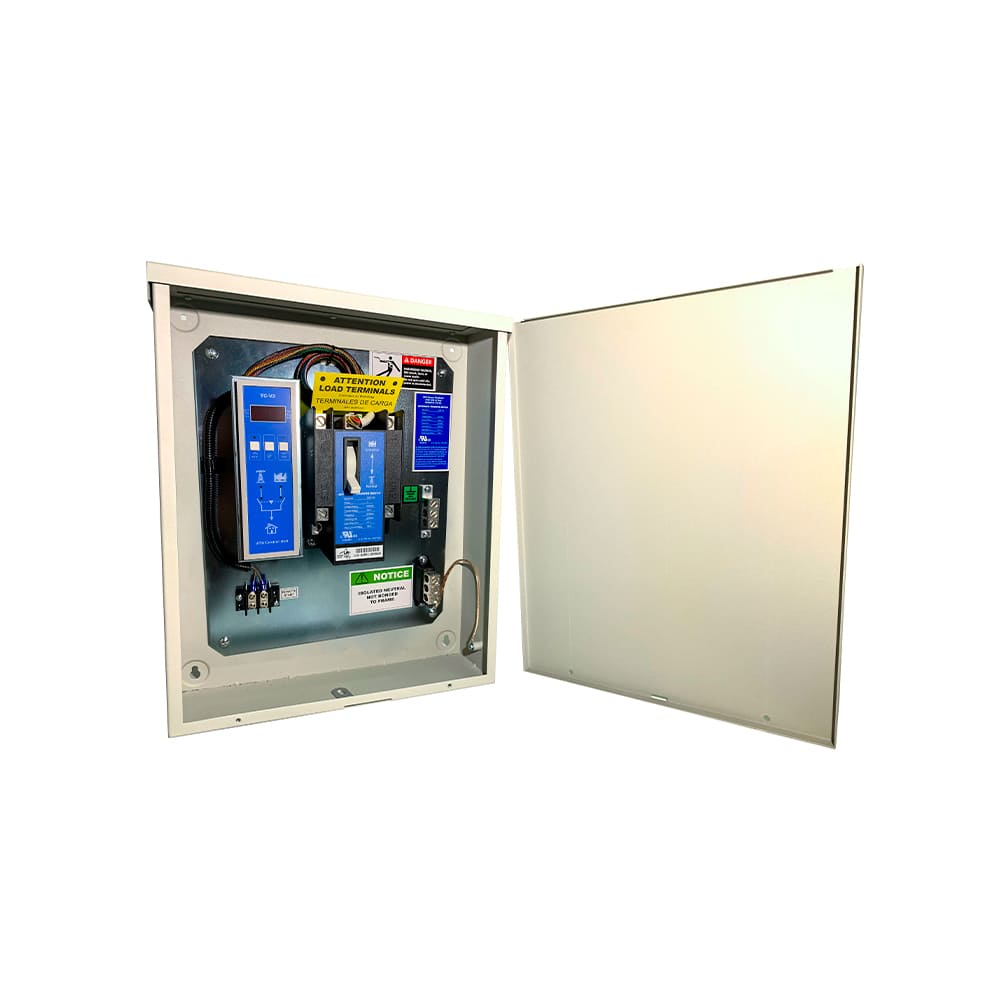

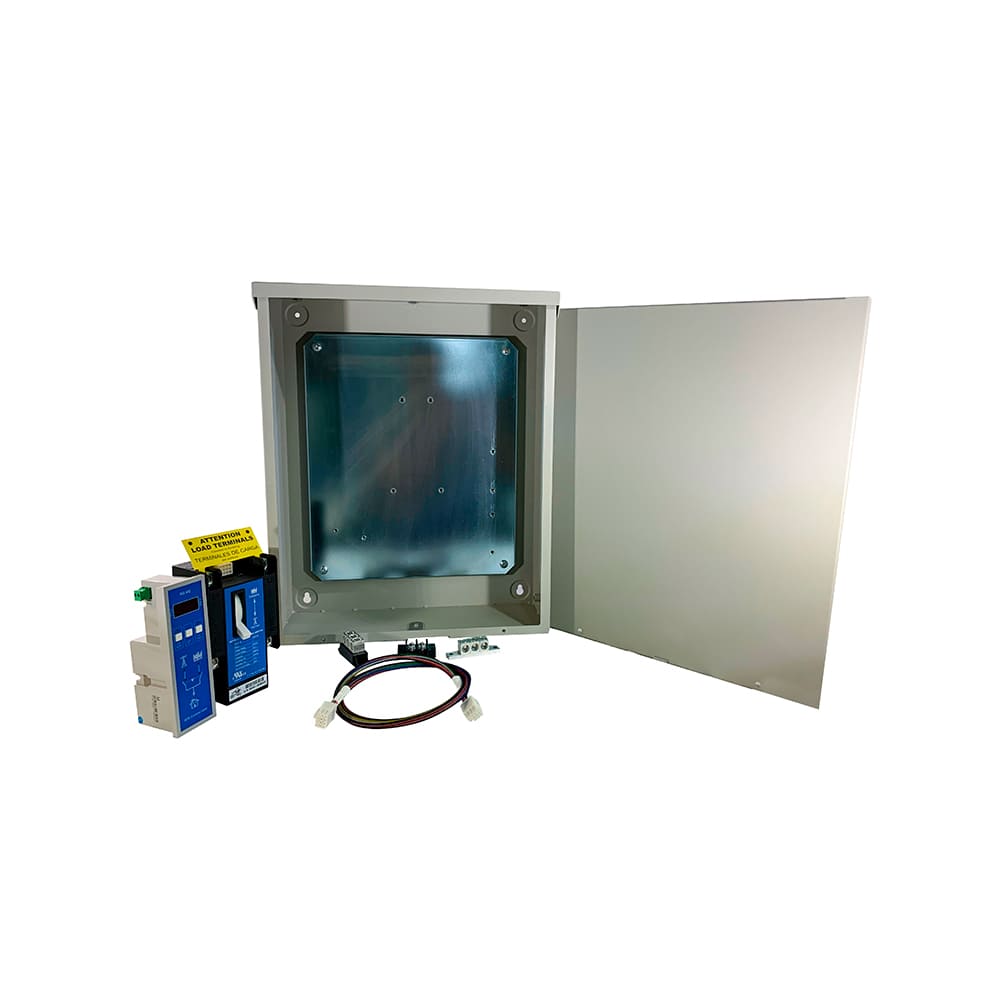

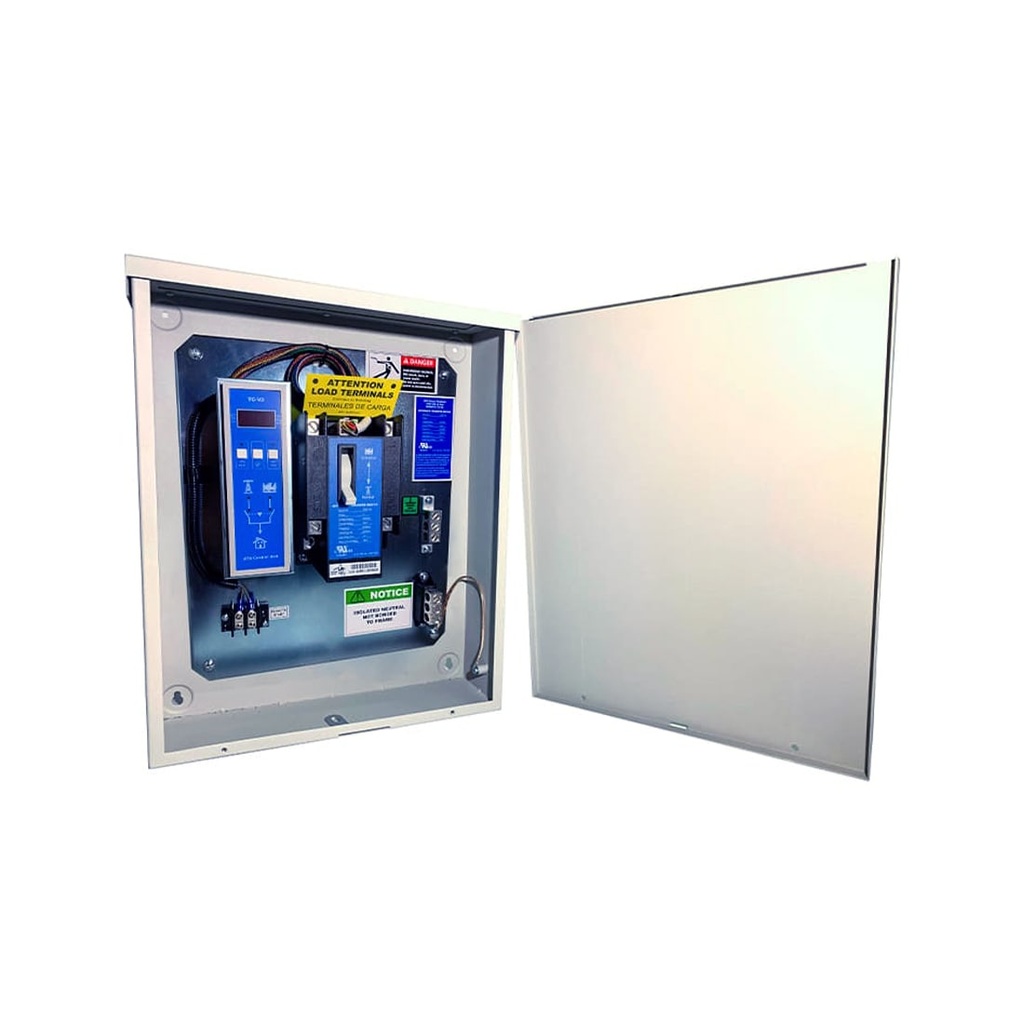

Power Master T-ATS3PC0125-22 Automatic Transfer Switch, and Enclosure / 3pole /125Amp

https://powermaster.odoo.com/web/image/product.template/10054/image_1920?unique=41b93d4

Automatic Transfer Switch, Controller and Enclosure / 3pole /125Amp

$ 1,139.39 1139.39 USD $ 1,139.39

$ 1,139.39

Not Available For Sale

This combination does not exist.

Contact Us
Automatic Transfer Switch ATS3PC125-22

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

RATED VOLTAGE

120/240 VAC

SWITCH TYPE

Double throw with Neutral position

WEIGHT

27 POUNDS

SIZE

6 × 16 × 20 Inches

LIFE

6000 Times with Loads

ELECTRICALLY OPERATED

And mechanically held.

COMPACT SIZE

light weight and low power consumption.

MONITOR NORMAL

& Standby source OV and UV.

  • Rated Voltage - ◖120/240 VAC
  • Rated Current - ◖125 Amp
  • Rated Frequency - ◖50/60 Hz
  • Pole - ◖3 Poles
  • Switch Type - ◖Double throw with Neutral position
  • Operating Current - ◖2.6A @ 220V
  • Rated Short-Time Current - ◖10 KA / 1 sec. @ 250 Vac
  • Short Circuit Peak Value - ◖25 KA


  • Utilization Category - ◖AC-33A*
  • Life - ◖>6000 times / with load
  • ATS Class - ◖PC
  • Overvoltage Trip - ◖270 VAC adjustable
  • Overvoltage Reset - ◖260 VAC
  • Power Consumption - ◖ AC-33A*
  • Dimensions - ◖Weight: 27 POUNDS ◖Size: 6 x 16 x 20 Inches

The ATS3PC0125 is a brand-new modularized design ATS Automatic Transfer Switch with enclosure. Ideal for residential power systems, with rated current of 125A and rated voltage 110 Vac or 220 Vac single phase to choose from, it is electrically of manually operated and all parts are made with UL 94V-0 plastic for highest safety standards.
