  3. Power Master SX440 Automatic Voltage Regulator

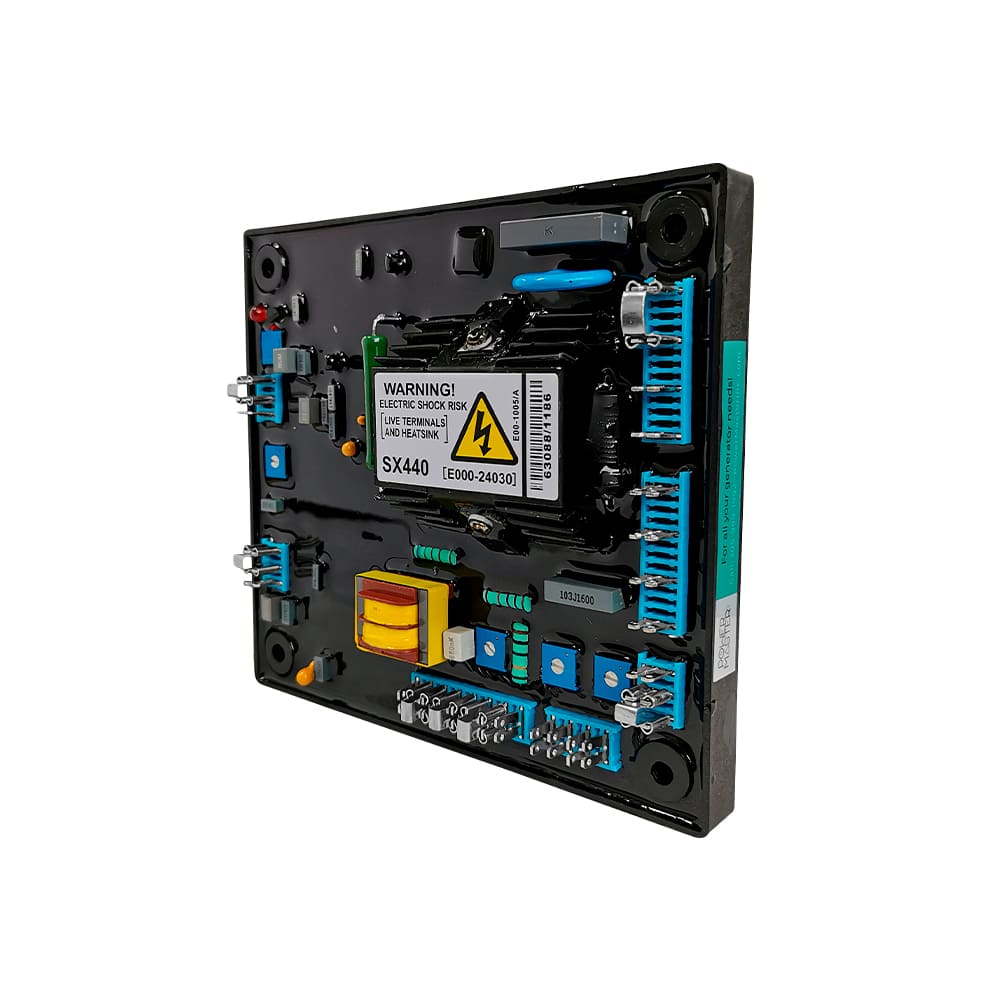

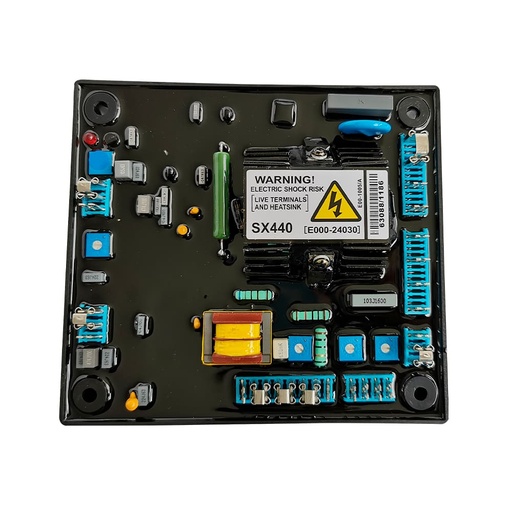

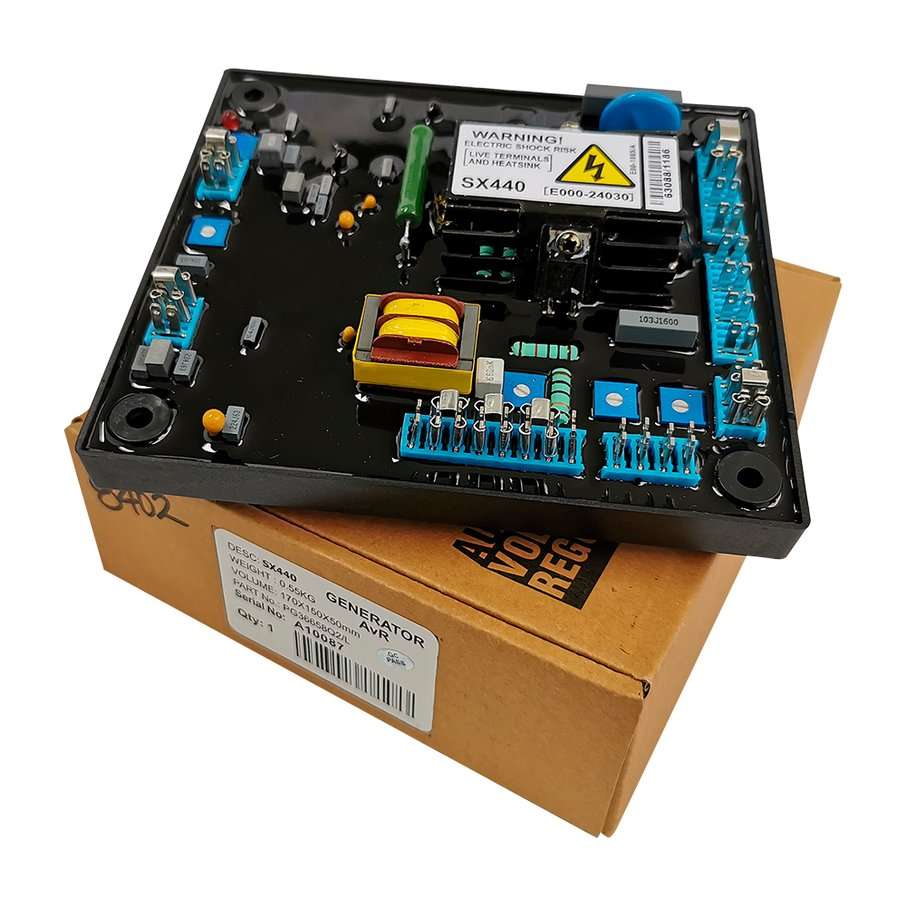

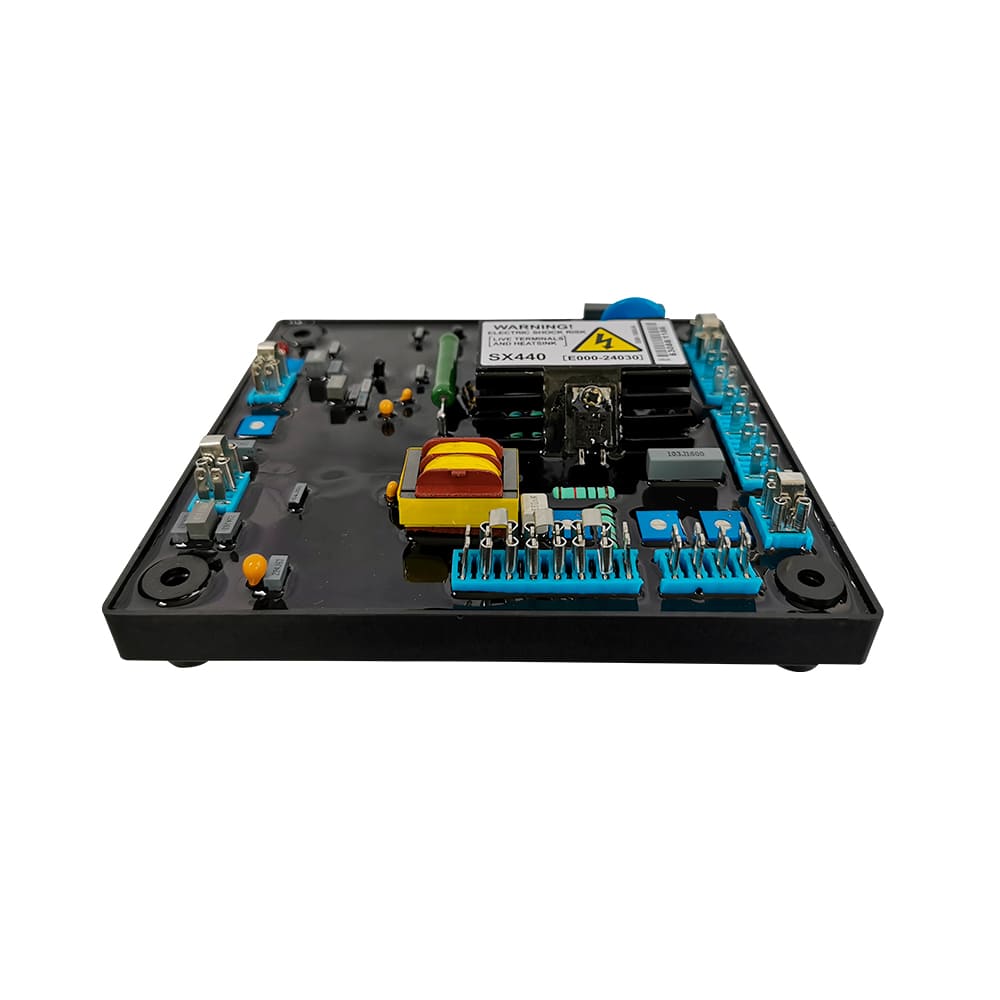

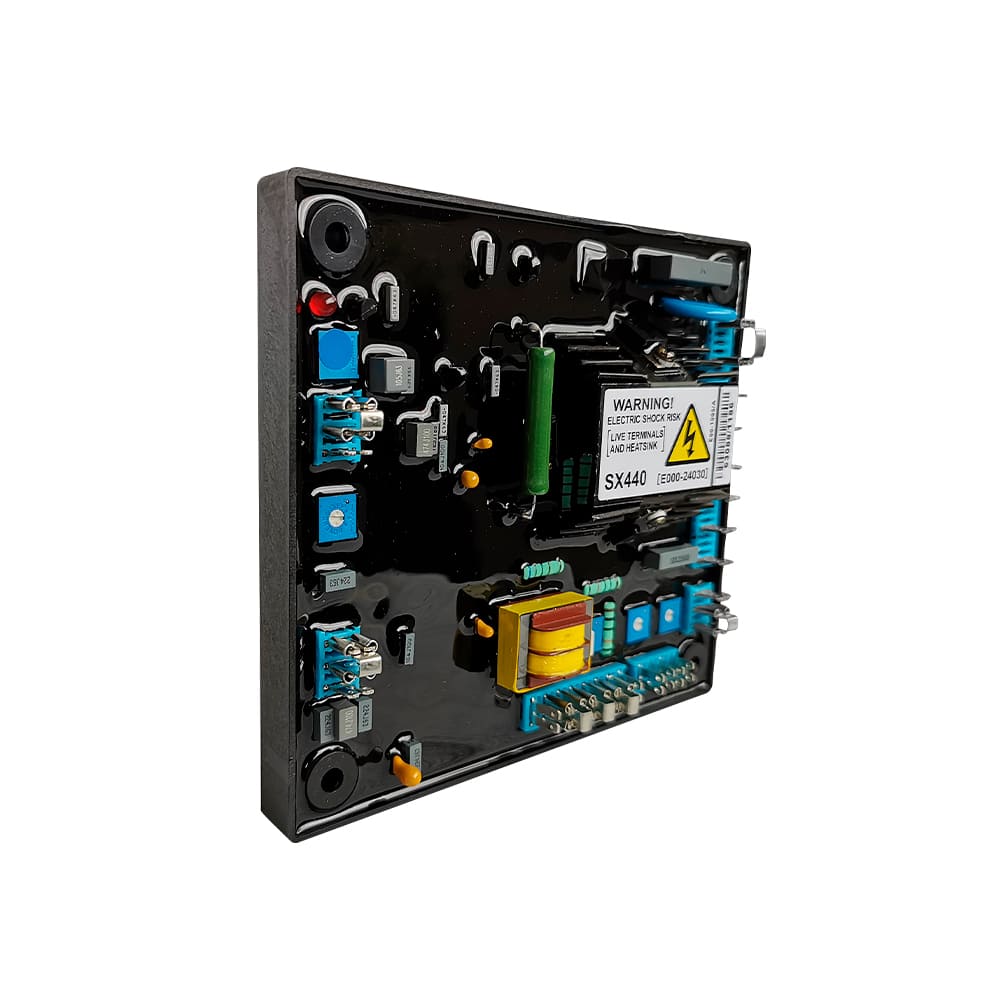

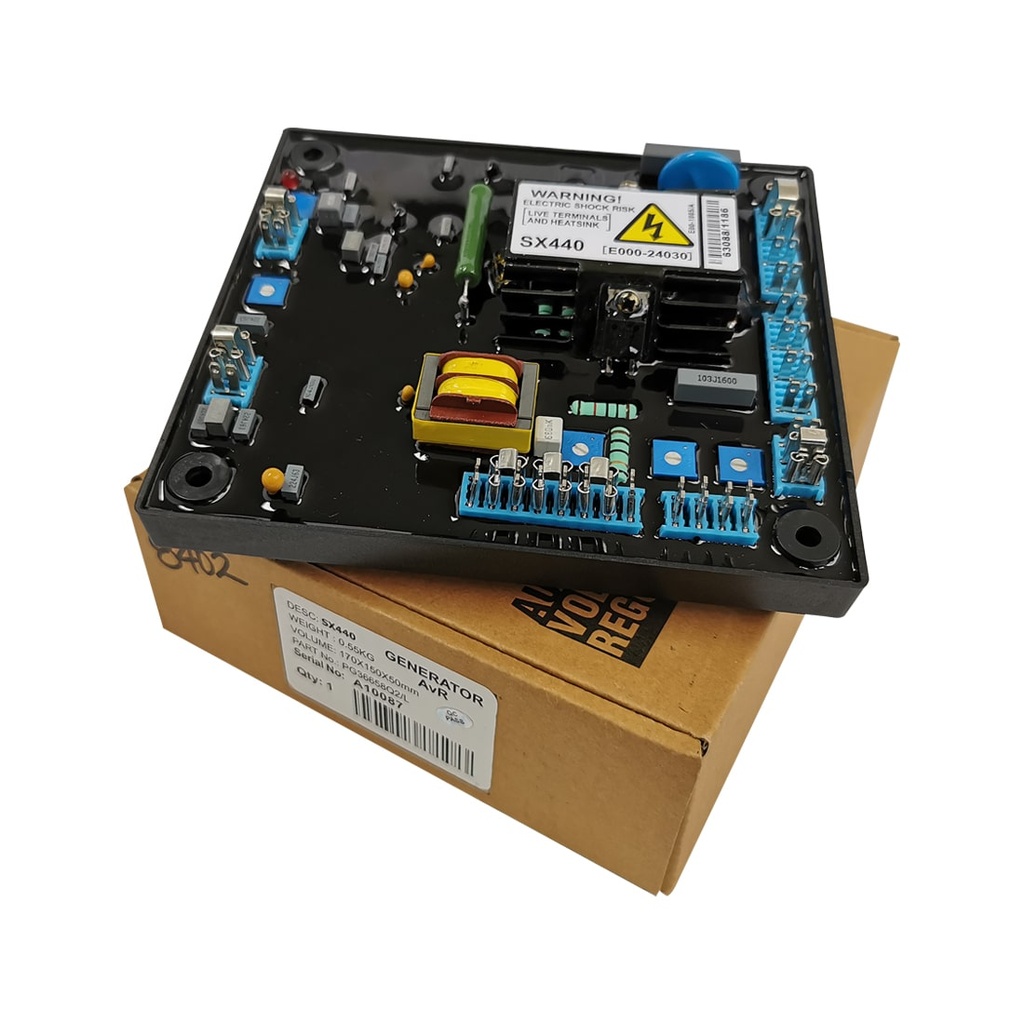

Power Master SX440 Automatic Voltage Regulator

https://powermaster.odoo.com/web/image/product.template/9603/image_1920?unique=41c4759

SX440 Automatic Voltage Regulator. INPUT: 190 - 264V ac. OUTPUT: Max 90V dc at 207V ac | Frequency: 50-60 Hz nominal

$ 45.49 45.49 USD $ 45.49

$ 45.49

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days




INPUT VOLTAGE

85V AC - 140V AC single phase, 2-wire



OUTPUT VOLTAGE

Max 90V de at 207V ac input

WEIGHT

1.2 POUNDS

SIZE

8 x 6 x 3 Inches

REGULATION

+/-1%


SX440 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator.

In addition to regulating the generator voltage, the AVR circuitry includes under-speed and sensing loss protection features. Excitation power is derived directly from the generator terminals.

 THERMAL DRIFT

0.04% per deg. C change In AVR ambient

QUADRATURE DROOP INPUT

10 ohms burden / Max. sensitivity: 0.07 A far 5% droop 0PF / Max. Input: 0.33A

UNIT POWER DISSIPATION

12 watts maximum

  • Input Voltage -◖190-264V ac / Frequency: 50-60 Hz nominal- 1 Phase / 2 Wire
  • Output Voltage -◖Max 90V de at 207V ac input / ◖Current: continuous 4A dc  / lntermittent 6A for 1 O secs / ◖Ressitence: 15 ohms minimum
  • Regulation -◖+/-1%
  • Thermal Drift -◖0.04% per deg. C change In AVR ambient
  • Typical System Response -◖AVR response 20ms / Filed current lo 90% 80 ms / Machine Volts to 97% 300ms
  • External Voltage Adjustment -◖+/-10% with 1 k ohm 1 watt trimmer
  • Under Frequency Protection -◖Set point 95% Hz / Slope 170% down to 30 Hz


  • Unit Power Dissipation -◖12 watts maximum
  • Build Up Voltage -◖4 Volts @ AVR terminals
  • Analogue input -◖Maximum input +/- 5V dc / Sensitivity 1v for 5% Generator / lnput rcsistanco 1k ohm
  • Quadrature droop Input -◖10 ohms burden / Max. sensitivity: 0.07 A far 5% droop 0PF / Max. Input: 0.33A
  • Environmental -◖Vibration: 20-100 Hz - 50mm/sec - 100Hz 2kHz ◖Operating temperature: -40 to +70°C ◖Relative Humidily: 0-70 °C: 95% ◖Storage temperature: -55 to +80 °C

SX440 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator. In addition to regulating the generator voltage, the AVR circuitry includes under-speed and sensing loss protection features. Excitation power is derived directly from the generator terminals.



Stability Adjustment

The AVR includes a stability or damping circuit to provide good steady state and transient performance of the generator.

Droop Adjustment

Generator intended for parallel are fitted with a quadrature droop CT with provides a power factor dependent signal for the AVR

Trim Adjustment

An analogue input (A1 A2) is provided to connect to the Newage Power Factor Controller or other devices. It is designed to accept de signals up to +/- 5 volts.

First feature

A short description of this great feature.

Another feature

A short description of this great feature.



The AVR incorporates an underspeed protection circuit which gives a volts/Hz characteristic when the generator speed falls below a presettable threshold known as the "knee" point.

The red Light Emitting Diode (LED) gives indication that the UFRO circuit is operating. The UFRO adjustment is preset and sealed and only requires the selection of 50 / 60Hz using the jumper link.
