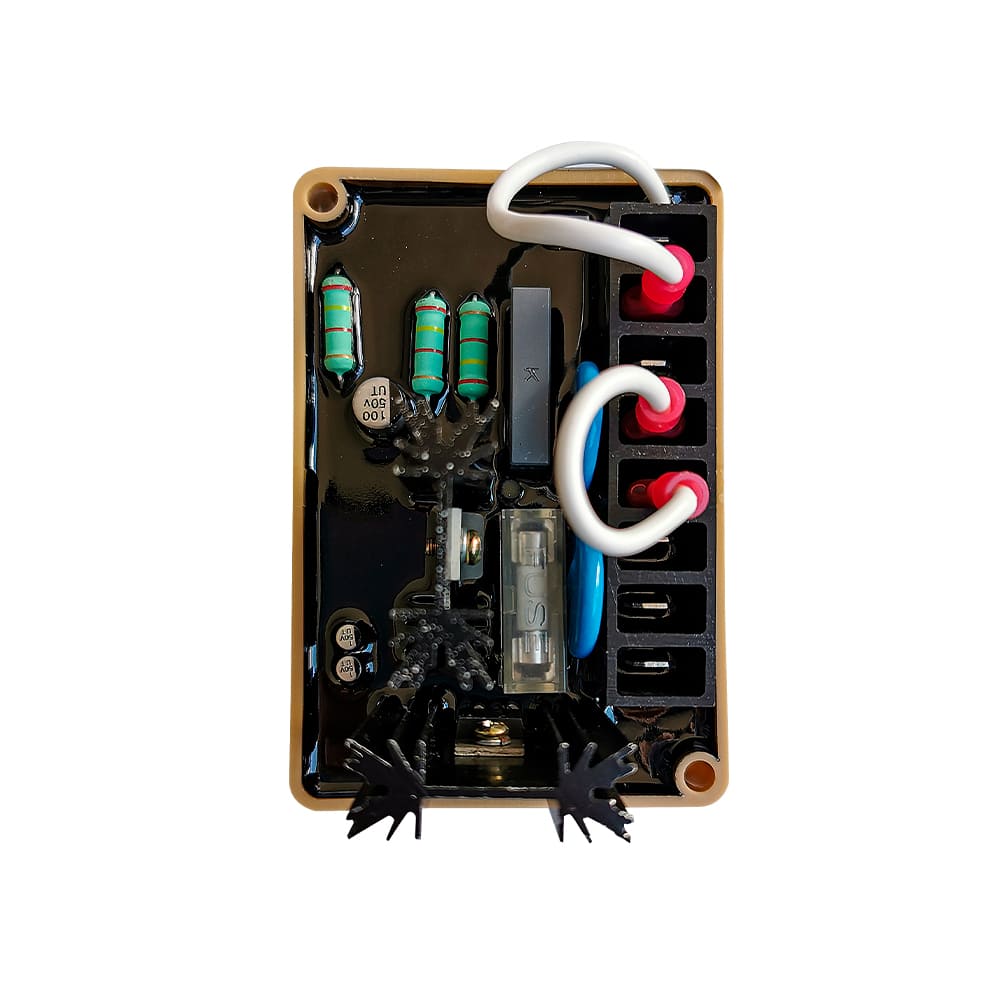

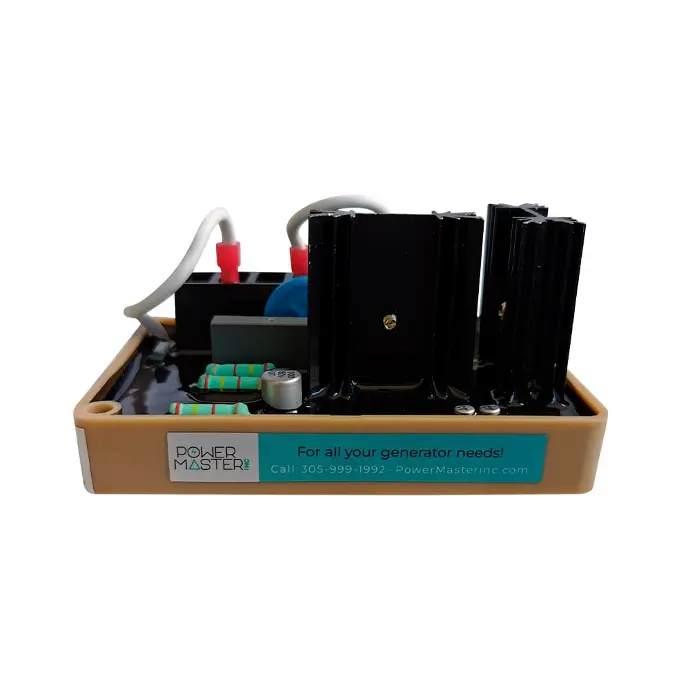

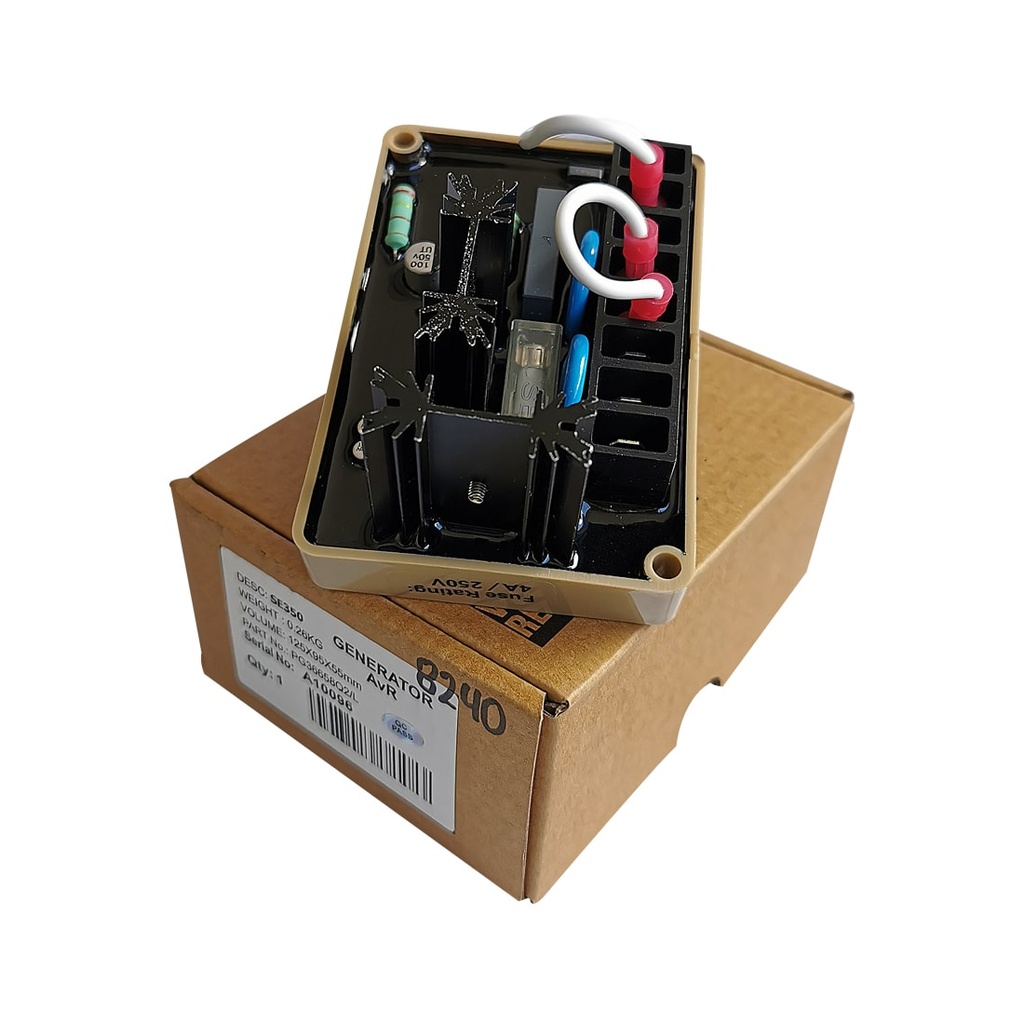

PMI SE350 Automatic Voltage Regulator

Power Master Original

SE350 AVR Generic Replacements.

$ 28.50 28.5 USD $ 28.50

$ 28.50

This combination does not exist.

Add to cart Buy now

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

SENSING & POWER INPUT

190 - 240 Vac

OUTPUT POWER CONTINUOUS

73 Vdc at 3.5 Adc (255w)

WEIGHT

1.5 POUNDS

SIZE

8 X 8 X 4 Inches

OUTPUT POWER
FORCING
(240 Vac input power)

105 Vdc at 5 Adc (525)

Key Features
Description

BURDEN

500 VA

REGULATION

1.0%

POWER DISSIPATION

8 Watts Maximum

Sensing & Power input - 190-240 Vac
Burden - 500 VA
Output Power: Continuous - 73 Vdc at 3.5 Adc (255w)
Output Power: Forcing (240 Vac Input Power) - 105 Vdc at Adc (525w)
Regulation - 1.0%
Remote Voltage Adjustment Range - 10% with 2000 ohm rheostat / 5% with 1000 ohm rheostat
Frequency Compensation Adjustable
Roll off frequency - 54 - 61 Hz for 60 Hz / 45-51 Hz for 50 Hz

Operation - Weight 6.5 oz
Operating Temperature - 40°C to + 60°C
Storage Temperature - 65°C to + 85°C
Power Dissipation - 8 watts maximum
Size - 3.94" x 2.66" x 2.20:
Voltage Buildup - For automatic voltage build up from generator residual voltage as low as 10 Vac
EMI Supression - Internal electromagnetic interference filter (EMI Filter).

SX460 is a half wave phase controlled thyristor type automatic voltage (AVR) and part of the excitation system for a bruchless generator. In addition to regulating generator voltage, AVR circuits include low-speed loss protection and detection features.
