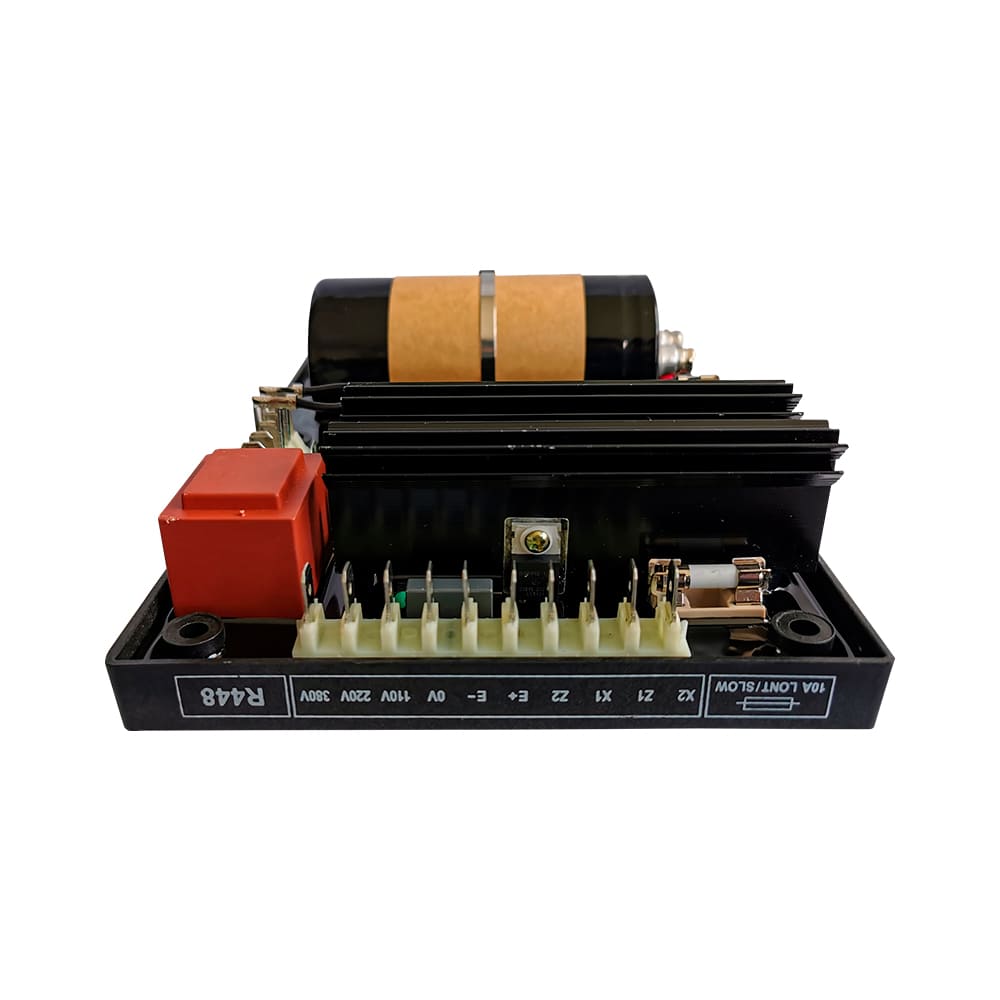

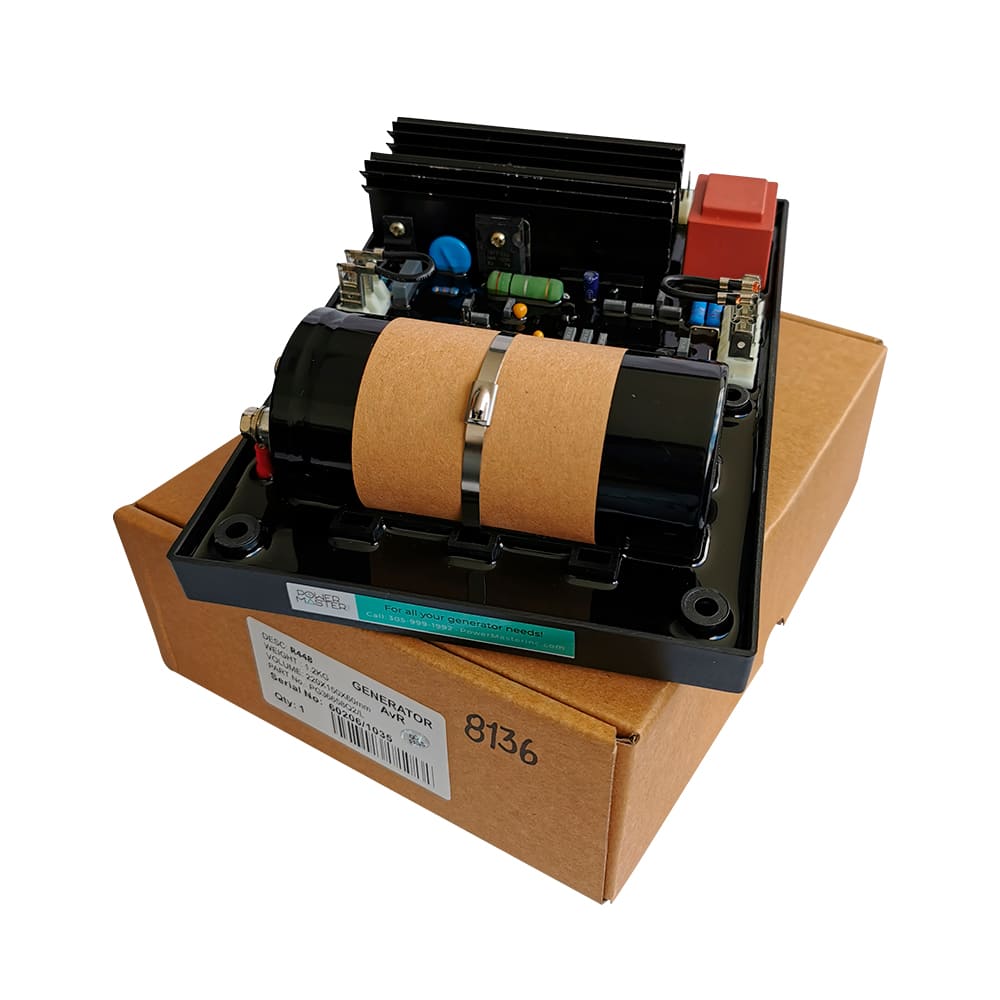

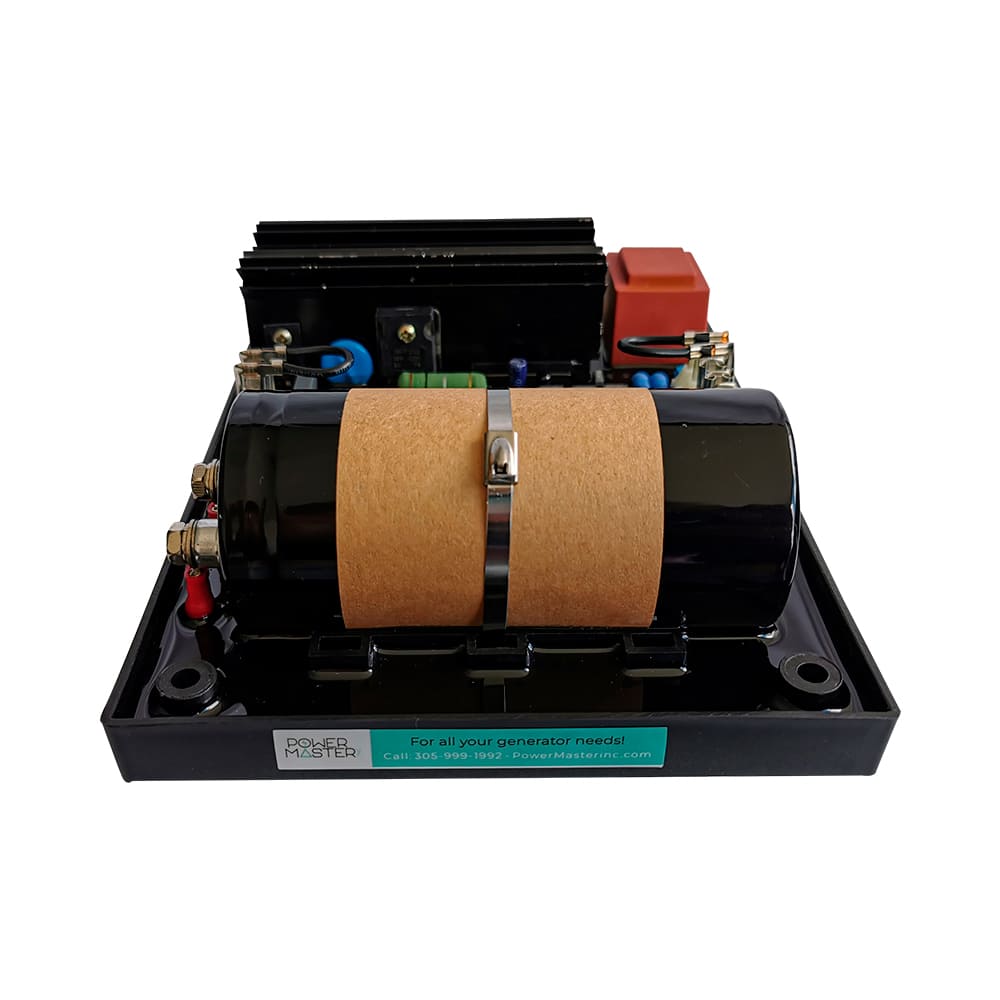

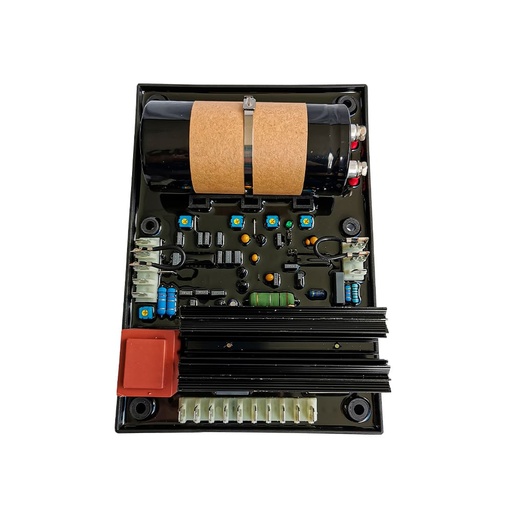

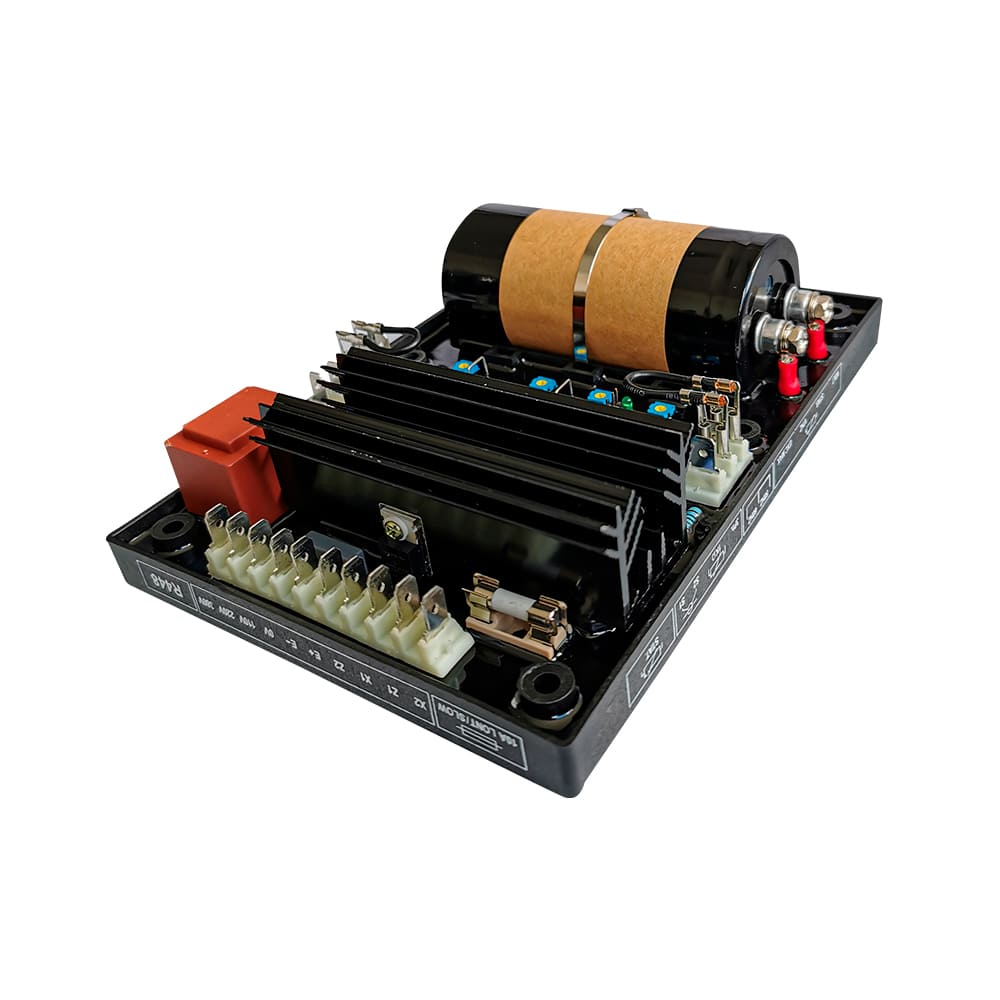

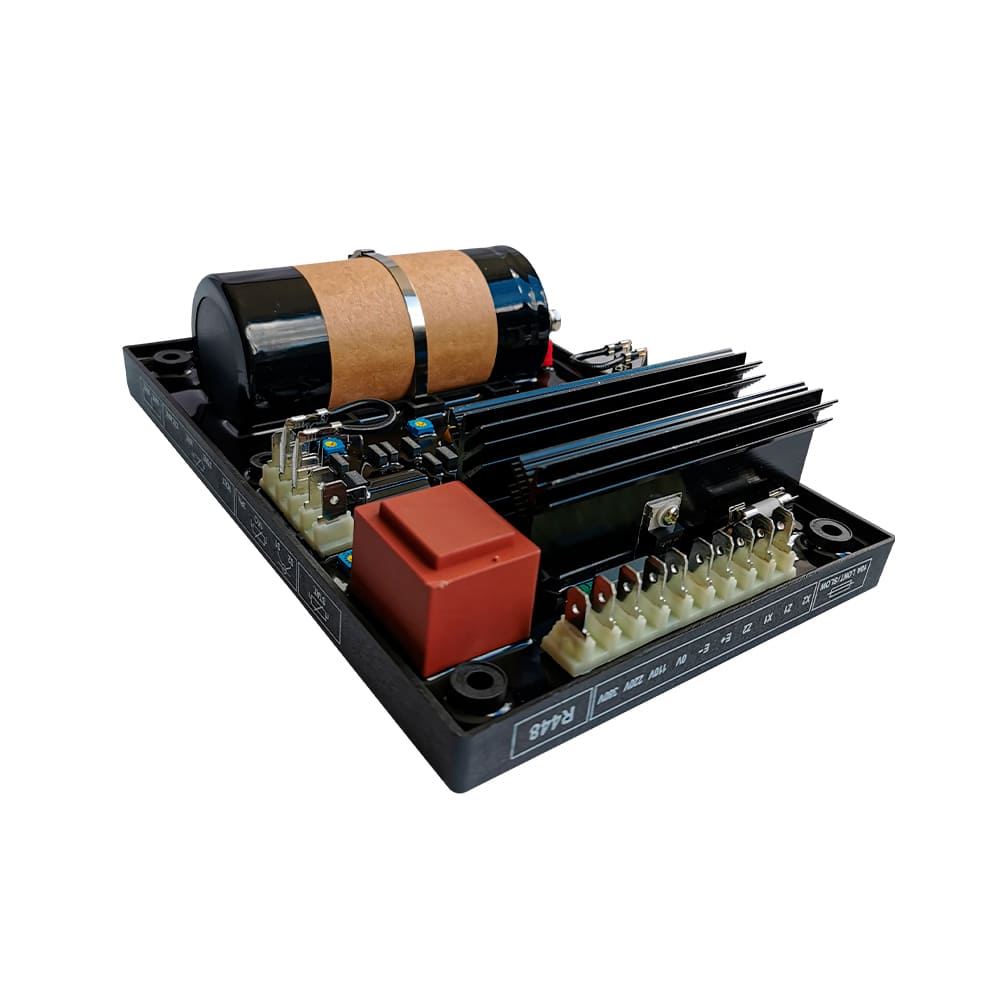

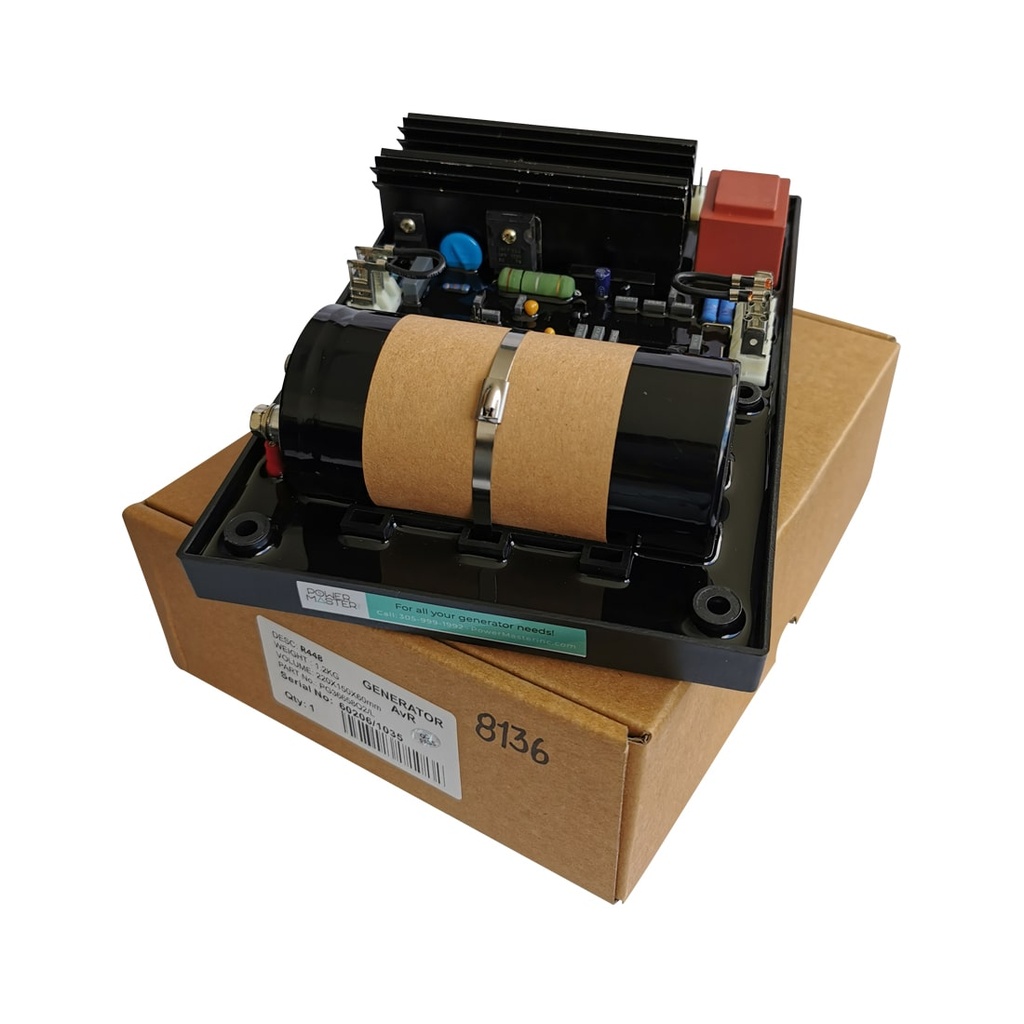

Power Master R448 Automatic Voltage Regulator

Power Master R448 Automatic Voltage Regulator

R448 Automatic Voltage Regulator. 150V - 5060Hz. Rated overload current:10A, 10s.

$ 92.49 92.49 USD $ 92.49

$ 92.49

This combination does not exist.

Add to cart Buy now

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

VOLTAGE SENSING

95 to 140 volts (50/60 Hz)

OUTPUT VOLTAGE

82 V d.c. @ 200 V a.c.

WEIGHT

2,5 POUNDS

SIZE
9 x 7 x 3 Inches

VOLTAGE REGULATION

80-140 VAC single phase, 2 wire

Key Features
Description

The Automatic Voltage Regulator (AVR) is an advanced electronic component that provides closed loop control of the generator’s output voltage.

SHUNT SUPPLY

150V -50/60Hz

REMOTE VOLTAGE ADJUSTMENT RANGER

± 5%

CONTACTS CAPACITY

10A. 250V AC

Voltage regulation ± 0.5%
Short circuit capability: 3 x Irated for 10 seconds (AREP or PMG excitation)
Voltage sensing: 95 to 140 volts (50/60 Hz) or 170 to 260 volts (50/60 Hz) or 340 to 520 volts (50/60 Hz)
Response time: Normal (1 sec) for ± 20% voltage variation or Rapid (0.3 sec) for ± 20% voltage variation
Remote voltage adjustment range: ± 5%
Normal AVR supply power: 2 auxiliary windings
(X1, X2, and Z, Z2)
Shunt supply : 150V -50/60Hz
Rated overload current: 10A,10s.
Electronic built-in (overload, short circuit, and loss of
sensing)

protection: lf excitation current raises over 10
Amps for more then 10 seconds, excitation current will
drops automatically to about lA.
voltage taps at:
Terminals 0-110V = 95 to 140V
Terminals 0-220 V = 170 to 260 V
Terminals 0-380 V = 340 to 520V
Output Voltage: 82 V d.c. @ 200 V a.c.
Other sensing voltages by using an adapting
Excitation over current adjustment use P5: 4.5 to 10A
For 50/60 Hz (U/F) selection use jumper ST3.
Contacts capacity: 10A. 250V AC

The Automatic Voltage Regulator (AVR) is an advanced electronic component that provides closed loop control of the generator’s output voltage.

Stability Adjustment

The power supply voltage is rectified and filtered before being used by the AVR monitoring transistor.

Droop Adjustment

With PMG excitatioin, a permanent magnet generator (PMG) added to the alternator supplies the AVR with voltage which is free of the main alternator winding.

Trim Adjustment

Built-in low-speed, over excitation

This is built-in at the rear of the machine and connected to the R448 AVR, and the ST9 jumper must be disconnected.

The primary winding has a voltage in ratio to that of the alternator (characteristic shunt), the next has a voltage in proportion to the stator current (compound characteristic: booster effect). Which is powered by two auxiliary windings which are independent of the voltage equal circuit.
