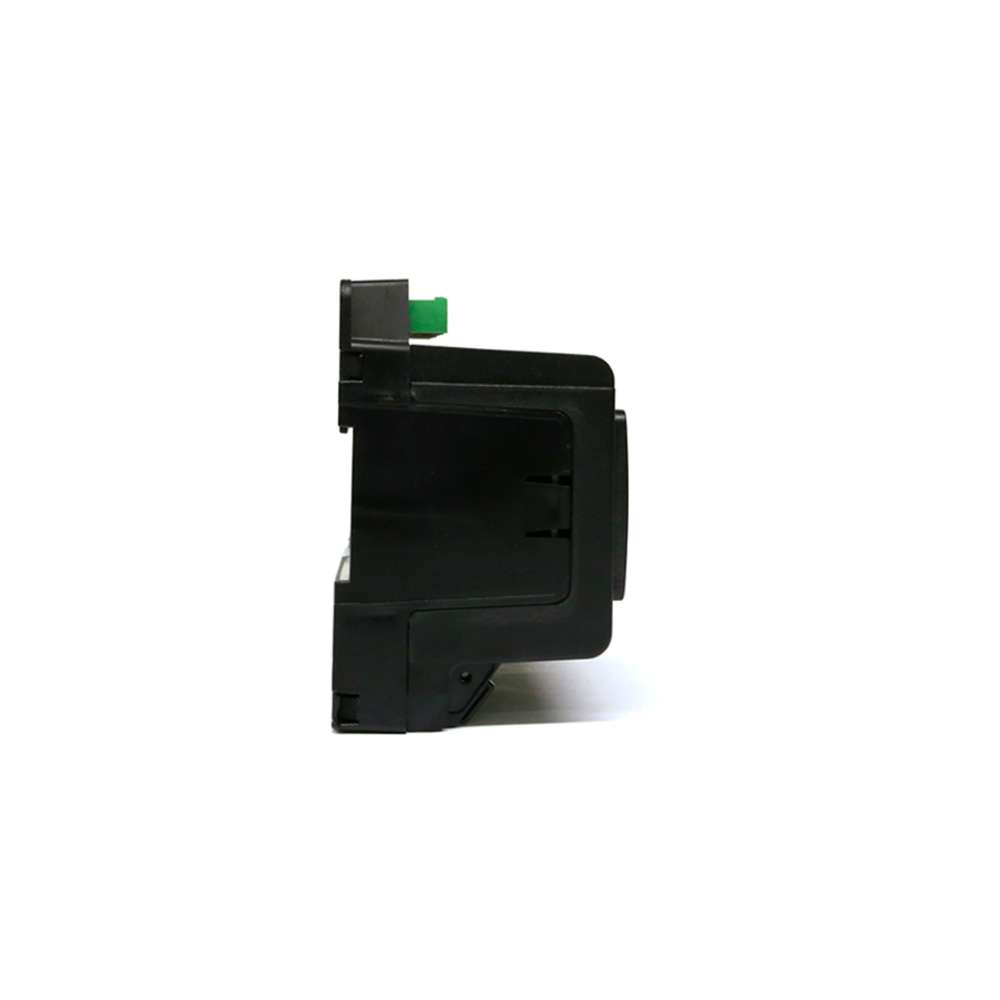

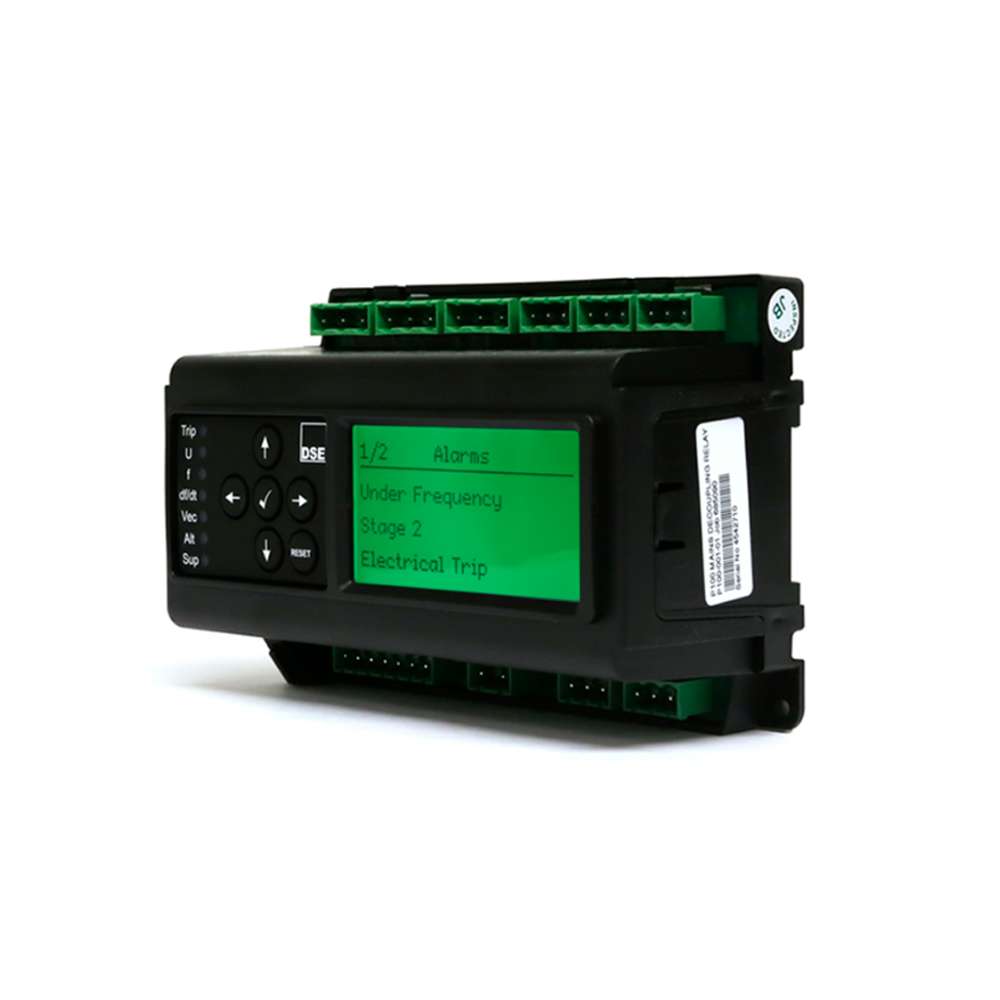

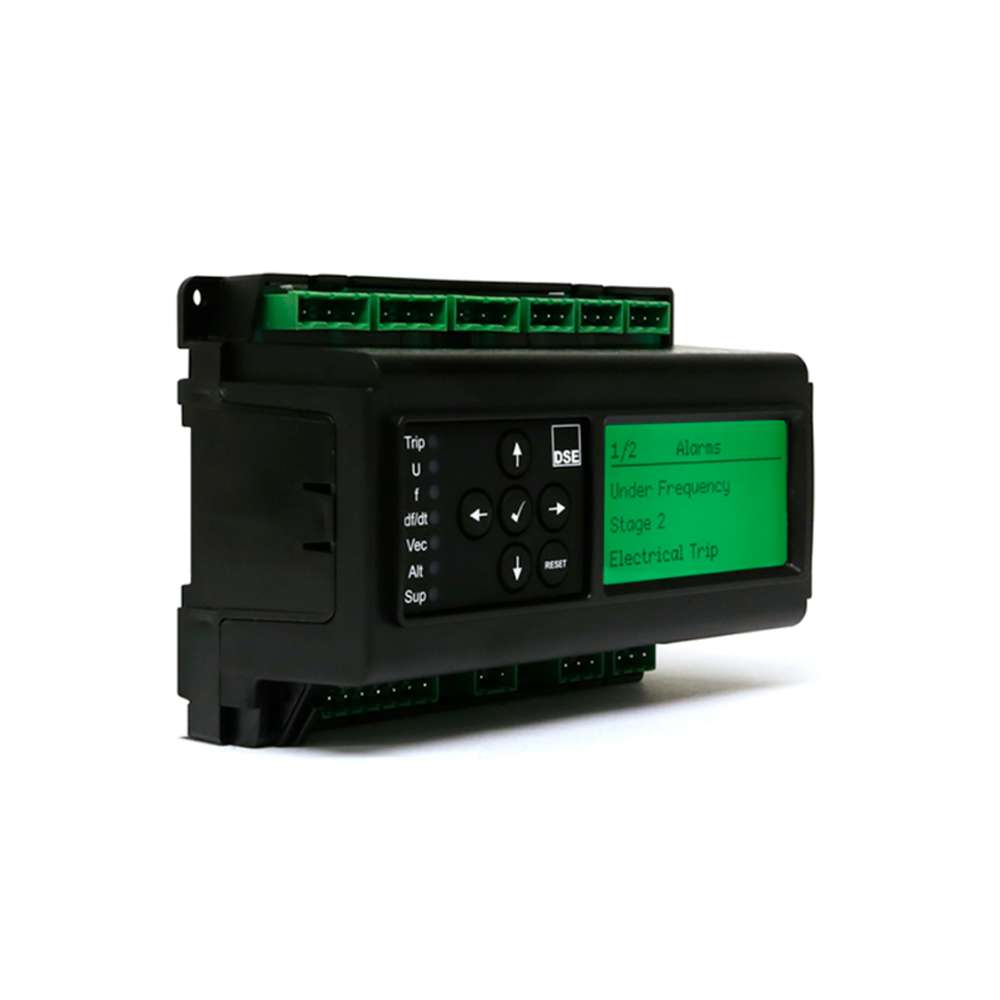

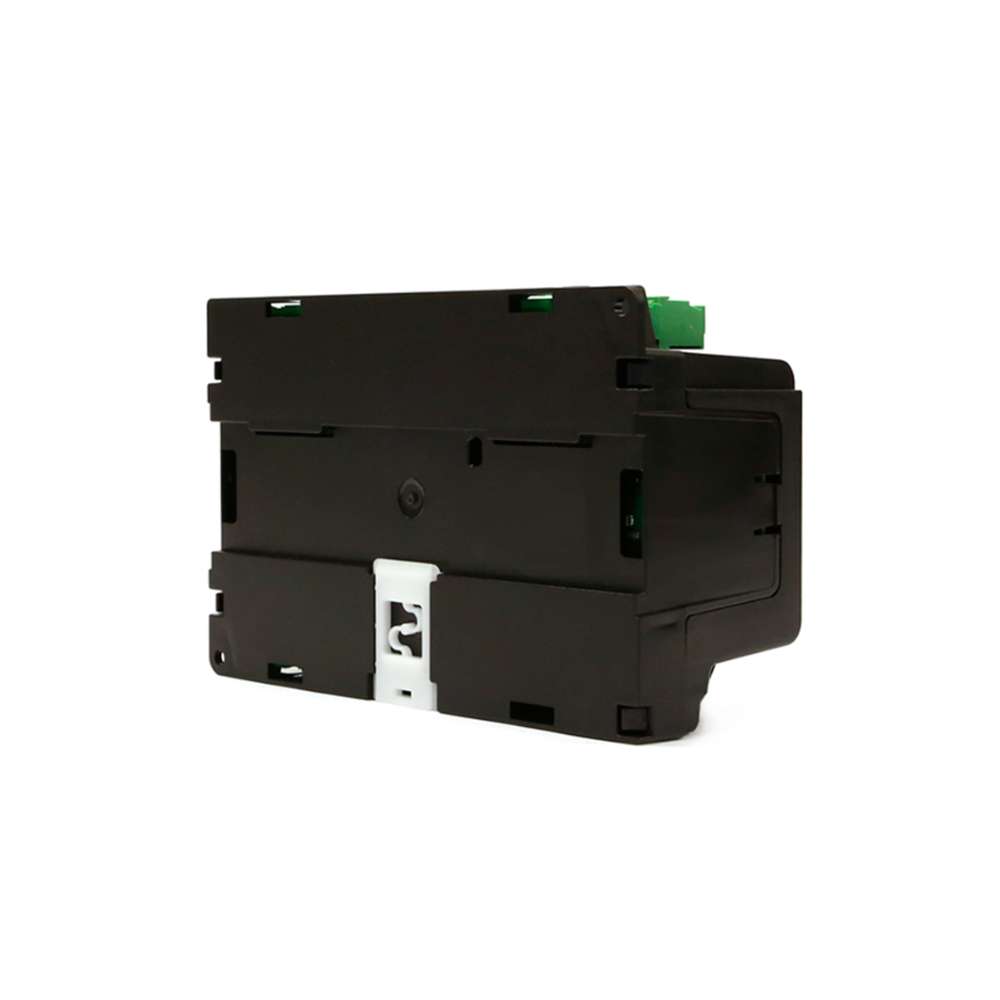

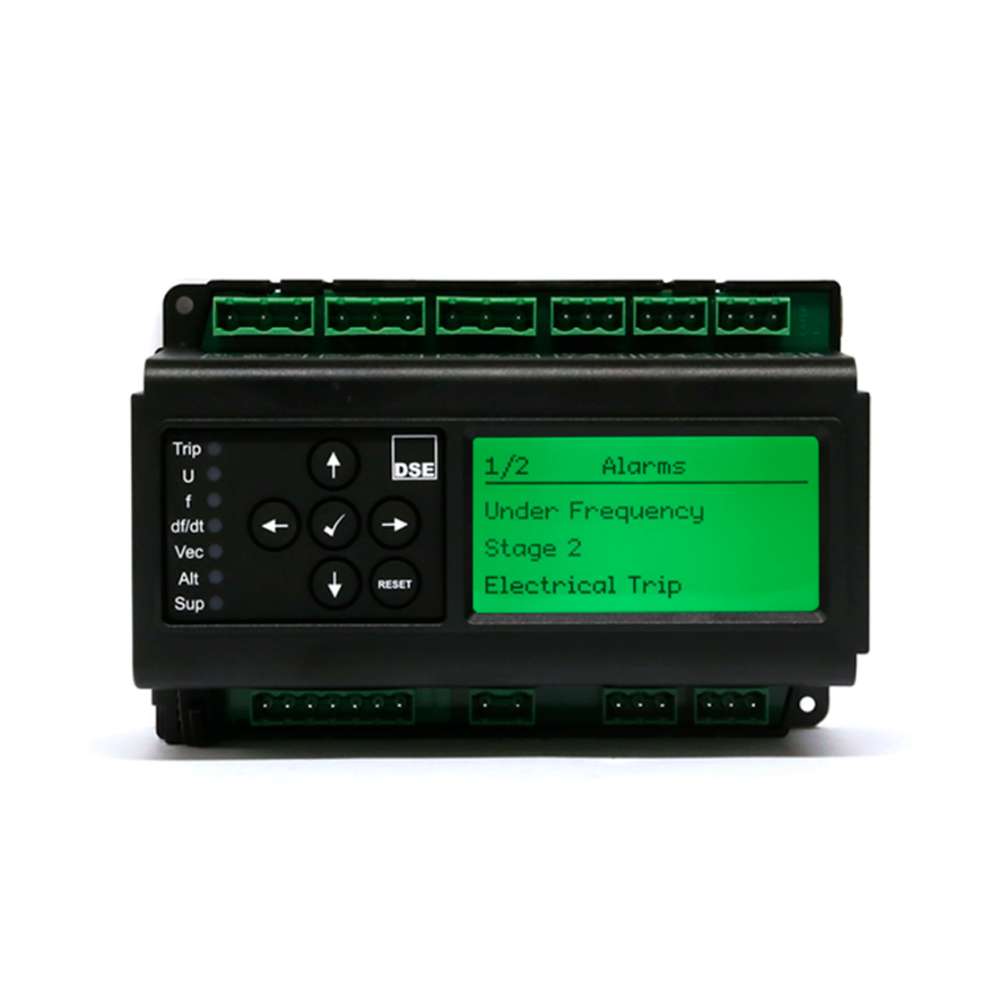

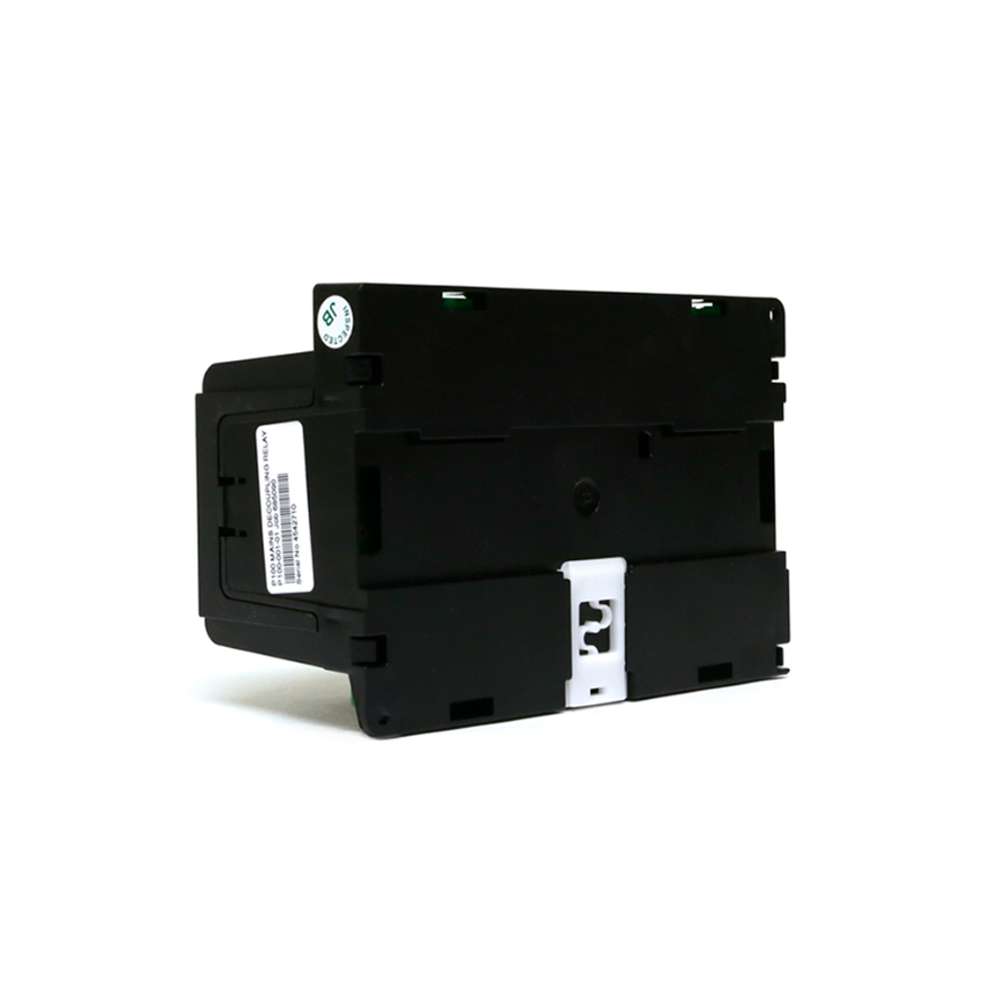

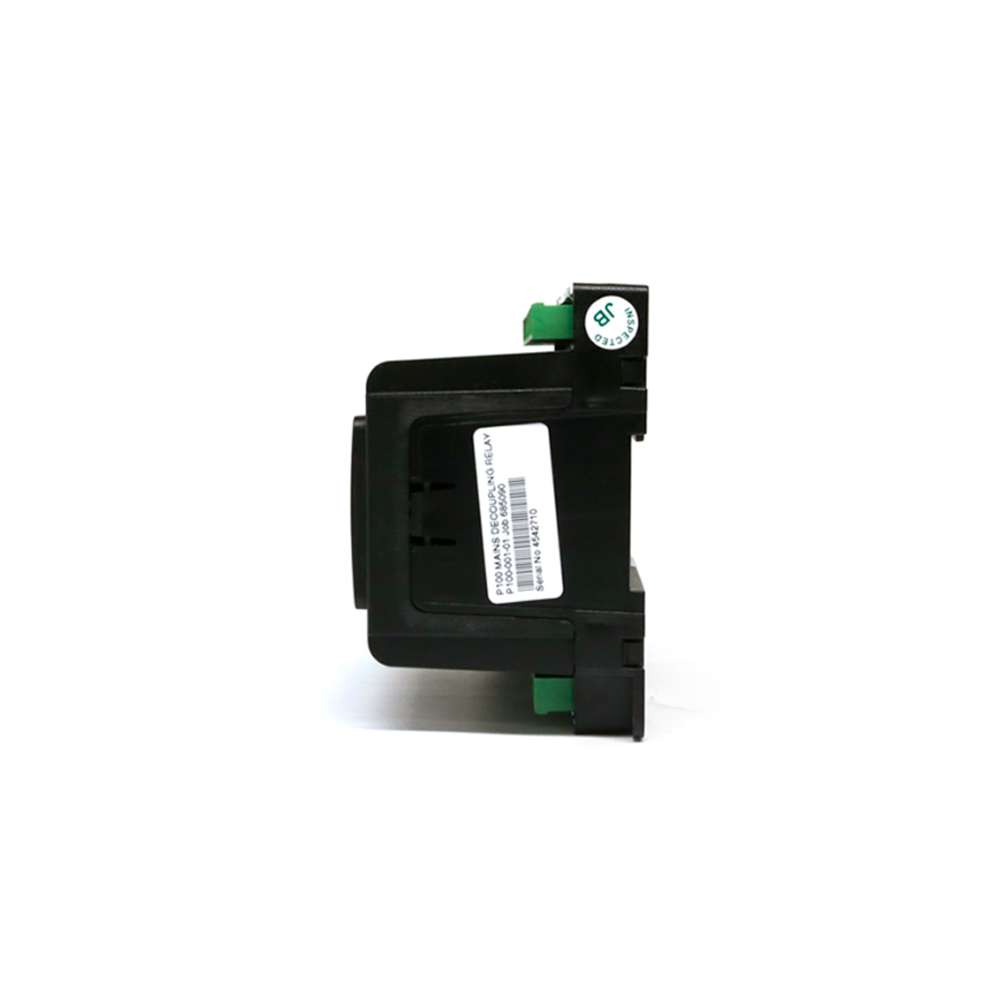

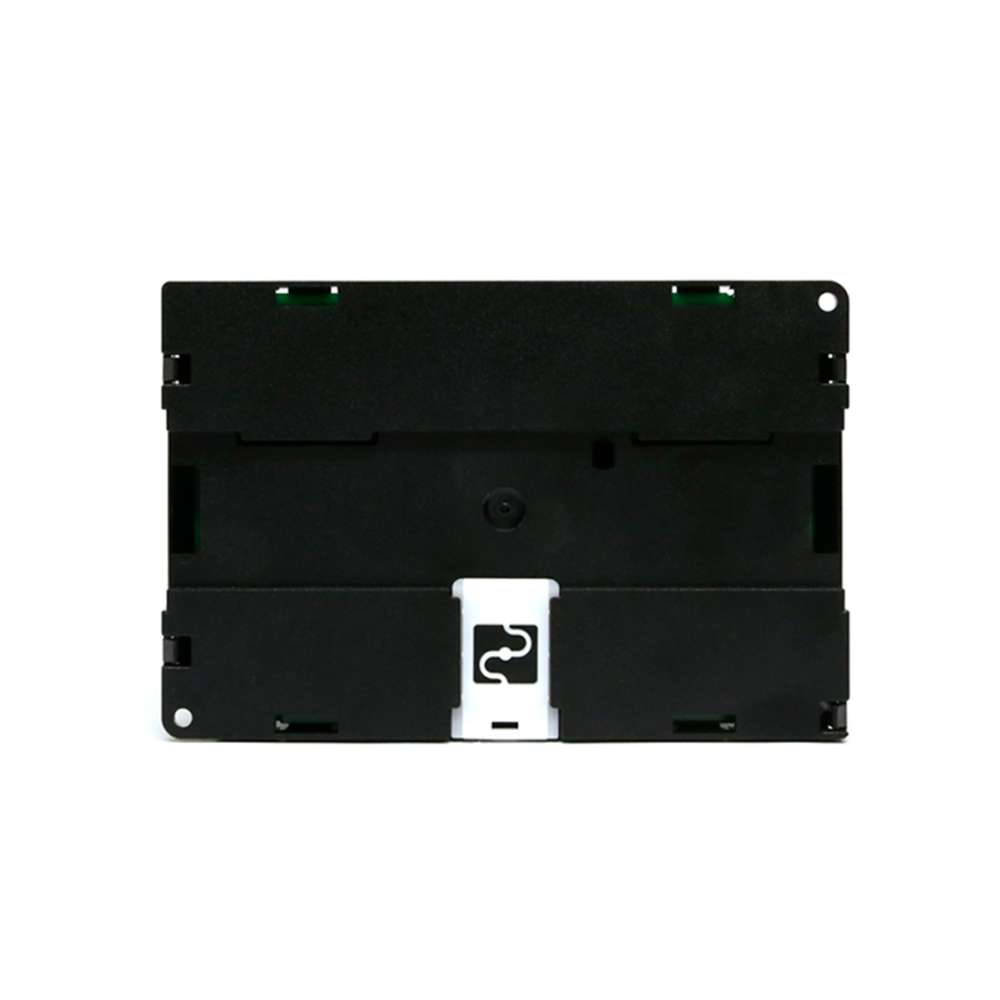

P100 Mains (Utility) Decoupling Relay

$ 1,144.09 1144.09 USD $ 1,144.09

$ 1,144.09

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


POWER SUPPLY
VOLTAGE RATING
85 V to 305 V AC (Ph to N)

PRODUCT VARIANTS

P100-01 - P100 Mains (Utility) Decoupling Relay

WEIGHT
0.83 POUNDS

SIZE
6 x 3 x 2 Inches

FREQUENCY RANGE

  3.5 Hz to 75 Hz


The DSEP100 G99/G59 Mains(utility) Protection Relay detects changes in the mains (utility) supply to which the distributed energy resource (DER) is connected.

If a mains (utility) failure is detected, the DSEP100 will disconnect the equipment in line with national and international DNO requirements.  This removes the risk of an islanded grid being formed and protects DER equipment.

DSEP100 is suitable for use with all DER equipment supplying power in parallel with the mains (utility) supply.  This includes diesel generators and renewable energies such as photovoltaic (solar) and wind turbine installations etc.

The DSEP100-02 G99 type tested variant is supplied with pre-configured settings to comply with G99 that cannot be changed by the user.

PRODUCT VARIANTS

P100-01 - P100 Mains (Utility) Decoupling Relay

P100-02 - P100 Mains (Utility) Decoupling Relay (G99 Type Tested)

​ RoCoF

Provides accurate &
complete protection.

DSE CONFIGURATION SUITE PC SOFTWARE
Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
G99 TYPE TESTED VARIANT

Protection settings are configured during the manufacturing process and cannot be changed by the user.

  • Continuous Voltage Rating - ◖8 V to 35 V Continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
  • Maximum Operating Current - ◖360 mA at 12 V, 170 mA at 24 V
  • AC Power Supply - ◖Continuous Voltage Rating : 85 V to 305 V AC (Ph to N) ◖Continuous Frequency Rating : 3.5 Hz to 75 Hz ◖Maximum Operating Current : 58 mA at 110 V AC (Ph to N) 28 mA at 230 V AC (Ph to N)




  • Mains (Utility) - ◖Voltage Range : 15 V to 333 V AC (Ph to N) 26 V to 576 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Outputs - ◖Output A, B, C, D & E : Volt-free change-over 5 A at 30 V DC 8 A at 250 V A
  • Dimensions - ◖Overall : 157 mm x 95 mm x 67 mm 6.2” x 3.5” x 2.6”
  • Storage Temperature Range - ◖-40 °C to +85 °C (-40 °F to +185 °F)
  • Operating Temperature Range - ◖-30 °C to +70 °C (-22 °F to +158 °F)




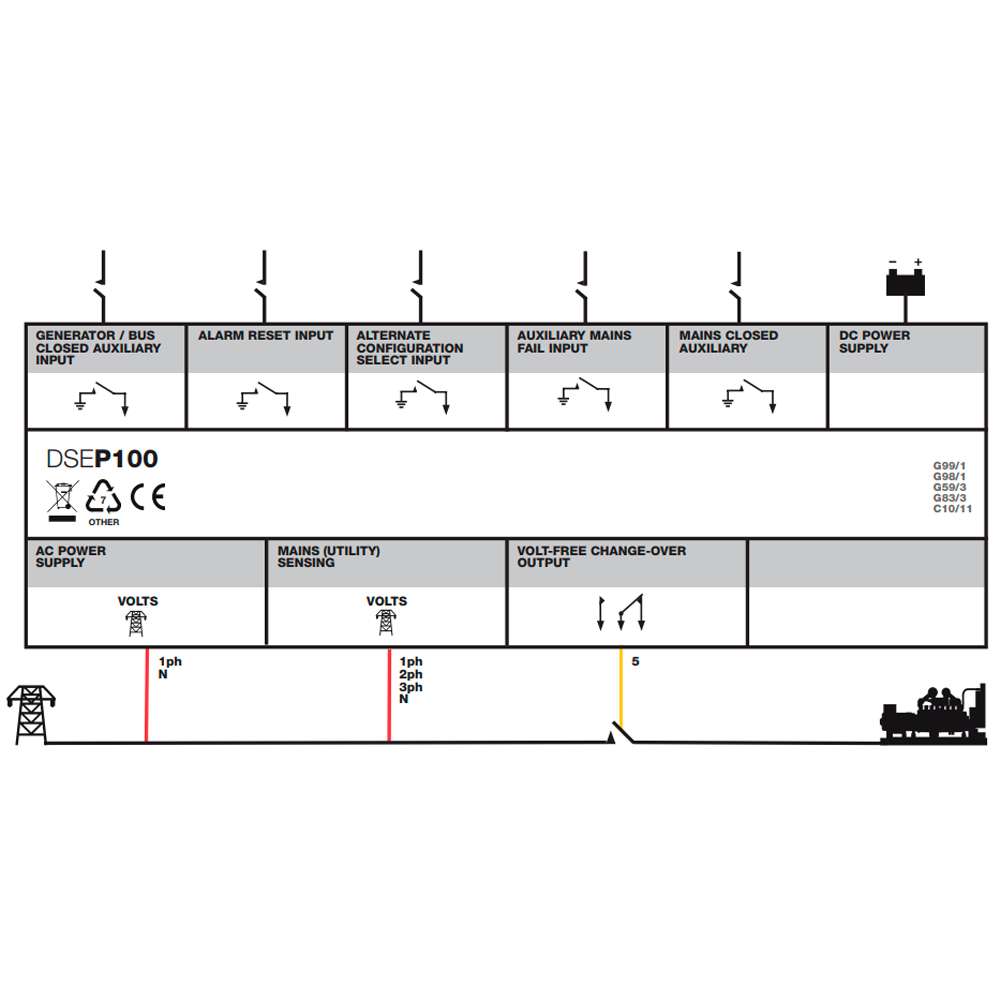

The DSEP100 G99/G59 Mains(utility) Protection Relay detects changes in the mains (utility) supply to which the distributed energy resource (DER) is connected. If a mains (utility) failure is detected, the DSEP100 will disconnect the equipment in line with national and international DNO requirements.  This removes the risk of an islanded grid being formed and protects DER equipment.

DSEP100 is suitable for use with all DER equipment supplying power in parallel with the mains (utility) supply.  This includes diesel generators and renewable energies such as photovoltaic (solar) and wind turbine installations etc. The DSEP100-02 G99 type tested variant is supplied with pre-configured settings to comply with G99 that cannot be changed by the user.


DC POWER SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.

MAXIMUM OPERATING CURRENT

360 mA at 12 V, 170 mA at 24 V

AC POWER SUPPLY

CONTINUOUS VOLTAGE RATING

85 V to 305 V AC (Ph to N)

CONTINUOUS FREQUENCY RATING

3.5 Hz to 75 Hz

MAXIMUM OPERATING CURRENT

58 mA at 110 V AC (Ph to N)

28 mA at 230 V AC (Ph to N)



MAINS (UTILITY)

VOLTAGE RANGE

15 V to 333 V AC (Ph to N)

26 V to 576 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

OUTPUTS

OUTPUT A, B, C, D & E

Volt-Free Change-Over

5 A at 30 V DC

8 A at 250 V AC
