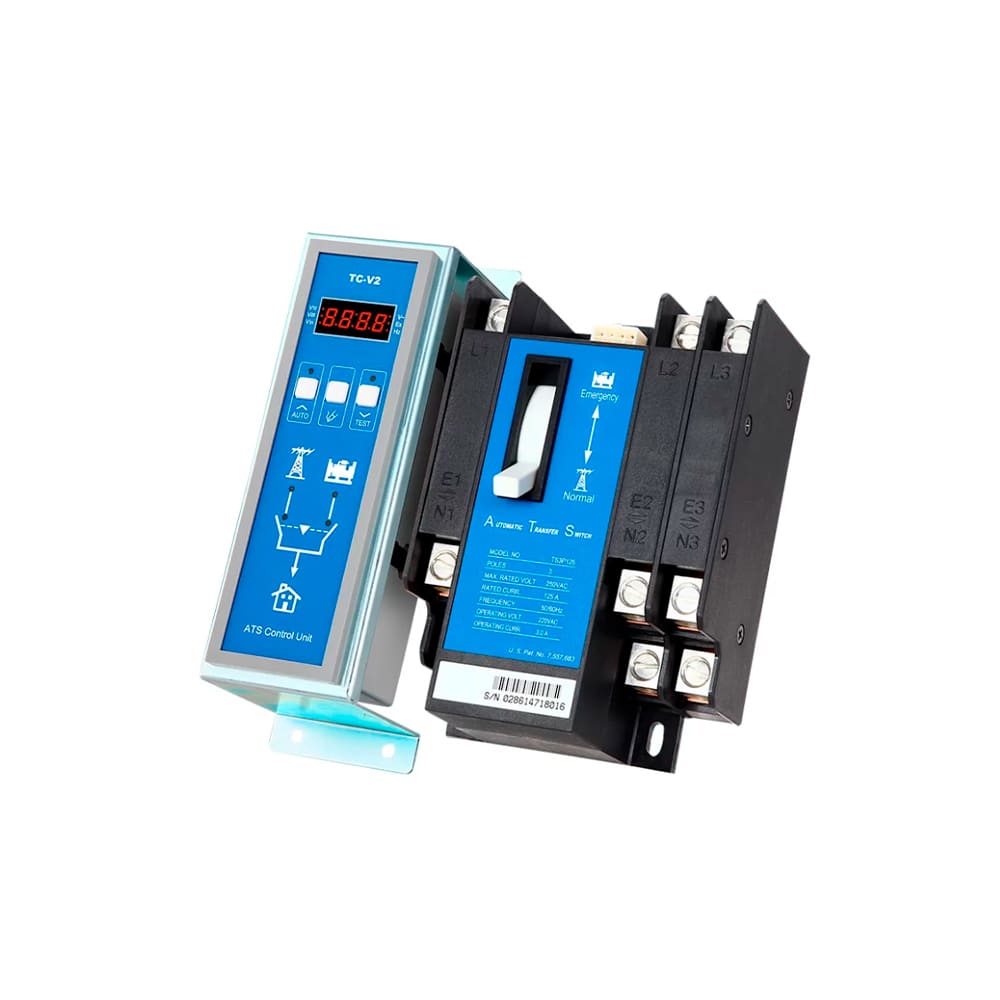

Power Master KT-TCS3P150-22M Transfer Switch and Controller

https://powermaster.odoo.com/web/image/product.template/9825/image_1920?unique=8c13f75

Manual TransferSwitch and Controller / 3Pole /150Amp

$ 885.39 885.39 USD $ 885.39

$ 885.39

Not Available For Sale

This combination does not exist.

Contact Us
Transfer switch ADVR

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

RATED VOLTAGE

 600 VAC

SWITCH TYPE

Double throw

WEIGHT

4 POUNDS

SIZE

7 × 6 × 3 Inches

FREQUENCY

50-60Hz

COMPACT SIZE

Light weight an low power consumption.

DESIGNED FOR MANY APPLICATIONS

For cell-phone industry or home ATS applications.

ADJUSTABLE TIME

Delay on neutral.

  • Rated Voltage - ◖600 VAC
  • Rated Current - ◖125 Amp
  • Rated Frequency - ◖50/60 Hz
  • Pole - ◖3 Poles
  • Switch Type - ◖Double throw
  • Transfer Current - ◖2.0A @ 220VAC
  • ATS Class - ◖Class PC



  • Operation Life - ◖Over 6000 Times W/L
  • Remote Start contactor  - ◖6A @ 277VAC Max
  • N & E On Contactor - ◖7A @ 250VAC Max
  • Power Consumption  - ◖<1W
  • Operating Temperature - ◖-10 °C ~ 70 °C
  • Storage Temperature  - ◖-20 °C ~ 80 °C
  • Dimensions - ◖Weight: 3.9 POUNDS ◖Size: 7 x 6 x 3 Inches
The TCS3P125-22 is a brand new modularized design Automatic Transfer Switch, also known as ATS. With rated current of 125A and rated voltage of 110 VAC or 220 VAC or 3 phase to choose from. It is electrically and manually operated. This Automatic Transfer Switch is ideal for household and telecommunication cell site use. All plastic parts used on the ATS are made with UL 94V-0 plastic to comply with the highest safety standards.
