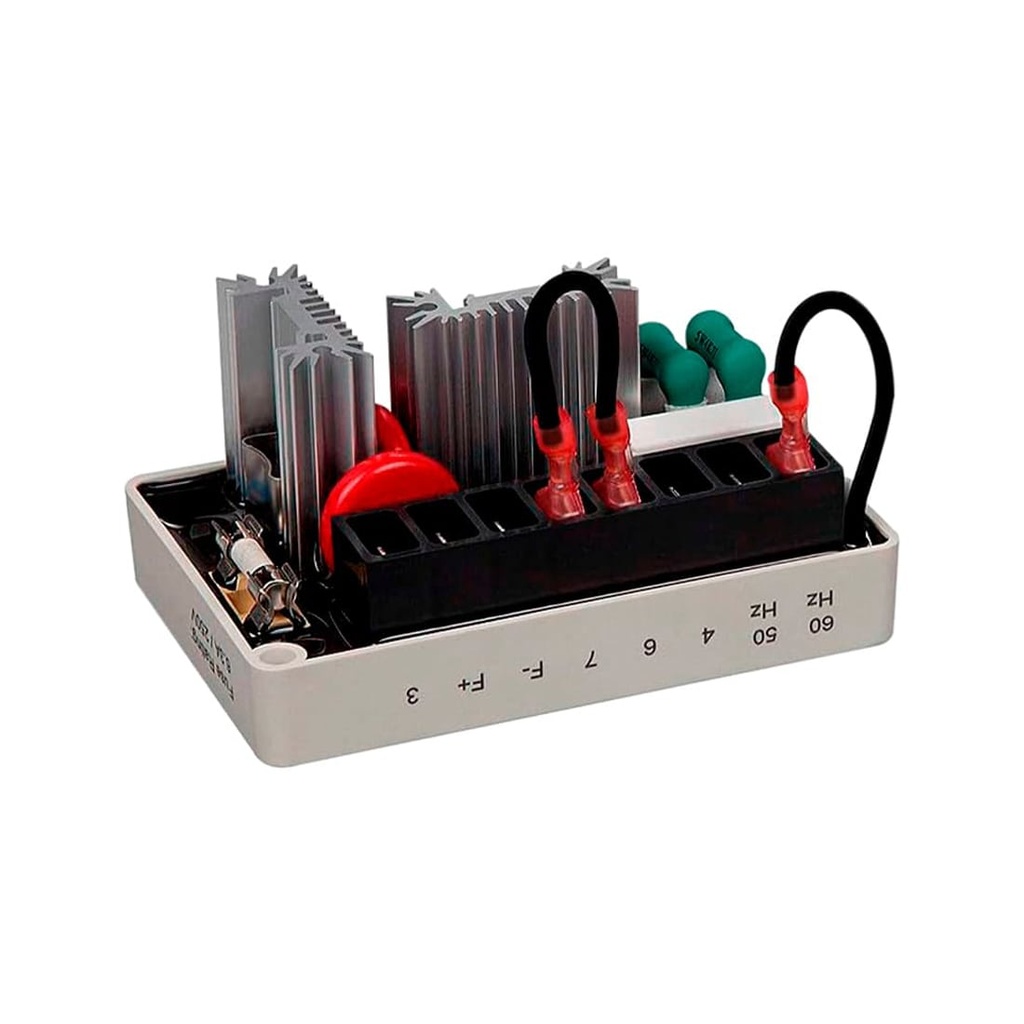

Power Master KP-SS350 AVR - replacement for Original

Replacement for Marathon SE350

$ 178.69 178.69 USD $ 178.69

$ 178.69

This combination does not exist.

Add to cart Buy now

SS350 Mcpherson Controls

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

SENSING INPUT

VOLTAGE

85 ~ 135 VAC

OUTPUT

Max. 37 VDC

WEIGHT

0.45 POUNDS

SIZE

3.91¨ x 2.63¨x 1.87¨

VOLTAGE REGULATION

< ± 1% (with 4% engine governing)

Key Features
Description

Voltage Regulation <±1% (with 4% engine governing) Optional 120/240 VAC Sensing Input Switch 50/60 Hz, Jumper Selectable Under Frequency Protection Built-in High Breaking Capacity Fuse EMI Suppression.

BUILD UP VOLTAGE

Residual voltage at AVR terminal > 5 VAC

OPERATING TEMPERATURE

- 40°C to + 60°C

POWER DISSIPATION

Max. 8 wat

Sensing Input - ◖ Voltage : 85 ~ 135 VAC ◖Frequency 50 / 60 Hz, Jumper selectable.
Power Input - ◖Voltage : 180 ~ 265 VAC
Output - ◖Voltage : Max. 37 VDC @ 110 VAC input Max. 73 VDC @ 220 VAC input ◖Current : Continuous 3.5A Intermittent 7A for 10 sec (52 / 105VDC)◖ Resistance : Min. 15 ohm Max. 100 ohm
Voltage Regulation - ◖< ± 1% ( with 4% engine governing )
Voltage Build-up - ◖Residual voltage at AVR terminal > 5 VAC
Burden - ◖500VA MAX

Operating Temperature - ◖- 40°C to + 60°C
Storage Temperature - ◖- 65°C to + 85°C
External Volts Adjustment - ◖± 5% with 1K ohm 1 watt trimmer ± 10% with 2K ohm 1 watt trimmer
EMI Suppression - ◖ Internal electromagnetic interference filtering
Unit Power Dissipation - ◖ Max. 8 watt
Under Frequency Protection (Factory Setting) - ◖60 Hz system presets knee point at 54 ~ 61 Hz 50 Hz system presets knee point at 45 ~ 51 Hz

SS350 Voltage Regulation <±1% (with 4% engine governing) Optional 120/240 VAC Sensing Input Switch 50/60 Hz, Jumper Selectable Under Frequency Protection Built-in High Breaking Capacity Fuse EMI Suppression.
