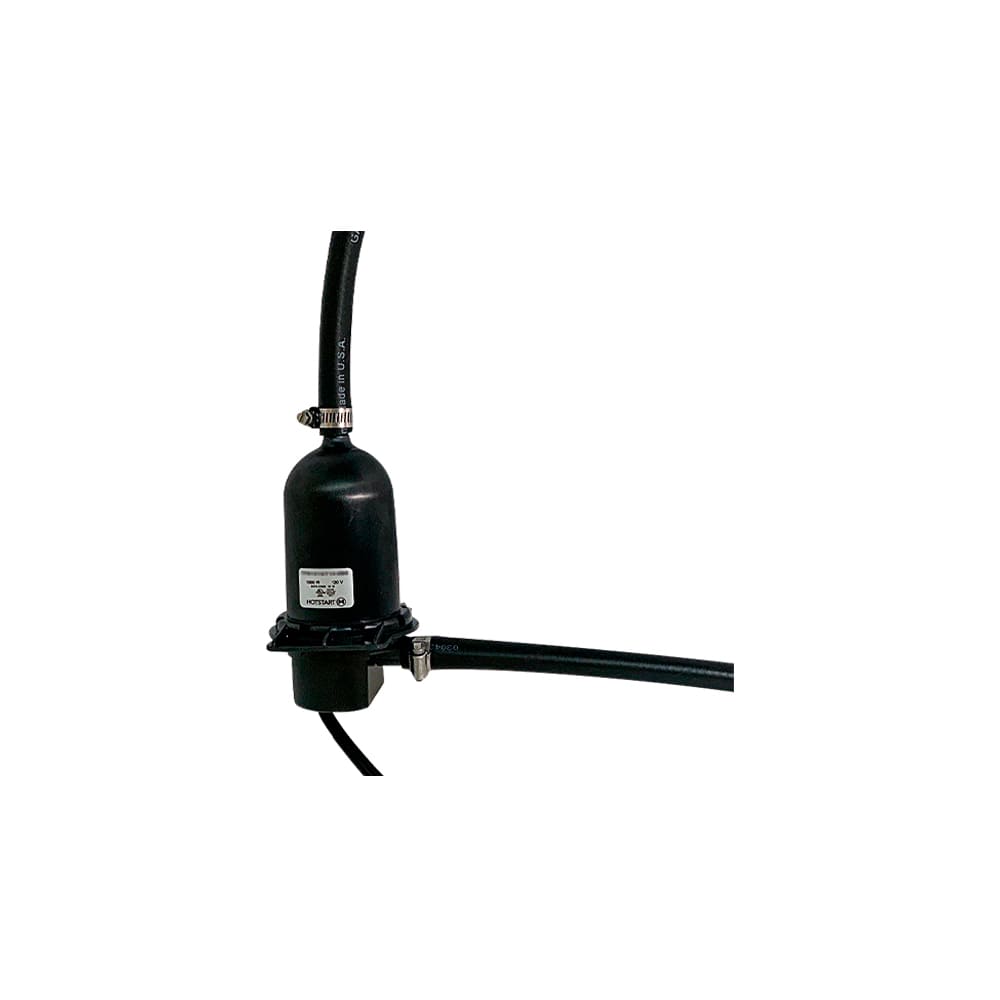

Hotstart KIT-TPS101GT8-000 Original Engine Heater

https://powermaster.odoo.com/web/image/product.template/17765/image_1920?unique=d231d62

KIT (Heater (+Mouting bracket) + 5 FT Heater Hose + 2 x SS Clamps

$ 157.59 157.59 USD $ 157.59

$ 157.59

Not Available For Sale

This combination does not exist.

Contact Us
Engine Heater Hotstart Engine Heater Kit KIT-TPS101GT8-000

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER SUPPLY

240 V 1.5W 6.3Amps 60Hz

ENGINE DISPLACEMENT

350 – 500 CID (5.7 – 8.2 L)

WEIGHT

1,6 POUNDS

SIZE

8 x 5 x 5 Inches

TEMPERATURE RANGE

ONE : 80°F (27°C)
OFF : 100°F (38°C)




​ PROVEN DESIGN

Depend on consistent, reliable heating with the proven design of the TPS thermosiphon heater.

EASY INSTALLATION
The TPS’s inlet and outlet positions allow for quick and simple installations, reducing complicated plumbing requirements.
​VERSATILE & ADAPTABLE
The TPS can be configured for almost any weather-protected application.
  • Power Supply - ◖240 V 1.5W 6.3Amps 60Hz
  • TPS System - ◖Phase : single-phase (1 Ø) ◖Voltage : 240V ◖Ingress : IP41 ◖Tank Material : Polyphenylene Sulfide (PPS) ◖Heating Element Material : Incoloy 800 ◖Min./Max. Ambient Temp : -40–40 °C (-40–104 °F) ◖Certification UL/C-US-listed, CE-compliant
  • TPS Coolant - ◖Fluid Type : Water Coolant mix (50% water/50% glycol) ◖Heat Power* : 1.5kW ◖Temp. Control : Fixed, 100–120°F (38–9°C) ◖Max. Pressure : 90 psi (620 kPa) ◖Inlet/Outlet : 0.625” hose barb (15.9 mm)

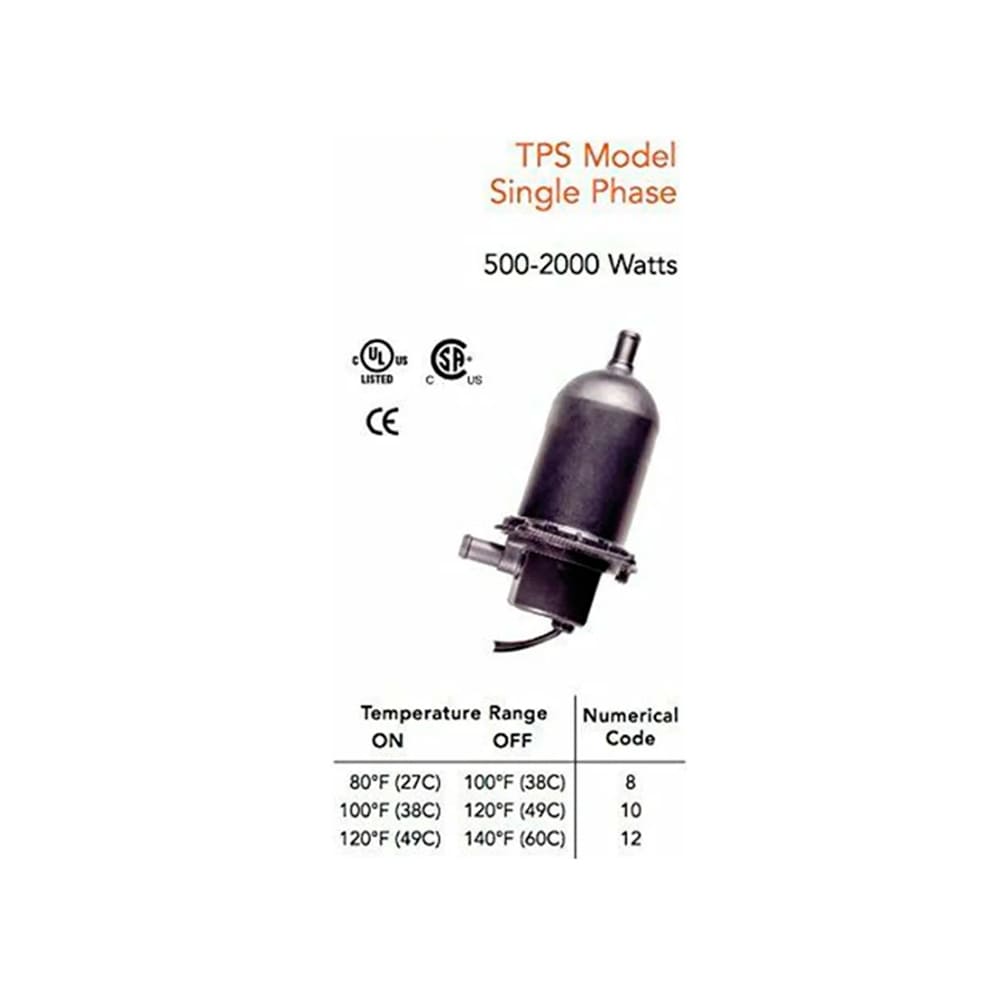

  • Temperature Range - ◖ON : 80°F (27°C) ◖OFF :  100°F (38°C)

HOTSTART TPS engine heaters provide even heat distribution resulting in reduced engine wear, quick start-ups and reduced emissions. The compact design is ideal for locations that require minimal mounting space. Specs: Heating Element: Incoloy 800 Enclosure: IP41 Resists corrosion Fluid Capacity: 0.11 gal (0.42 L) Maximum Pressure: 90 psi (620 kPa) Inlet/Outlet Plumbing: 0.625” (15.9 mm) Tank Material: Polyphenylensulfid PPS L-C/US listed CE compliant. Power cord length on all models – 48” (1219mm).

  • Pre-Heat: Diesel and Gas engines Used in: Marine Heating Systems, Railroad operations, Heavy equipment, Trucks and Bus, Emergency generators, Oil and Gas and Industrial applications.

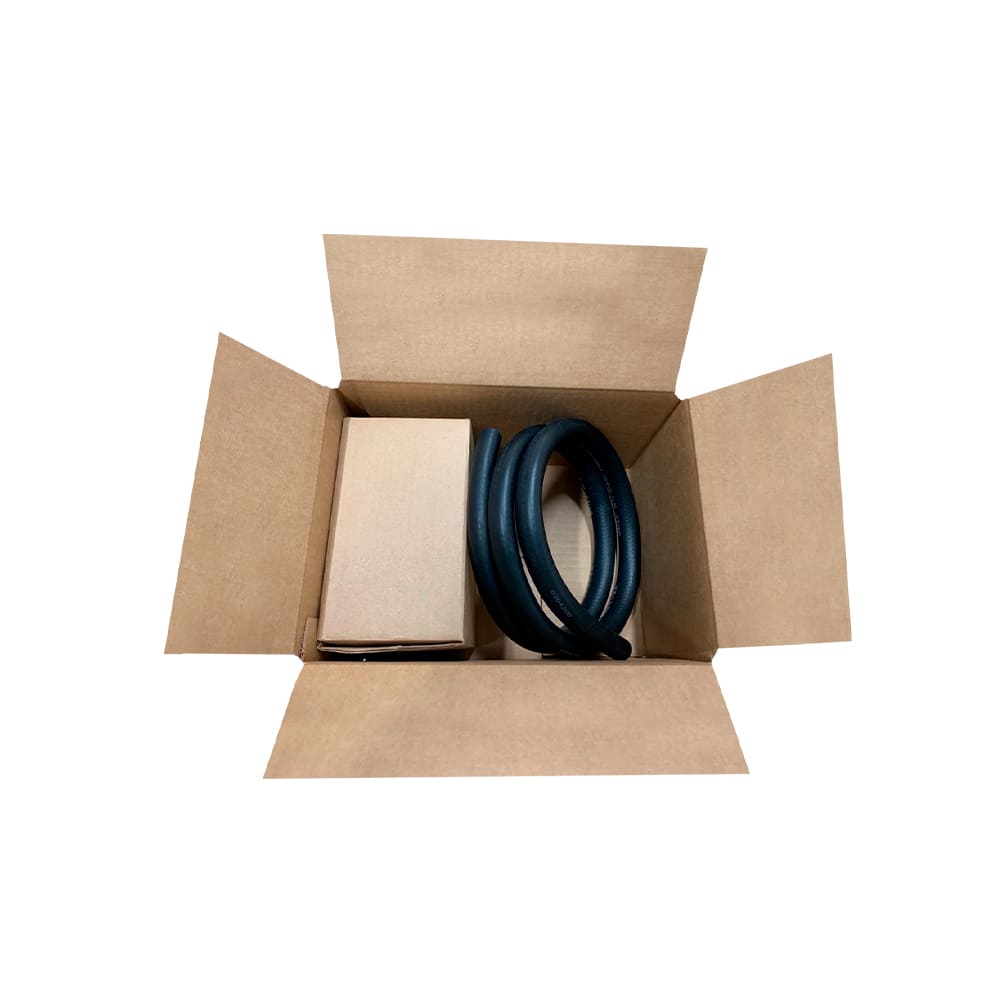

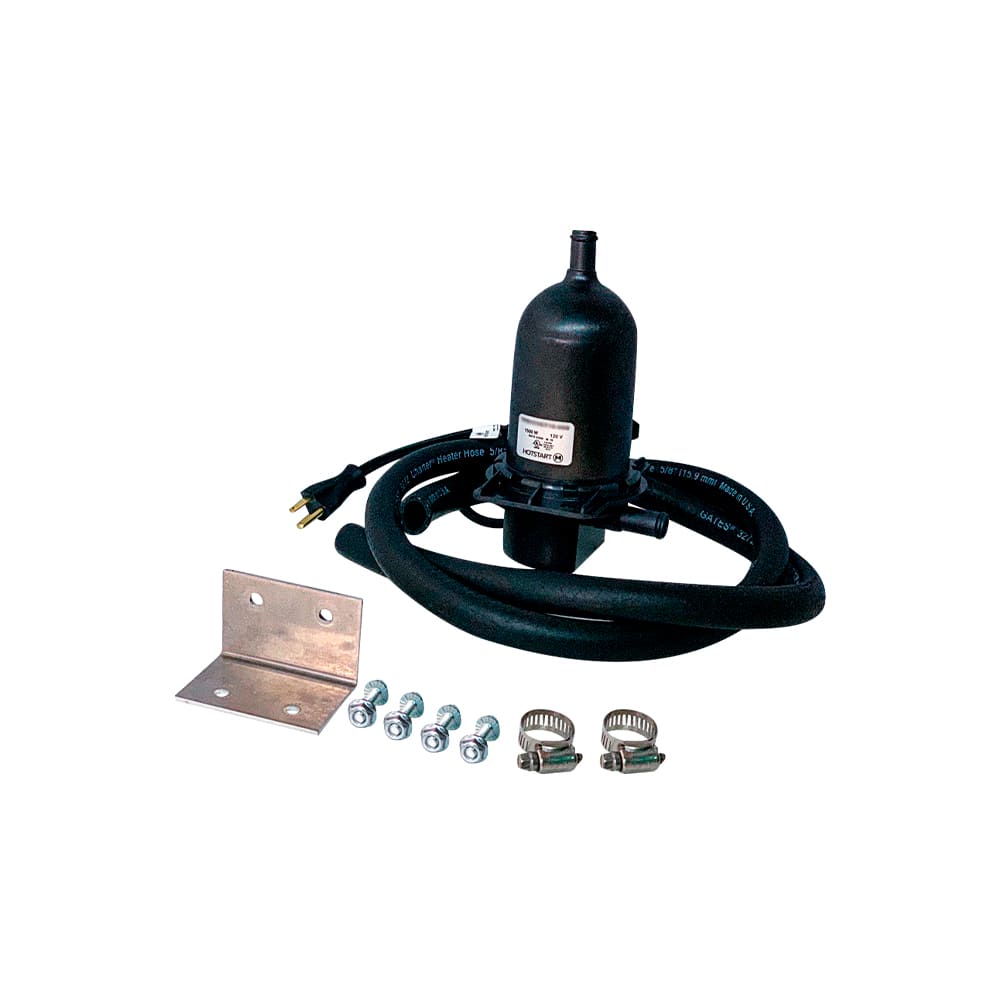

  • Engine Heater Kit Includes: Original HOTSTART TPS heater | Mounting hardware | 5 feet of ⅝”- high temperature heater hose (can but cut into pieces) | 2 x Stainless steel industrial type hose clamps | installation instructions.
  • Heating Fluid: Engine Coolant, Water, other – No pump needed (thermosiphon principle) | Cut the hose to the required length based on your engine size | 4 foot power cord | 5/8″ hose nipples.
  • Engine Displacement: 350 – 500 CID (5.7 – 8.2 L)
  • Volts: 240v – kW: 1.5 – AMPS: 6.3 – 60Hz
  • Temperature Range: ON: 80°F (27°C) – OFF 100°F (38°C)
