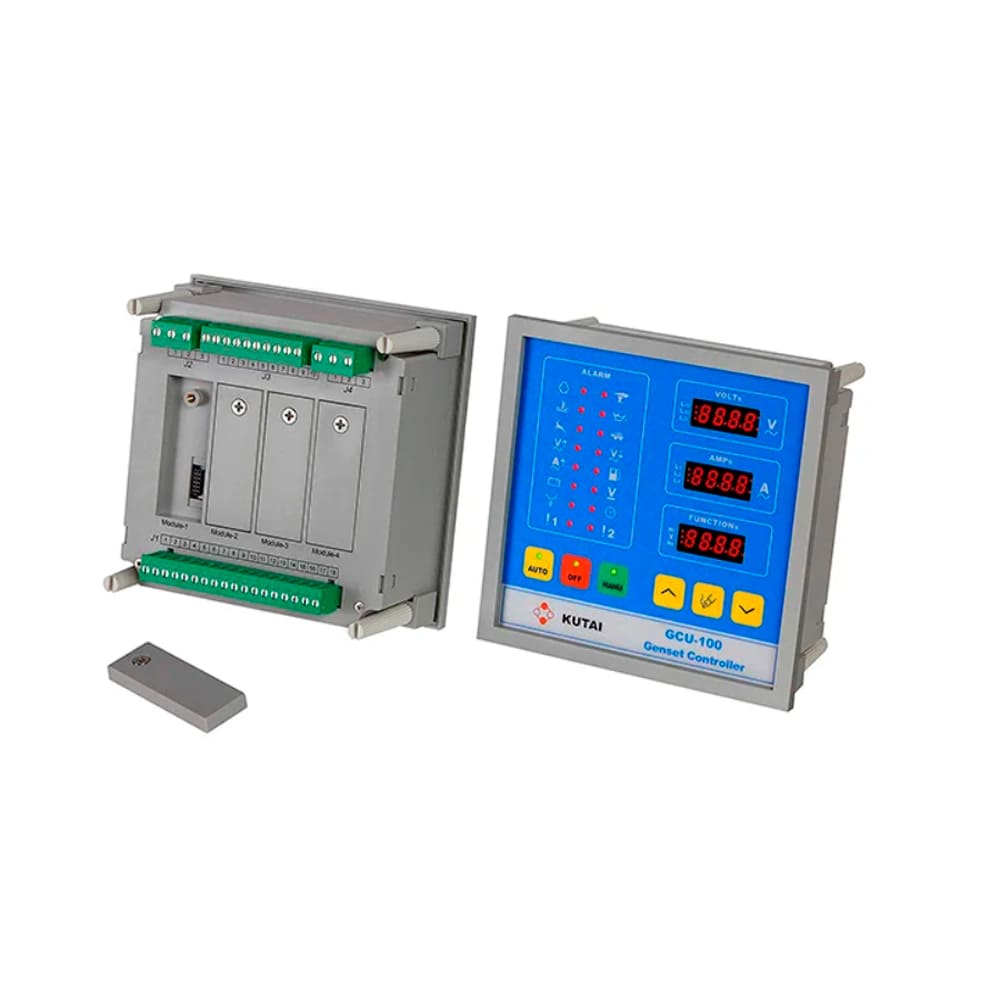

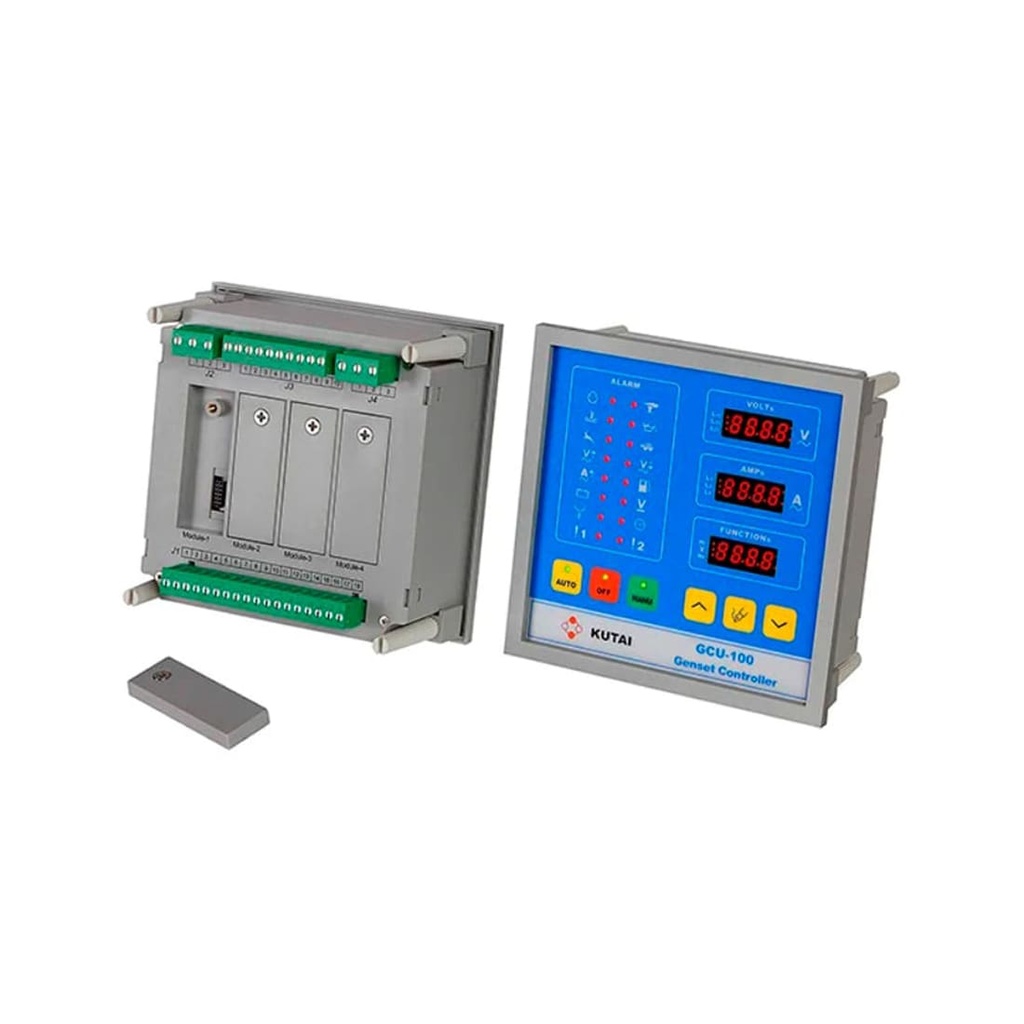

Power Master GCU-100 Control Unit

https://powermaster.odoo.com/web/image/product.template/10063/image_1920?unique=e978d0a

Generator Conrol Unit

$ 480.19 480.19 USD $ 480.19

$ 480.19

Not Available For Sale

This combination does not exist.

Contact Us
GCU-100 Generator Control

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER INPUT

9 to 35 Vdc (12V/24V)

POWER DISSIPATION

Max. 5 Watts

WEIGHT

1.3 POUNDS

SIZE

5.8 x  5.8 x 2 Inches

OPERATING TEMPERATURE

-20 to +60 °C

MICRO-PROCESSOR

Auto-control and protection.

SETTINGS ARE RECORDED

Into the internal (EEPROM) and protected from erasure even without battery

FULL FUNCTION

Modularized Design for Easy Installation.

  • Power Input - ◖9 to 35 Vdc (12V/24V).
  • Sensing Input - ◖Voltage: 15 to 510 Vac ◖Frequency:  50/60 Hz.
  • Power Dissipation - ◖Max. 5 watts.
  • MPU Signal - ◖Voltage: +/-2 to +/-70 Vac ◖Frequency: 100 Hz Min. 10K Hz Max.
  • CT Specification - ◖Burden Above 2.5 VA.


  • CT Secondary Ratio - ◖5A.
  • Operating Temperature - ◖-20 to +60°
  • Relative Humidity - ◖Max 90%
  • Max. Vibrations - ◖5 to 25 Hz +/-1.6 mm 25 to 100 Hz a=4g
  • Dimensions- ◖Weight: 1.3 POUNDS ◖Size: 5.8 x  5.8 x 2 Inches

GCU-100 Generator Automatic Control and Protection Module is suitable for most generators available on the market, it is equipped with graphical warning signals and 3 sets of 4 digits LED display to display the real time 3 phase voltage, current, frequency, battery volt, running hours and setting values. Micro-Processor Auto Control & Protection Three Sets of High Illuminating LED Display Suitable for Indoor and Outdoor Use Full Function Modularized Design for Easy Installation All Functions Setting Can Be Done Directly On GCU-100 No Need For PC Connection* All settings are recorded into the internal (EEPROM) and protected from erasure even without battery Easy to Understand Graphical Warning Signals Din Rail Terminal For Easy Installation IP65 Waterproof Front Panel
