Power Master GAVR-8A Automatic Voltage Regulator

Power Master GAVR-8A Automatic Voltage Regulator

GAVR-8A Automatic Voltage Regulator. Voltage: 90-480V ac max, Frequency:50-60 Hz nominal. Current: Continuous 2A, Intermittent 5A for 10 secs.

$ 20.09 20.09 USD $ 20.09

$ 20.09

This combination does not exist.

Add to cart Buy now

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER INPUT
100-260 VAC, 1 phase 2 wire

OUTPUT
Max. 90 VDC - 240 VAC input

WEIGHT

0.7 POUNDS

SIZE

5 X 5 X 5 Inches

RESISTANCE
Min.15 Ω - Max.100 Ω

Key Features
Description

THERMAL.DRIFT

0.03% per °C chage in AVR ambient

VOLTAGE BUILD-UP

Residual volts at AVR teminal - 5VAC

UNIT POWER DISSIPATION

Max.8 Watt

Sensing lnput - 110/220/400VAC, 1 phase 2 wire
Power Input - 100-260 VAC, 1 phase 2 wire
Output - Max.90 VDC - 240 VAC input
Current - Continuous 3A / Intermittent 5A for 10SEE.
Resistance - Min.15 - Max.100
Voltage Build-up - Residual volts at AVR teminal - 5VAC
External volts Adjustment - ± 7% with 1KΩ 1 watt trimmer

Sotf Start Ramp Time - 2 sec
Unit Power Dissipation - Max.8 Watt
EMI Suppression - Internal Electromagnetic Interference Filtering
Thermal.Drift - 0.03% per °C chage in AVR ambient
Under Frequency Protection - 60Hz system presets knee point at 55Hz
(Factory Settings)- 60Hz system presets knee point at 55Hz

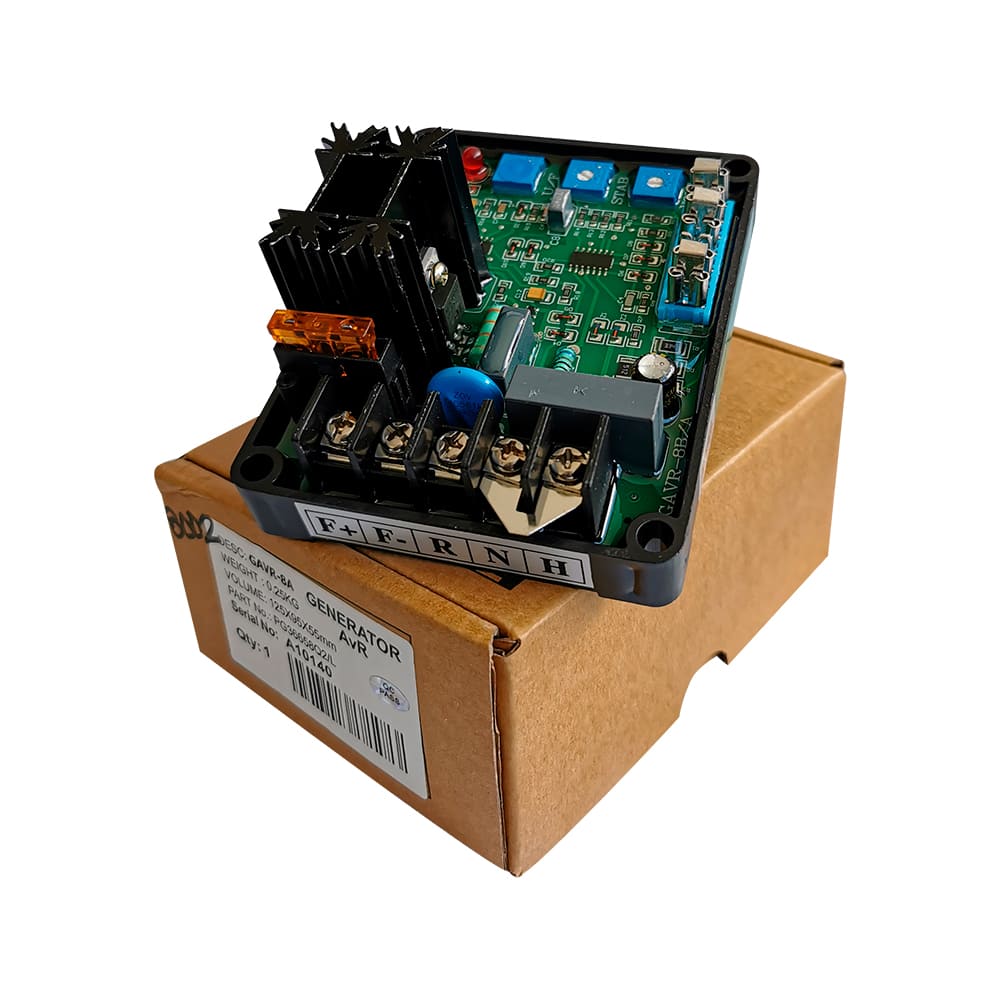

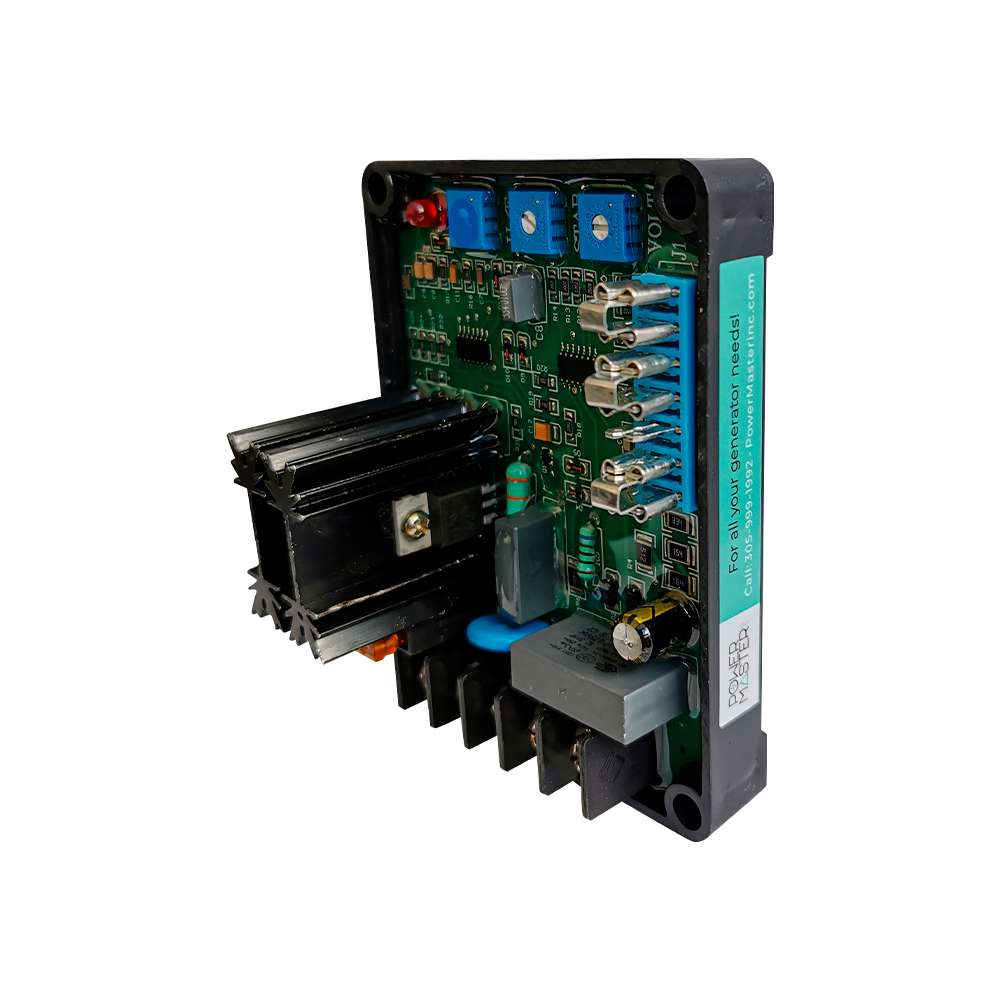

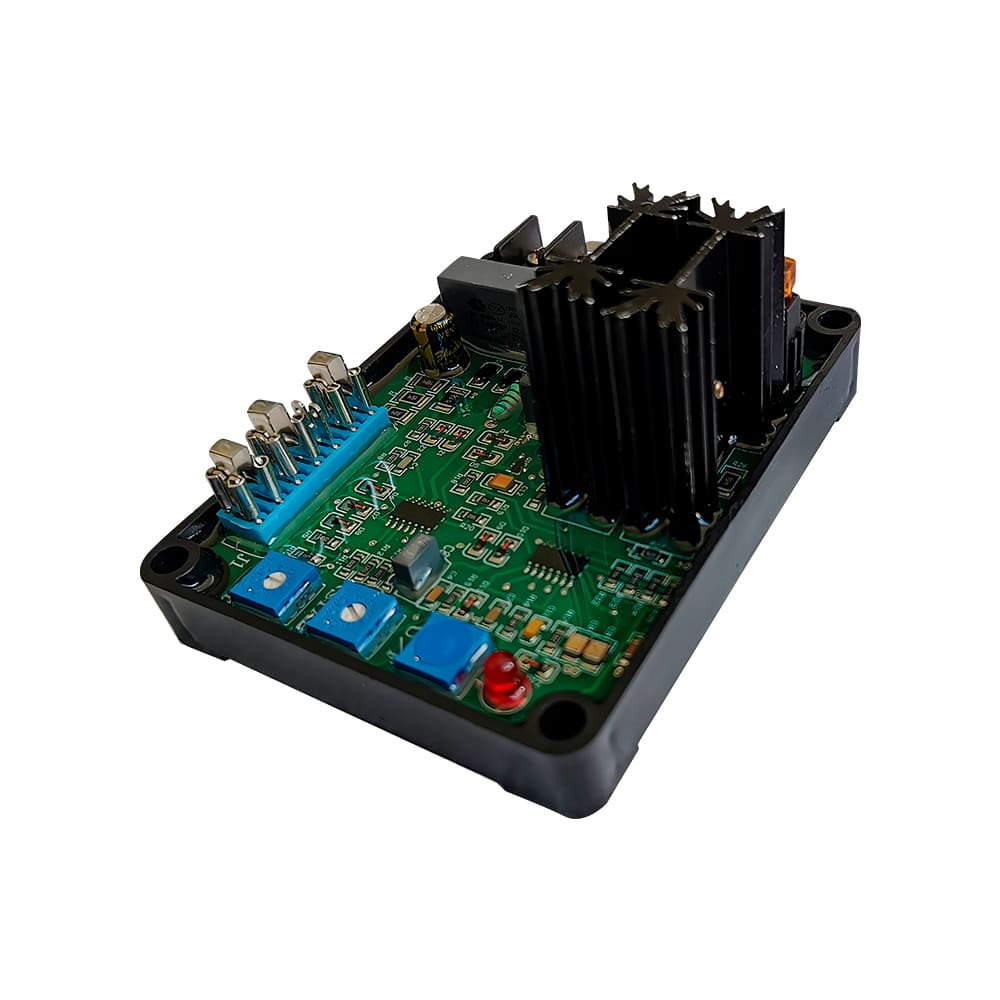

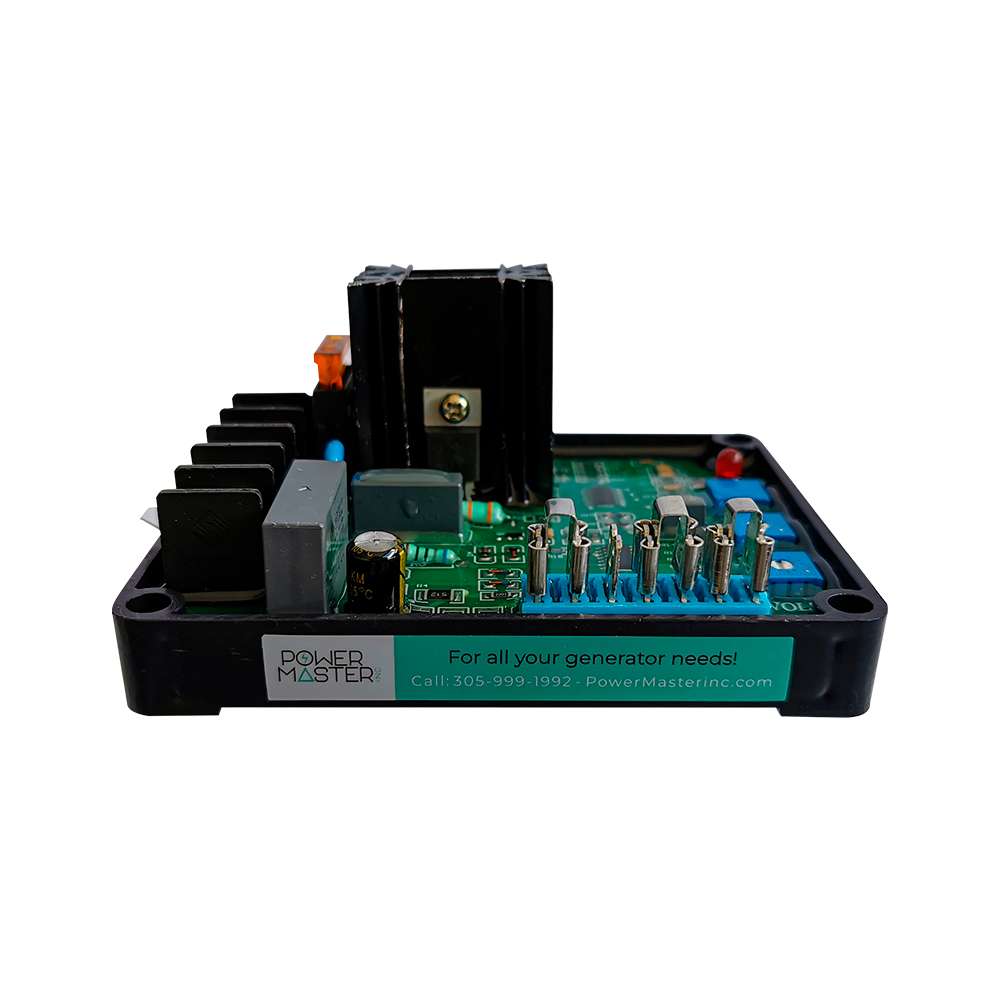

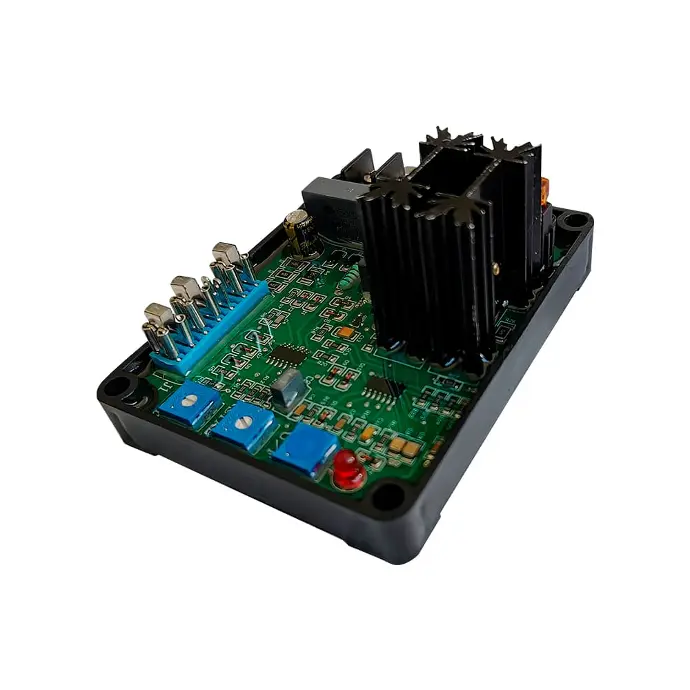

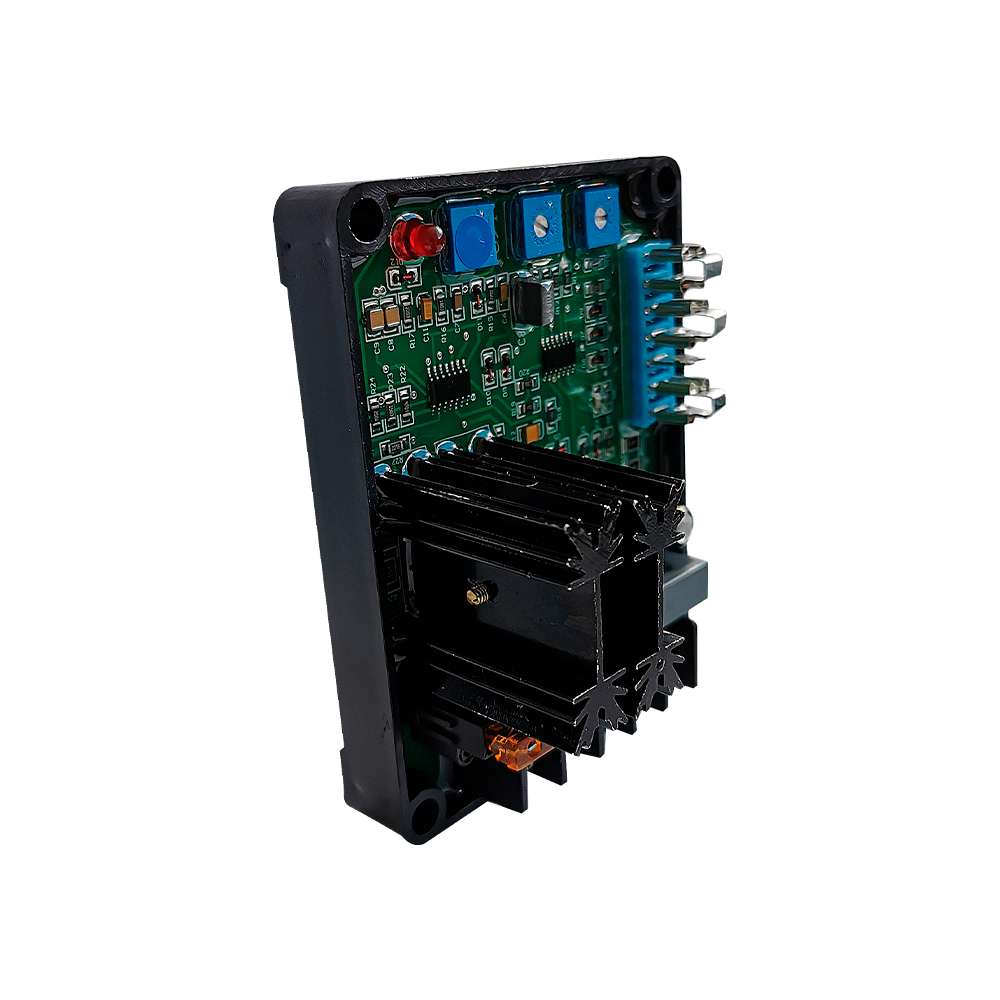

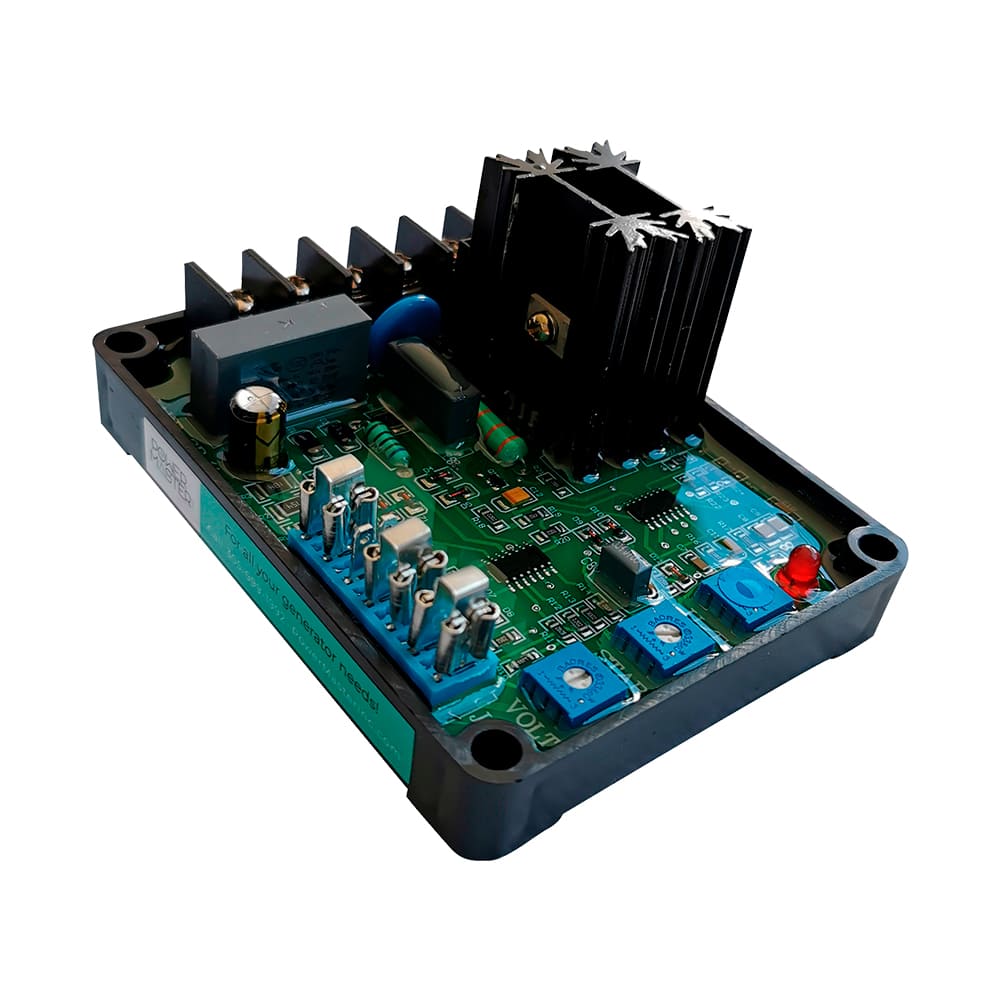

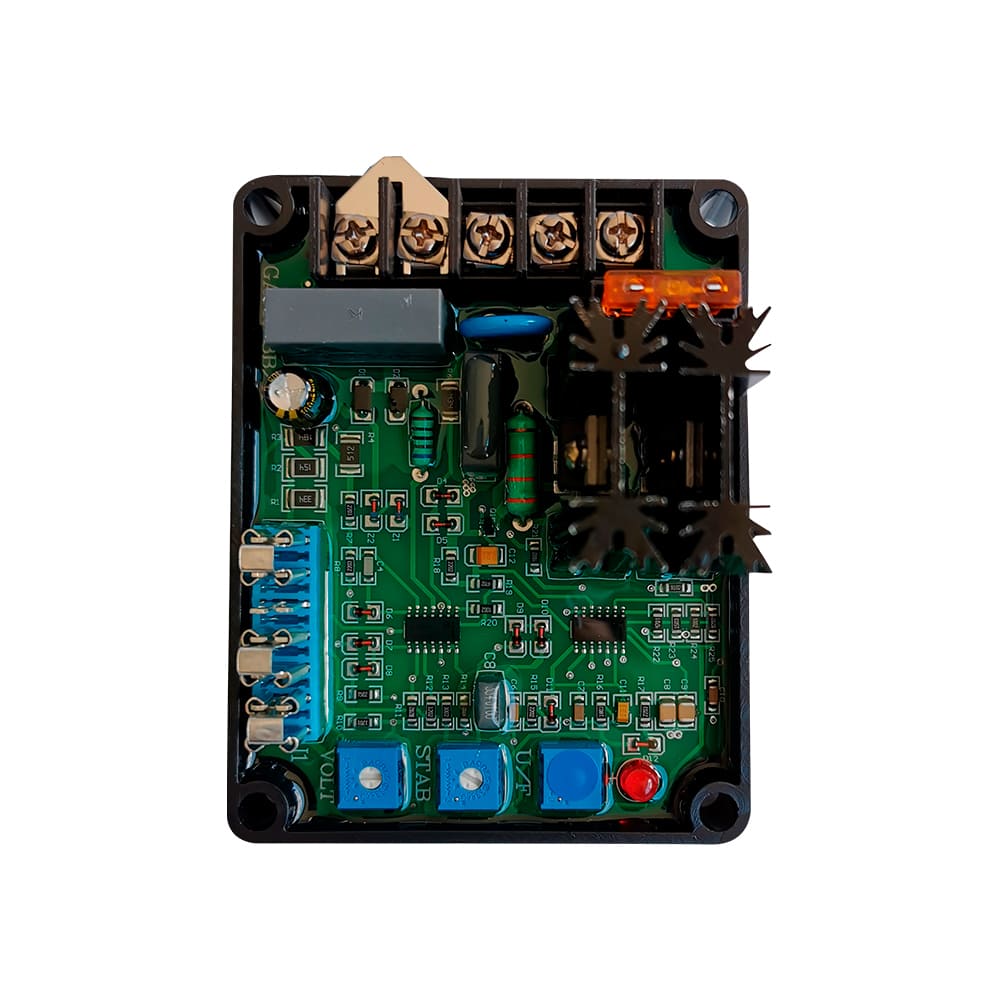

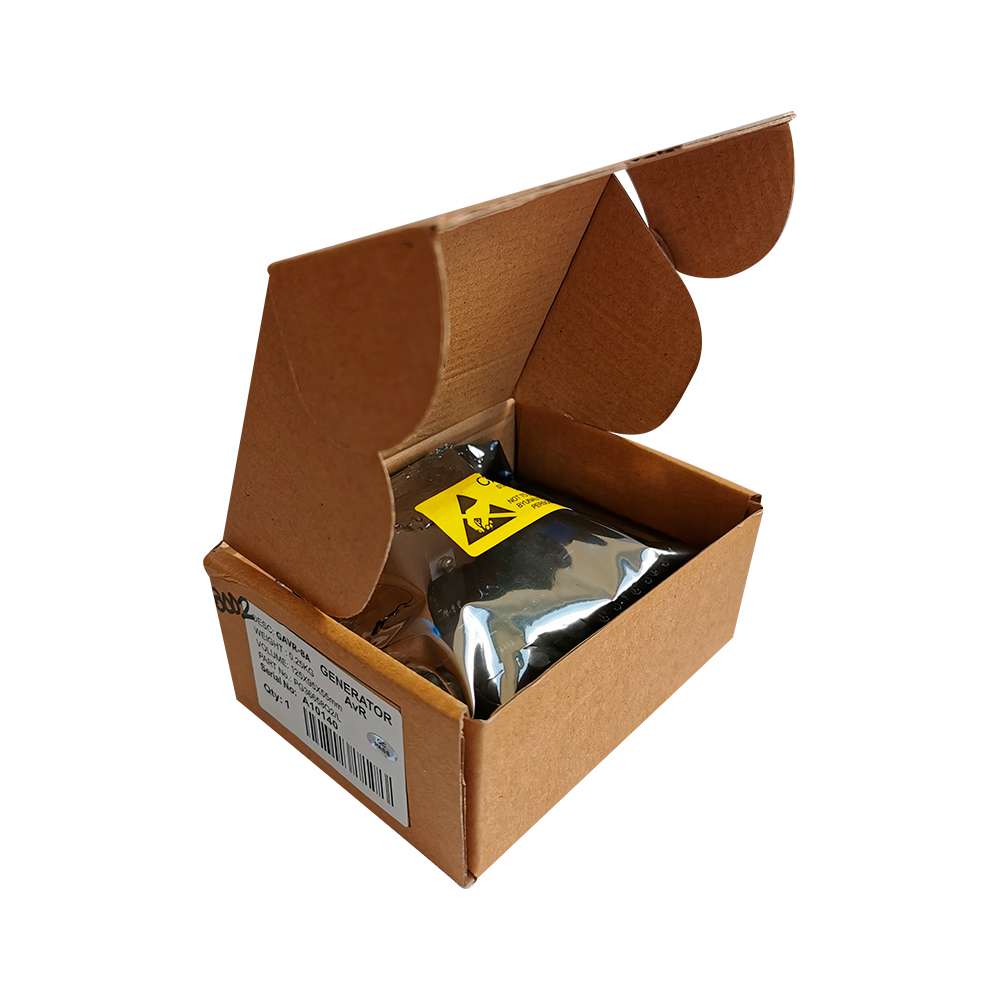

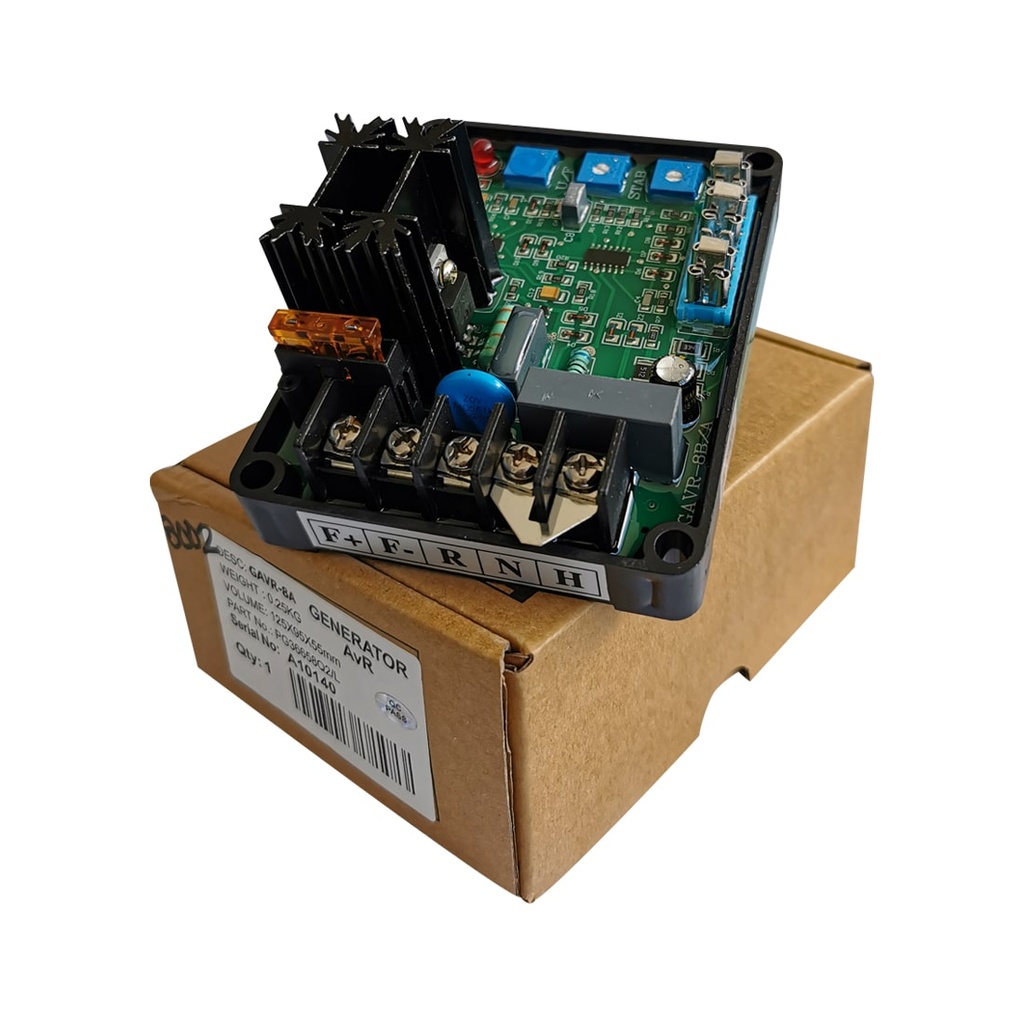

GAVR-8A Automatic Voltage Regulator features a rugged compact design, 110/220/440 VAC Programmable Input with Under Frequency Protection. Also features Soft Start Voltage Ramping and EMI Suppression and a built-in high capacity 8 Amp Fuse to protect the unit in cases of power surges. Package includes 1 x AVRGAVR-8A and 1 x User Manual.
