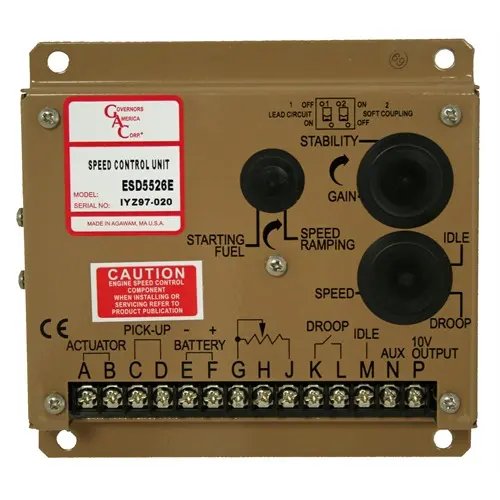

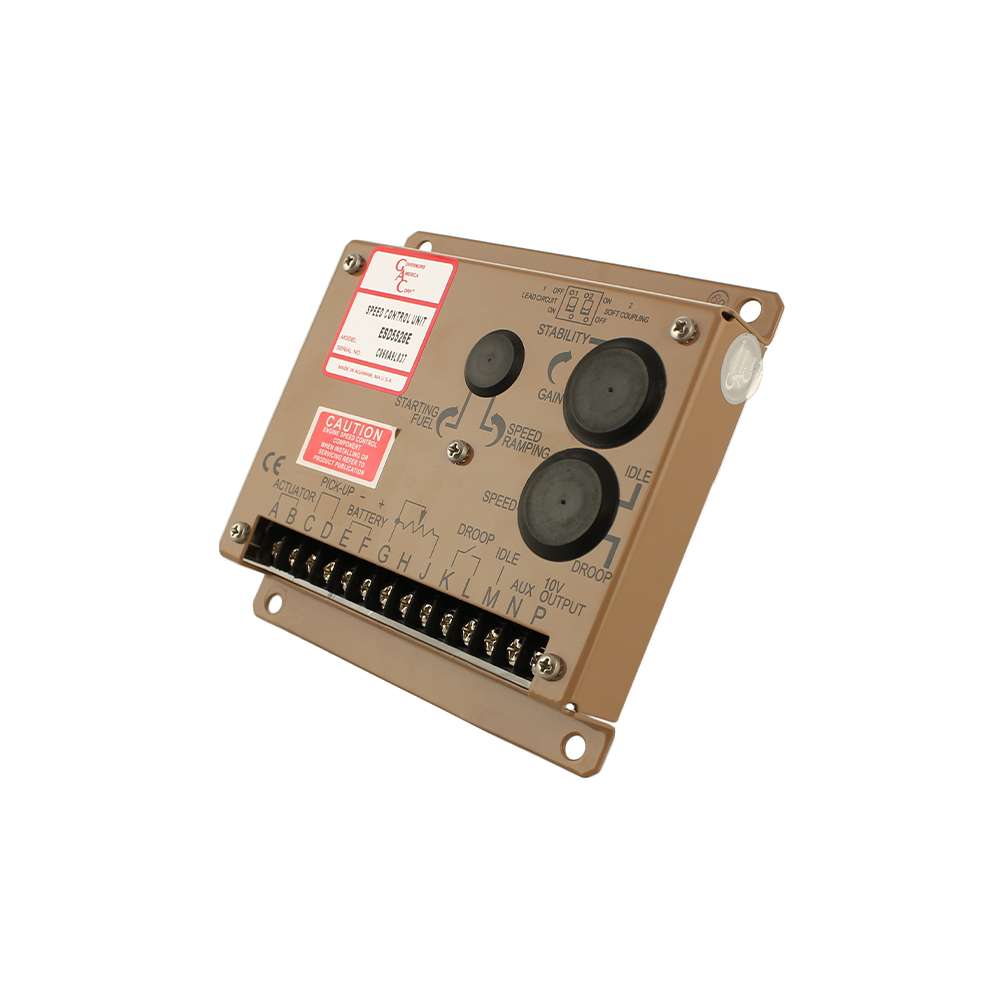

  2. GAC ESD5526E Isochronous, Variable Speed, Droop Speed Control Original

GAC ESD5526E Isochronous, Variable Speed, Droop Speed Control Original

https://powermaster.odoo.com/web/image/product.template/10164/image_1920?unique=f746bc1

Multi-VDC / Light-Force (Low-Current Optimized PID) / Anti-Windup Circuit (Gaseous) / Recommended for T1/T2 ATBs

$ 438.79 438.79 USD $ 438.79

$ 438.79

Not Available For Sale

This combination does not exist.

Contact Us
Speed Controls ESD5526E

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE

12 V DC and 24 V DC

POWER CONSUMPTION

  50 mA continuous plus actuator current

WEIGHT
1.20 POUNDS

SIZE
 5.x 5 x 1.0 Inches

AMBIENT TEMPERATURE

-40 to 85 °C (-40 to 185 °F)


Multi-V DC • Light-Force (Low-Current Optimized PID) • Anti-Windup Circuit (Gaseous) • Recommended for T1/T2 ATBs


The ESD5500E Series speed control unit is an all- electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and built ruggedly to withstand the engine environment.


TESTING

100 % Functional Tested

SPEED RANGE / GOVERNOR

  1 - 7.5 kHz Continous

ALL SURFACE FINISHES

Fungus Proof and Corrosion Resistant

  • Performance - ◖Isochronous Operation : ± 0.25 % or better ◖Speed Range / Governor: 1 - 7.5 kHz Continuous ◖Speed Drift with Temperature: ±1 % MAX ◖Idle Adjust Clockwise: 60 % of Set Speed ◖Idle Adjust Counterclockwise: Less than 1200 Hz ◖Droop Range:  1 - 5 % regulation ◖Droop Adjust Maximum (K-L jumpered): 400 Hz ±75 Hz per 1.0 A change◖Droop Adjust Minimum (K-L jumpered): 15 Hz ±75 Hz per 1.0 A change ◖Speed Trim Range: ± 200 Hz ◖Remote Variable Speed Range: 500 - 7.5 kHz ◖Terminal Sensitivity: J L N P 100 Hz ±15 Hz/Volt @ 5.0 kΩ Impedance 735 Hz ±60 Hz/Volt @ 65.0 kΩ Impedance 148 Hz ±10 Hz/Volt @ 1 MΩ Impedance 10 V DC Supply @ 20 mA MAX
  • Reliability - ◖Vibration: 1 g @ 20-100 Hz ◖Testing: 100 % Functional Tested


  • Input / Output - ◖DC Supply: 12 V DC and 24 V DC Battery Systems Transient and Reverse Voltage Protected* ◖Polarity: Negative Ground (Case Isolated) ◖Power Consumption: 50 mA continuous plus actuator current ◖Speed Signal/Range Speed Sensor: Signal 1.0 - 50 V AC 1.0 - 120 V RMS ◖Actuator Current Range** (77°F (25°C): Minimum 1.0 A Nominal 7.0 A Peak 10.0 A
  • Environmental - ◖Ambient Temperature: -40° to 85 °C [-40° to 180 °F] ◖Relative Humidity: up to 95 % ◖All Surface Finishes: Fungus Proof and Corrosion Resistant
  • Compliance / Standards- ◖ Agency: CE (EN55011, EN50081-2, EN50082-2), RoHS, Lloyds Register, DNV/GL, Bureau Veritas
  • Physical - ◖Dimension: 5.75¨x 5.50¨ ◖Weight: 1.20 POUNDS (1.36 kgf) ◖Mounting: Any position, vertical preferred

The ESD5500E Series speed control unit is an all- electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and built ruggedly to withstand the engine environment.

  • Switchable droop control
  • Adjustable PID
  • Idle speed adjustment
  • Auxiliary accessory inputs
  • Speed ramping
  • Soft coupling
