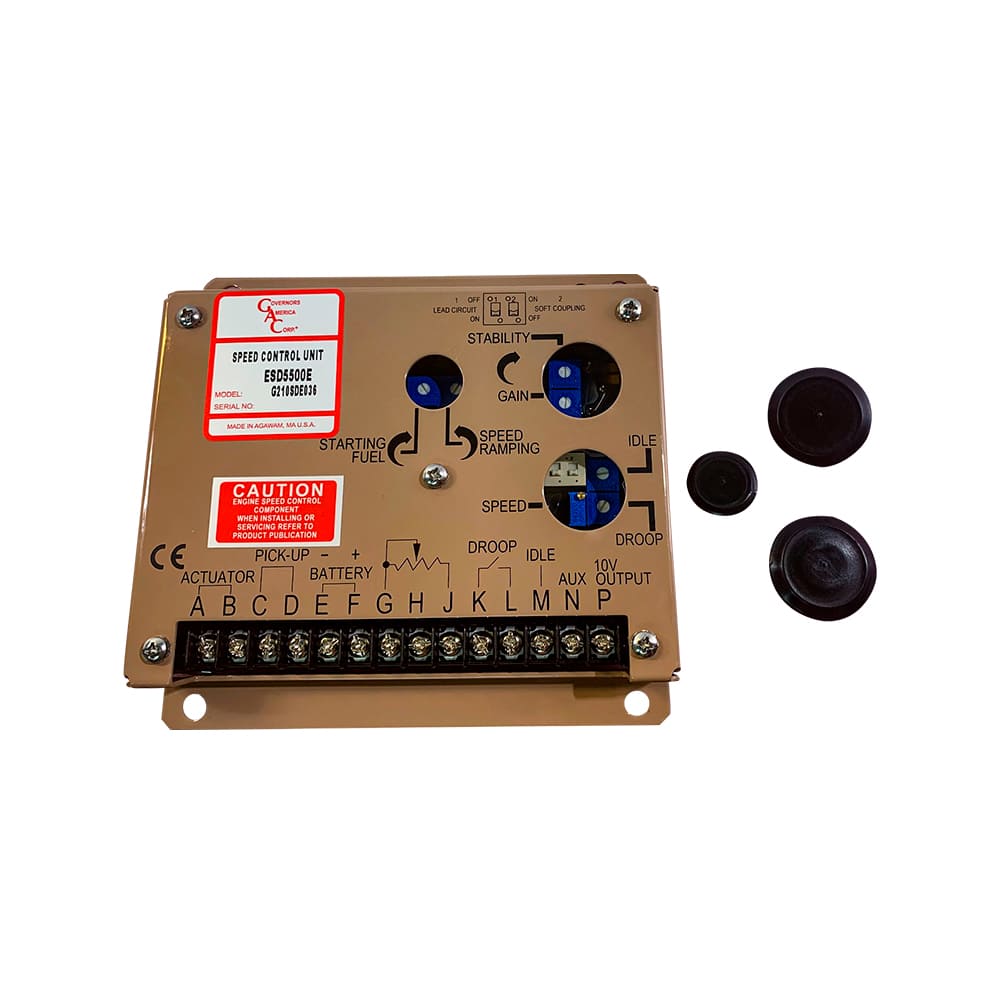

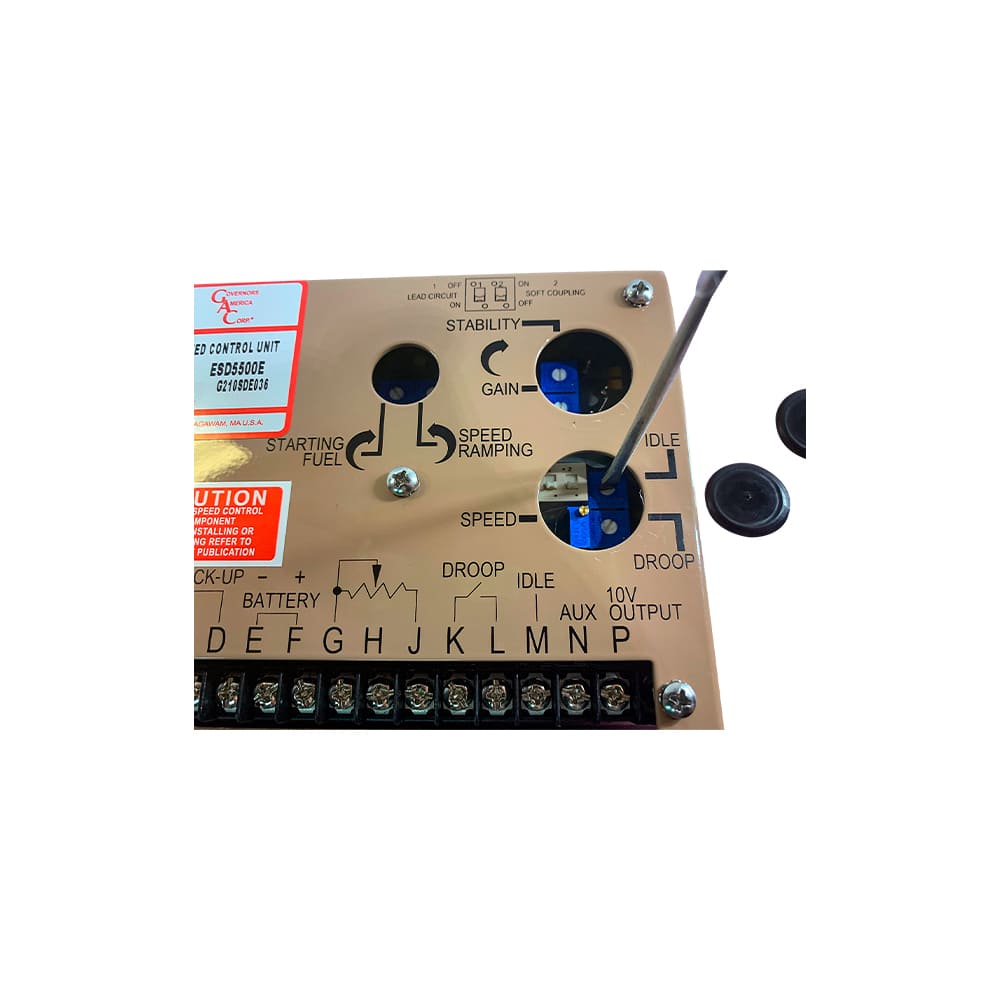

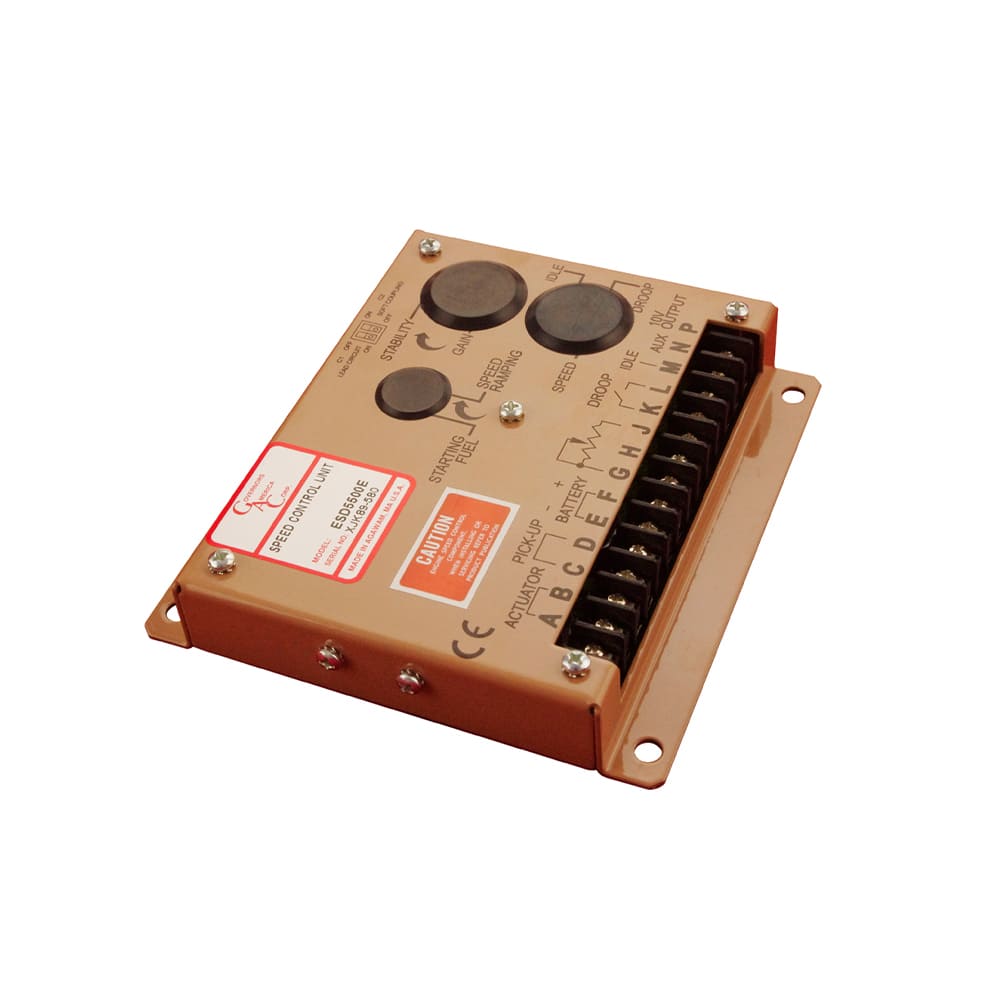

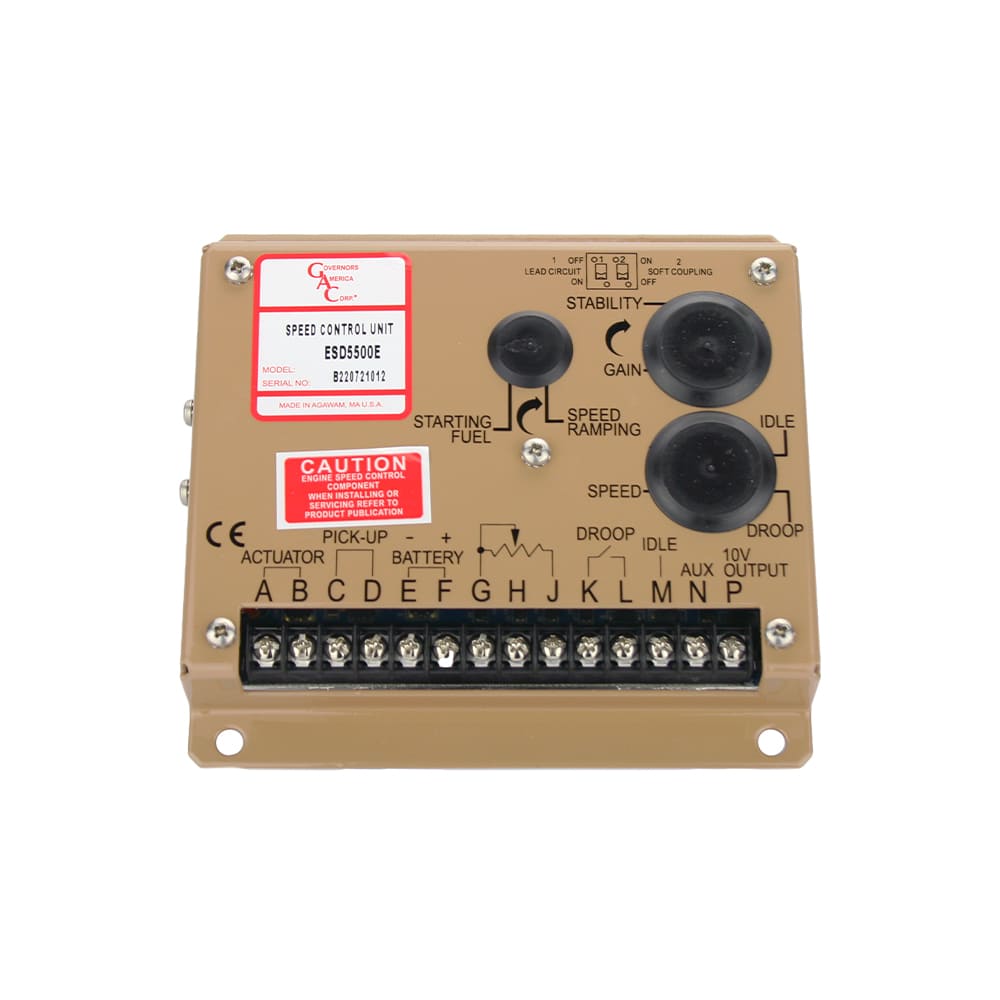

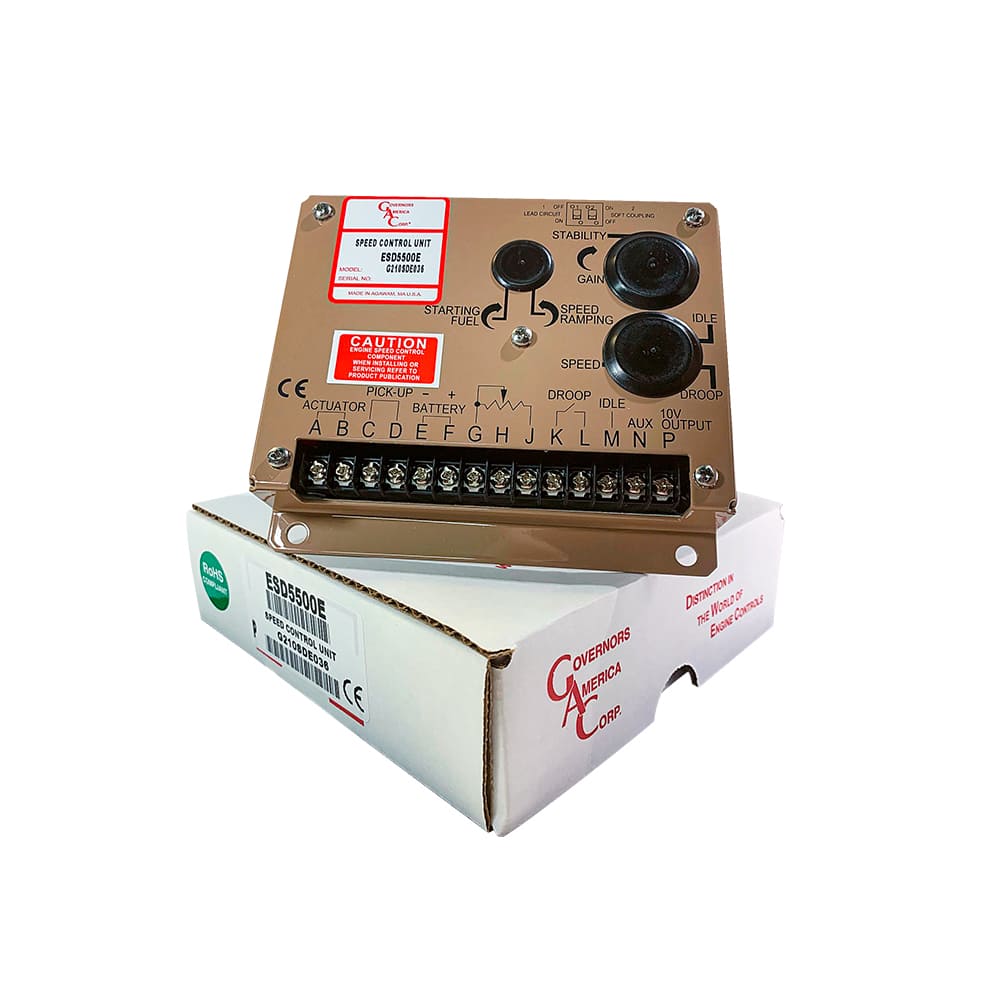

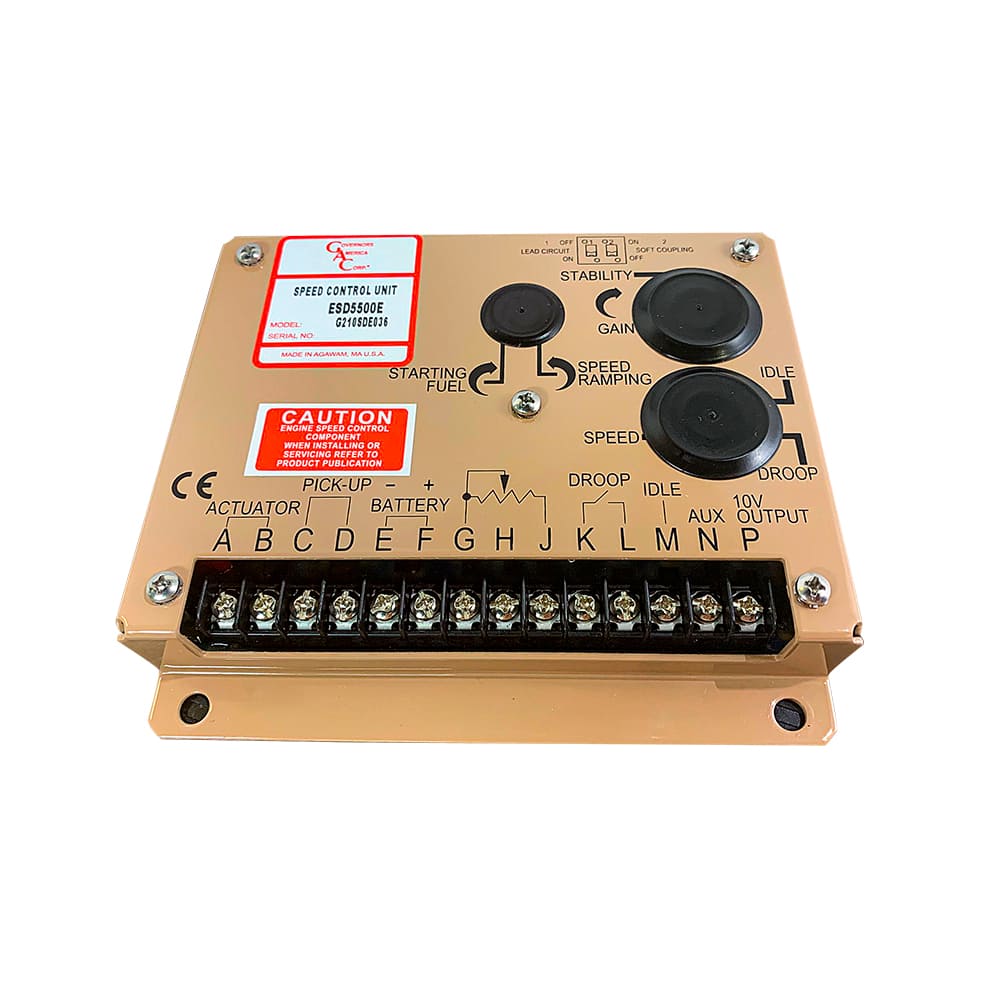

GAC ESD5500E Multi-VDC / Standard Unit Original

GAC ESD5500E Multi-VDC / Standard Unit Original

Multi-VDC / Standard Unit

$ 432.99 432.99 USD $ 432.99

$ 432.99

This combination does not exist.

Add to cart Buy now

Speed Controls ESD5500E

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE

12 V DC and 24 V DC

POWER CONSUMPTION

50 mA continuous plus actuator current

WEIGHT

1.2 POUNDS

SIZE
5 x 5 x 1.0 Inches

AMBIENT TEMPERATURE

-40 to 85 °C (-40 to 185 °F)

Key Features
Description

TESTING

100% Functional Tested

SPEED SIGNAL RANGE

1.0 - 50 V AC

MOUNTING

Any Position, Vertical Preferred

Performance - ◖ Isochronous Operation: ± 0.25 % or better ◖Speed Range / Governor: 1 - 7.5 kHz Continuous ◖Speed Drift with Temperature: ±1 % MAX ◖Speed Trim Range: ± 200 Hz
Input / Output - ◖DC Supply: 12 V DC and 24 V DC Battery Systems Transient and Reverse Voltage Protected* ◖Polarity: Negative Ground (Case Isolated) ◖Power Consumption: 50 mA continuous plus actuator current Actuator Current: 10.0 A Peak ◖Speed Signal Range: 1.0 - 50 V AC ◖Speed Sensor Signal: 1.0 - 120 V RMS

Environmental - ◖Ambient Temperature: -40 to 85 °C (-40 to 185 °F) ◖Relative Humidity: up to 95% ◖All Surface Finishes : Fungus-Proof and Corrosion-Resistant
Reliability - ◖Vibration: 1 g @ 20-100 Hz ◖Testing: 100% Functional Testing
Physical - ◖Dimension: 5 x 5 x 1.0 Inches ◖Weight: 1.2 POUNDS ◖Mounting: Any Position, Vertical Preferred
Compliance / Standards - ◖Agency : CE (EN55011, EN50081-2, EN50082-2), RoHS, Lloyds Register, DNV/GL, Bureau Veritas

The ESD5500E controls a wide variety of engines in isochronous or droop mode when connected to a proportional electric actuator and magnetic speed sensor. The ruggedly built ESD5500E series is designed to withstand the engine environment. Light-Force variations are available.
