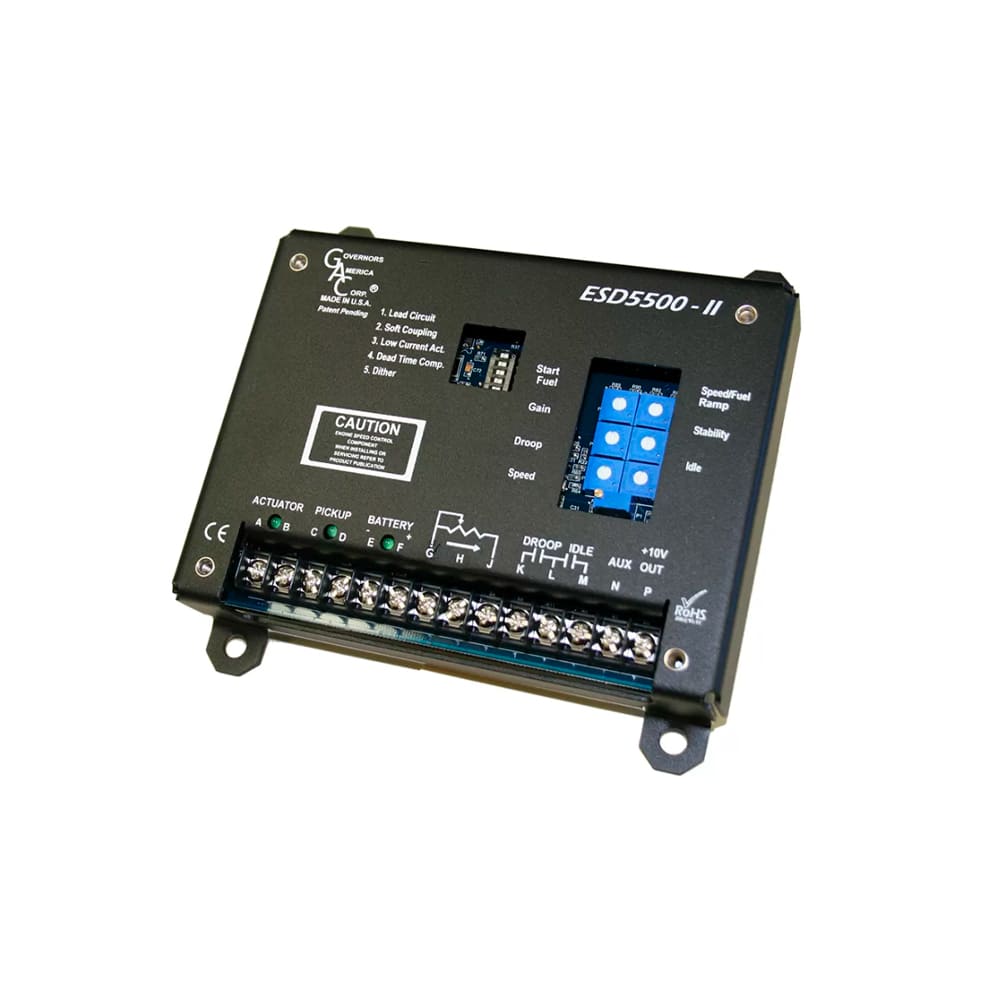

GAC ESD5500-II High Performance Isochronous, Variable Speed, Droop Governor Original

Multi-VDC / Replacement for Most ESD5500E Series in a Single Unit
[High Frequency (HF) Version Available to 14kHz Input - Contact GAC]

$ 426.29 426.29 USD $ 426.29

$ 426.29

This combination does not exist.

Add to cart Buy now

Speed Controls ESD5500-II

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE

12 - 24 V DC

POWER CONSUMPTION

<50 mA Continuous plus actuator current

WEIGHT

1.8 POUNDS

SIZE
6 x 5 x 1.0 Inches

AMBIENT TEMPERATURE

-40 to 85 °C [-40 to 185 °F]

Key Features
Description

TESTING

100 % Functional Tested.

SPEED SIGNAL RANGE

1.0 - 50.0 V AC

MOUNTING

Any Position, Vertical Preferred

Performance - ◖ Isochronous Operation: ± 0.25 % or better ◖Speed Range: 1 - 7.5 KHz Continuous ◖Speed Drift with Temperature: ±1 % MAX ◖Speed Trim: ± 200 Hz
Input / Output - ◖Supply: 12 - 24 V DC Battery System Transient and Reverse Voltage Protected ◖Polarity: Negative Ground (Case Isolated) ◖Power Consumption: 50 mA Continuous plus actuator current ◖Maximum Actuator Current: 4 A ◖Speed Signal Range: 1.0 - 50.0 V AC ◖Actuator Current: 8 A MAX Continuous ◖Speed Sensor Signal: 1.0 - 120 V RMS

Environmental - ◖Ambient Temperature: -40° to 85 °C [-40° to 180 °F] ◖Relative Humidity: up to 95% ◖All Surface Finishes : Fungus-Proof and Corrosion-Resistant
Reliability - ◖Vibration: 1 g @ 20-100 Hz ◖Testing: 100 % Functional Testing
Physical - ◖Dimension: 6 x 5 x 1.0 Inches ◖Weight: 1.8 POUNDS ◖Mounting: Any Position, Vertical Preferred

ESD5500-II Series – Suitable for Both Gaseous & Diesel Applications / Light Force & Standard Actuators / Selectable Dither Function / LED Indicators

The next generation of GAC’s Speed Controllers, the ESD5500-II Fusion Series combines all of the most popular functions of the various ESD5500 Series (5500, 5520, 5526 & 5528) into a single, high-performance unit. The ESD5500-II speed control unit is designed to precisely control engine speed with rapid responses to transient load changes. The ESD5500-II speed control is compatible with all GAC proportional actuators except the ACB2001 electric actuator since this high torque actuator also requires current limiting available in the ESD5300 Series. Ruggedly built to withstand all engine environments, the ESD5500-II has all the same well known features of the ESD5500 and also incorporates selectable light-force for low current actuators, dither for difficult engines with respect to stability and integrated anti-windup for both diesel and gaseous application.
