  2. GAC ESD5340 Isochronous, Variable Speed, Droop Governing for Heavy Duty Actuators

GAC ESD5340 Isochronous, Variable Speed, Droop Governing for Heavy Duty Actuators

https://powermaster.odoo.com/web/image/product.template/10214/image_1920?unique=33bf96c

24VDC / Full-Fuel Starting Aid

$ 627.09 627.09 USD $ 627.09

$ 627.09

Not Available For Sale

This combination does not exist.

Contact Us
Speed Controls ESD5340

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE

24 V

POWER CONSUMPTION

100 mA (no actuator current)

WEIGHT
3 POUNDS

SIZE
10 x 6 x 1 Inches

AMBIENT TEMPERATURE

-40 to 85 °C (-40 to 185 °F)


M24 V DC • Standard Unit




TESTING
100 % Functional Testing
SPEED RANGE / GOVERNOR
1.0 - 7.5 KHz Continuous
ALL SURFACE FINISHES
Fungus Proof and Corrosion Resistant
  • Performance - ◖Isochronous Operation: ± 0.25 % ◖Speed Range / Governor: 1.0 - 7.5 KHz ◖Continuous Speed Drift with Temperature: ± 1% MAX ◖Idle Speed Adjust Range: 25 - 85 % of rated speed Droop Range 0 - 5 % for a 1.5 A actuator current change ◖Speed Trim Range: ± 200 Hz ◖Remote Variable Speed Range: ACCEL: 266 Hz/s - 1300 Hz/s DECEL: 250 Hz/s - 1000 Hz/s - ◖Starting Fuel Adjustment 0.0 - 1.5 A 0.3 - 5.0 A: 120, 175, 225, 275 Actuators / SW2-7 OFF (24 V DC Only) 2001 Actuator / SW2-7 ON ◖Overspeed Set Point: 2330 Hz - 8500 Hz ◖Crank Termination Set Point: 200 Hz - 2050 Hz ◖Terminal Sensitivity: H M K N 105 Hz, ±15 Hz/V @ 5 kΩ Impedance 130 Hz, ±15 Hz/V @ 1 MΩ Impedance 685 Hz, ±40 Hz/V @ 326 kΩ Impedance 1000 Hz, ±50 Hz/V @ 8 k Ω Impedance
  • Reliability - ◖Vibration: 1 G, 20 - 100 Hz ◖Shock: 10 G (11 ms) ◖Testing: 100 % Functional Testing


  • Input / Output - ◖Supply: 24 V DC Battery Systems (Transient and Reverse Voltage Protected) ◖Maximum Continuous Supply: 32 V DC ◖Polarity: Negative Ground (Case Isolated) ◖Power Consumption 100 mA (no actuator current) ◖Speed Signal Range: 1.0 - 50 V AC ◖MAX Actuator Peak Current: 15 A ◖MAX Current, Relay Contact (Terminals 1 - 6): Rating 6 A Chopping Frequency Range 60 - 380 Hz
  • Environmental - ◖Ambient Temperature: -40 to 85 °C (-40 to 185 °F ◖Relative Humidity: up to 95 % ◖All Surface Finishes: Fungus Proof and Corrosion Resistant
  • Compliance / Standards - ◖Agency: CE and RoHS Requirements
  • Physical - ◖Dimension: 10.28¨x 6.62¨ ◖Weight: 3 lbf ( 1.36 kgf) ◖Mounting: Any position, vertical preferred


M24 V DC • Standard Unit

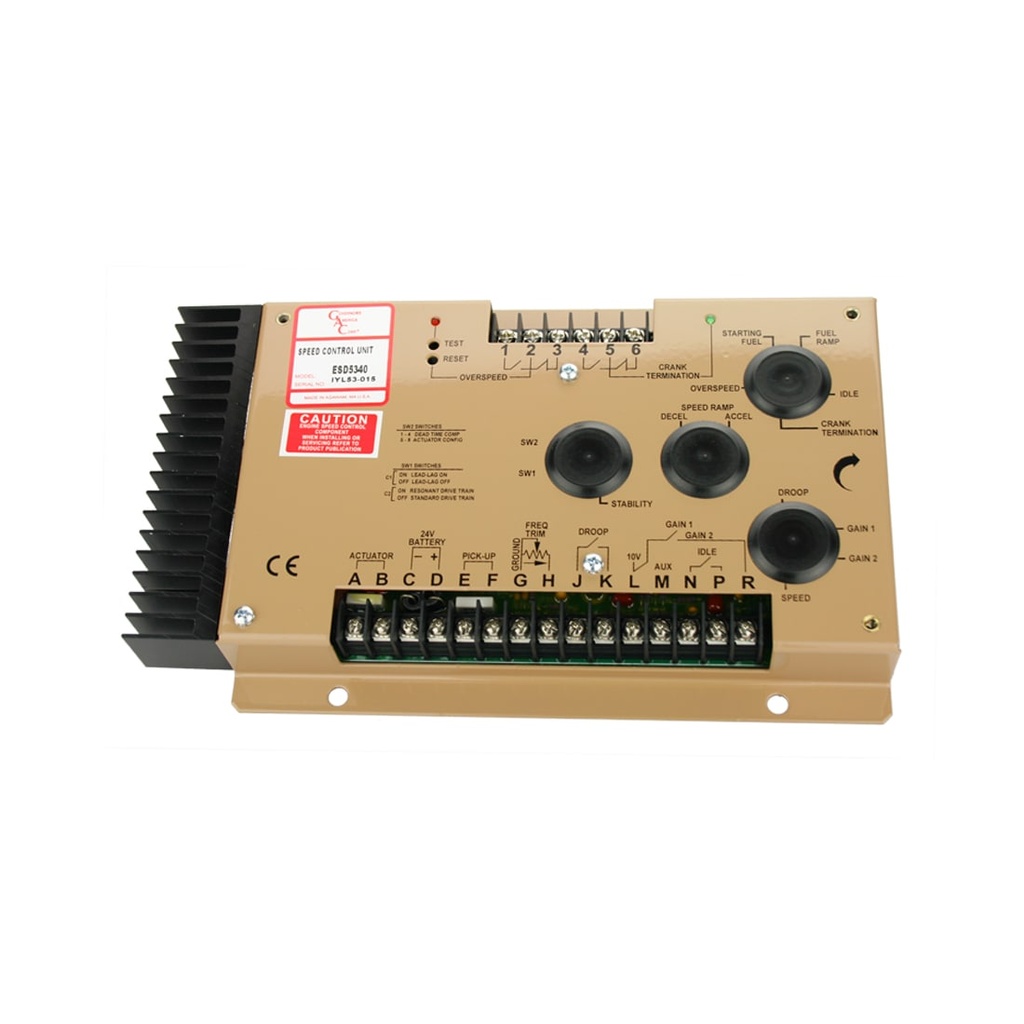

The ESD5300 Series speed control unit is designed to precisely control engine speed and provide fast precise response to transient engine loads. This speed control is intended to be used with all GAC Actuators including the ACB2001. A complete closed loop control system is formed with the addition of a magnetic pickup signal sensing engine speed and 24 Volt DC power.

  • Two-element speed switch
  • Speed ramping idle to operating speed
  • Starting fuel control for lower engine exhaust emissions
  • Unique actuator power drive circuit
  • Accessory inputs for load sharing
  • Variable speed governing
  • Protection against reverse battery voltage
  • rotection against transient voltage
