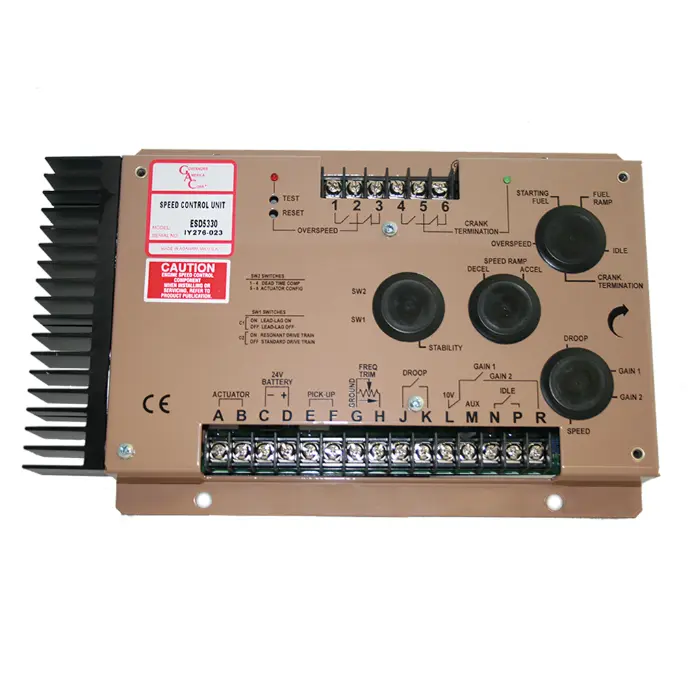

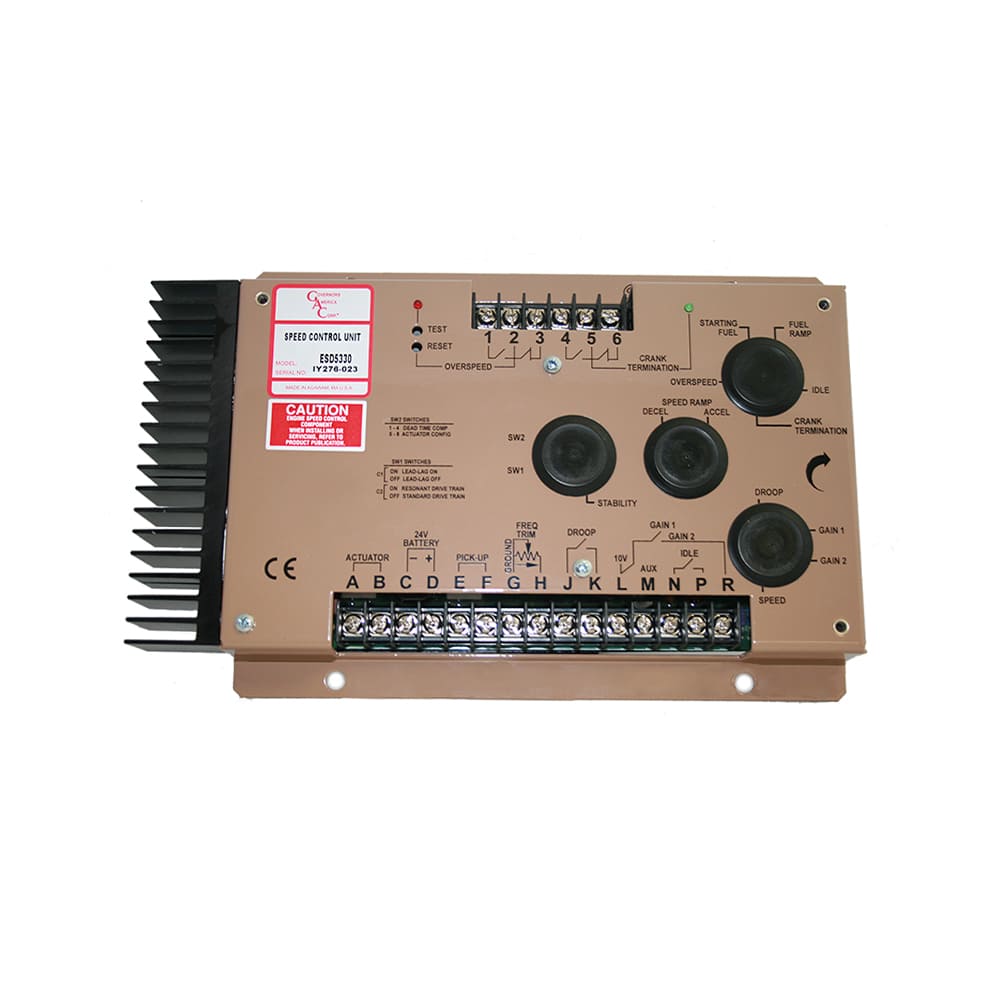

GAC ESD5330 Speed Controller for Heavy Duty Actuators Original

https://powermaster.odoo.com/web/image/product.template/10046/image_1920?unique=d5e4f89

24VDC / Standard Unit

$ 627.09 627.09 USD $ 627.09

$ 627.09

Not Available For Sale

This combination does not exist.

Contact Us
Speed Controls ESD5330 ESD5300

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE
24 V DC
POWER CONSUMPTION

100 mA (no actuator current)

WEIGHT
3 POUNDS

SIZE
10 x 6 x 1 Inches

AMBIENT TEMPERATURE

-40 to 85 °C (-40 to 185 °F)

TESTING

100 % Functional Tested

SPEED SIGNAL RANGE

1.0 - 50 V AC

MOUNTING

Any Position, Vertical Preferred

  • Performance - ◖ Isochronous Operation: ± 0.25 %  ◖Speed Range: 1.0 - 7.5 KHz Continuous ◖Speed Drift with Temperature: ±1 % MAX ◖Speed Trim:  ± 200 Hz
  • Input / Output - ◖Supply:  24 V DC Battery Systems (Transient and Reverse Voltage Protected) ◖Polarity: ​Negative Ground (Case Isolated) ◖Power Consumption: 100 mA (no actuator current) ◖Maximum Actuator Current: 4 A ◖Speed Signal Range: 1.0 - 50 V AC ◖MAX Actuator Peak Current: 15 A ◖Chopping Frequency Range: 60 - 380 Hz


  • Environmental - ◖Ambient Temperature: -40 to 85 °C (-40 to 185 °F) ◖Relative Humidity: up to 95% ◖All Surface Finishes : Fungus-Proof and Corrosion-Resistant
  • Reliability - ◖Vibration: 1 G, 20 - 100 Hz ◖Testing: 100 % Functional Testing ◖Shock: 10 G (11 ms)
  • Physical - ◖Dimension: 10 x 6 x 1 Inches ◖Weight: 3 POUNDS ◖Mounting: Any Position, Vertical Preferred

The ESD5300 Series speed control unit is designed to precisely control engine speed and provide fast precise response to transient engine loads. This speed control is intended to be used with all GAC Actuators including the ACB2001. A complete closed loop control system is formed with the addition of a magnetic pickup signal sensing engine speed and 24 Volt DC power.
