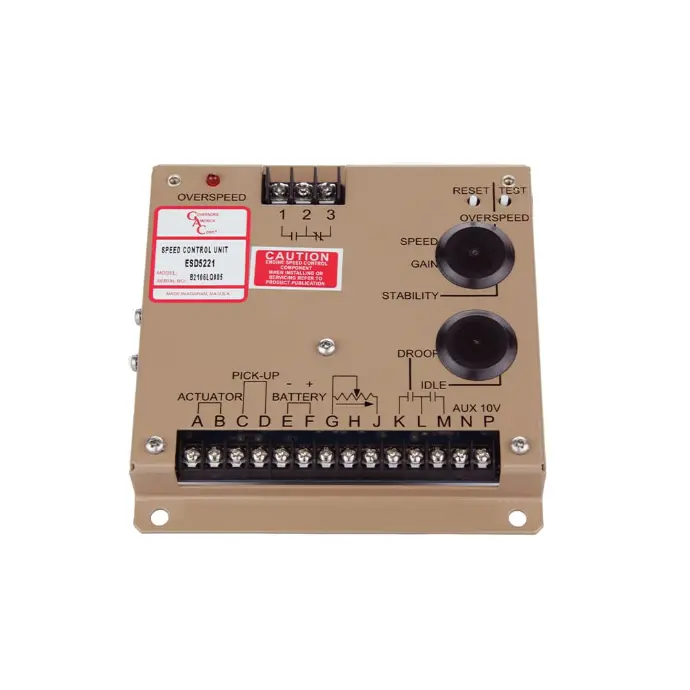

GAC ESD5221 Isochronous, Variable Speed, Droop Governing Original

Multi-VDC / Overspeed Switch

$ 432.09 432.09000000000003 USD $ 432.09

$ 432.09

This combination does not exist.

Add to cart Buy now

Speed Controls ESD5221

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE

12 V DC and 24 V DC

POWER CONSUMPTION

50 mA (Continuous plus actuator current)

WEIGHT

1.8 POUNDS

SIZE
6 x 6 Inches

OPERATING TEMPERATURE RANGE

-40° to 85 °C [-40° to 185 °F]

Key Features
Description

TESTING

100 % Functional Tested

SPEED SIGNAL RANGE

1.0 - 50 V AC

MOUNTING

Any Position, Vertical Preferred

Performance - ◖ Isochronous Operation: ± 0.25 % or better ◖Speed Range: 1 - 7.5 kHz continuous ◖Speed Drift with Temperature: ±1 % MAX ◖Speed Trim Range: ± 200 Hz
Input / Output - ◖DC Supply: 12 V DC and 24 V DC Battery Systems Transient and Reverse Voltage Protected ◖Polarity: Negative Ground (Case Isolated) ◖Power Consumption: 50 mA (Continuous plus actuator current) ◖Maximum Actuator Current: 4 A ◖Speed Sensor Signal: 1.0 - 120.0 V AC

Environmental - ◖Operating Temperature Range: -40° to 85 °C [-40° to 185 °F] ◖Relative Humidity: up to 95% ◖All Surface Finishes : Fungus-Proof and Corrosion-Resistant
Reliability - ◖Vibration: 5 g @ 20-500 Hz ◖Testing: 100 % Functional Testing
Physical -◖Dimension: 6 x 6 Inches ◖Weight: 3 POUNDS ◖Mounting: Any Position, Vertical Preferred

The ESD5200 Series speed control unit is an all- electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and it’s hard potted to withstand the engine environment.
