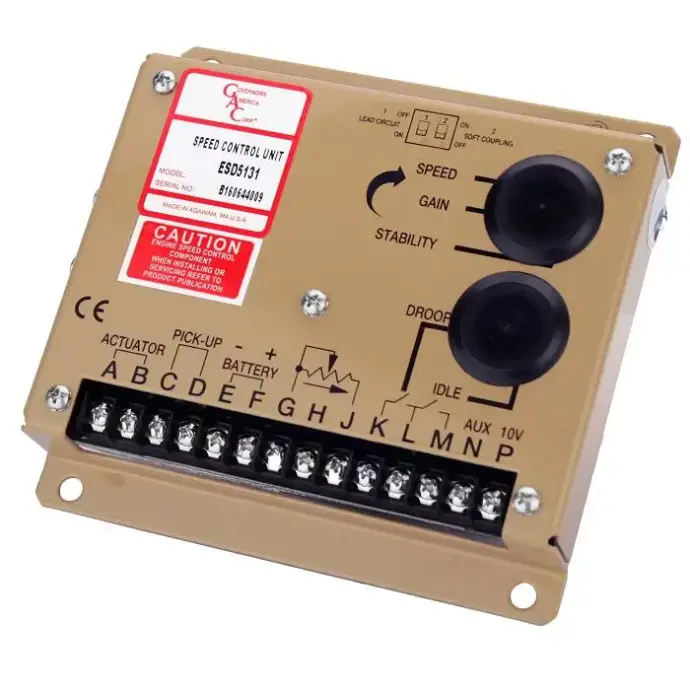

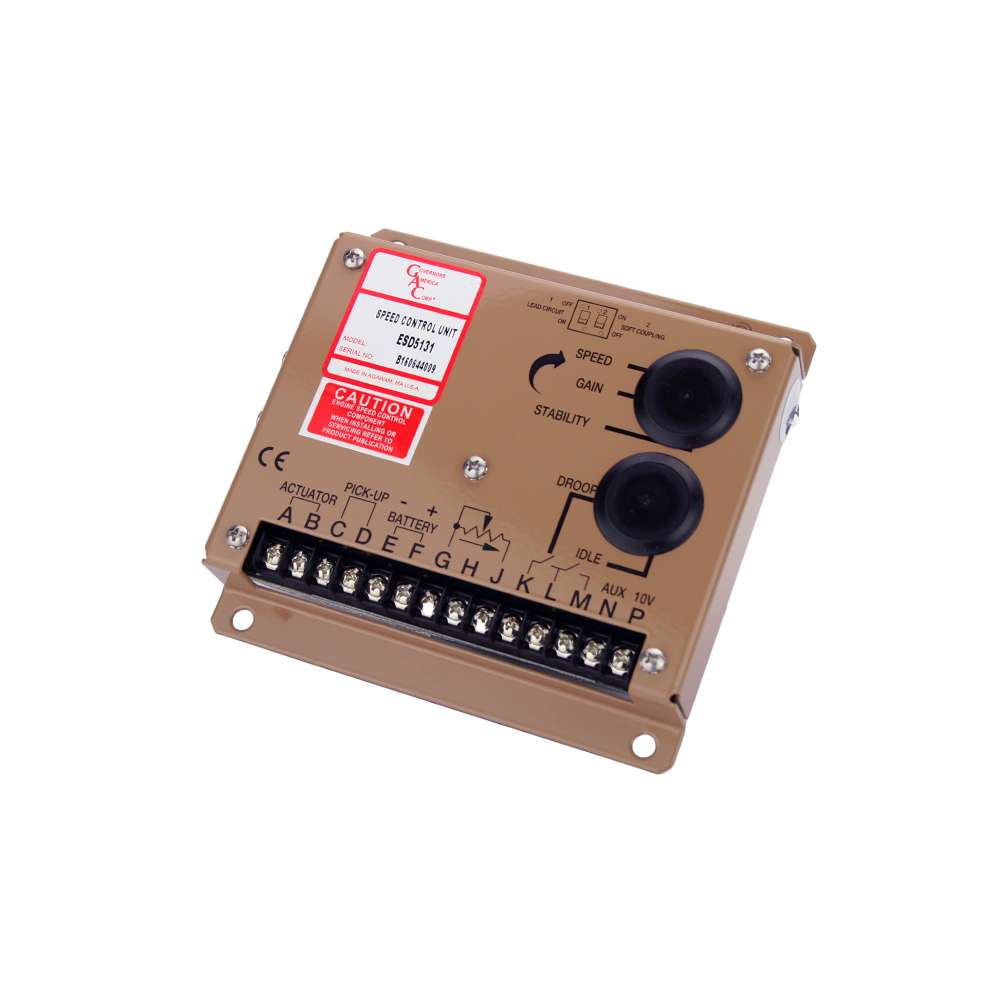

GAC ESD5131 Isochronous, Variable Speed, Droop Governing

https://powermaster.odoo.com/web/image/product.template/10163/image_1920?unique=735b92b

Multi-VDC / Switchable Soft Coupling and Lead Circuit

$ 391.29 391.29 USD $ 391.29

$ 391.29

Not Available For Sale

This combination does not exist.

Contact Us
Speed Controls ESD5131

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE

  12 or 24 V DC

POWER CONSUMPTION

   100 mA (No actuator current)

WEIGHT
1,4 POUNDS

SIZE
 8 x 7 x 2 Inches

AMBIENT TEMPERATURE

-40° to +185 °F [-40° to +85 °C]


Multi-V DC • Switchable Soft Coupling and Lead Circuit




TESTING

 100 % Functional Tested

SPEED RANGE / GOVERNOR

 1 K - 7.5 K Hz Continuous

ALL SURFACE FINISHES

 Fungus proof and corrosion resistant

  • Performance - ◖Isochronous Operation: ±0.25 % or better ◖Speed Range /Governor: 1 K - 7.5 K Hz Continuous ◖Speed Drift with Temperature: ±0.5 % Typical ◖Idle Adjust CW: MIN 1200 Hz Below set speed ◖Idle Adjust CCW: MIN. 4100 Hz Below set speed ◖Droop Range: 1 - 5 % Regulation ◖Droop Adj. MAX (K-L Jumpered): 875 Hz., ±75 Hz per 1.0 A change ◖Droop Adj. MIN (K-L Jumpered): 15 Hz., ±6 Hz per 1.0 A change ◖Speed Trim Range: ±200 Hz ◖Remote Variable Speed Range: 500 - 3.7 kHz ◖Terminal Sensitivity J L N P: 115 Hz., ±15 Hz/V @ 5 K Impedance 735 Hz., ±60 Hz/V @ 65 K Impedance 148 Hz., ±10 Hz/V @ 1 M Impedance 10 V DC Supply @ 20 mA MAX
  • Reliability - ◖Vibration: 1 G, 20 - 100 Hz ◖Testing: 100 % Functional Tested
  • Input / Output - ◖DC Supply: 12 or 24 V DC Battery Systems (Transient - Reverse Voltage Protected) ◖Polarity: Negative Ground (case isolated) ◖Power Consumption: 100 mA (No actuator current) Speed Signal Range: 0.5 – 50 V AC ◖Actuator Current Range: 10 A Peak @ 77 ° F [25 °C] ◖Speed Signal Range: 1.0 to 50.0 V AC
  • Environmental - ◖◖Ambient Temperature: -40° to +185 °F [-40° to +85 °C] ◖Relative Humidity: up to 95 % ◖All Surface Finishes: Fungus proof and corrosion resistant ◖RoHS Regulation: Compliant
  • Compliance / Standards - ◖Agency: CE Requirements
  • Physical - ◖Dimension: 5.00¨x 5.00¨ ◖Weight: 1.2 POUNDS (0.54 kgf) ◖Mounting: Any position, vertical preferred

The ESD5100 Series speed control unit is an all- electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and it’s hard potted to withstand the engine environment.

  • Adjustable PID
  • Idle speed adjustment
  • Auxiliary accessory input
  • Temperature-compensated available
  • Soft coupling options available
  • EFC reverse acting options available
  • EFC forward acting
  • Light-force option available
