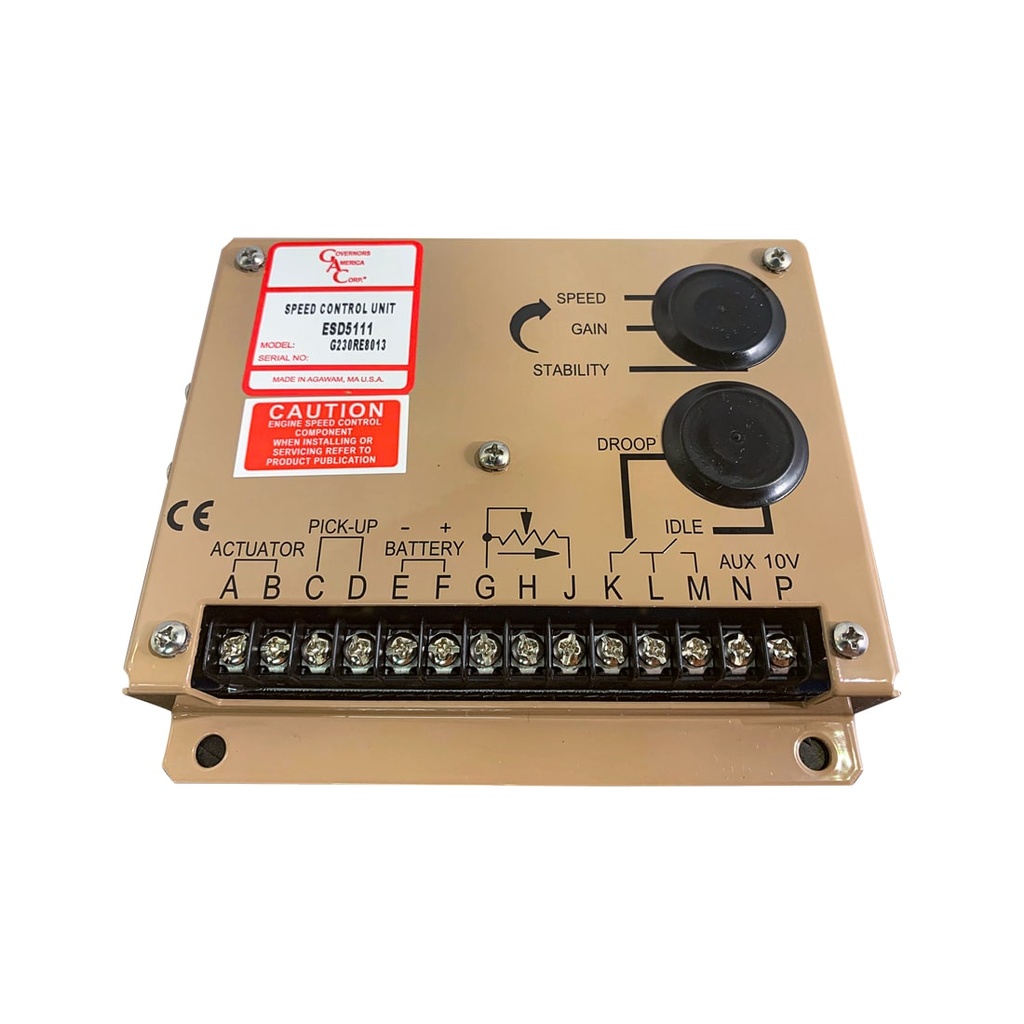

GAC ESD5111 Multi-VDC / Standard Unit Original

https://powermaster.odoo.com/web/image/product.template/9712/image_1920?unique=6e5c0eb

Multi-VDC / Standard Unit

$ 320.49 320.49 USD $ 320.49

$ 320.49

Not Available For Sale

This combination does not exist.

Contact Us
Speed Controls ESD5111

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE
12 V DC and 24 V DC
POWER CONSUMPTION

100 mA (No actuator current)

WEIGHT
1.2 POUNDS

SIZE
5 x 5 x 1.0 Inches

AMBIENT TEMPERATURE

-40 to 85 °C (-40 to 185 °F)

TESTING

 100% Functionally Tested

SPEED SIGNAL RANGE

  1.0 to 50.0 V AC

MOUNTING

Any Position, Vertical Preferred

  • Performance - ◖ Isochronous Operation: ±0.25 % or better ◖Speed Range / Governor: 1 K - 7.5 K Hz Continuous ◖Speed Drift with Temperature: ±0.5 % Typical ◖Speed Trim Range: ±200 Hz
  • Input / Output - ◖DC Supply: 12 or 24 V DC Battery Systems (Transient - Reverse Voltage Protected) ◖Polarity:  Negative Ground (case isolated) ◖Power Consumption: 100 mA (No actuator current) ◖Speed Signal Range: 1.0 to 50.0 V AC ◖Actuator Current Range: 10 A Peak @ 77 ° F [25 °C]


  • Environmental - ◖Ambient Temperature: -40 to 85 °C (-40 to 185 °F) ◖Relative Humidity: up to 95% ◖All Surface Finishes : Fungus-Proof and Corrosion-Resistant ◖RoHS Regulation: Compliant
  • Reliability - ◖Vibration: 1 G, 20 - 100 Hz  ◖Testing: 100% Functionally Testing
  • Physical - ◖Dimension: 5 x 5 x 1.0 Inches ◖Weight: 1.2 POUNDS ◖Mounting: Any Position, Vertical Preferred
  • Compliance / Standards - ◖Agency :  ROHS, CE, Bureau Veritas, Lloyds Register, RINA , DNV-GL

The ESD5100 Series speed control unit is an all- electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and it’s hard potted to withstand the engine environment.
