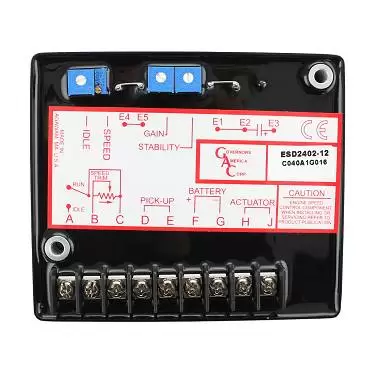

GAC ESD2402-12 Isochronous Controller with Light-Force 12Volt Original

https://powermaster.odoo.com/web/image/product.template/10160/image_1920?unique=7907bac

12VDC / Light-Force (Low-Current Optimized PID)

$ 299.59 299.59000000000003 USD $ 299.59

$ 299.59

Not Available For Sale

This combination does not exist.

Contact Us
12V Speed Controls ESD2402

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

OPERATING VOLTAGE

  12 V DC - 8 - 20 V DC

POWER CONSUMPTION

60 mA Continuous plus actuator current

WEIGHT
12 POUNDS

SIZE
4 x 4 x 0.6 Inches

AMBIENT TEMPERATURE

-40° to +185 °F [-40° to +85 °C]

Write one or two paragraphs describing your product or services.

TESTING

 100 % Functional Tested.

SPEED RANGE / GOVERNOR

1 kHz - 7.5 kHz

ALL SURFACE FINISHES

Fungus proof and corrosion resistant

  • Performance - ◖Isochronous Operation/Steady State Stability: ± 0.25 % or Better ◖Speed Range/ Governor: 1 kHz - 7.5 kHz ◖Continuous Speed Drift with Temperature: Typically < +0.5 % ◖Speed Trim Range: ± 250 Hz Typical ◖Idle Range: 500 - 5000 Hz with Trim Pot Installed
  • Electrical Power Input - ◖Operating Voltage (Transient and Reverse Voltage Protected): 12 V DC - 8 - 20 V DC ◖Polarity: Negative Ground (Case Isolated) ◖Power Consumption: 60 mA Continuous plus actuator current ◖Maximum Actuator Current at 77 °F (25 °C): 10 A Peak ◖Speed Sensor Signal: 1.0 V AC to 50.0 V AC RMS


  • Environmental - ◖Ambient Operating Temperature: -40 to 180 °F [-40 to 85 °C] ◖Relative Humidity: Up to 100 % ◖Vibration: 5 G @ 2-500 Hz ◖All Surface Finishes: Fungus Proof and Corrosion Resistant
  • Compliance / Standards - ◖Agency: CE Requirements
  • Physical - ◖Dimension: 4.62¨x 4.00¨ ◖Weight: 12 POUNDS (340 gf) ◖Mounting: Any position, vertical preferred



The ESD2400 Series are all-electronic devices designed to control engine speed quickly and precisely in response to transient load changes. The ESD2400 will control a wide variety of engines in an isochronous mode when connected to a proportional electric actuator and magnetic speed sensor.

The ruggedly built ESD2400 is designed to withstand the engine environment. Light-Force variations are available which are optimized for low current actuators.
