GAC ESD2210-12 Isochronous Controller 12Volt Original

https://powermaster.odoo.com/web/image/product.template/10158/image_1920?unique=56dc10c

12VDC / Standard Unit

$ 327.09 327.09000000000003 USD $ 327.09

$ 327.09

Not Available For Sale

This combination does not exist.

Contact Us
12V Speed Controls ESD2210

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE
12 V DC ±30%
POWER CONSUMPTION

60 mA continuous plus actuator current

WEIGHT
12 POUNDS

SIZE
4 x 4 x 0.6 Inches

AMBIENT TEMPERATURE

-40° to 85 °C (-40 to 185 °F)

TESTING
100 % Functional Tested.
SPEED RANGE / GOVERNOR

1 kHz - 7.5 kHz

ALL SURFACE FINISHES

Fungus proof and corrosion resistant

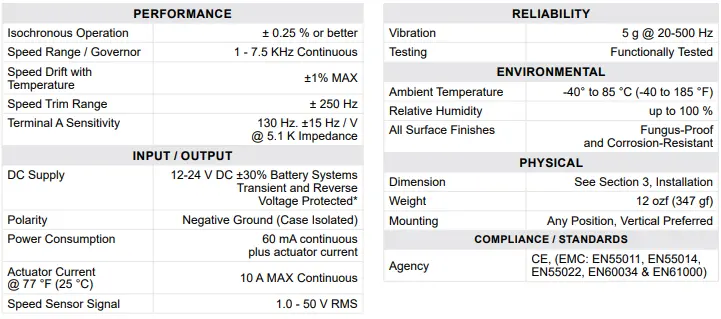

  • Performance - ◖Isochronous Operation: ± 0.25 % or better ◖Speed Range / Governor: 1 - 7.5 KHz Continuous ◖Speed Drift with Temperature: ±1% MAX ◖Speed Trim Range: ± 250 Hz ◖Terminal A Sensitivity: 130 Hz. ±15 Hz / V @ 5.1 K Impedance
  • Input / Output - ◖DC Supply: 12 V DC ±30% Battery Systems Transient and Reverse Voltage Protected* ◖Polarity: Negative Ground (Case Isolated) ◖Power Consumption: 60 mA continuous plus actuator current ◖Actuator Current @ 77 °F (25 °C): 10 A MAX Continuous ◖Speed Sensor Signal: 1.0 - 50 V RMS.


  • Environmental - ◖Ambient Temperature: -40° to 85 °C (-40 to 185 °F) ◖Relative Humidity: up to 100 % ◖All Surface Finishes: Fungus-Proof and Corrosion-Resistant
  • Compliance / Standards - ◖Agency: CE, (EMC: EN55011, EN55014, EN55022, EN60034 & EN61000)
  • Physical - ◖Dimension: 4.62¨x 4.00¨ ◖Weight: 12 ozf (347 gf) ◖Mounting: Any Position, Vertical Preferred

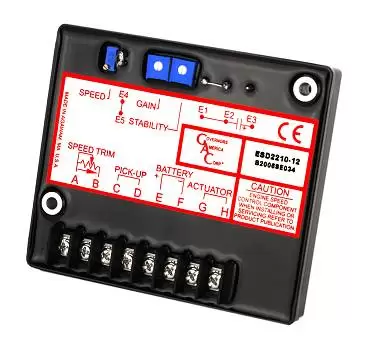

The ESD2200 Series speed control unit is an all-electronic device designed to control engine speed with fast and precise response to transient load changes.

This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and it's hard potted to withstand the engine environment.
