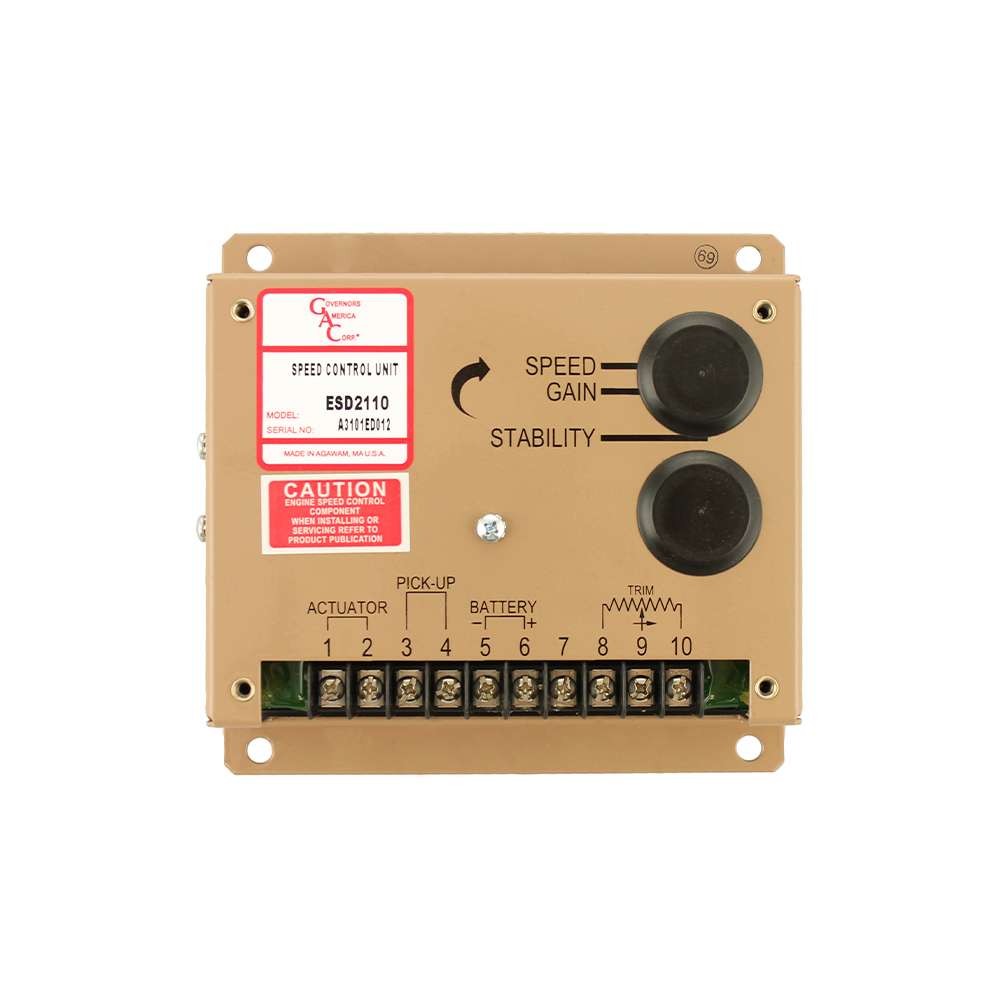

GAC ESD2110 Isochronous and Variable Controller Original

Multi-VDC / Standard Unit

$ 377.09 377.09000000000003 USD $ 377.09

$ 377.09

This combination does not exist.

Add to cart Buy now

Speed Controls ESD2110

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE

10 - 40 V DC

POWER CONSUMPTION

60 mA continuous plus actuator current

WEIGHT

1.2 POUNDS

SIZE
5 x 5 x 1.0 Inches

AMBIENT TEMPERATURE

-40 to 85 °C (-40 to 185 °F)

Key Features
Description

TESTING

Functional Tested

SPEED SENSOR RANGE

0.5 - 50.0 V RMS

MOUNTING

Any Position, Vertical Preferred

Performance - ◖ Isochronous Operation: ± 0.25 % or better ◖Speed Range / Governor: 1 - 7.5 KHz Continuous ◖Speed Drift with Temperature: ±1 % MAX ◖Speed Trim Range: ± 450 Hz
Input / Output - ◖DC Supply: 10 - 40 V DC Transient and Reverse Voltage Protected* ◖Polarity: Negative Ground (Case Isolated) ◖Power Consumption: 60 mA continuous plus actuator current ◖Actuator Current: 10 A MAX Peak ◖Speed Sensor Range: 0.5 - 50.0 V RMS

Environmental - ◖Ambient Temperature: -40 to 85 °C (-40 to 185 °F) ◖Relative Humidity: up to 90% ◖All Surface Finishes : Fungus-Proof and Corrosion-Resistant
Reliability - ◖Vibration: 5 g @ 20-500 Hz ◖Testing: Functional Testing
Physical - ◖Dimension: 5 x 5 x 1.0 Inches ◖Weight: 1.2 POUNDS ◖Mounting: Any Position, Vertical Preferred

ESD2100 Series – Isochronous & Variable Operation / Adjustable Gain and Stability/ Speed Trim Input / Sheet Metal Case.

The ESD2100 Series speed control unit is an all- electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and built ruggedly to withstand the engine environment.
