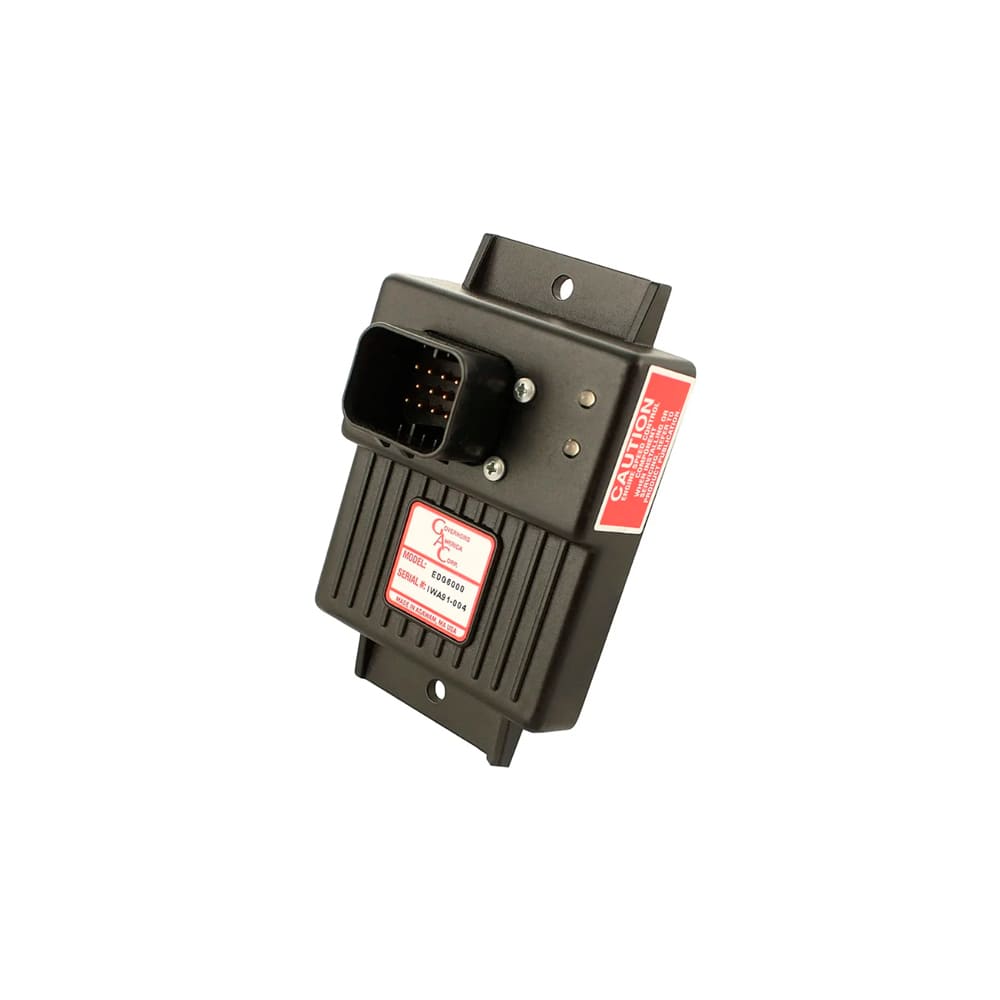

GAC EDG6000 Electronic Digital Governor Original

https://powermaster.odoo.com/web/image/product.template/10133/image_1920?unique=fbad1df

Multi-VDC / No Display - Requires PC / Multiple PID Capability / Requires EC1502 or CH1520 (Not Included)

$ 338.79 338.79 USD $ 338.79

$ 338.79

Not Available For Sale

This combination does not exist.

Contact Us
Speed Controls EDG6000 Gas Engines Digital Governor

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


INPUT/OUTPUT

SUPPLY
6.5 to 33 V DC


COMPATIBLE PRODUCTS

ADD104 Universal Actuator

WEIGHT

0.37 POUNDS

SIZE

4 x 4 x 2 Inches

AMBIENT TEMPERATURE

-40 to 180 °F


Multi-V DC • Built-In Display • Terminal Strip

  • Wide operating temperature range
  • Immune to analog drift
  • IP67 sealed case and connector
  • RS232 and SAE J1939 communications
  • Multiple PID control for full tuning of operation range
  • 4 selectable speeds: 3 fixed speeds with idle, 1 variable speed
  • Includes standard GAC AUX input for synchronizing and load sharing
  • User tamper-resistant; no external adjustable pots or switches
  • Please see the SmartVU User Guide for more information.

Free SmartVU software download is available here.

GAC’s EDG6000 digital governor is designed to regulate engine speed on diesel and gasoline reciprocating engines. The EDG system is a suitable replacement for any mechanical governor system that needs flexibility, precision, or accurate control of governed speed. The EDG is designed for industrial engine applications from generator sets, and mechanical drives, to pumps or compressors.


POWER CONSUMPTION

70 mA MAX Continuous Plus Actuator Current

OVERSPEED

Rated to 2 A DC

VIBRATION

7 g, 20 - 100 Hz

  • Performance - ◖Isochronous Operation : ± 0.25 % ◖Speed Range / Governor : 400 - 10 KHz ◖Idle Adjust : Full Range ◖Droop Range : 1 - 5 % regulation ◖Speed Trim : Programmable 0-100 %, (default = 5 %)
  • Input / Output - ◖Supply 12-24 V DC Battery Systems (6.5 to 33 V DC) ◖Polarity : Negative Ground (Case Isolated) ◖Power Consumption : 7 m0A MAX Continuous Plus Actuator Current ◖Speed Sensor Signal : 1.0 -120 V RMS ◖Actuator : MAX 6 A Continuous ◖Load Share / Synchronizer Input : 0 - 10 V DC (5 V nominal, reversed, 107 Hz / V MAX) ◖Reverse Power Protection : Yes ◖Transient Voltage Protection : 60 V ◖Overspeed : Rated to 2 A DC
  • Reliability - ◖Vibration : 7 g, 20 - 100 Hz ◖Shock : 20 g Peak ◖Testing : 100 % Functional Testing
  • Environmental - ◖Ambient Temperature : -40 to 85 °C [-40 to 180 °F] ◖Relative Humidity : up to 95 % ◖All Surface Finishes : Fungus Proof and Corrosion Resistant
  • Compliance / Standards - ◖Agency : CE and RoHS Requirements ◖Communications : RS-232-C, SAE J1939

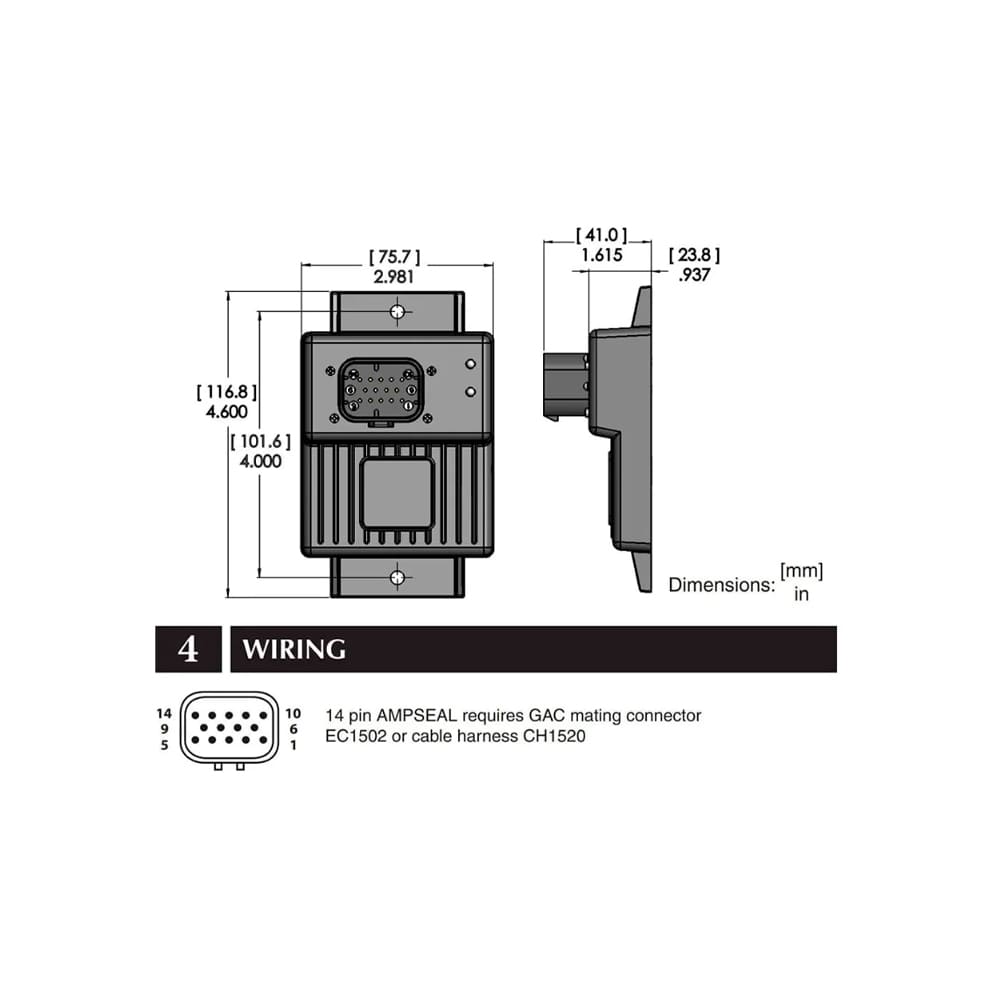

  • Physical - ◖Dimension : 4.60¨ x 4.00¨ x 2.81¨ ◖Weight : 6 ozf (170 gf) ◖Mounting : Any position, Vertical Preferred



GAC’s EDG6000 Digital Governor is designed to regulate engine speed on diesel and gasoline reciprocating engines. The EDG system is a suitable replacement for any mechanical governor system that needs flexibility, precision, or accurate control of governed speed. The EDG is designed for industrial engine applications from generator sets, and mechanical drives, to pumps or compressors.

  • Wide operating temperature range
  • Immune to analog drift
  • IP67 sealed case and connector
  • RS232 and SAE J1939 communications
  • Multiple PID control for full tuning of operation range
  • 4 selectable speeds: 3 fixed speeds with idle, 1 variable speed
  • Includes standard GAC AUX input for synchronizing and load sharing
  • User tamper-resistant; no external adjustable pots or switches
  • Please see the SmartVU User Guide for more information.
