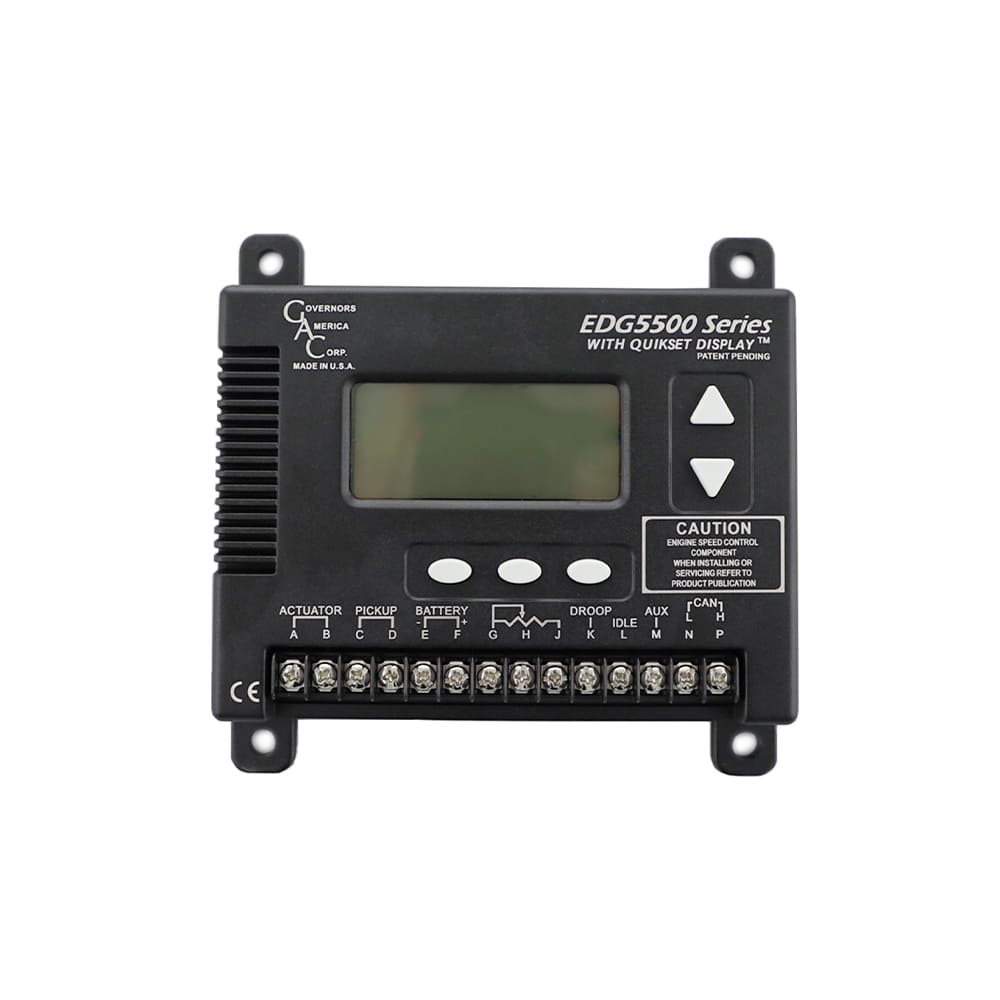

GAC EDG5500 Electronic Speed Controller Original

https://powermaster.odoo.com/web/image/product.template/9711/image_1920?unique=718dc01

Multi-VDC / Built-In Display / Terminal Strip

$ 499.59 499.59000000000003 USD $ 499.59

$ 499.59

Not Available For Sale

This combination does not exist.

Contact Us
Speed Controls EDG5500

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE
12-24 V DC
POWER CONSUMPTION

70 mA MAX continuous plus actuator current

WEIGHT
1.8 POUNDS

SIZE
5 x 6 Inches

AMBIENT TEMPERATURE

-40 to 85 °C (-40 to 180 °F)

TESTING

 100% Functional Tested

SPEED SENSOR SIGNAL

  1.0 - 120 V RMS

MOUNTING

Any Position, Vertical Preferred

  • Performance - ◖ Isochronous Operation: ±0.25 % ◖Speed Range / Governor: 400 Hz - 10 KHz (Mag pickup) ◖Idle Adjust: Full Range ◖Speed Trim Range: Programmable 0 - 100 %, (default = 5 %) ◖Droop Range: 1 - 5 % regulation
  • Input / Output - ◖DC Supply: 12-24 V DC Battery Systems (7.0 to 33 V DC) ◖Polarity: Negative ground (Case isolated) ◖Power Consumption: 70 mA MAX continuous plus actuator current ◖Speed Sensor Signal: 1.0 - 120 V RMS ◖Actuator Current Range: 8 - 10 A Continuous ◖Load Share/Synchronizer Input:  0-10 V DC (5 V nominal, reversed, 100 Hz / V) ◖Reverse Power Protection: Yes ◖Transient Voltage Protection: 60 V


  • Environmental - ◖Ambient Temperature: -40 to 85 °C (-40 to 180 °F) ◖Relative Humidity: up to 95% ◖All Surface Finishes : Fungus-Proof and Corrosion-Resistant ◖CE Rated:  EN55011, EN50081-2, EN50082-2
  • Reliability - ◖Vibration: 7 g, 20 - 100 Hz ◖Shock: 20 g peak ◖Testing: 100% Functional Testing

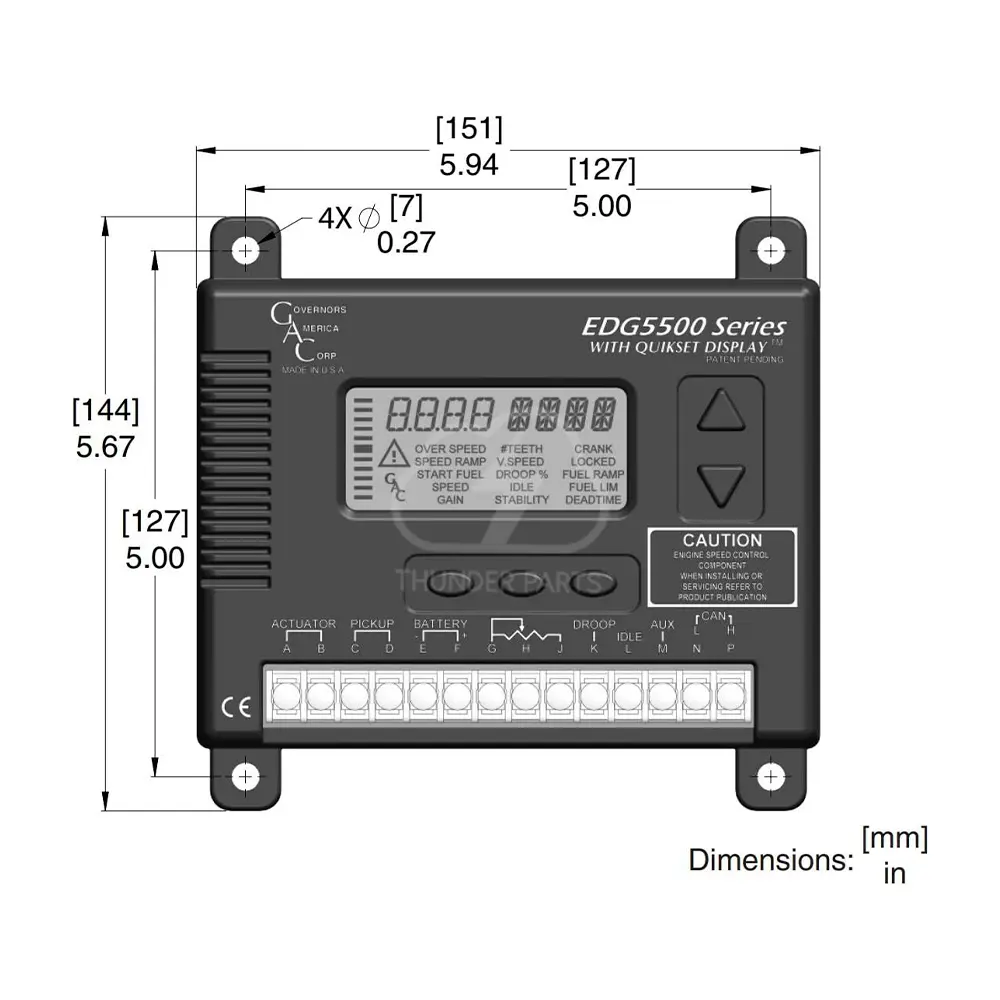

  • Physical - ◖Dimension: 5 x 6 Inches ◖Weight: 1.8 POUNDS ◖Mounting: Any Position, Vertical Preferred
  • Compliance / Standards - ◖Agency : CE and RoHS Requirements ◖Communications: SAE J1939 (Option)

GAC’s EDG5500 digital governor is designed to regulate engine speed on diesel and gasoline reciprocating engines. The EDG is a suitable replacement for any mechanical governor system that needs flexibility, precision, or accurate control of governed speed. The EDG is designed for industrial engine applications from generator sets, and mechanical drives, to pumps or compressors.
