GAC ECC328-24 Gen-Set Frequency Controller 24Volt Original

24VDC / Light-Force (Low-Current Optimized PID)

$ 275.49 275.49 USD $ 275.49

$ 275.49

This combination does not exist.

Add to cart Buy now

24V Speed Controls ECC328

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE

24 V DC (16 - 32 V DC) Nominal

POWER CONSUMPTION

<50 mA actuator current

WEIGHT

0.7 POUNDS

SIZE
4.6 x 4.0 Inches

AMBIENT TEMPERATURE

-40 to 185 °F [-40 to 85 °C]

Key Features
Description

TESTING

100 % Functional Tested.

SPEED RANGE

40 - 70 Hz Factory setting 60Hz +/- 0.05Hz

MOUNTING

Any Position, Vertical Preferred

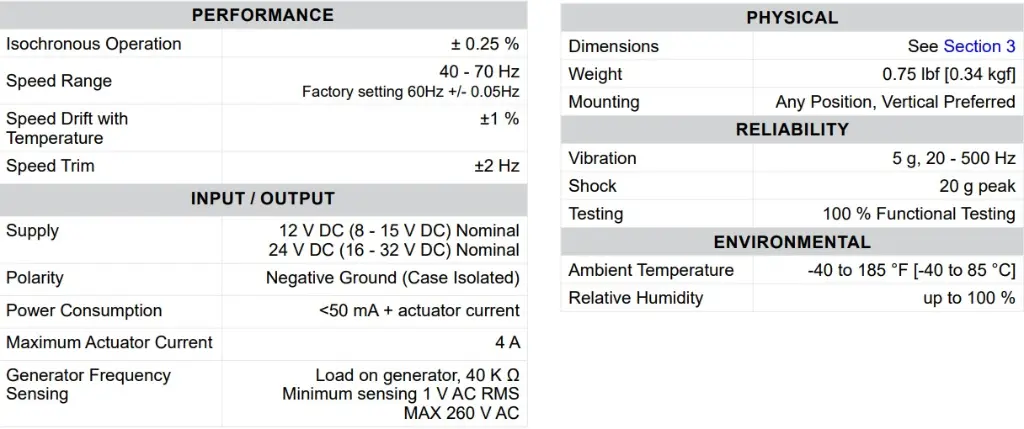

Performance - ◖ Isochronous Operation: ± 0.25 % ◖Speed Range: 40 - 70 Hz Factory setting 60Hz +/- 0.05Hz ◖Speed Drift with Temperature: ±1 % ◖Speed Trim: ±2 Hz
Input / Output - ◖Supply: 24 V DC (16 - 32 V DC) Nominal ◖Polarity: Negative Ground (Case Isolated) ◖Power Consumption: <50 mA actuator current ◖Maximum Actuator Current: 4 A ◖Generator Frequency: Sensing Load on generator, 40 K Ω Minimum sensing 1 V AC RMS MAX 260 V AC

Environmental - ◖Ambient Temperature -40 to 185 °F [-40 to 85 °C] ◖Relative Humidity: up to 100 %
Reliability - ◖Vibration: 5 g, 20 - 500 Hz ◖Shock: 20 g peak ◖Testing: 100 % Functional Testing
Physical - ◖Dimension: 4.67¨x 4.00¨ ◖Weight: 0.75 POUNDS [0.34 kgf] ◖Mounting: Any Position, Vertical Preferred

The ECC328 Speed Control unit is an electronic device designed to control engine speed with precise response to transient engine load changes. The closed-loop speed control, when connected to a proportional actuator and supplied with a speed signal/frequency from the main AC generator, will control a wide variety of engines in an isochronous mode. The speed signal input must be in the frequency range of 40 to 80 Hz.
