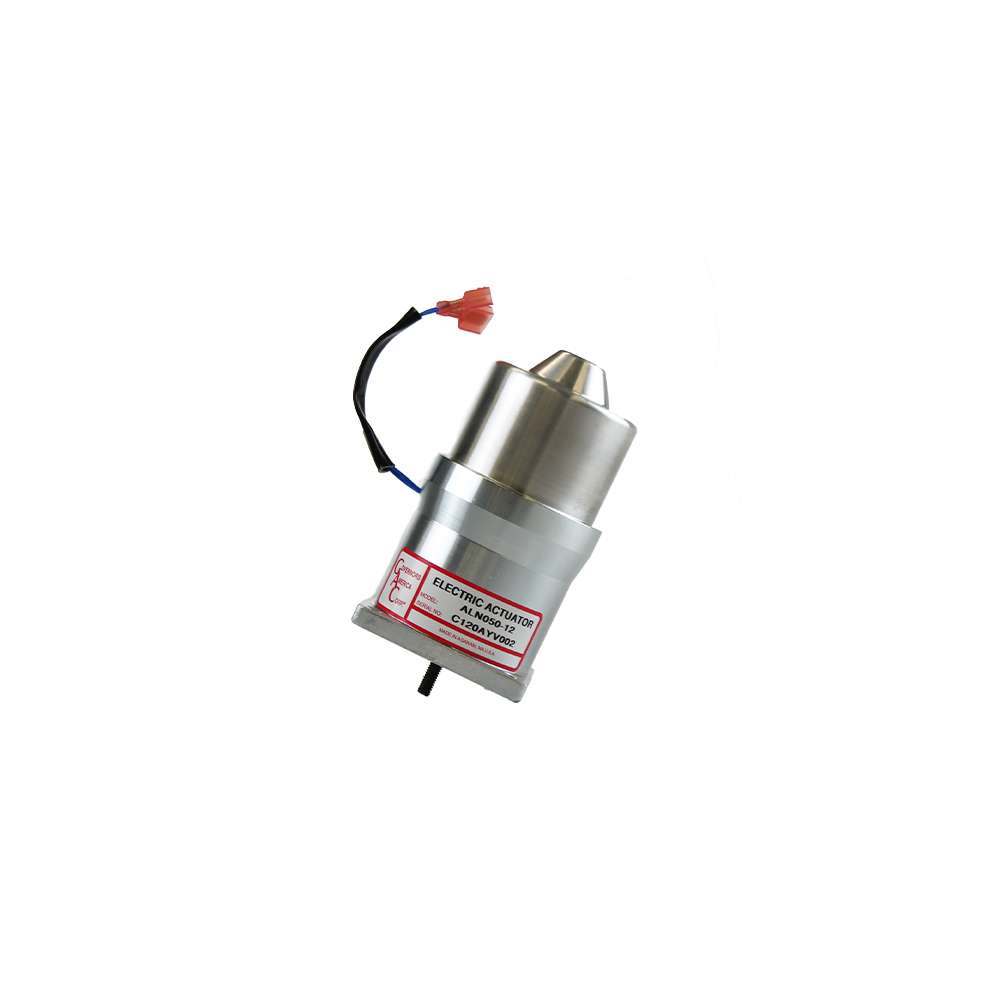

GAC ALN050-24 | Linear Push Actuator | Original

https://powermaster.odoo.com/web/image/product.template/9709/image_1920?unique=0c447bf

12VDC / 13.0 lbf. [6.0 kg] / 0.50 ft-lb [0.68 J] Work / Male Push-On Terminals

$ 599.99 599.99 USD $ 599.99

$ 599.99

Not Available For Sale

This combination does not exist.

Contact Us
Actuator ALN050

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER INPUT

12 or 24 V DC



RELATIVE
HUMIDITY
Up to 100 %


WEIGHT
4.3 POUNDS
SIZE
1 x 5 x 2 Inches



ENVIROMENTAL

-40 to 200 °F




NOMINAL OPERATING
CURRENT

1.6 A

OPERATING TEMPERATURE

-40 to 200 °F (-40 to 95 °C)

WEIGTH

4.3 POUNDS

  • Electrical Power Input - ◖Operating Voltage (Dedicated Coil) : 12 or 24 V DC ±20 %  ◖Nominal Operating Current : 1.6 A ◖Maximum Current (Continuous) : 3.8 A ◖Coil Resistance : 1.9 ± 0.2 Ω ◖Connection : 18 AWG [0.8 mm²] leads
  • Performance - ◖Operating Work :  0.50 ft·lb [0.68 N∙m] ◖Maximum Force :  13.0 lbF [57.8 N] ◖Operating Stroke  :0.9 in [22.8 mm] ◖Response Time : (10-90 %, 2-18 mm) 35 ms


  • Environmental - ◖Operating Temperature : -40 to 200 °F [-40 to 95 °C] ◖Relative Humidity : Up to 100 % ◖Vibration : 20 g @ 20 to 500 Hz ◖Shock : 20 g @11 ms ◖All Surface Finishes : Fungus Proof and Corrosion Resistant ◖Sealing : Oil, Water, and Dust Resistant


GAC’s ALN Linear Actuators provide highly accurate precise positioning for close loop control with a minimum number of moving parts, prolonging the life of the actuator. With no sliding parts and totally sealed, its reliability is outstanding and no maintenance is necessary. Engine applications include large block pumps, dual medium carburetors, and some large carburetors.
