Electrical Power Input-◖ Operating Voltage (Dedicated Coil) : 12 or 24 V DC ±20 % ◖Nominal Operating Current : 0.8 A ◖Maximum Current (Continuous) : 1.8 A ◖Coil Resistance :7.3 ± 0.2Ω ◖Connection : 18 AWG [0.8 mm²] leads
Performance-◖Operating Work : 0.25 ft·lb [0.34 N∙m] ◖Maximum Force : 6.5 lbF [28.9 N] ◖Operating Stroke : 0.9 in [22.8 mm] ◖Response Time : (10-90 %, 2-18 mm) 35 ms
Environmental-◖Operating Temperature : -40 to 200 °F [-40 to 95 °C] ◖Relative Humidity : Up to 100 % ◖Vibration : 20 g @ 20 to 500 Hz ◖Shock : 20 g @11 ms ◖All Surface Finishes : Fungus Proof and Corrosion Resistant ◖Sealing : Oil, Water, and Dust Resistant

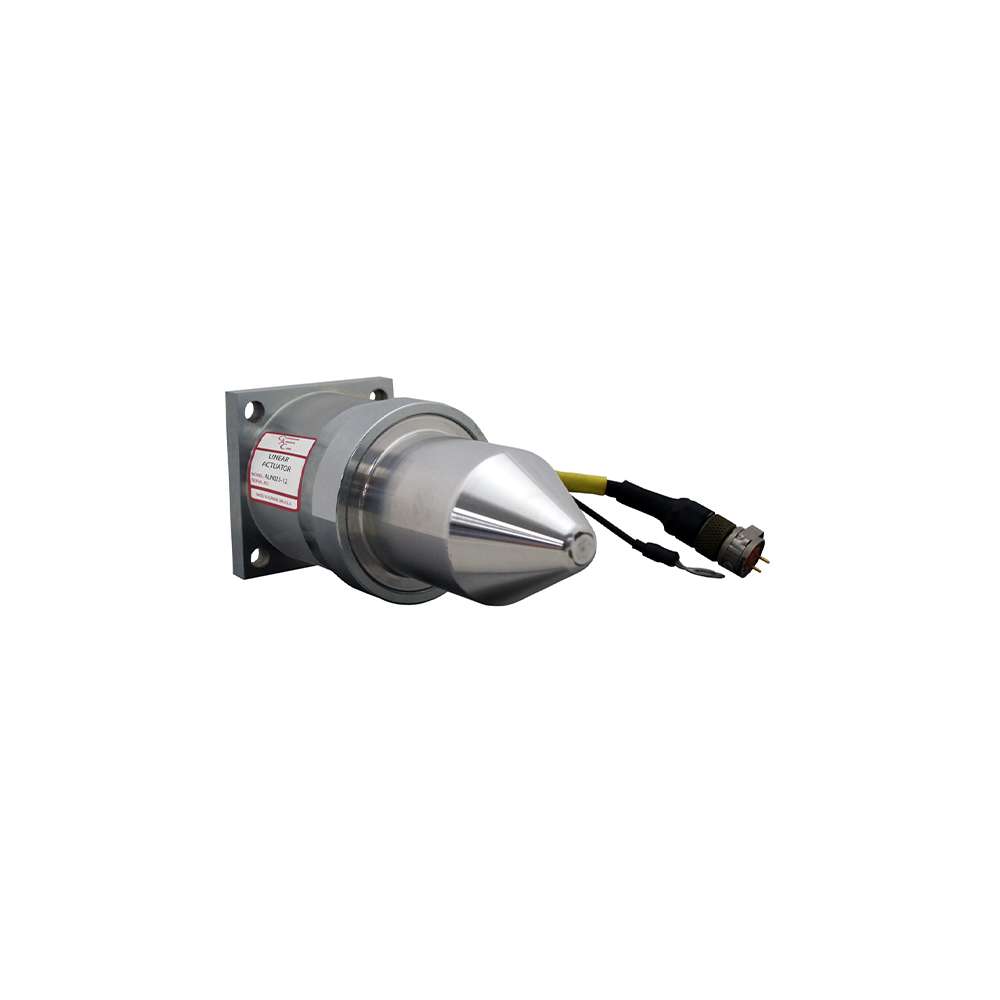

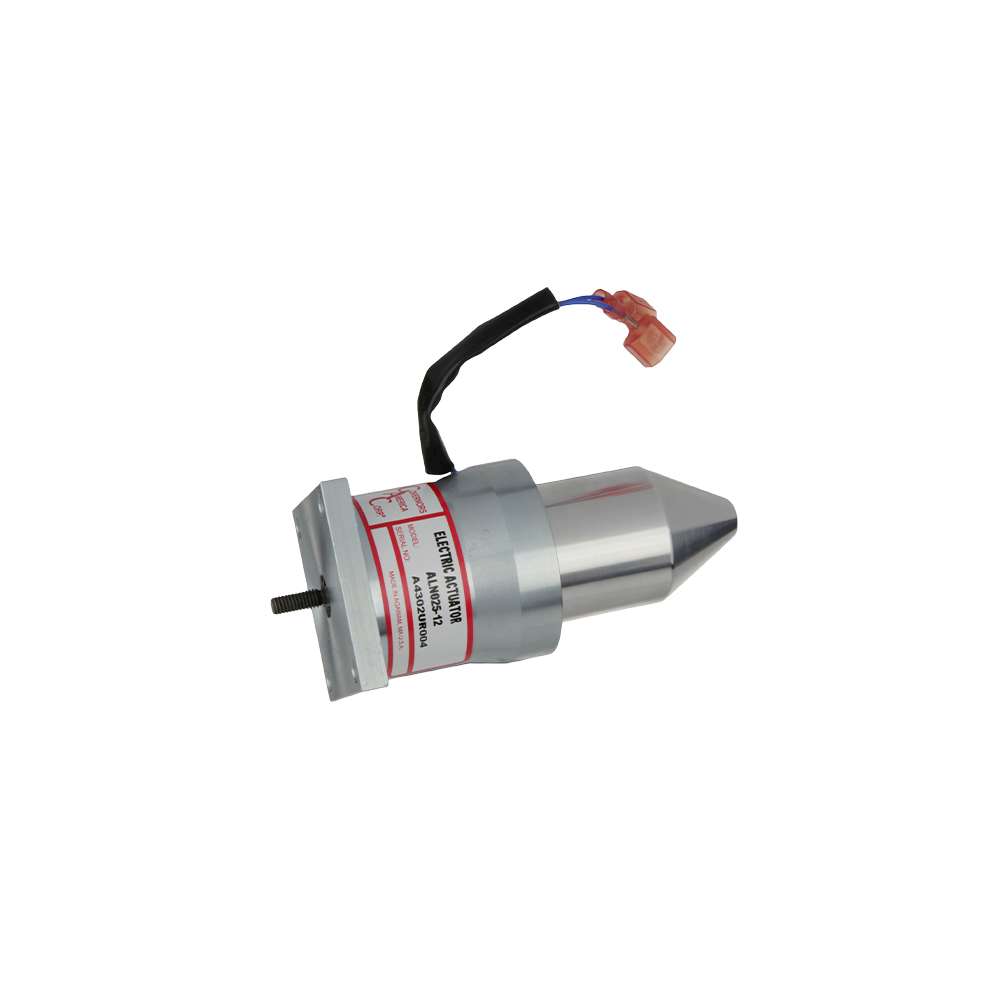

GAC’s ALN Linear Actuators provide highly accurate precise positioning for closed loop control with a minimum number of moving parts, prolonging the life of the actuator. With no sliding parts and totally sealed, reliability is outstanding and no maintenance is necessary. Engine applications include large block pumps, dual medium carburetors, and some large carburetors.
