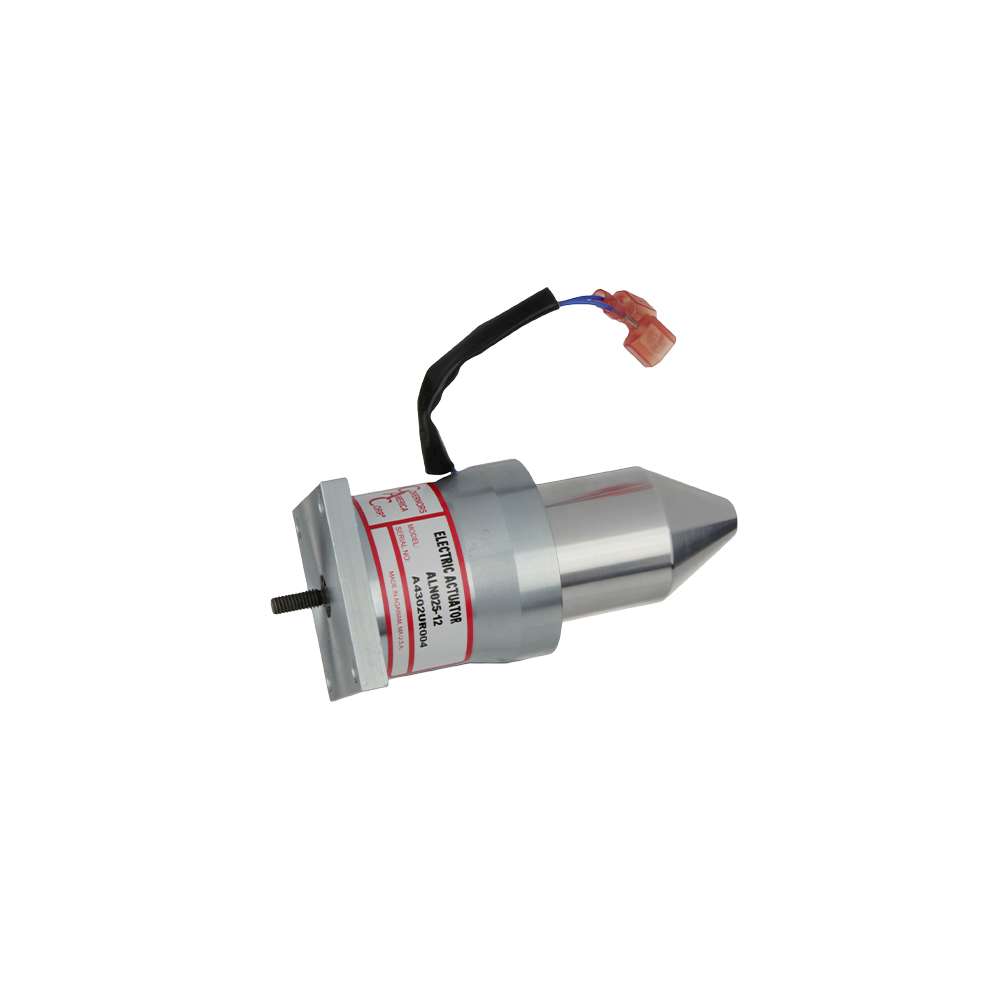

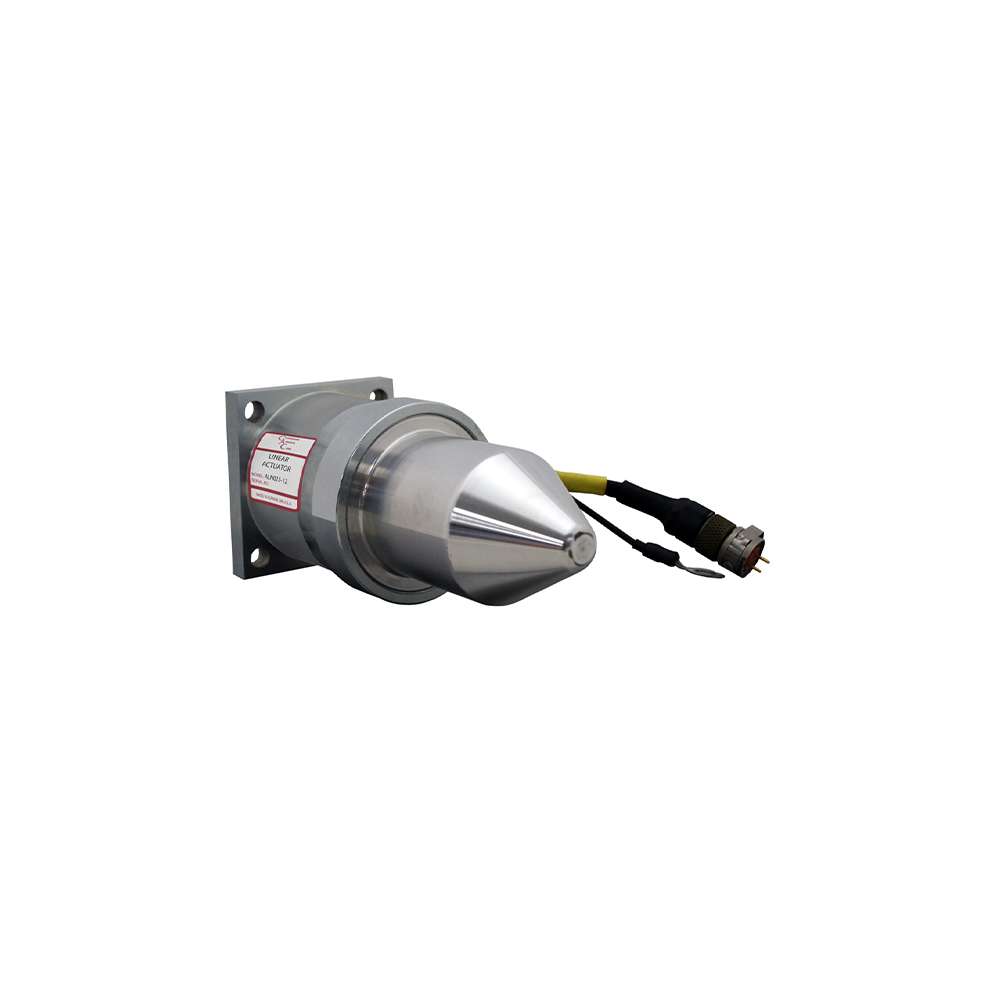

GAC ALN025-12 Linear Push Actuator 12Volt Original

https://powermaster.odoo.com/web/image/product.template/9710/image_1920?unique=9269d76

12VDC / 6.5 lbf. [3.0 kg] / 0.25 ft-lb [0.34 J] Work / Male Push-On Terminals

$ 419.99 419.99 USD $ 419.99

$ 419.99

Not Available For Sale

This combination does not exist.

Contact Us
12V Actuator ALN025

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER INPUT

12 or 24 V DC ±20 %


RELATIVE
HUMIDITY
Up to 100 %



WEIGHT
2.5 POUNDS
SIZE
1 x 5 x 2 Inches


ENVIROMENTAL

-40 to 200 °F


NOMINAL OPERATING
CURRENT
1.6 A

OPERATING TEMPERATURE
-40 to 200 °F (-40 to 95 °C)

WEIGHT
2.5 POUNDS

  • Electrical Power Input - ◖ Operating Voltage (Dedicated Coil) : 12 or 24 V DC ±20 % ◖Nominal Operating Current : 1.6 A ◖Maximum Current (Continuous) : 3.8 A ◖Coil Resistance : 1.8 ± 0.2 Ω ◖Connection : 18 AWG [0.8 mm²] leads
  • Performance - ◖Operating Work : 0.25 ft·lb [0.34 N∙m] ◖Maximum Force : 6.5 lbF [28.9 N] ◖Operating Stroke : 0.9 in [22.8 mm] ◖Response Time : (10-90 %, 2-18 mm) 35 ms

  • Environmental - ◖Operating Temperature : -40 to 200 °F [-40 to 95 °C] ◖Relative Humidity : Up to 100 % ◖Vibration : 20 g @ 20 to 500 Hz  ◖Shock : 20 g @11 ms  ◖All Surface Finishes : Fungus Proof and Corrosion Resistant ◖Sealing : Oil, Water, and Dust Resistant


GAC’s ALN Linear Actuators provide highly accurate precise positioning for closed loop control with a minimum number of moving parts, prolonging the life of the actuator. With no sliding parts and totally sealed, reliability is outstanding and no maintenance is necessary. Engine applications include large block pumps, dual medium carburetors, and some large carburetors.



App Note – ALN025 for a Kubota Z482

App Note – Mecc Alte Kubota D722 with ALN025

ALN Installation Manual

ALN Sales Brochure
