Power Input - ◖Operating Voltage : 12 or 24 V DC ◖Normal Operating Current : 3.5 A ◖Maximum Current Continuously Rated : 5.5 A
Performance- ◖Operating Stroke : 0.78¨
Environment - ◖Operating Temperature Range: -40 to +212 °F (-40 to +100 °C) ◖Relative Humidity : up to 100 % ◖All Surface Finishes : Fungus Proof and Corrosion Resistant ◖Ingress Protection : IP65
Reliability- ◖Testing :100 % Tested
Compatible Products
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

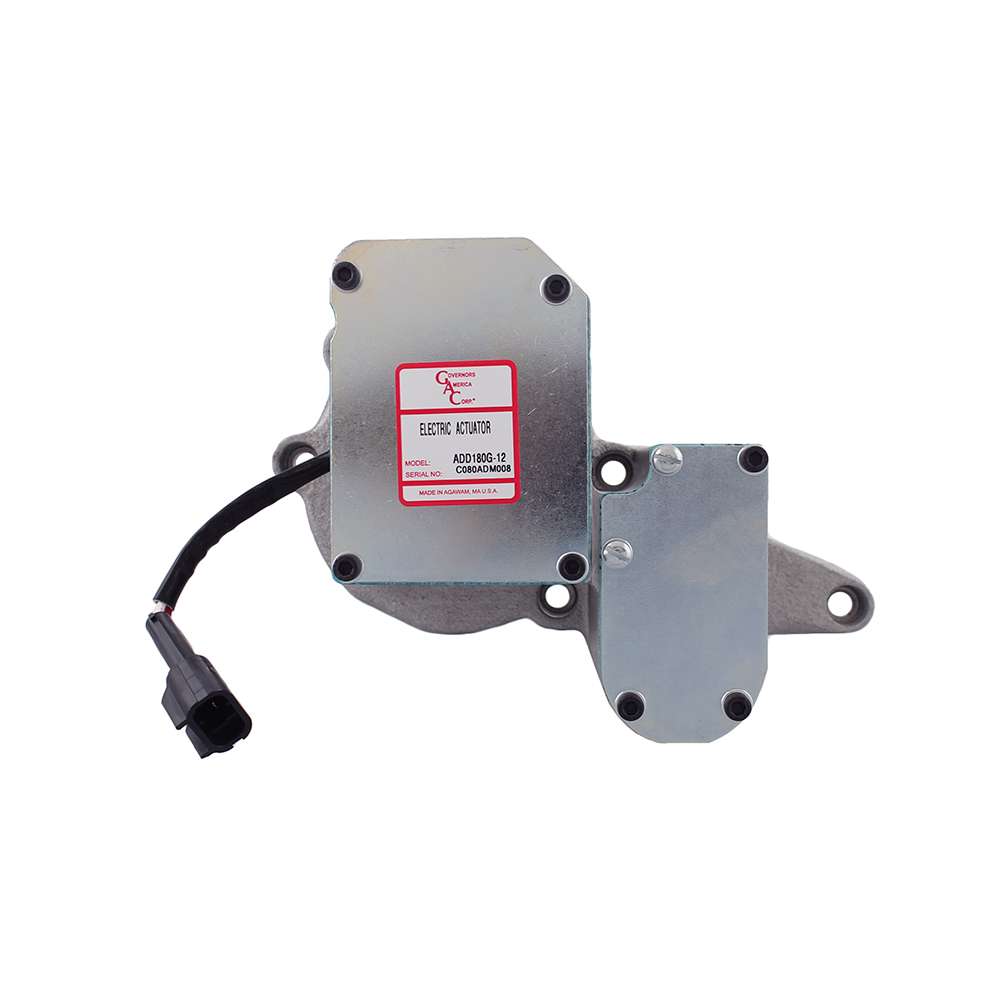

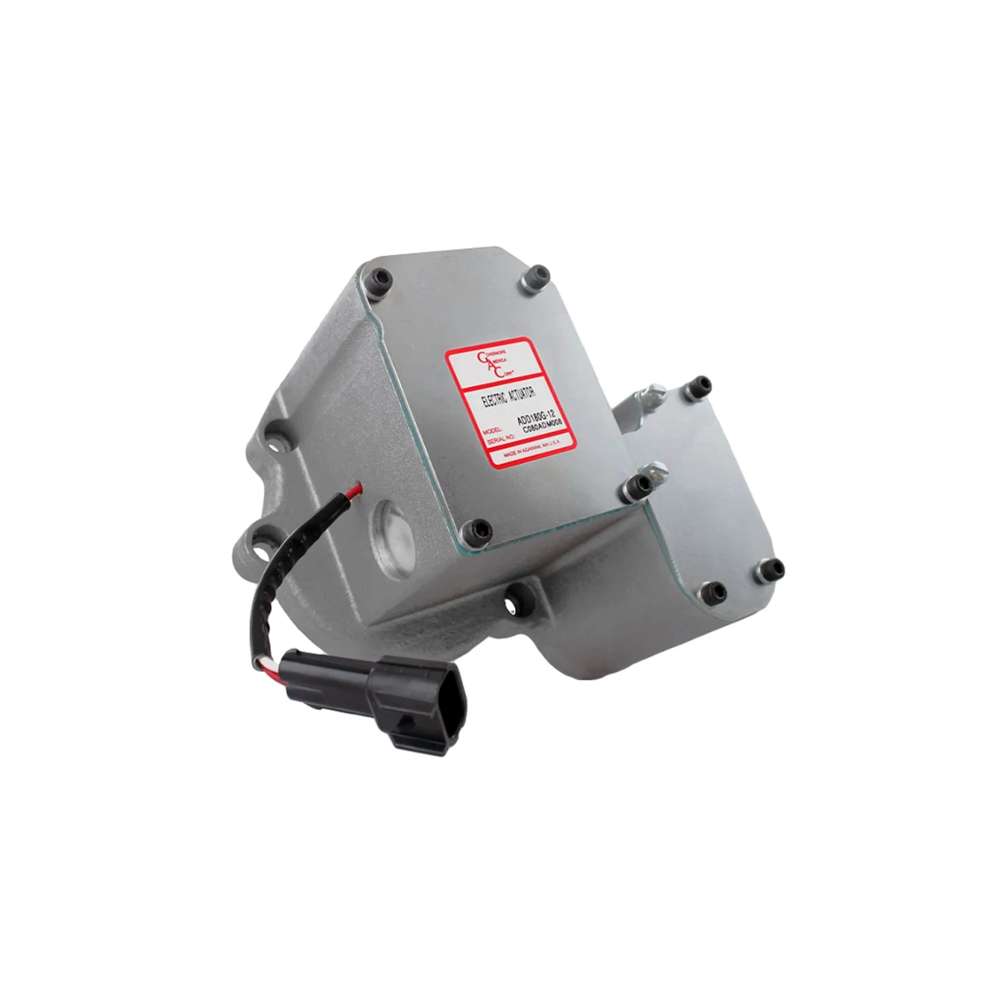

The 180 Series Integral Actuator is designed to mount directly to
Deutz 1013/2012 and Volvo 520/720 engines. The existing mechanical governor is removed from the engine and the 180 Series Integral
Actuator is mounted in its place. GAC’s unique electromechanical
technology provides proportional actuator movement based on actuator coil current. This unique, optimized fuel control will outperform
externally mounted electric actuators.
