Electrical Power Input / Output - ◖Operating Voltage : 12 V DC or 24 V DC ◖Nominal Operating Current : 4.0 A ◖MAX Continuous Current :
5.8 A ◖Nominal Coil Resistance :
2.1 Ω Nominal ◖Internal Sealing Pressure : 2 bar (29 psi) .
Performance - ◖Force :6.2 lbf∙ft [27.5 N∙m] ◖Operating Stroke : 0.80 in [21 mm] ◖Response Time : (10-90%, 2-19 mm) 35 ms ◖Internal Sealing Pressure : 2 bar (29 psi)
Environmental- ◖Operating Temperature : -40 to 200 °F [-40 to 95 °C] ◖Relative Humidity : Up to 100 % ◖Vibration :20 g @ 20 to 500Hz ◖Shock : 20 g @ 11 ms ◖All Surface Finishes : Fungus Proof and Corrosion Resistant

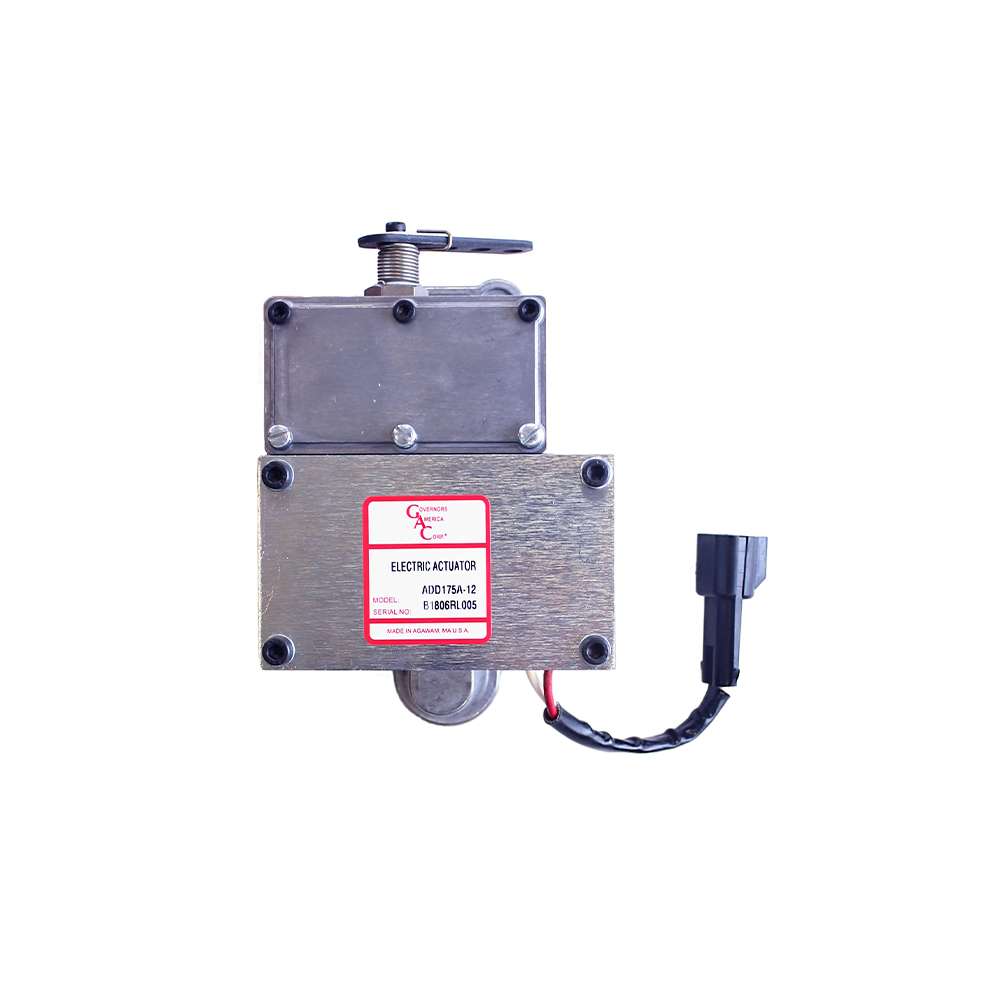

GAC’s 175 Series Integrated Pump Mounted Actuators are field proven
proportional actuators designed to mount directly to fuel injection
pumps in place of a mechanical governor to achieve an integrated
proportional servo fuel package. The versatile design offers numerous
options and mounting kits. Its fast response time of less than 35 ms
(10 % - 90 %) also offers adjustable fuel limits.
