Electrical Power Input-◖Operating Voltage : 12 V DC
◖Normal Operating Current : 1.94 A ◖Maximum Current (Continuous) : 2.74 A
Performance-◖Available Torque : 0.29 lb-ft max (0.4 N m)
◖Maximum Angular Travel : 25° ±1° CW/CCW
◖Response Time :25 ms
Environment -◖Operating Temperature Range :-65 to +200 °F (-54 to +95 °C)
◖Relative Humidity : up to 100%
Reliability-◖Vibration : Up to 7.5 g, 50 - 500 Hz
◖Testing : 100 % Tested

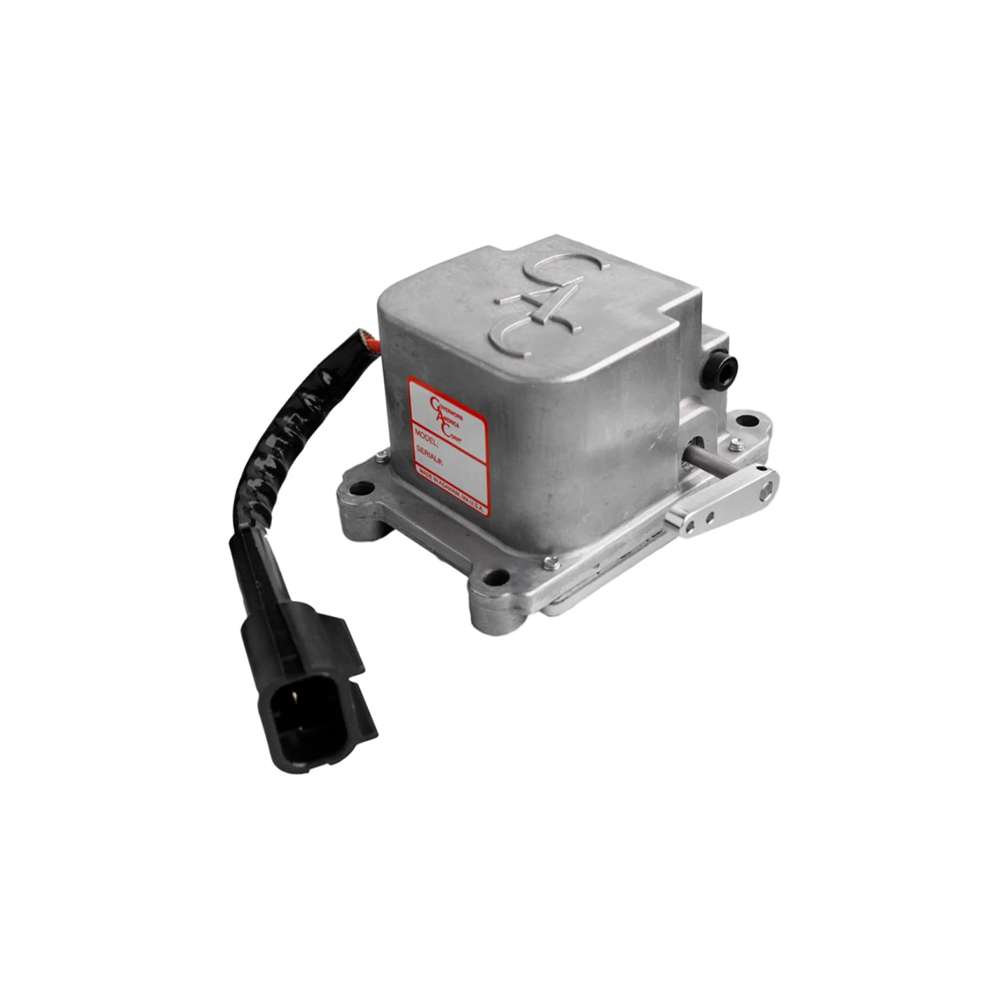

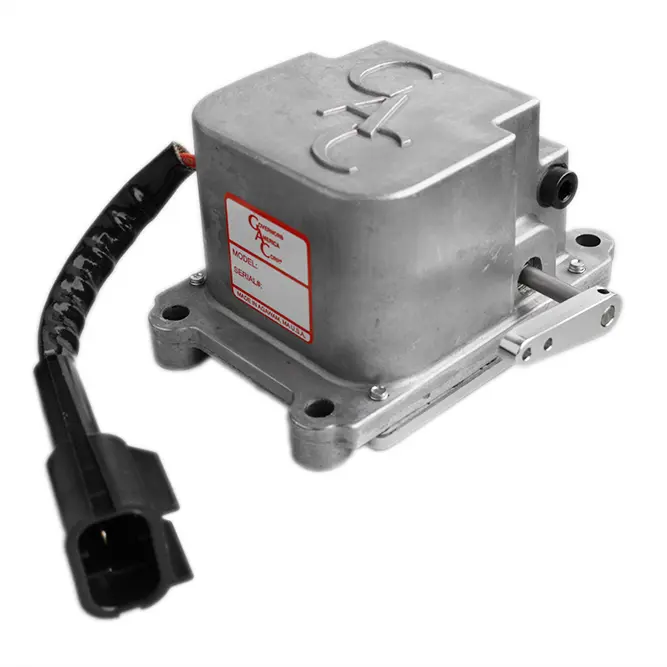

The 104 Series Rotary Actuator is a field-proven proportional actuator designed for universal mounting for a variety of applications and
mounts directly to Briggs and Stratton or Kohler gas and smaller 2
cylinder engines.
When de-energized, the 104 Series electric actuator returns to the
zero position. This is accomplished by an internal spring that returns
the throttle body valve to the no-fuel position when the actuator is
de-energized.
