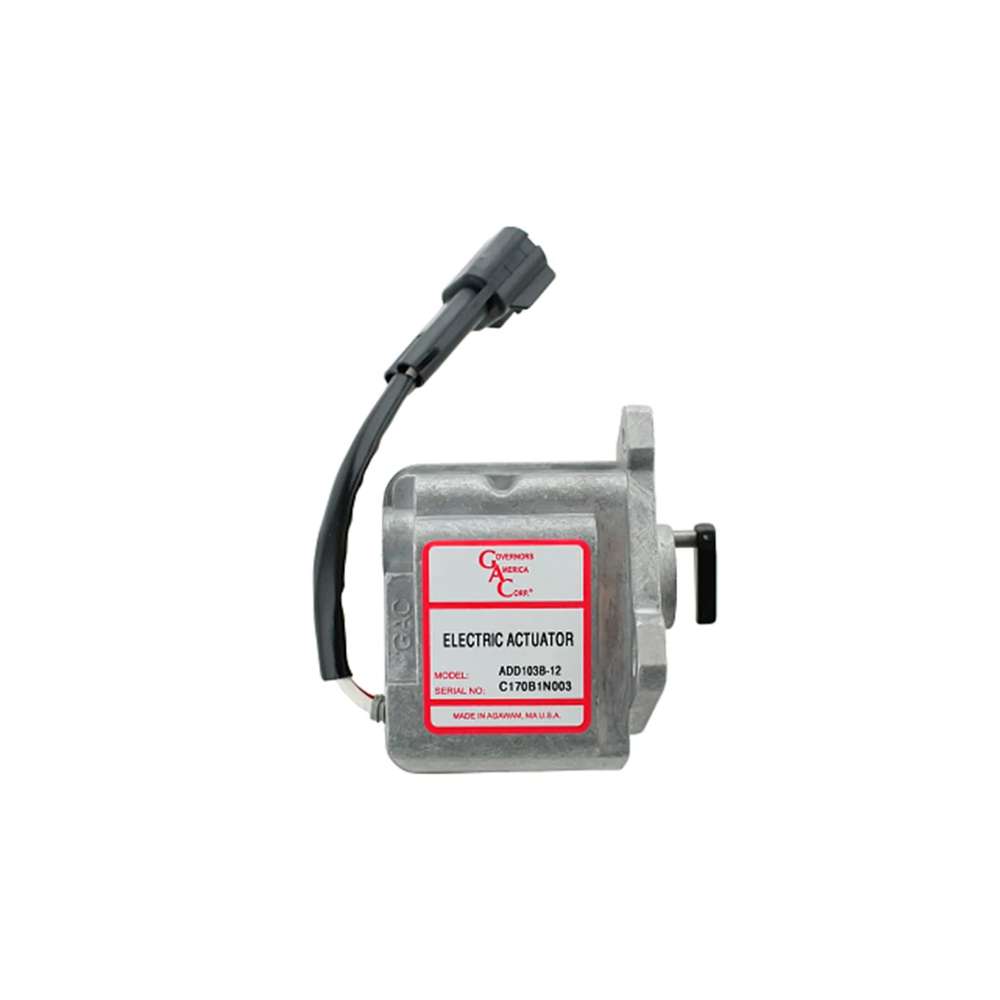

GAC ADD103B-12 Pump Mounted Actuator 12Volt Original

12VDC / Packard Connector with Mating Connector Kit EC1300 / With Installation Kit KT292 (O-Ring, Bolts)

This combination does not exist.

12V Actuator ADD103B

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

12 or 24 V DC Available

up to 100 %

-40° to +180 °F

1.9 A / L-SERIES : 1.3 A

-40° to +180 °F (-40 ° to +83 °C)

1.0 POUNDS

Power Input - ◖Operating Voltage (B-Series) : 12 or 24 V DC Available (L-Series) 12 V DC ◖Normal Operating Current (L-Series) : 1.9 A - 1.3 ◖Maximum Current (B-Series) (L-Series) : 2.7 A - 1.8 A
Environment- ◖Operating Temperature Range : -40° to +180 °F [-40 ° to +83 °C] ◖Relative Humidity : up to 100 % ◖Shock : 20G, 11 ms ◖Vibration : ± 4g, 25 - 100 Hz ◖Agency : RoHS Compliant

Mounting - ◖(B-Series) : Directly to Delphi Type DPG / DP210G/310G ◖(L-Series) : Customer Specific Pump
Mating Hardware - ◖All Models : Includes mounting hardware and o-ring ◖ADD103B : Packard Mating Connector ◖ADD103L : Customer Specific JD Mating Connector ◖ADE Models : Includes cable harness installed to mating connecto

The 103 Series Integral Actuator is a field-proven proportional actuator designed to mount directly to the Delphi DPG/DP210 Pump. No external linkage or brackets are required to install this actuator. When de-energized, the 103 Series Electric Actuator provides the function of the fuel shutoff solenoid. This is accomplished by an internal spring that returns the fuel metering valve linkage to the no-fuel position when the actuator is de-energized.
