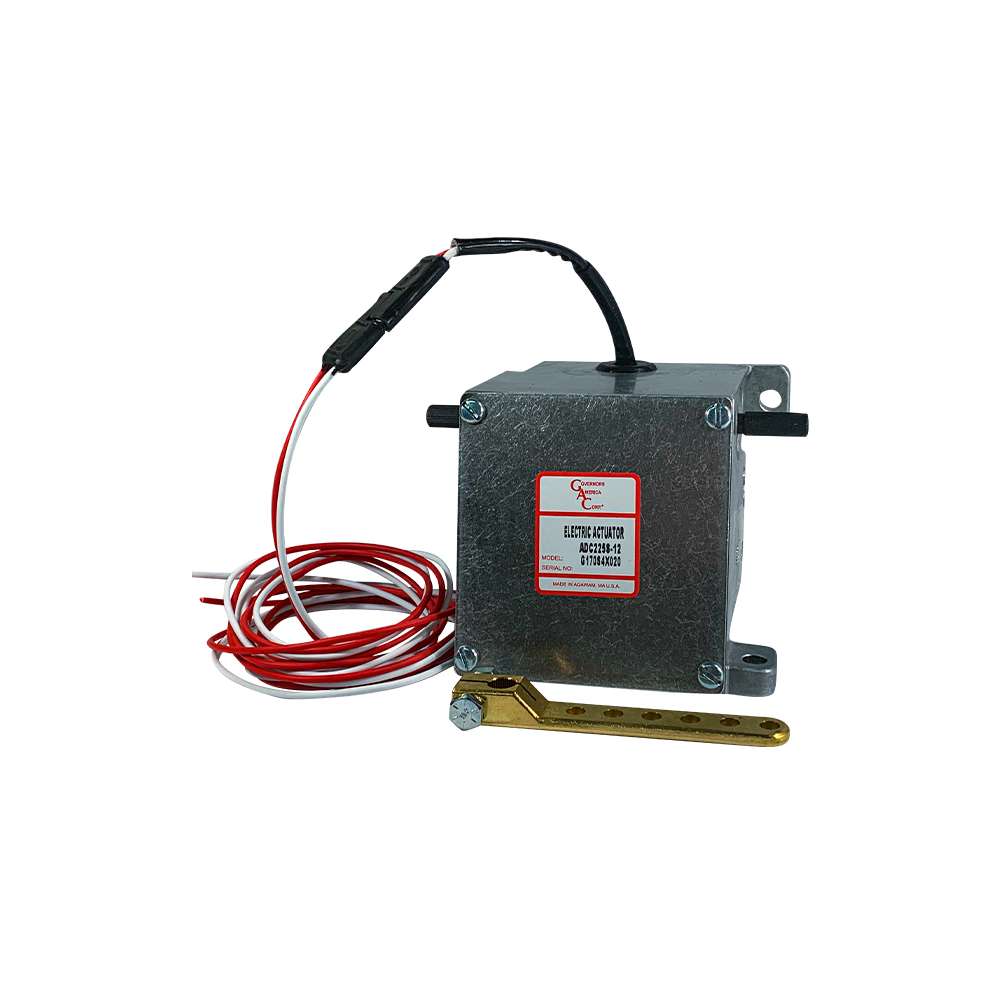

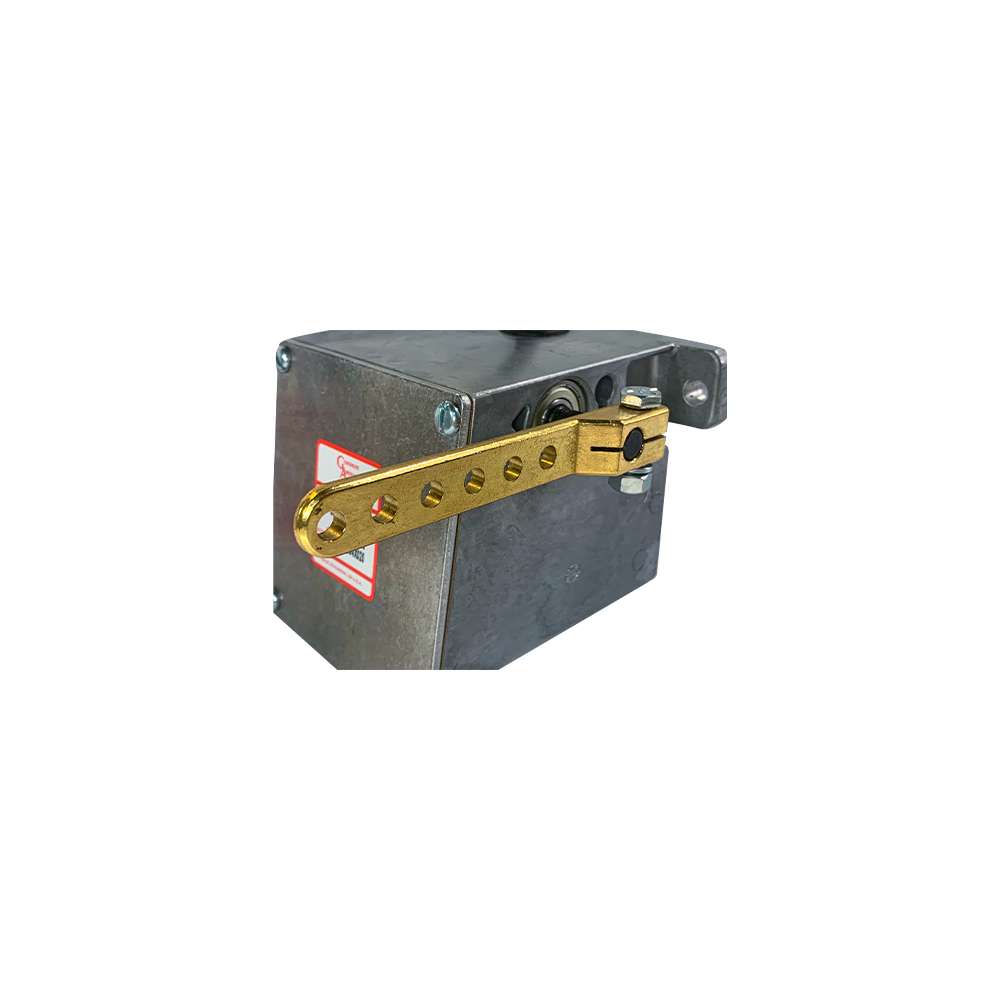

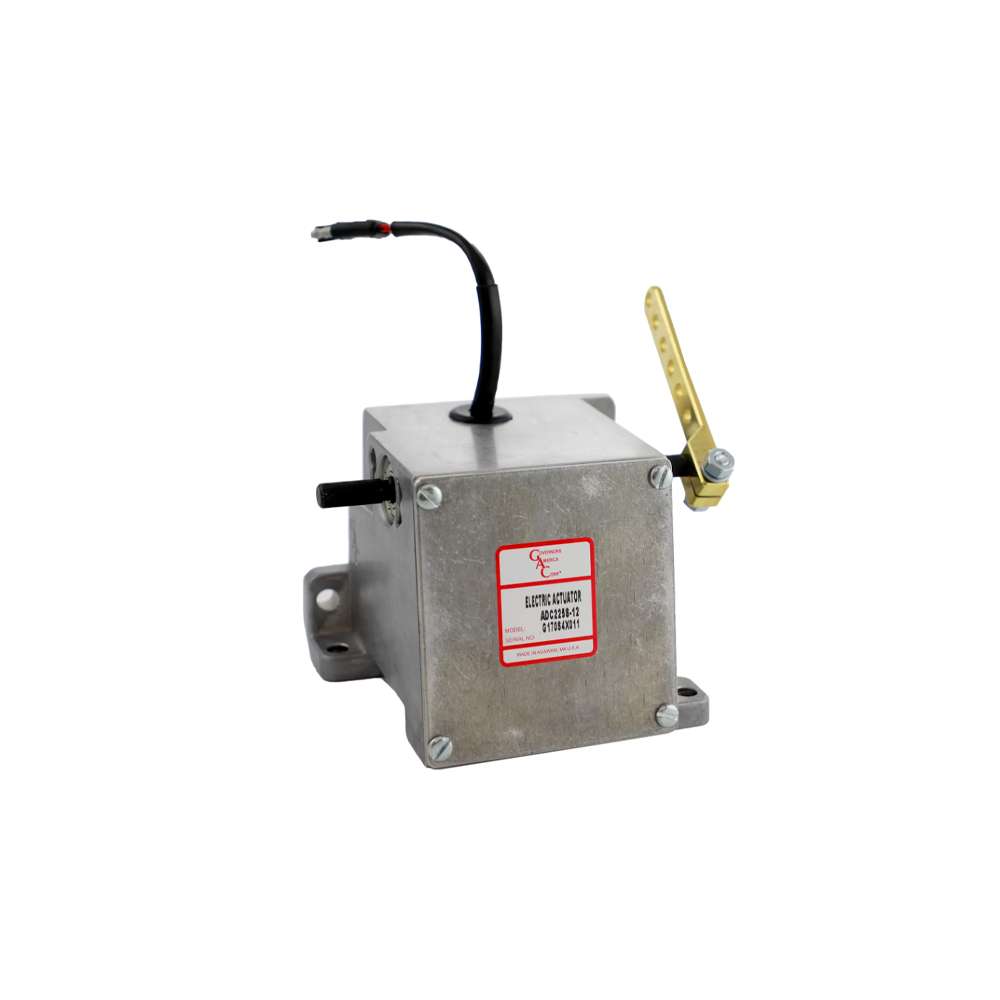

GAC ADC225S-12 | 225 Series Electric Universal Actuator 12V - Includes serrated shaft, lever and commercial connector - Original

https://powermaster.odoo.com/web/image/product.template/9708/image_1920?unique=ee723b6

12VDC / Commercial Connector with Mating Harness CH251-2134 7 ft. [2.13m]

$ 552.49 552.49 USD $ 552.49

$ 552.49

Not Available For Sale

This combination does not exist.

Contact Us
12V Actuator ADC225S

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER INPUT

Nominal 24 V DC

RELATIVE
HUMIDITY

Up to 95 %



WEIGTH

8.25 POUNDS
SIZE
4 x 4 x 5 Inches






ENVIROMENTAL

-65° F to +200 ° F




NORMAL OPERATING
CURRENT

(12V) 3.0 A -(24V) 1.5 A

OPERATING TEMPERATURE

-40 ° to 257 °F (-40 ° to +125 °C)

WEIGTH

8.25 POUNDS

  • Power Input  - ◖Operating Voltage : 24 or Multi-V DC ◖Normal Operating Current : 12 V DC : 3.0 A - 24 V DC : 1.5 A ◖Maximum Current (Continuous) :  12 V DC : 8.0 A - 24 V DC : 4.0 A
  • Performance - ◖Available Torque (w/o Return Spring) : 2.2 ft-lb MAX (2.7 N∙m) ◖Maximum Operating Shaft Travel : 25° ±1° CW/CCW


  • Environment - ◖ Operating Temperature Range  : -65 to +200 °F [-54 to +95 °C] ◖Relative Humidity : up to 100 % ◖All Surface Finishes : Fungus Proof and Corrosion Resistant
  • Reliability - ◖Vibration : Up to 20 g, 50 - 500 Hz ◖Testing : 100 % Tested


The 225 Series electric actuator is a rotary output, linear torque, proportional servo that is typically used as an engine fuel control positioning device. The 225 combines fast operation, multi voltage usage, wider rotation angles, and proven reliability. Applications include fuel injected pumps, with or without mechanical governors, rotary type pumps, and medium sized gaseous fueled engines.

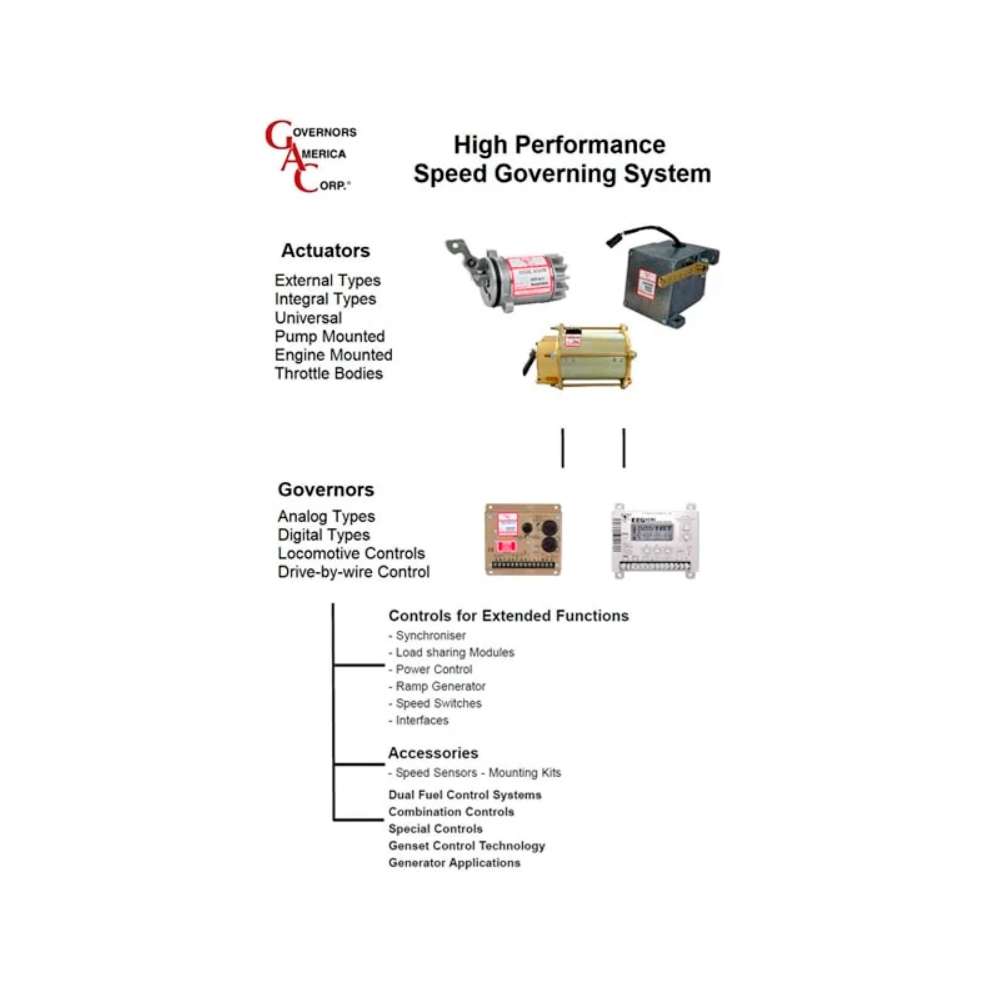

ADC225 Brochure
