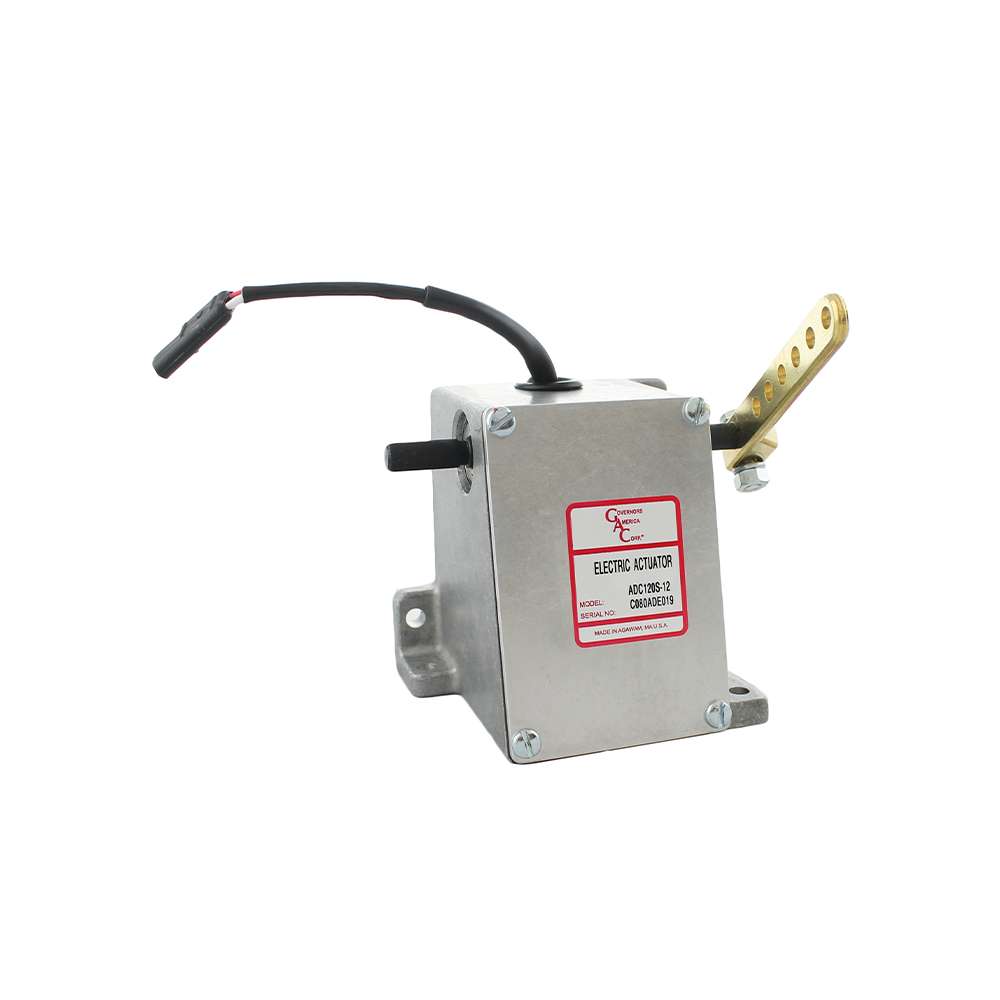

GAC ADC120S-12 Universal Actuator 12Volt Original

12VDC / Commercial Connector with Mating Harness CH251-2134 7 ft. [2.13m]

This combination does not exist.

Actuator ADC120S

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

12 or 24 V DC

-65 °F to +200 °F

2.0 A

4.5 POUNDS

Power Input - ◖Operating Voltage : 12 or 24 V DC ◖Normal Operating Current :2.0 A ◖Maximum Current Continuously Rated : 6.0 A
Performance - ◖Available Torque : 1.0 ft-lb MAX [1.4 N∙m] ◖Max Operating Shaft : Travel 25 ° ±1 ° CW/CCW.

Enviroment - ◖Operating Temperature Range : -65 to +200 °F [-54 to +95 °C ]◖Relative Humidity : up to 100 % ◖All Surface Finishes : Fungus Proof and Corrosion Resistant
Reliability - ◖Vibration : Up to 20 g, 50 - 500 Hz ◖Testing : 100 % Tested

120 Series Universal Actuator | 12 V or 24V DC • Commercial Connector with Mating Harness CH251-2134 The 120 Series Electric Actuator is a rotary-output, proportional servo. This electromechanical actuator is used as an engine fuel control positioning device. An internal spring provides fail-safe operation by forcing the actuator to the fuel shutoff position when the actuator is de-energized. Provides fast operation, multi-voltage usage, and proven reliability. The actuators can operate directly on 12- or 24- V DC battery supplies. Ideal for fuel systems on engines up+ to 150 HP.
