Power Input-◖Operating Voltage
(Dedicated Coil) : 12 or 24 V DC
◖Normal Operating Current : 1.9 A at 12 V DC
1.5 A at 24 V DC
◖Maximum Current
(Continuous) : 2.7 A at 12 V DC
1.9 A at 24 V DC ◖Coil Resistance : 3.00 Ω nominal at 12 V DC
7.25 Ω nominal at 24 V DC ◖Direction of Travel : Increasing current increases fuel,
pushing coupler forward
Environment-◖Operating Temperature Range : -40 to +180 °F [-40 to +83 °C]◖Relative Humidity : up to 100 %◖All Surface Finishes : Fungus Proof
and Corrosion Resistant
◖Agency : RoHS Compliant / CE
Physical -◖Mounting : Directly on STANADYNE DB,
JDB, DC, DB2, DB4, DM2, and
DM4 Series Pumps

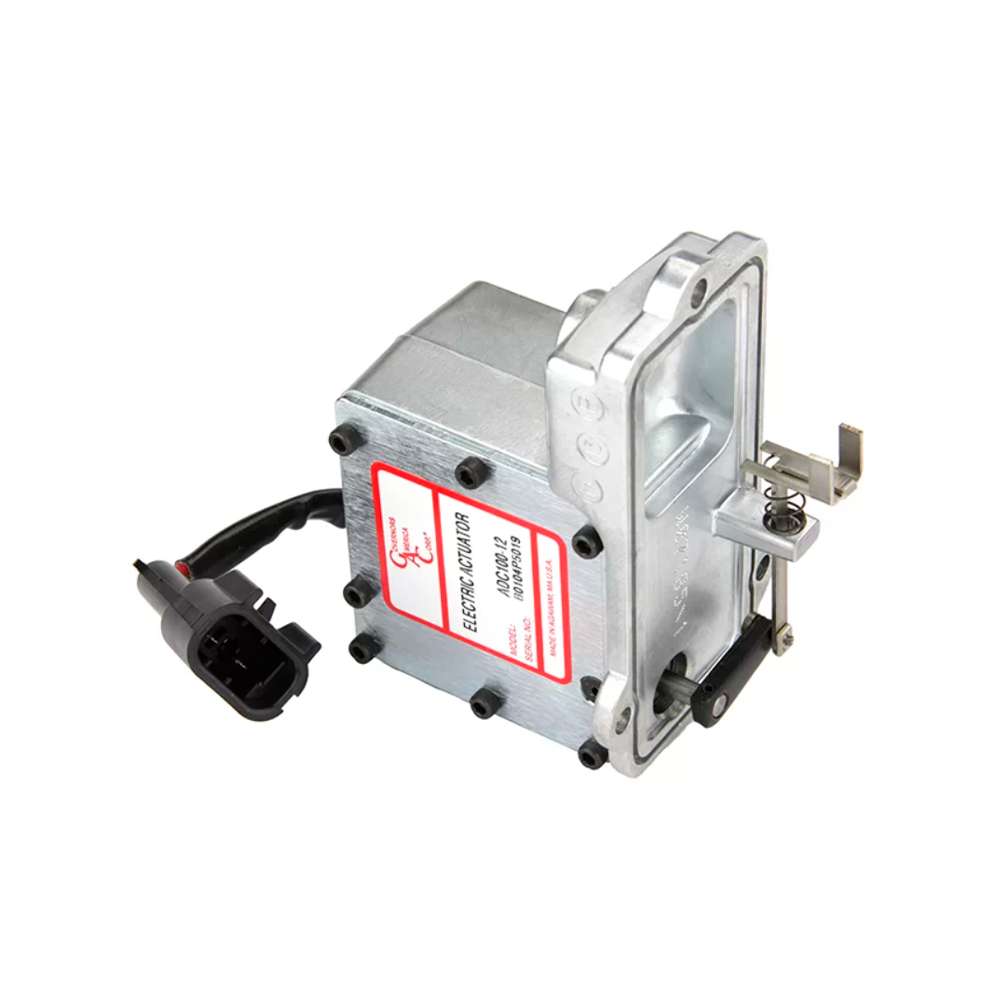

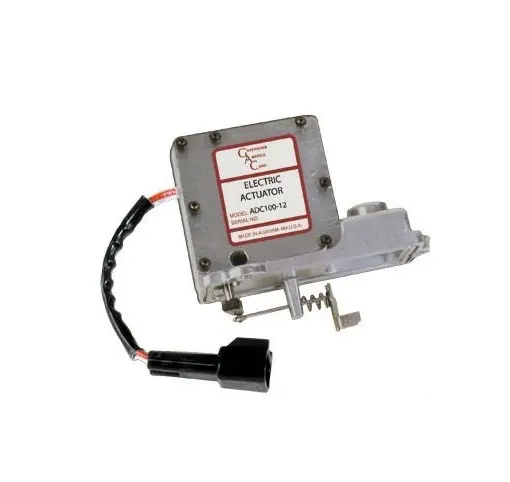

The 100 Series is designed to mount directly to Stanadyne “D” Series fuel injection pumps. When the ADC100 electric actuator is installed on the fuel pump, an integral high performance fuel control system results. No external linkages or brackets are required and no extra Stanadyne parts are needed. In addition when the governor system is de-energized, the ADC100 series provides the function of a fuel shut-off solenoid.
