Power Input- ◖Operating Voltage : 12 or 24 V DC available ◖Normal Operating Current 4.0 A ◖Maximum Current (Continuous) : 7.0 A
Environmental- ◖Operating Temperature Range : -40 to 212 °F [-40 to 100 °C] ◖Relative Humidity : up to 100 % ◖All Surface Finishes : Fungus proof and corrosion resistant
Reliability- ◖Testing : 100 % Tested.
Mating Hardware - ◖Wiring Harness : 2-wire with Automotive Connector (not included with actuator - CH1249-L02) ◖Mating Half Connector : Connector (included w/ ACE110 Series - EC1120)

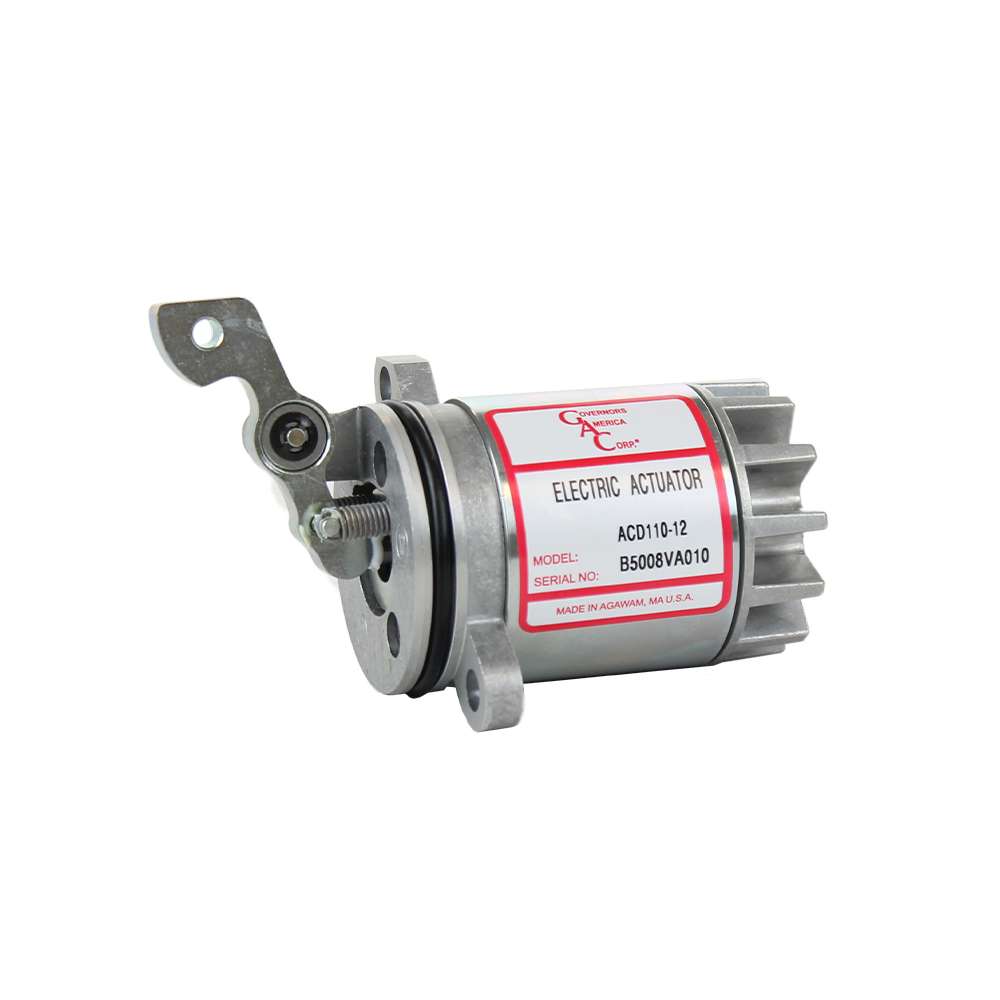

The GAC 110 Series Integral Actuator is designed to mount directly to DEUTZ 1011 Series 2, 3, and 4 cylinder engines in place of the electric stop solenoid and is available in 12 and 24 V DC. This unique, optimum fuel control, actuating device outperforms externally mounted types of electric actuators. An integral high performance speed control system results when the 110 Series Electric Actuator is installed on the engine and electrically connected to complementing governor system components. No external linkages or brackets are required.
