  2. GAC ACB2001 Universal Heavy Duty Rotary Actuator Original

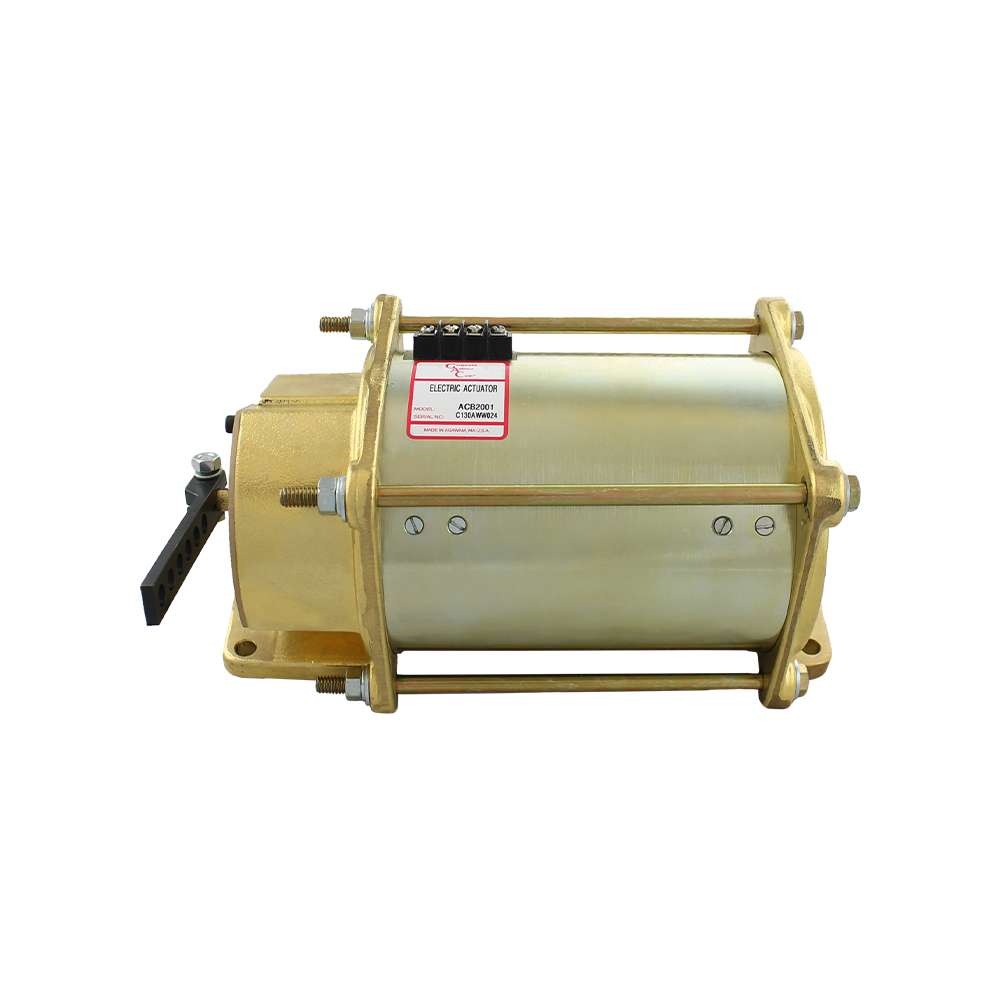

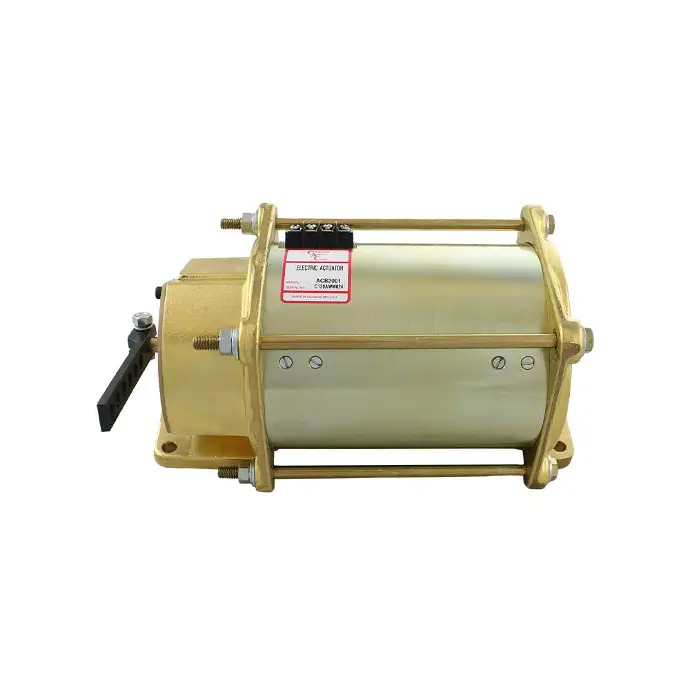

GAC ACB2001 Universal Heavy Duty Rotary Actuator Original

https://powermaster.odoo.com/web/image/product.template/10114/image_1920?unique=375fa7a

24VDC / Includes Lever LE2000 (M8 Holes) / Terminal Strip [Compatible with ESD5330/5340]

$ 2,245.89 2245.89 USD $ 2,245.89

$ 2,245.89

Not Available For Sale

This combination does not exist.

Contact Us
Actuator Speed Controls ACB2001

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER INPUT

Nominal 24 V DC

RELATIVE
HUMIDITY

Up to 100%


WEIGHT
30 POUNDS

SIZE
10.6 x 5 x 5 Inches




ENVIROMENTAL

-65 ° to +200 °F



NORMAL OPERATING
CURRENT

Up to 5A

OPERATING TEMPERATURE

-65 to 200 °F (-54 to 95 °C)

WEIGHT

30 POUNDS

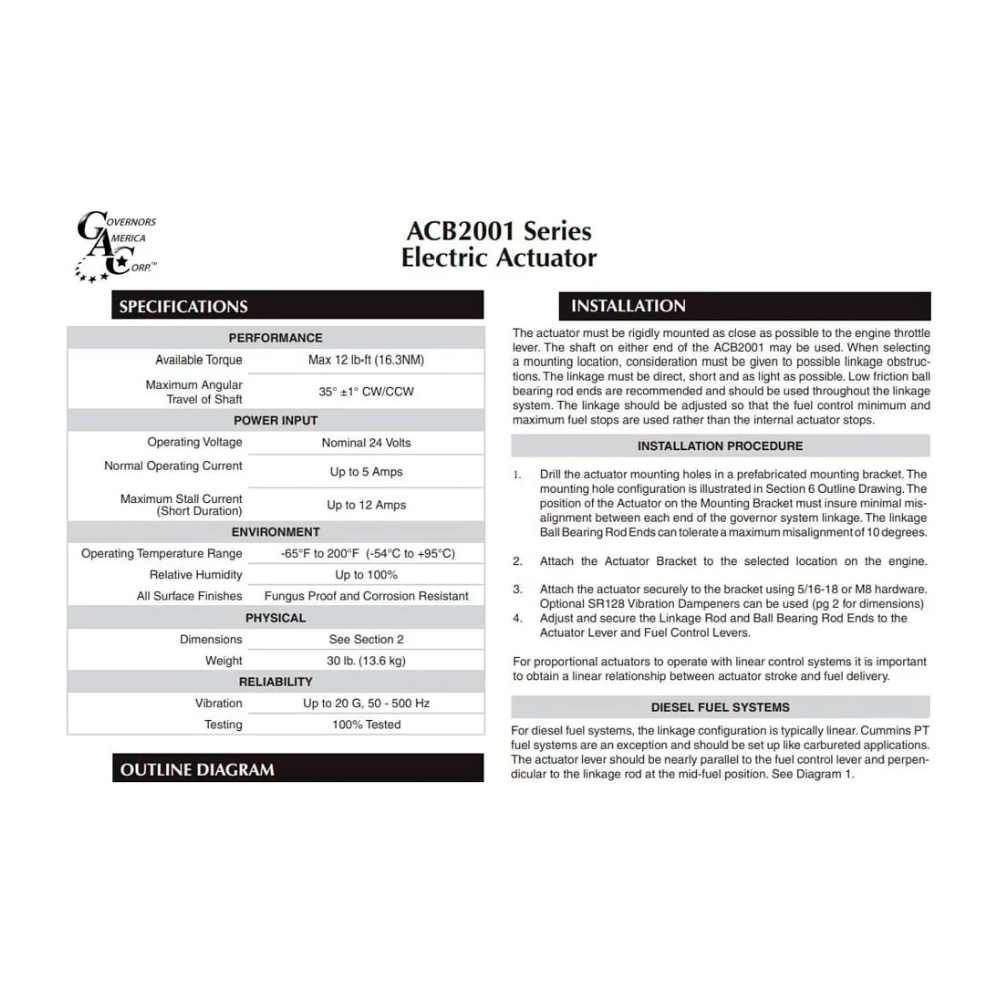

  • Power Input - ◖Operating Voltage : Nominal 24 V ◖Normal Operating Current :Up to 5 A ◖Maximum Stall Current (Short Duration) : Up to 12A
  • Performance - ◖Available Torque : Max 12 lb-ft [16.3 N∙m] ◖Maximum Angular Travel of Shaft : 35 ° ±1 ° CW/CCW


  • Environment - ◖Operating Temperature Range : -65 to 200 °F [-54 to 95 °C] ◖Relative Humidity : Up to 100 % ◖All Surface Finishes Fungus : Proof and Corrosion Resistant
  • Reliability - ◖Vibration : Up to 20 g, 50 - 500 Hz ◖Testing : 100 % Tested



GAC’s ACB2001 actuator is a rotary output, 24 V, linear torque proportional electric servo designed for mechanical actuation of fuel system control levers requiring torques in the 5 ft-lb range. Energized by GAC’s ESD5300 Series speed control units, the actuator is capable of 35 degrees of rotation with torques as high as 12 ft-lb [16.3 N∙m].
Internal springs provide fail safe operation by forcing the actuator to the fuel shut off position when the actuator is de-energized. Since the design has no sliding parts, and is totally sealed, its reliability is outstanding and no maintenance necessary. Engine applications include large block pumps, dual medium carburetors, and large size carburetors. No Maintenance Required
