  3. DSE A106-02 Digital Automatic Voltage Regulator (AVR) Original

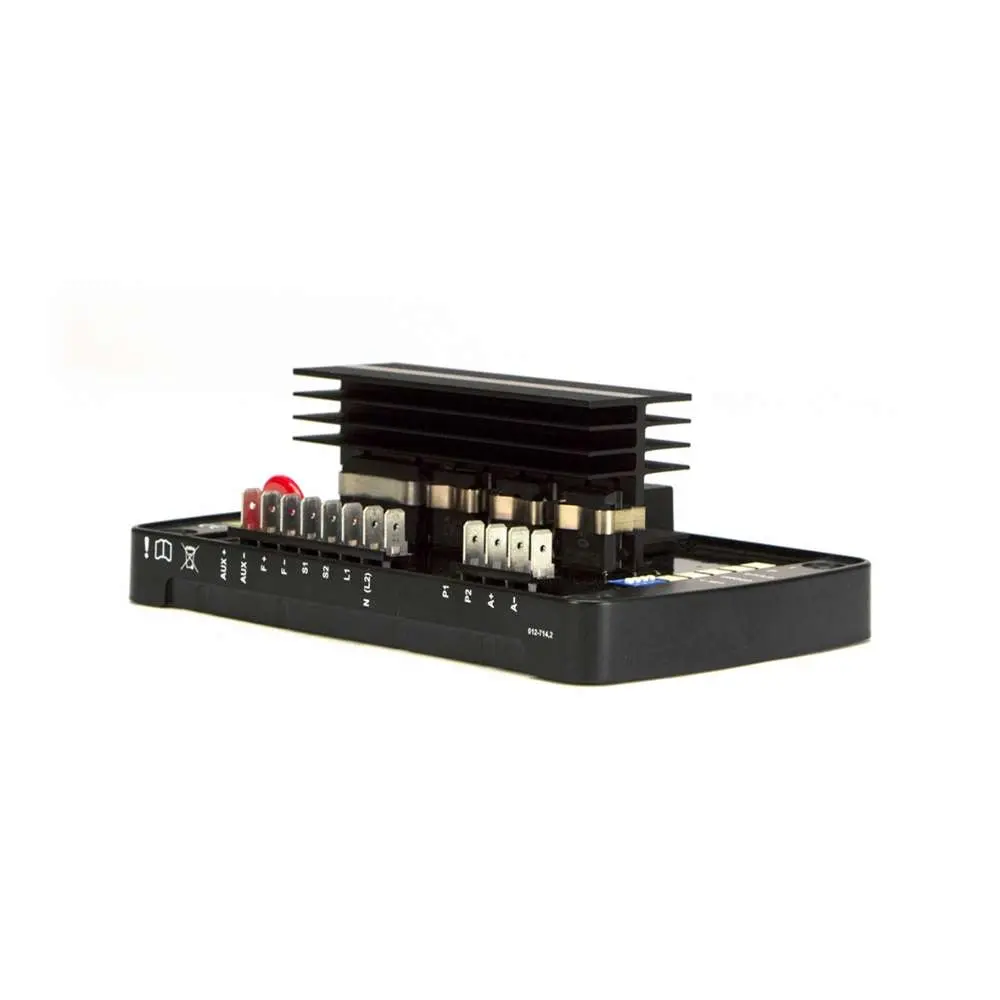

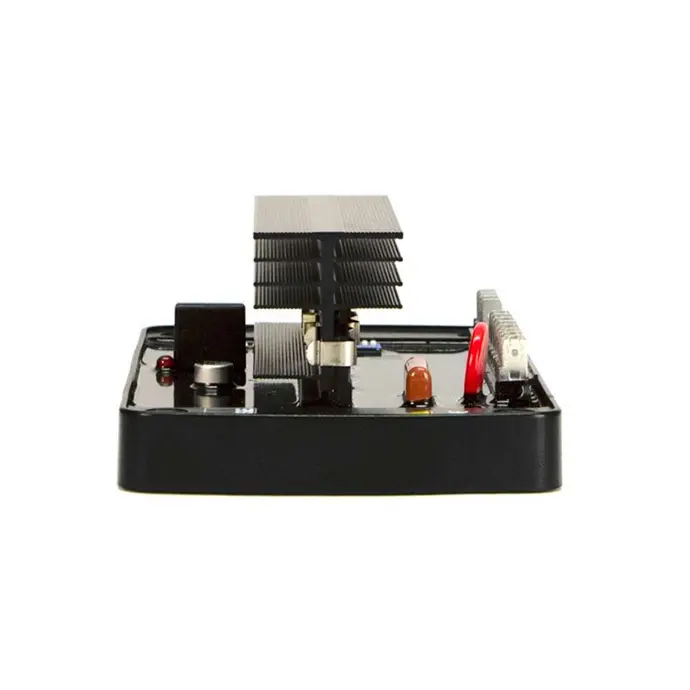

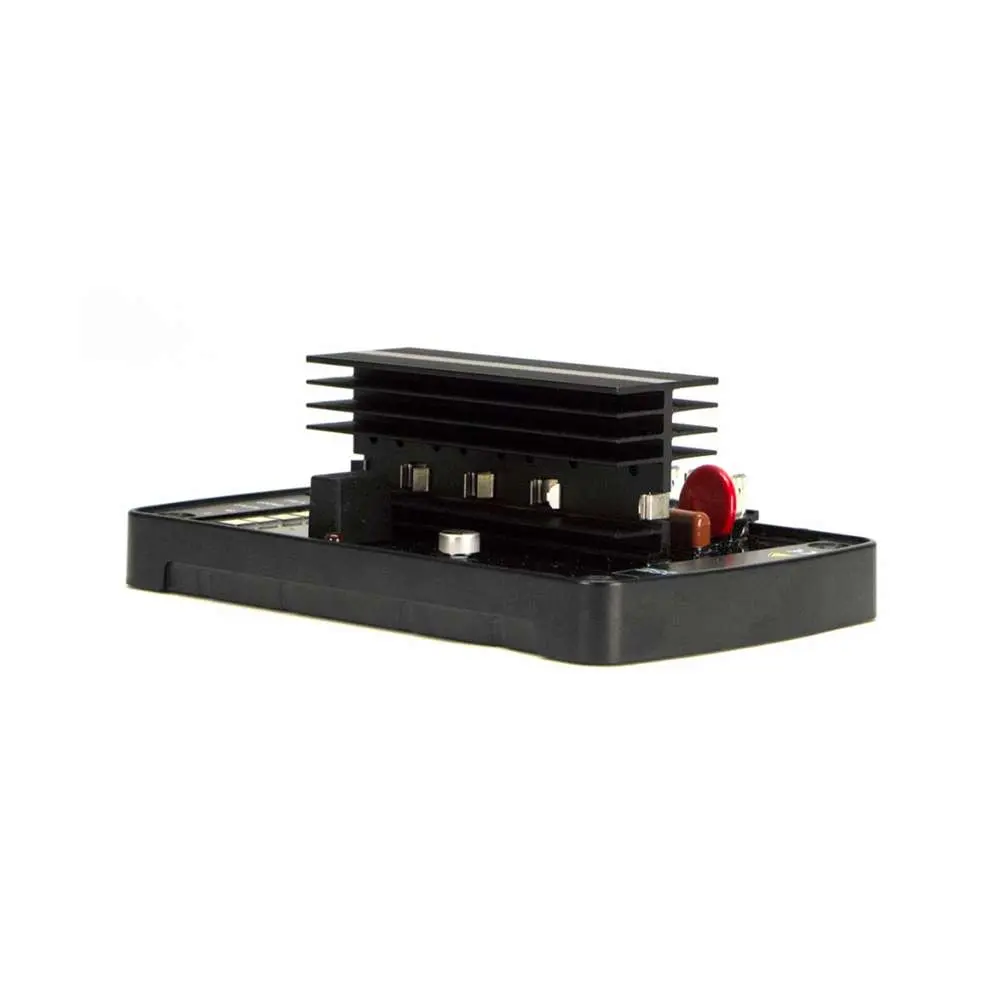

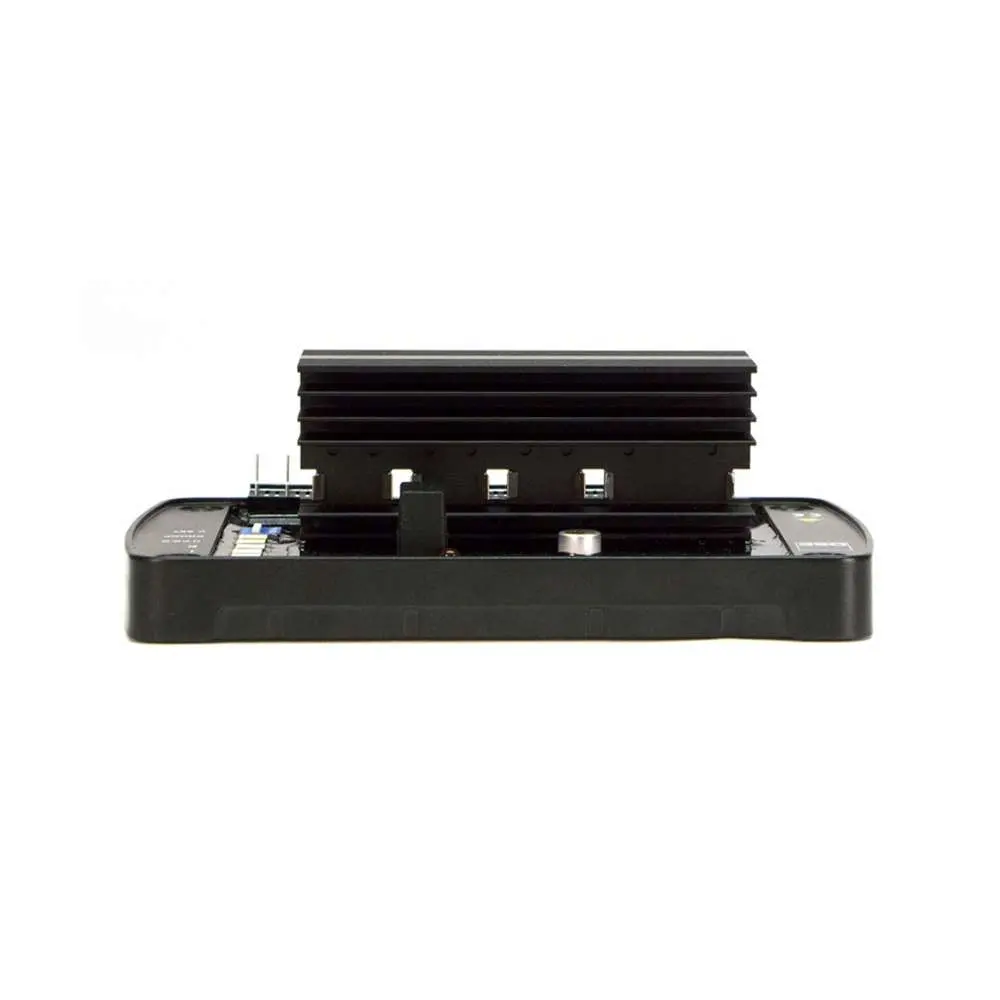

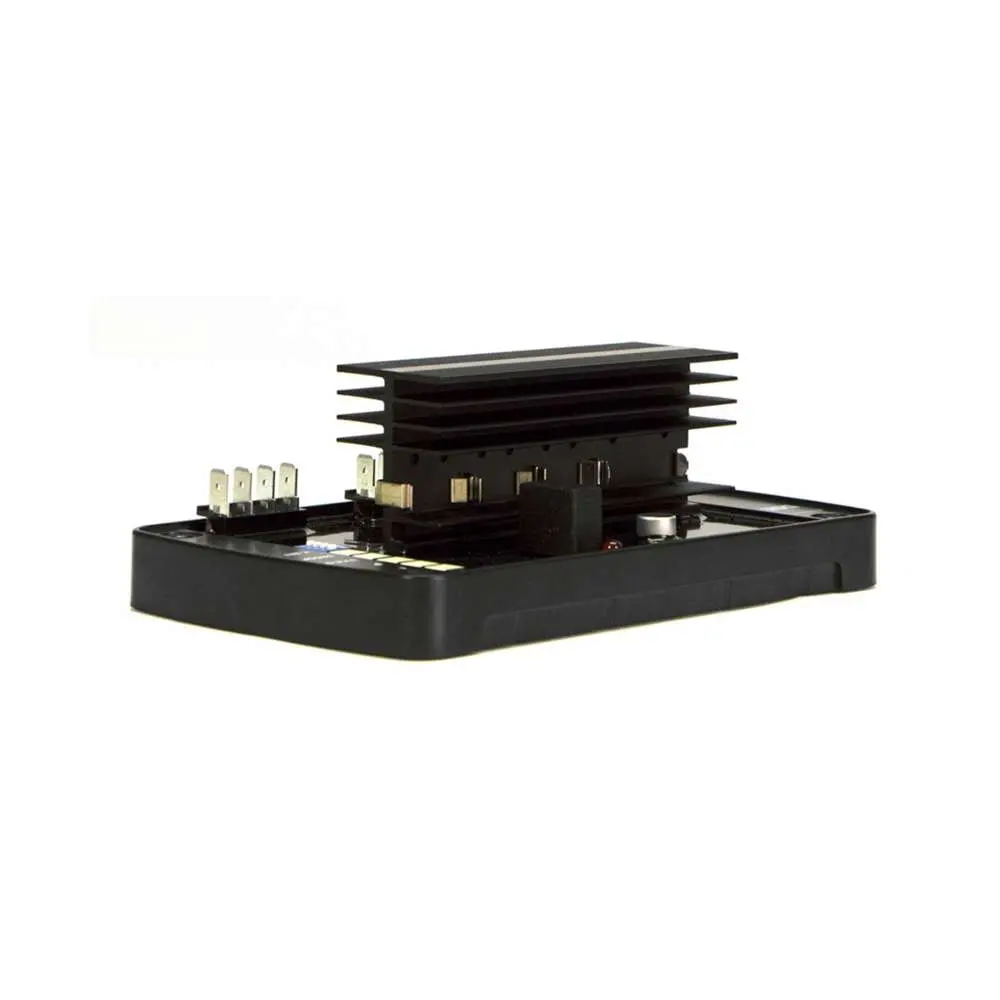

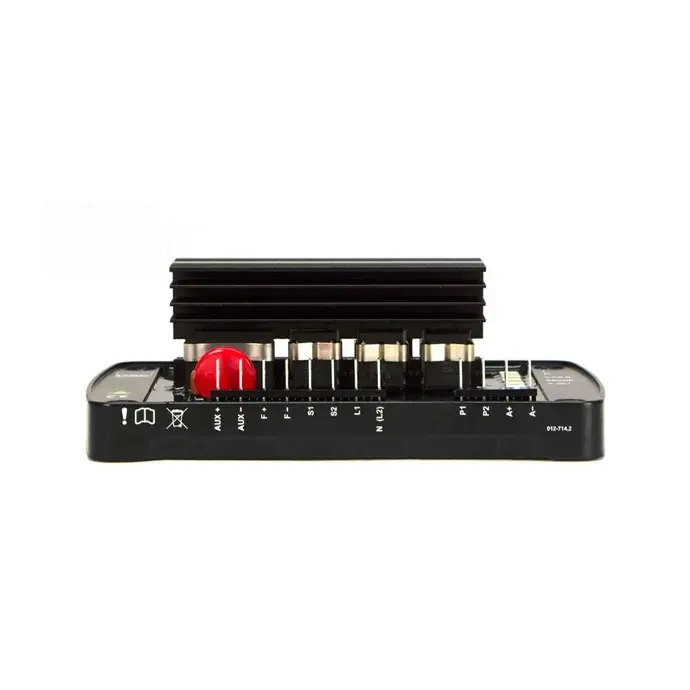

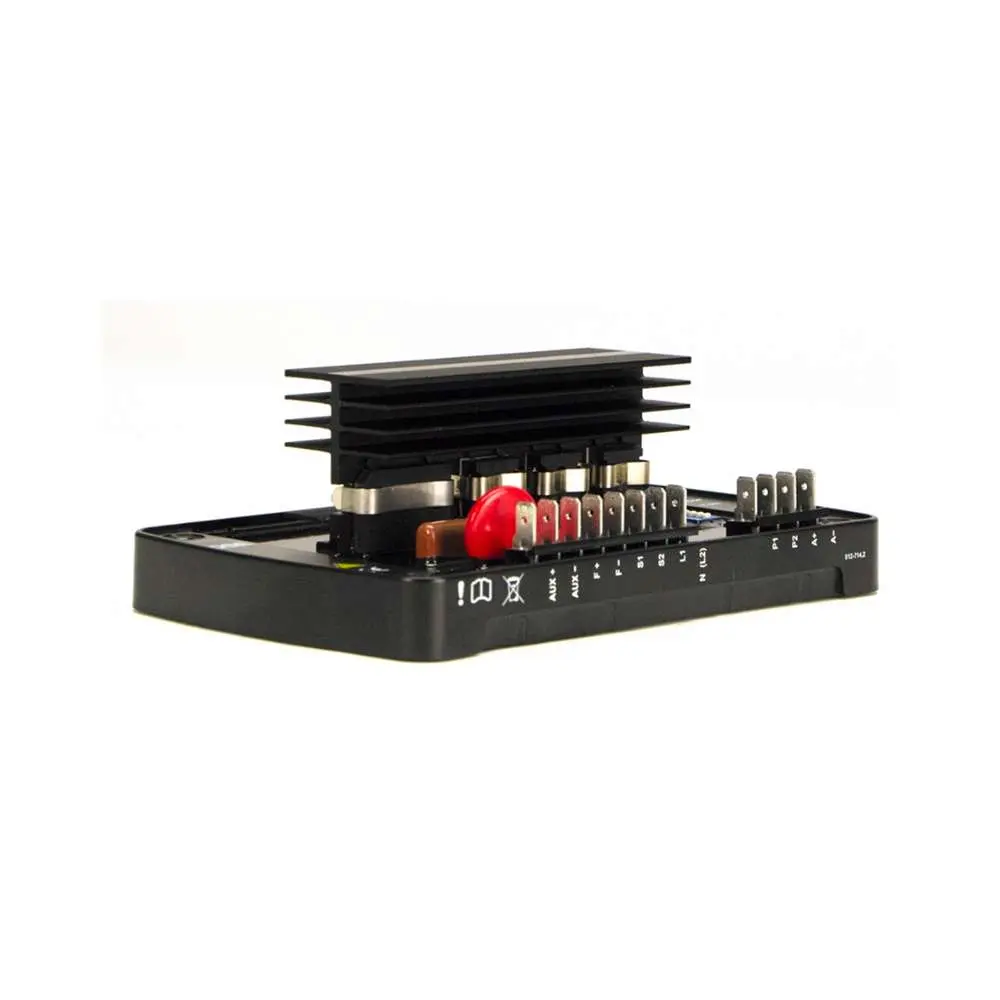

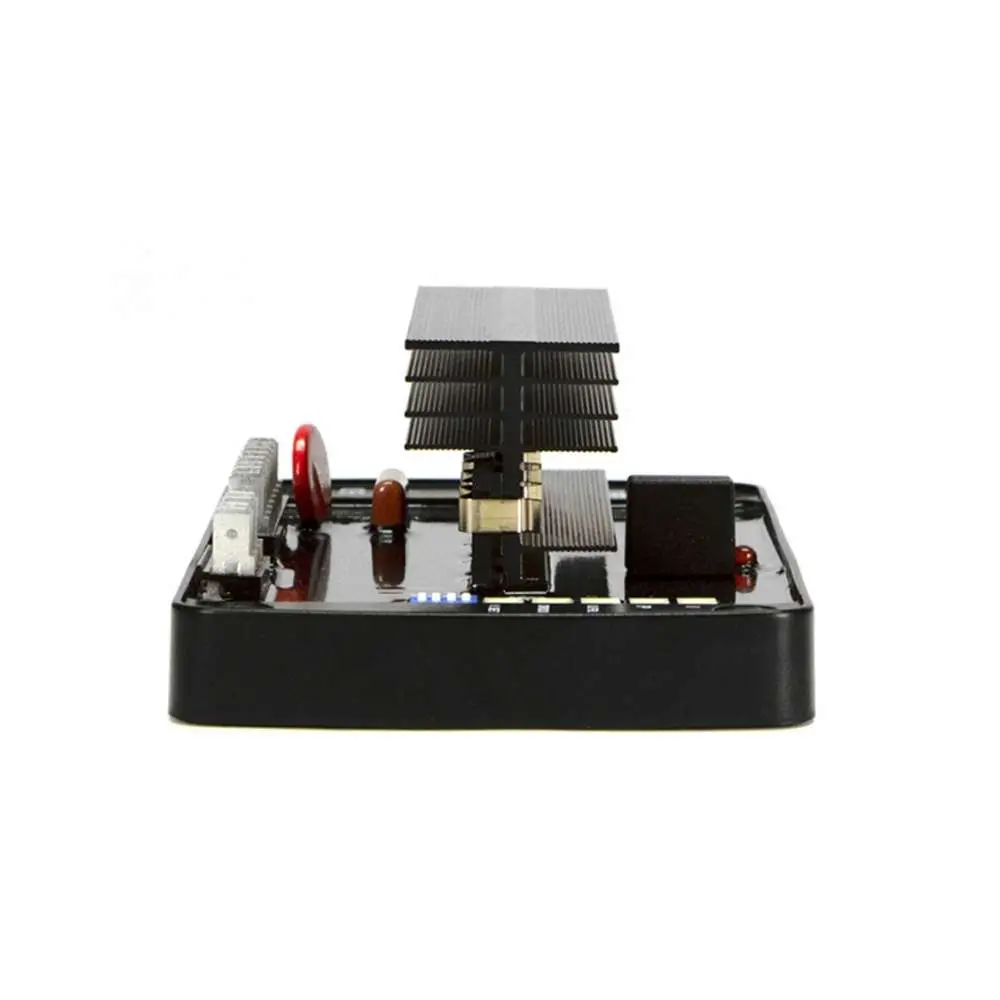

DSE A106-02 Digital Automatic Voltage Regulator (AVR) Original

https://powermaster.odoo.com/web/image/product.template/9984/image_1920?unique=d9c84ea

DSE A106 MKII Digital AVR (Aux)

$ 418.19 418.19 USD $ 418.19

$ 418.19

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



PRODUCT VARIANTS

A106-02 - A106 Digital AVR (AUX)




POWER SUPPLY

VOLTAGE RANGE
100 V AC to 300 V AC (Ph to N/Ph)

WEIGHT
1.3 POUNDS
SIZE
7 x 4 x 2 Inches
FREQUENCY RANGE

40 Hz to 65 Hz

POWER SUPPLY

Voltage range of 100 V AC to 300 V AC (Ph to N/Ph)

OVER EXCITATION
PROTECTION

Protects AVR & alternator

DIP SWITCH SELECTION

Provides voltage, frecuency and stability selection

  • Power supply -  ◖ Voltage range:  100 V AC to 300 V AC (Ph to N/Ph) ◖Frecuency range:  40 Hz to 180 Hz
  • Alterator output sending  -  ◖Voltage range:  15 V AC to 600 V AC (Ph to N/Ph) ◖FRECUENCY RANGE:  40 Hz to 180 Hz
  • Excitation output -  ◖Excitator field winding impedance:  5 Ω to 50 Ω ◖Continuous voltage range:  0 V DC to 100 V DC ◖Continuous voltage rating:  0 A DC to 7 A DC ◖Maximum current rating:  15 A DC for 10 seconds.
  • Quadrature drop ct  -  ◖Maximun secondary current:  5 A AC ◖Burden:  0.25 VA ◖Accuracy:  1%
  • Remote voltage -  ◖Potentiometer:  5 kΩ ◖Voltage input:  -10 V DC to 10 V DC .

​

​

  Soft start ramping

​

  Over excitation protection

​

  Spade terminals


  • Under frequency roll off protection with optional instantaneous step.
  • Loss of voltage sensing protection.
  • Remote voltage adjustment using -10 V to 10 V signal and 5kΩ potentiometer.




  • Remote voltage adjustment potentiometer open circuit protection.
  • LED Indication for fault and operating status.
  • Chassis mount potted enclosure.

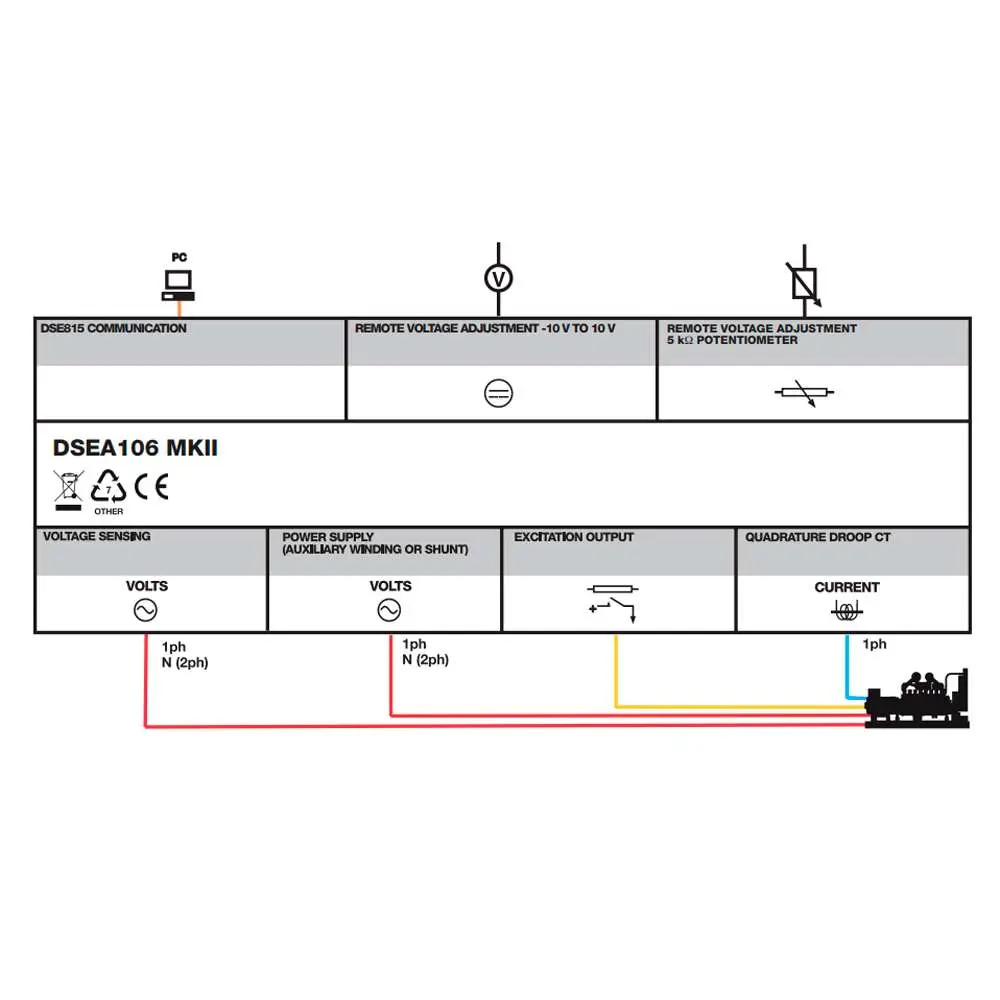

The DSEA106 MKII Digital Automatic Voltage Regulator (AVR) builds on the success of the DSEA106 product providing additional features to enhance customer applications. The product regulates the output voltage of an AC alternator and is supplied by a stator auxiliary winding or a shunt system taking power from the output windings.

The product provides higher levels of stability compared to analogue designs by maintaining a smooth, stable and regulated AC output voltage that is unaffected by the connected electrical load.

Please Note: The DSE815 interface is required for programming.



POWER SUPPLY

VOLTAGE RANGE

100 V AC to 300 V AC (Ph to N/Ph)

FREQUENCY RANGE

40 Hz to 180 Hz

ALTERNATOR OUTPUT SENSING

VOLTAGE RANGE

15 V AC to 600 V AC (Ph to N/Ph)

FREQUENCY RANGE

40 Hz to 65 Hz




QUADRATURE DROOP CT

MAXIMUM SECONDARY CURRENT

5 A AC

BURDEN

0.25 VA

ACCURACY

1%

REMOTE VOLTAGE ADJUSTMENT

POTENTIOMETER

5 kΩ

VOLTAGE INPUT

-10 V DC to 10 V DC



EXCITATION OUTPUT

EXCITATOR FIELD WINDING IMPEDANCE

5 Ω to 50 Ω

CONTINUOUS VOLTAGE RATING

0 V DC to 100 V DC

CONTINUOUS CURRENT RATING

0 A DC to 7 A DC

MAXIMUM CURRENT RATING

15 A DC for 10 seconds
