  2. DSE 9462-01 Dual Output Intelligent Battery Charger Original

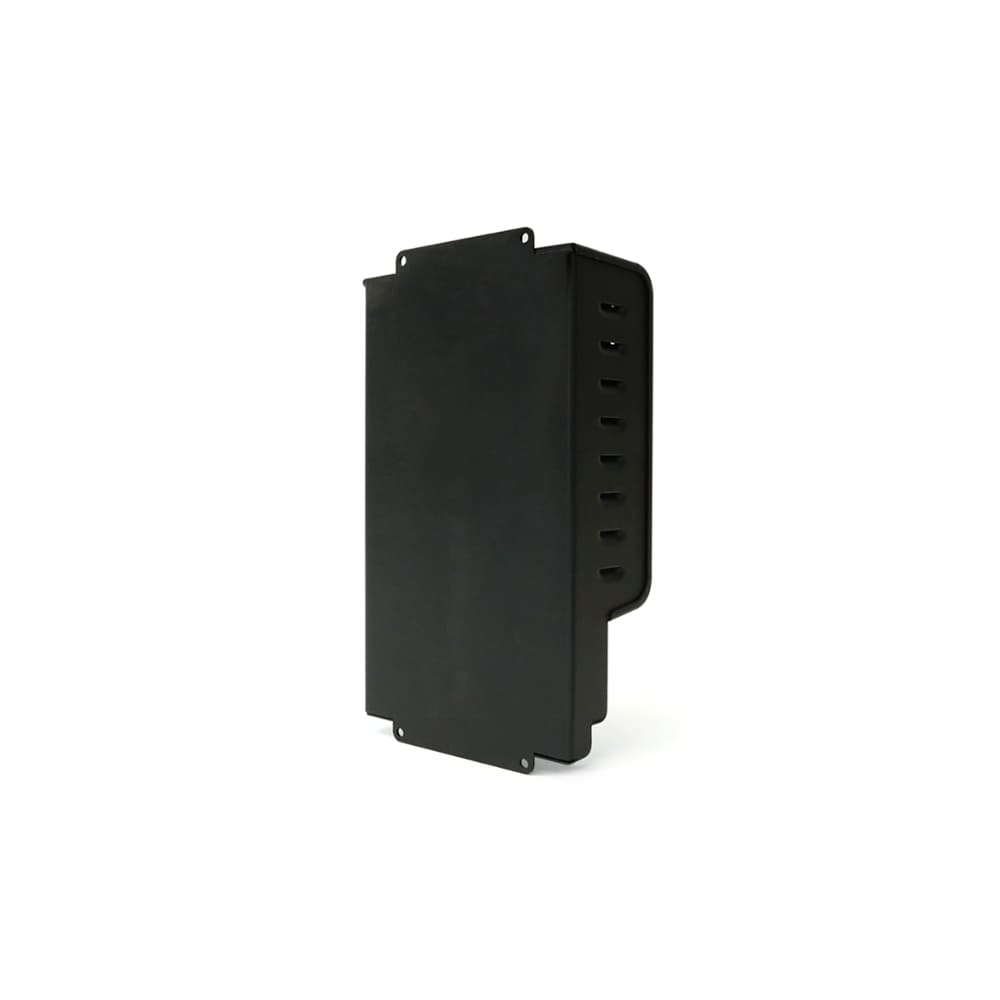

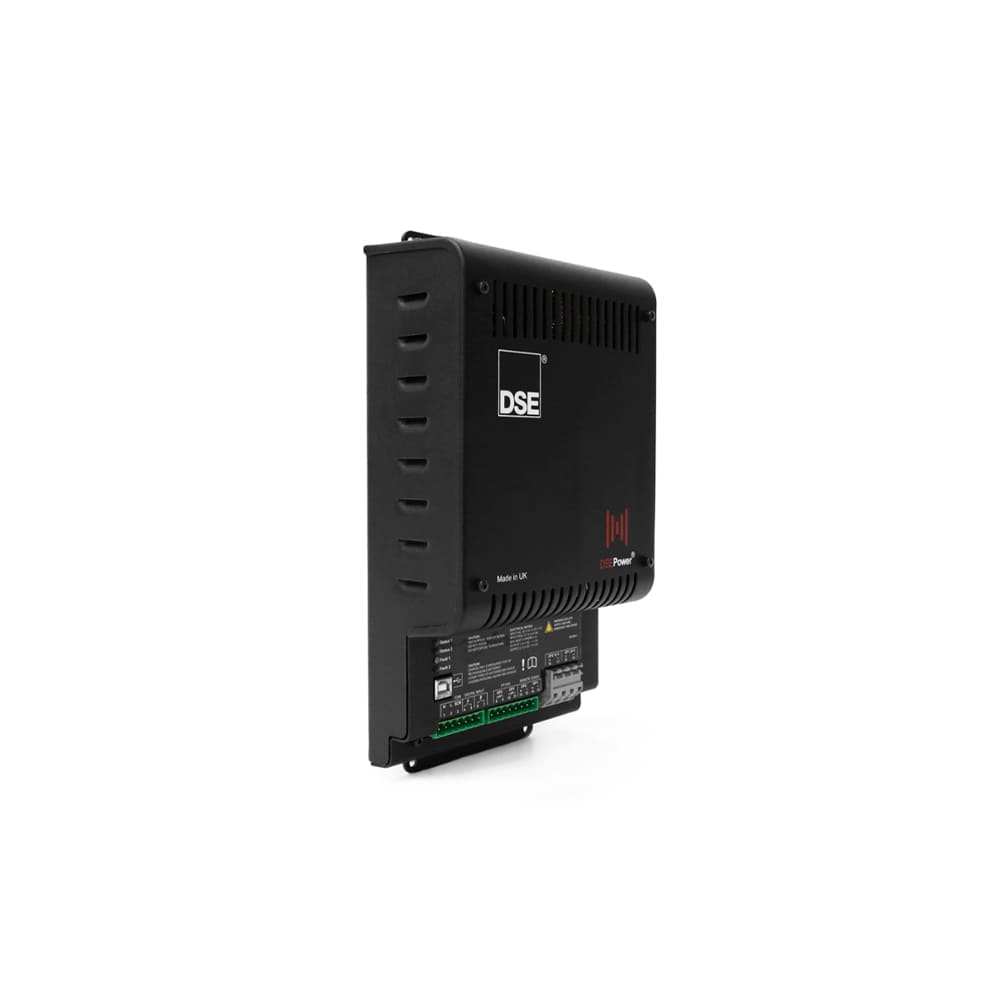

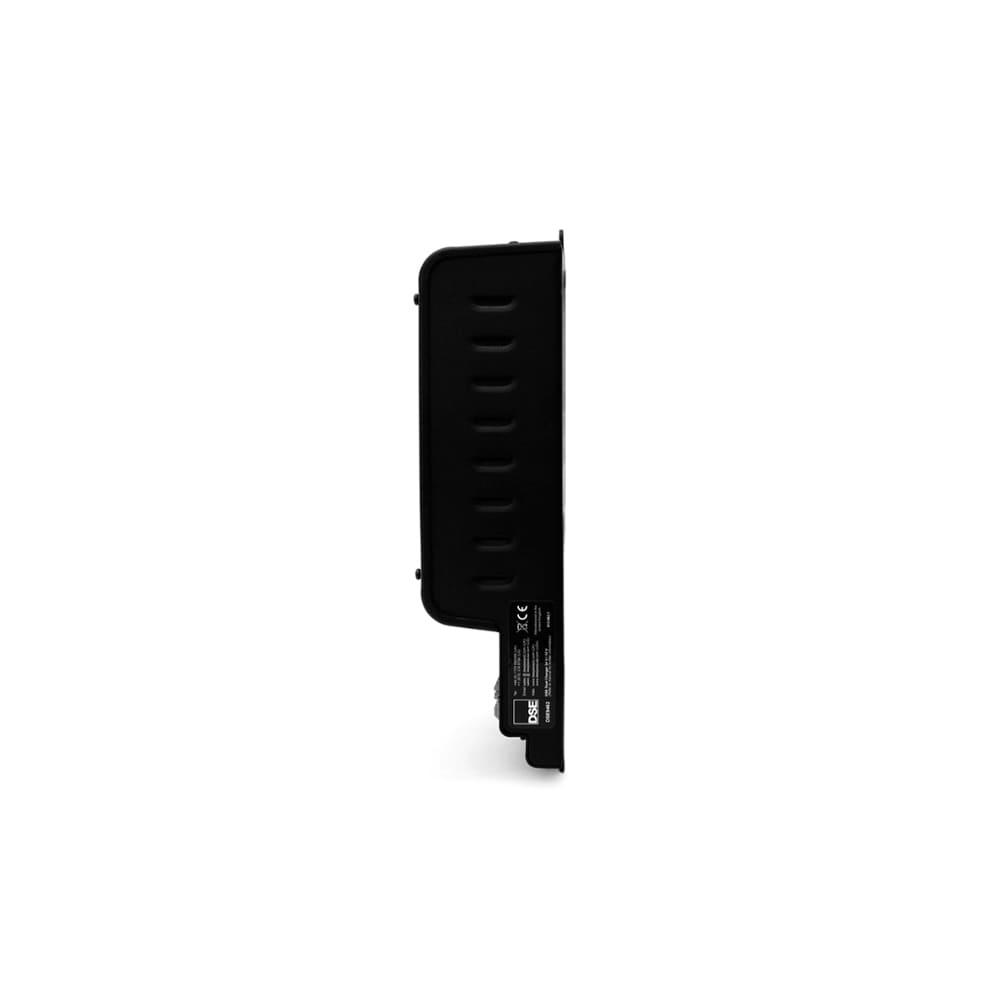

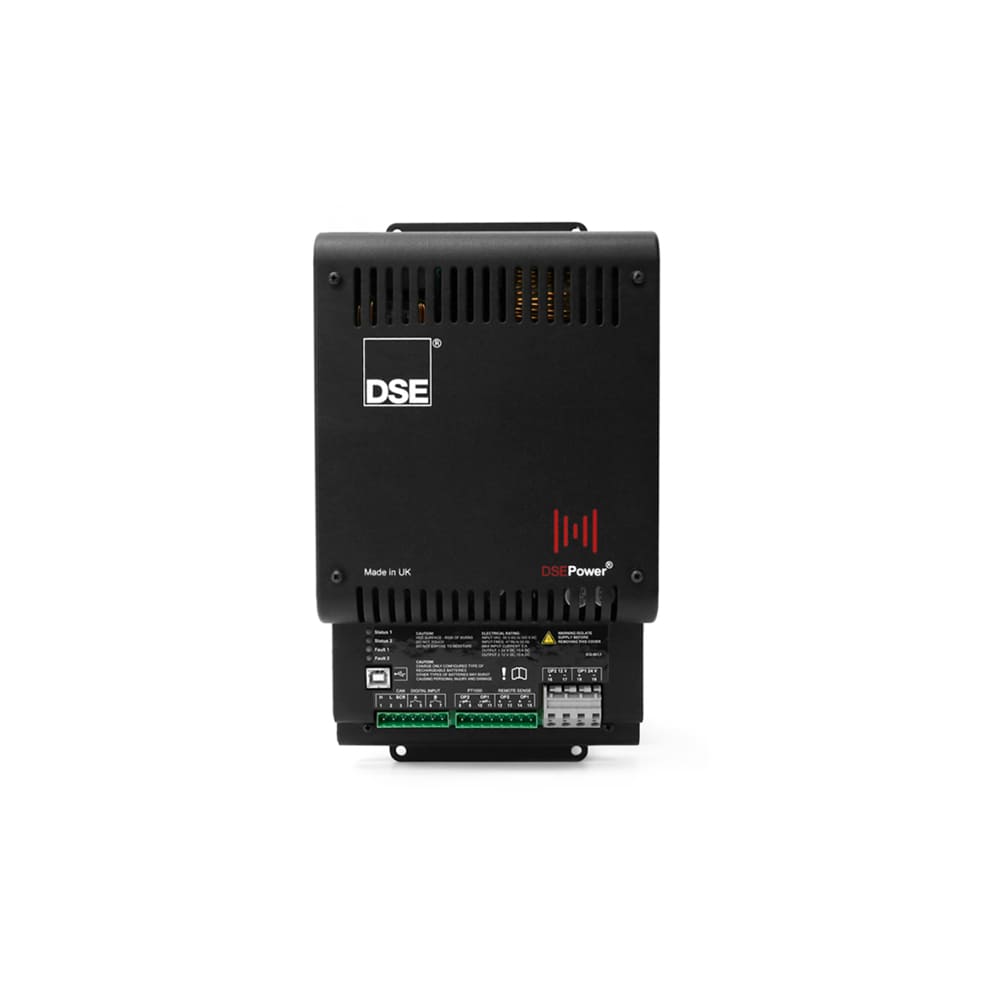

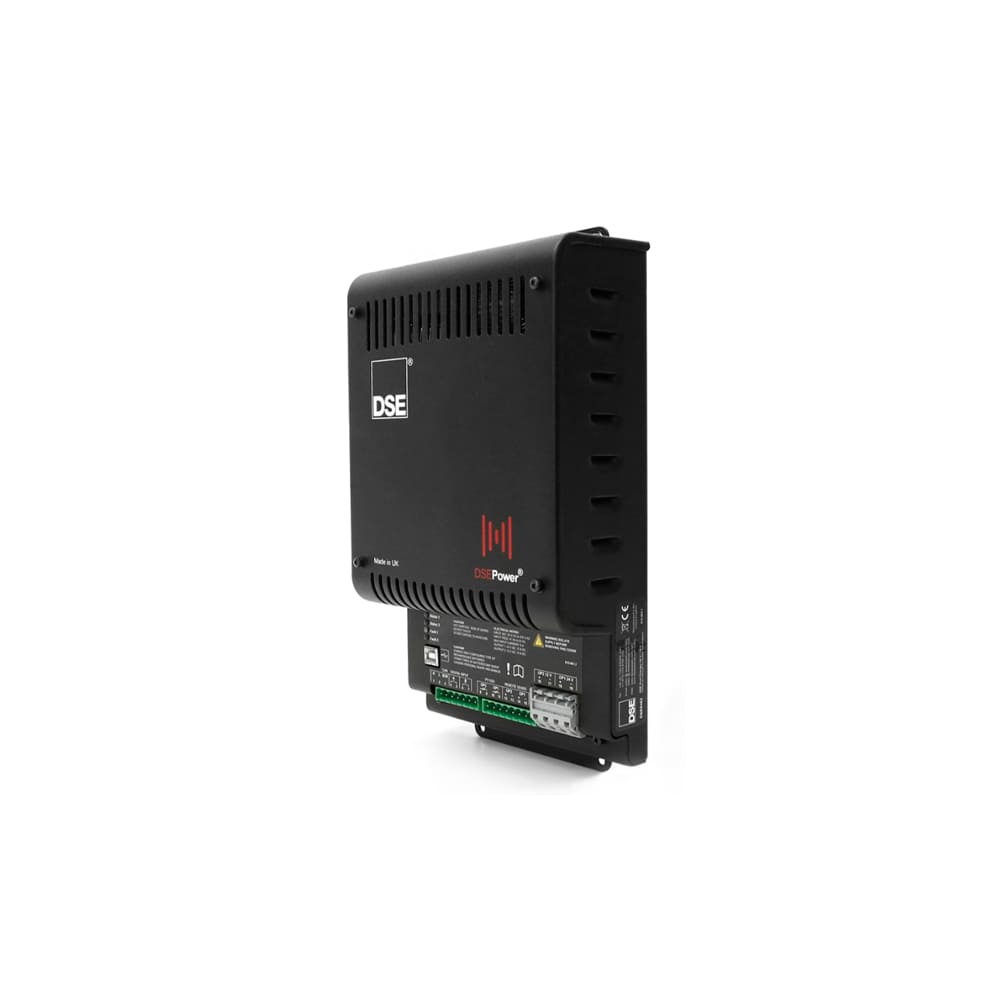

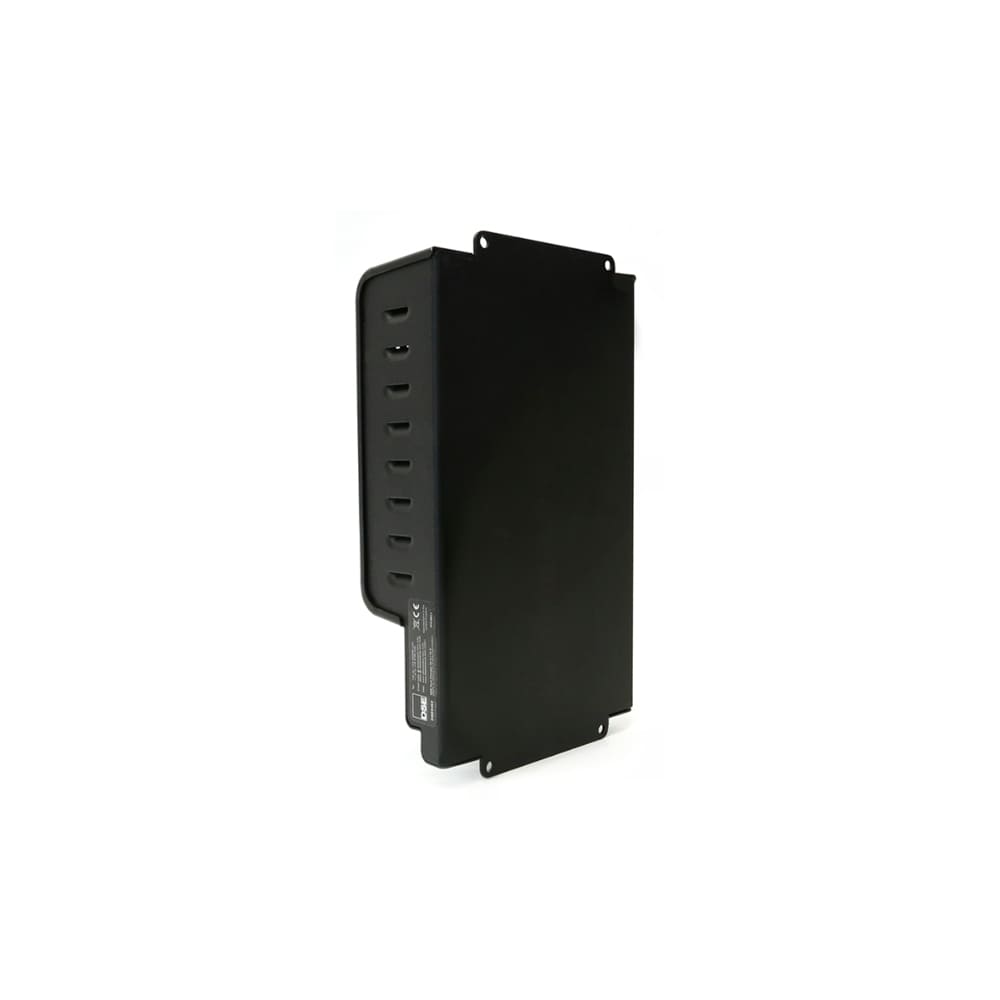

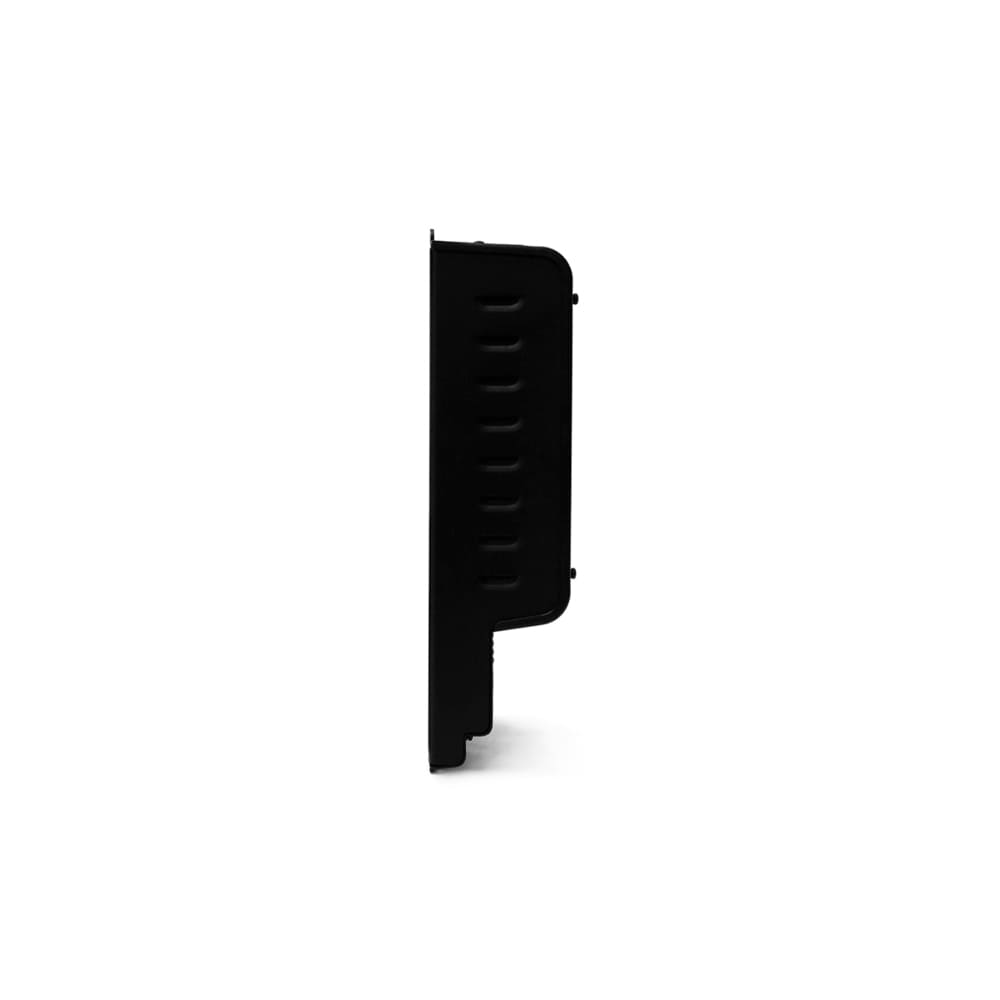

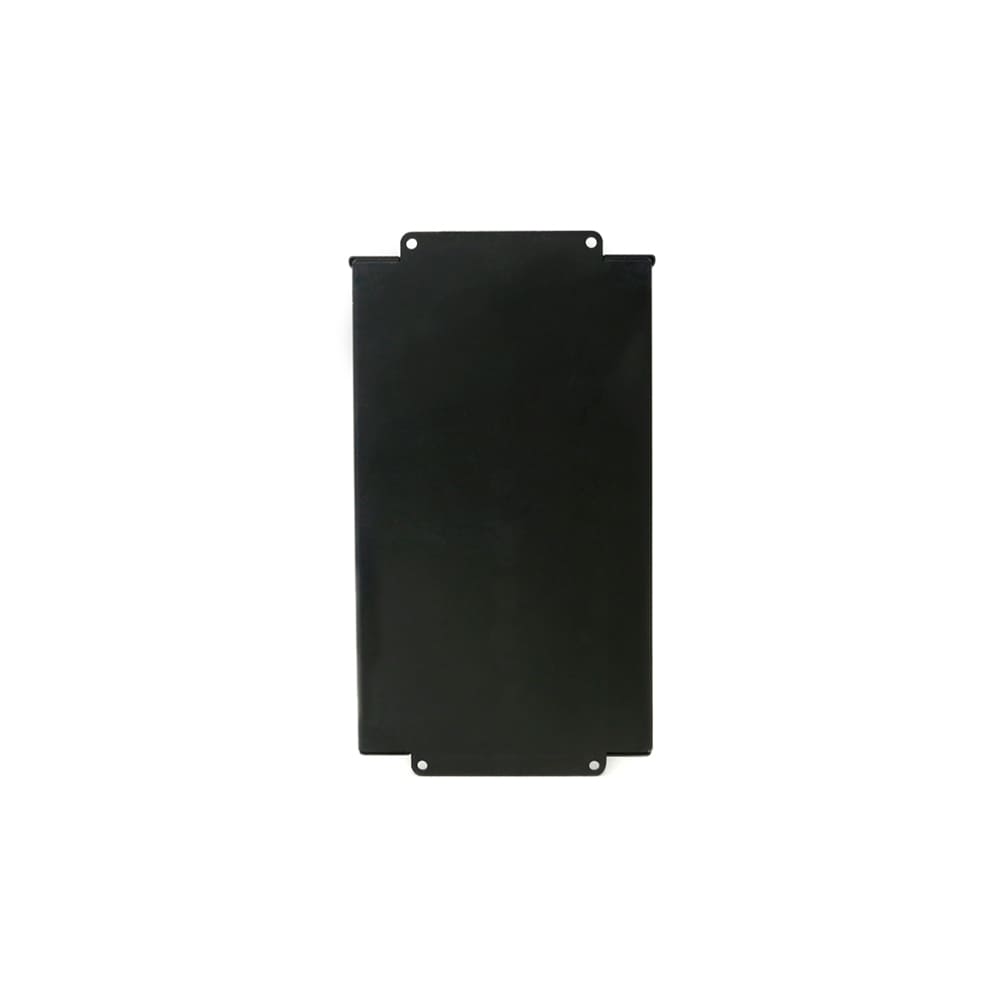

DSE 9462-01 Dual Output Intelligent Battery Charger Original

https://powermaster.odoo.com/web/image/product.template/9982/image_1920?unique=fea62a4

DSE9462 24/12V 15/10A BC 110-277V 50/60Hz

$ 864.89 864.89 USD $ 864.89

$ 864.89

Not Available For Sale

This combination does not exist.

Contact Us
DSE Battery Charger DSEPower DSE9462

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

VOLTAGE RANGE

90 V to 305 V (L-N)

PRODUCT VARIANTS

9462-01 - 24 Volt 15 Amp & 12 Volt 10 Amp Dual Output Intelligent Battery Charger (90-305v)



WEIGHT

3.9 POUNDS

SIZE

9 x 10 x 3 Inches



STORAGE TEMPERATURE RANGE

-22 °F to +158 °F

REMOTE VOLTAGE SENSING

To compensate for voltage drop due to cable resistance.

LOW OUTPUT RIPPLE

Safe charging of both sealed and vented battery types.

AC INPUT UNDER/OVER VOLTAGE

Protects the charger and provides alarms in the event of an AC input failure.

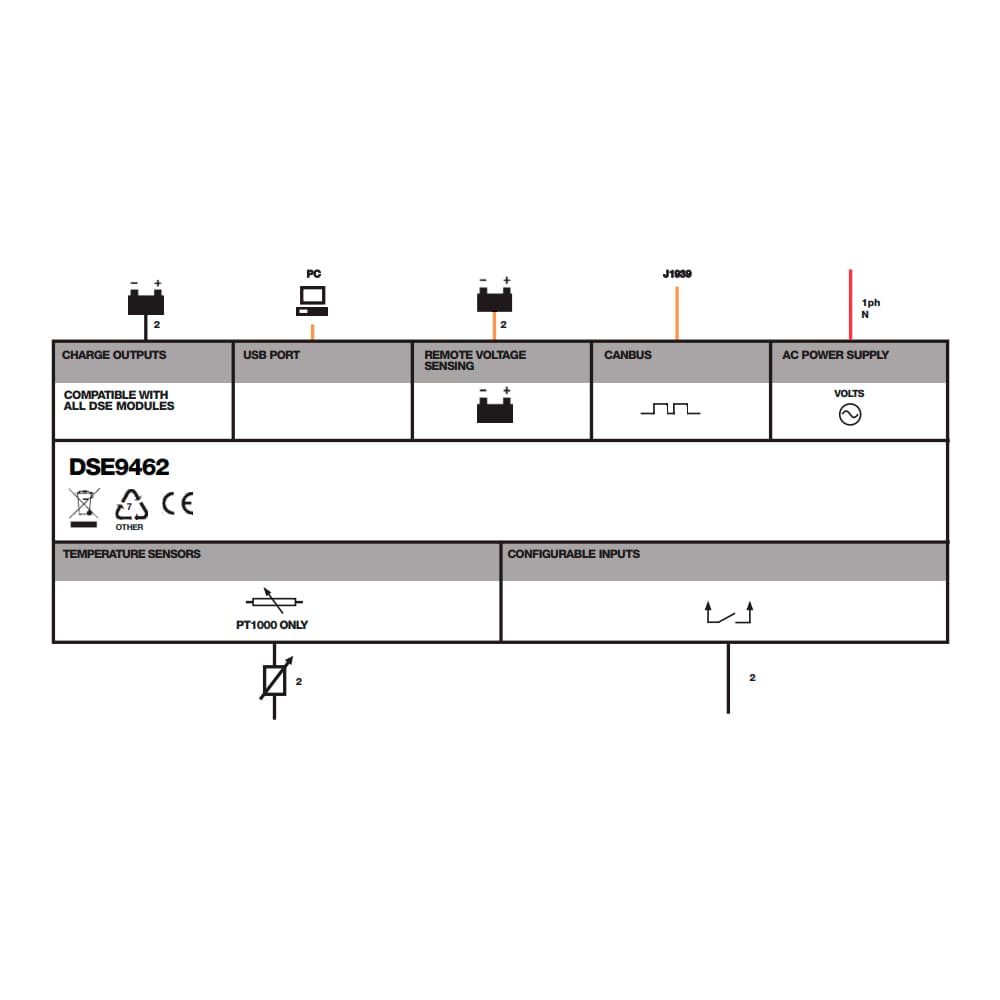

  • AC Supply - ◖Voltage Range : 90 V to 305 V (L-N) ◖Frequency Range : 48 Hz to 64 Hz (L-N) ◖Maximum Input Current : 6.0 A Max
  • DC Outputs - ◖Channel 1 : 15 A DC at 24 V DC ◖Channel 2 : 10 A DC at 12 V DC ◖Ripple And Noise : 2% x Vo ◖Effciency And Power Factor : >90% at 0.9 pf
  • Regulation - ◖Line : <0.5% x Vo ◖Load : 1% x Vo





  • Temperature Sensor Inputs - ◖Number : 2 ◖Type : PT1000
  • Protections - ◖Short Circuit DC Under & Over Voltage DC Over Current Reverse Polarity Over Temperature AC Under & Over Voltage
  • Operating Temperature Range - ◖-30 oC to +70 oC (-22 °F to +131 °F)
  • Storage Temperature Range - ◖-30 o C to +70 o C (-22 °F to +158 °F)


  • Our Multiple Output Chargers have been developed to provide intelligent, lightweight charging for use on-board standby vehicles and systems that use multiple applications or loads. Chargers within the range can be configured to provide different output levels and programmed for optimum performance with different charging curves to maximise the life of the battery.
  • The DSE9462 is configured using the DSE Configuration Suite software via a USB connection. The charger is mounted to a chassis using the fixing holes that are built into the case. The charger's stylish design includes four coloured LEDs to indicate charging status and fault conditions. For added durability, reliability and silent operation the charger utilises solid state technology with no moving parts.
