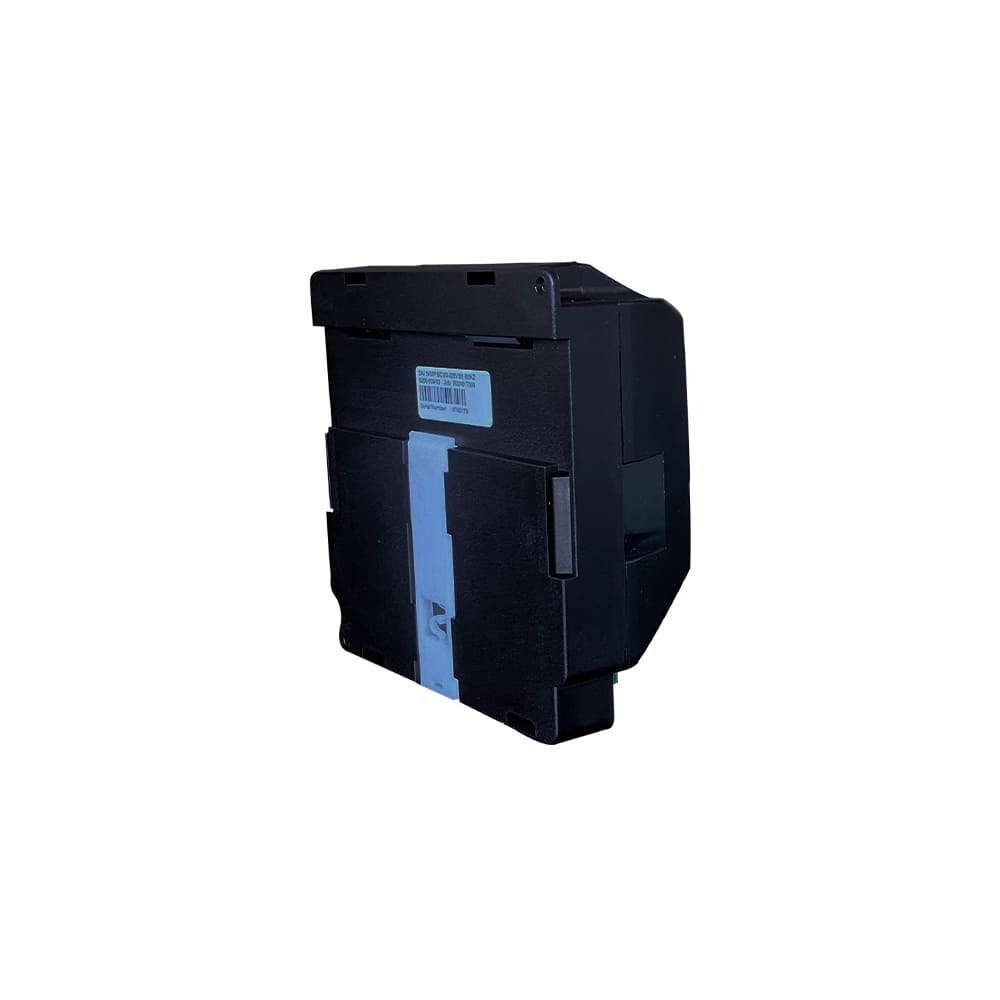

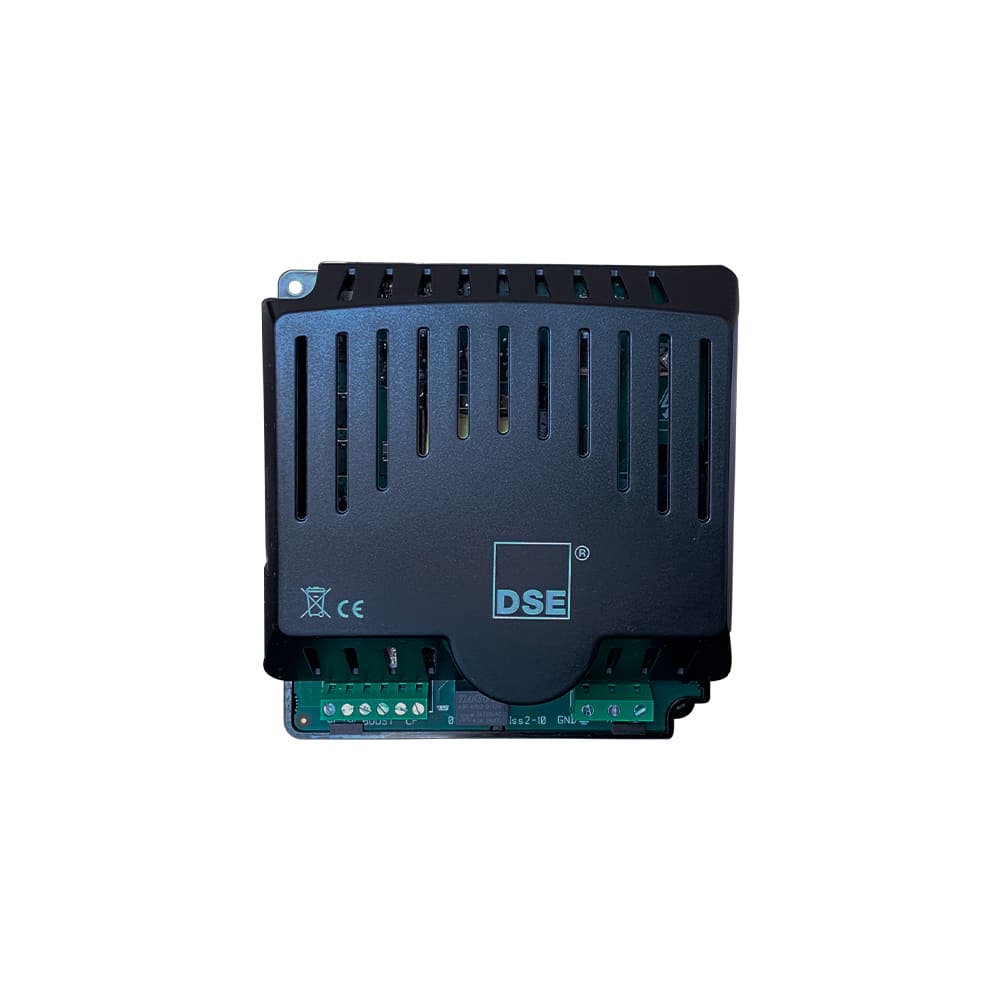

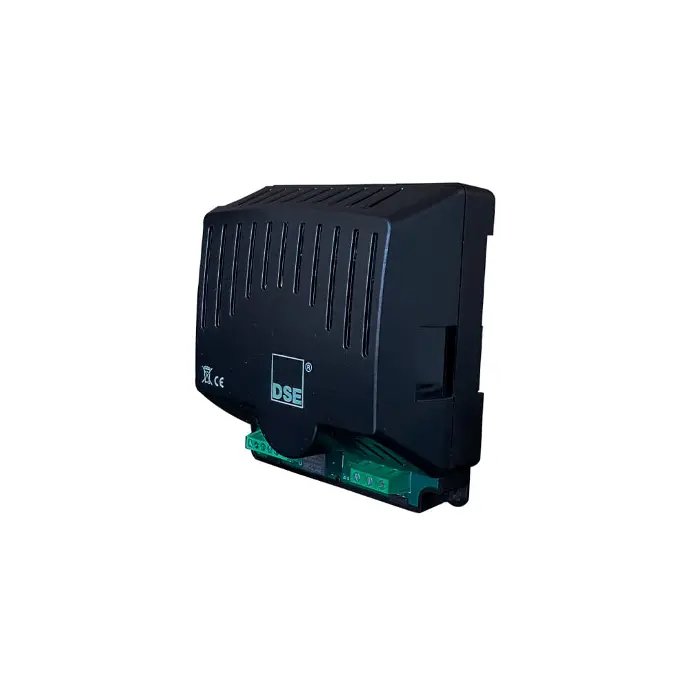

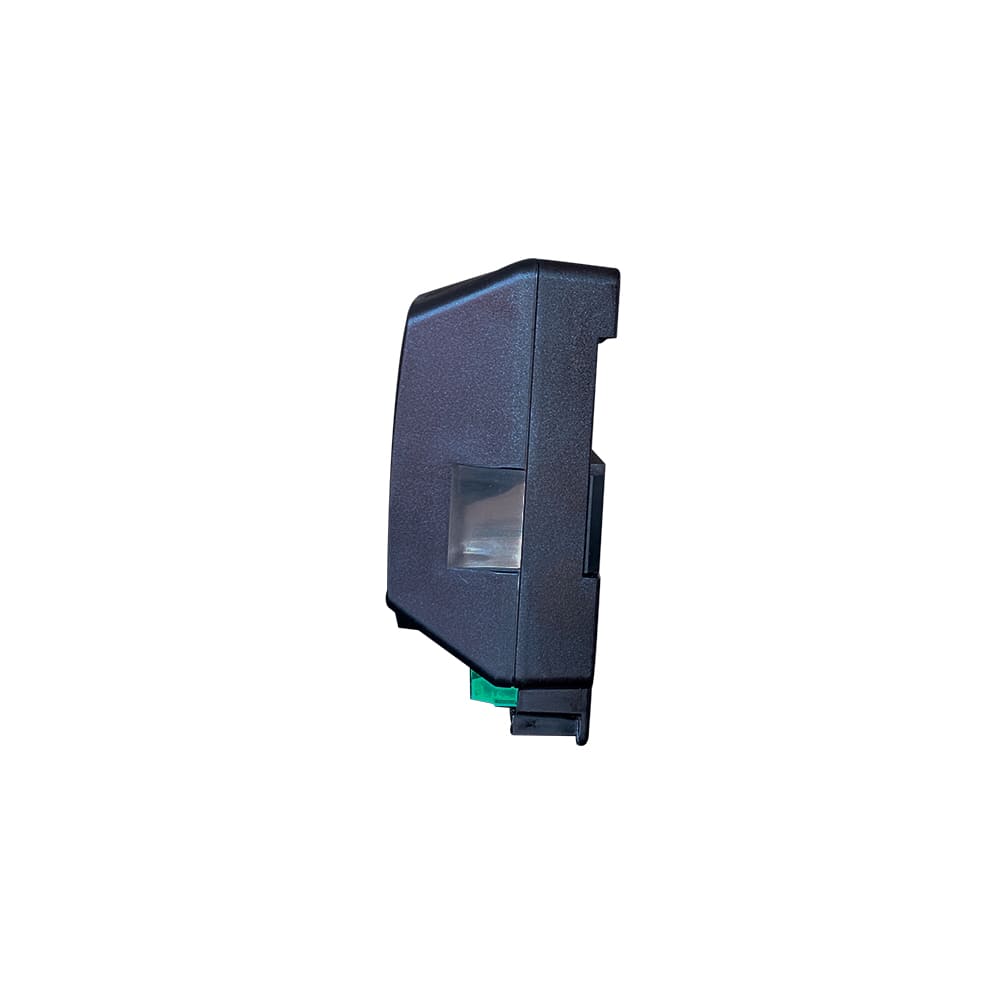

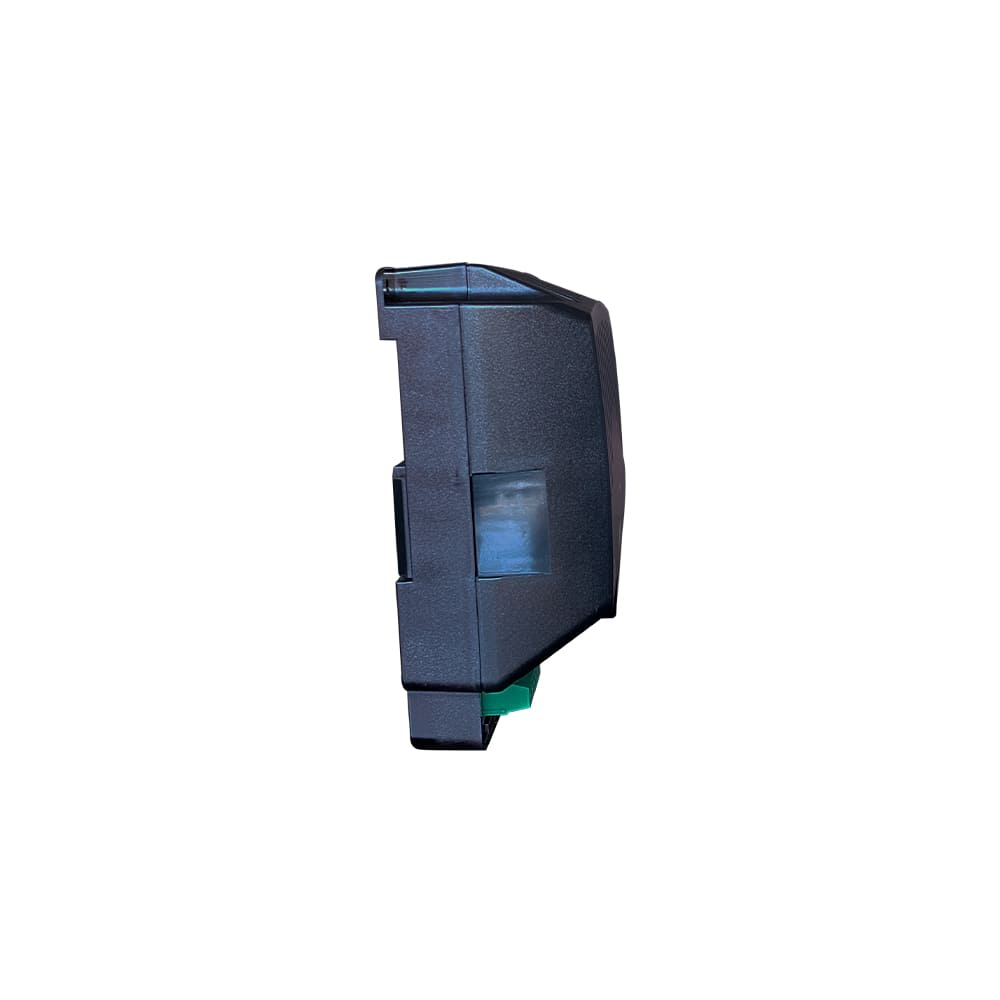

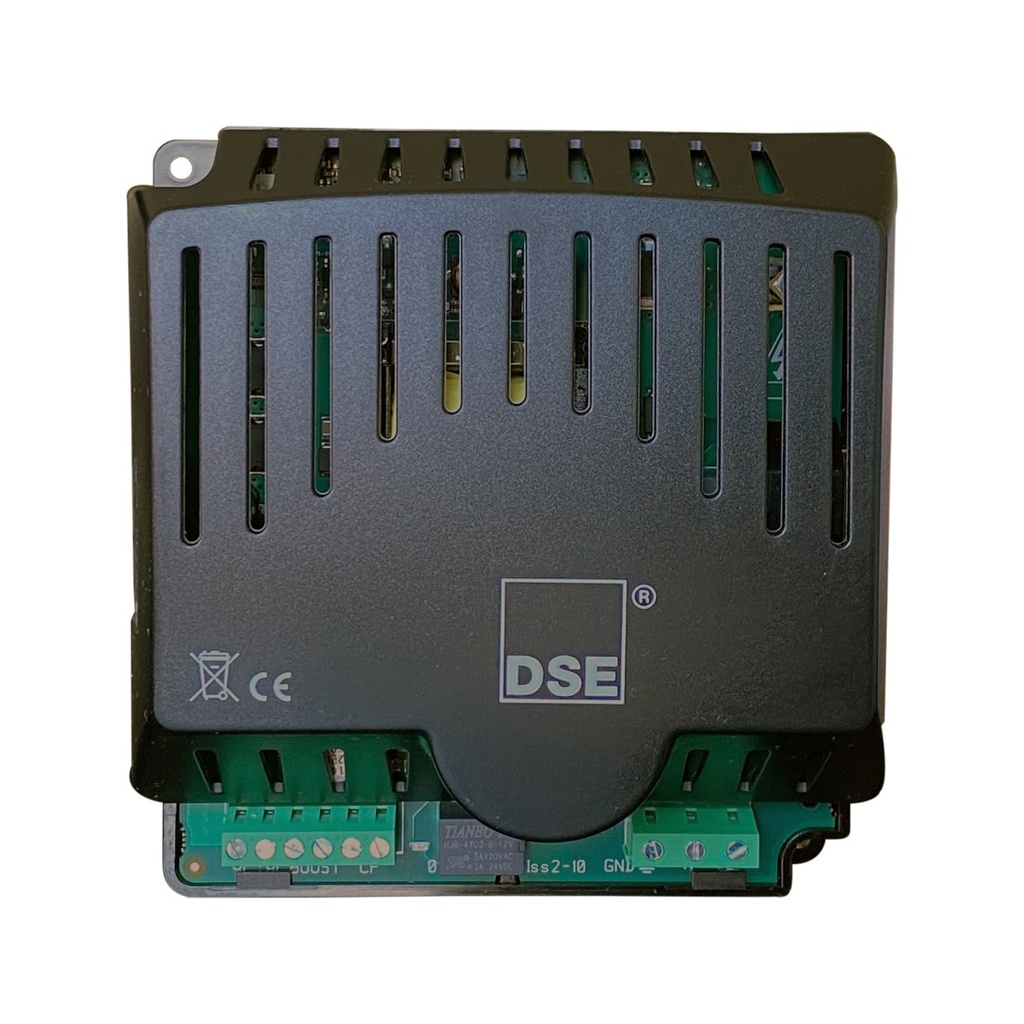

DSE 9255-00 Battery Charger - Obsolete - Original

Deep Sea 9255-00 OBSOLETE Battery Charger

DSE 9255-00 Battery Charger - Obsolete - Original

DSE9255 24V 5A Battery Charger - Obsolete (replaced by DSEBC2405)

$ 130.39 130.39000000000001 USD $ 130.39

$ 130.39

This combination does not exist.

Add to cart Buy now

DSE Battery Charger DSEPower 24v DSE9255

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

VOLTAGE RANGE

90 V to 305 V (L-N)

PRODUCT VARIANTS

9255-00 - 24 volt 5 amp Compact Battery Charger

WEIGHT

1 POUNDS

SIZE

6 x 6 x 3 Inches

OPERATING TEMPERATURE RANGE

-22 ºF to +131 ºF

Key Features
Description

POWER SAFE MODE

Ensures the battery maintains enough power at all times.

CHARGERS CAN BE LINKED TOGETHER

Increases the current output available.

CHARGE FAIL OUTPUT

Provides remote warning in the event of a power failure.

Voltage Range - ◖90 V to 305 V (L-N)
Frequency Range - ◖48 Hz to 64 Hz
DC Output - ◖5 A DC 24 V DC at 27.4 V DV
Protections - ◖Short Circuit Over Voltage Over Current Reverse Polarity

Ripple And Noise - ◖<1%
Efficiency - ◖>80%
Regulation - ◖Line : <0.001% Vo ◖Load : 1% Vo
Operating Temperature Range - ◖-30 °C to +55 °C (-22 °F to +122 °F)
Storage Temperature Range - ◖-40 °C to +85 °C (-40 °F to +185 °F)

The DSE9255 24 volt 5 amp Switch-Mode Battery Charger keeps batteries charged to their maximum capacity at all times. It is designed for permanent battery connection and can be DIN rail or chassis mounted. The charger includes a normal or overload condition LED indicator on the front to assist with status identification, operates during cranking and running and accepts multiple AC voltage connections.
