  3. DSE 6110-05 MKIII Auto Start Control Module.***020-521 (gasket not included) Original

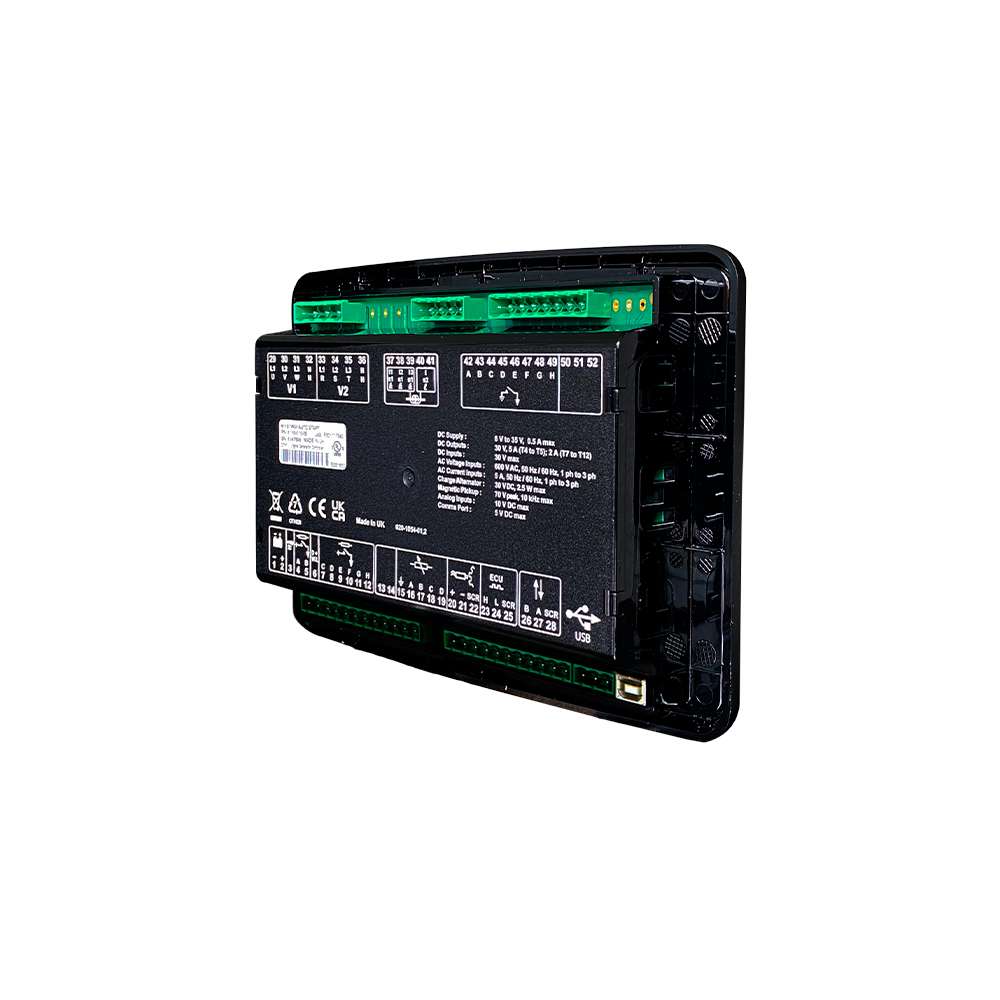

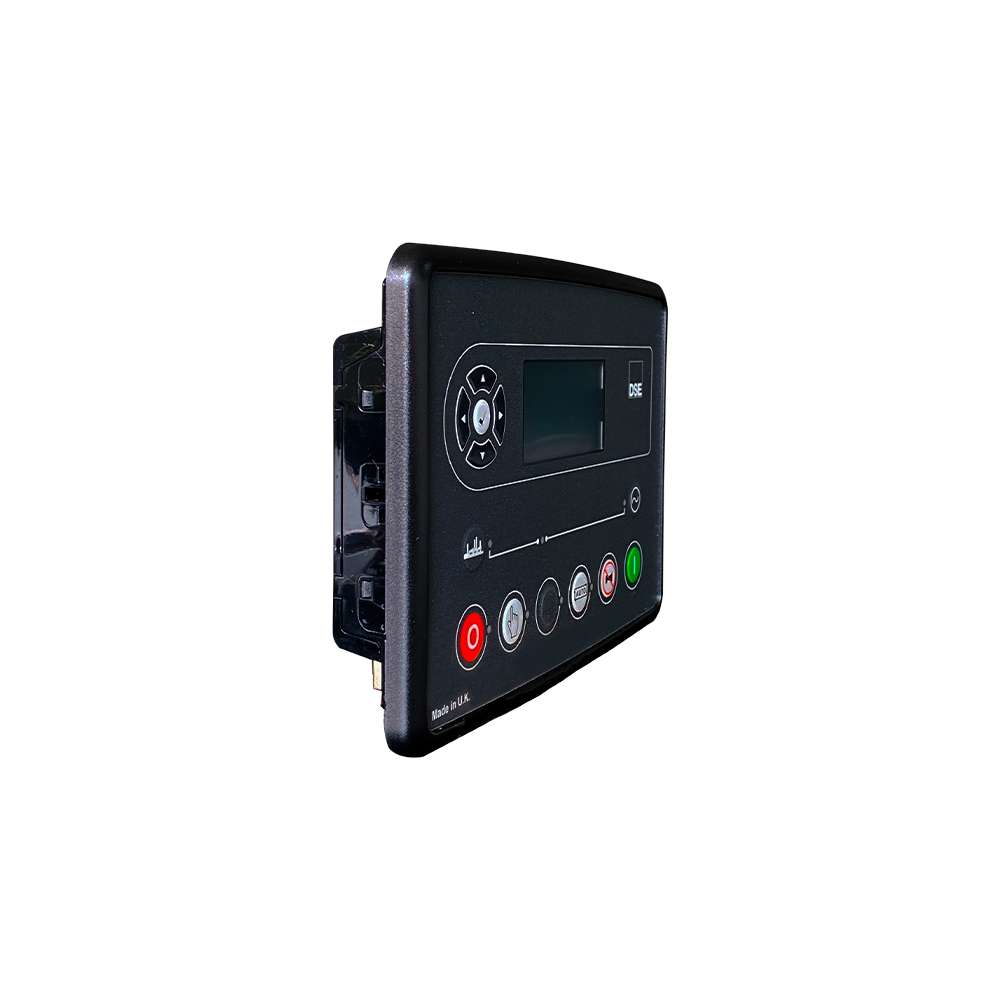

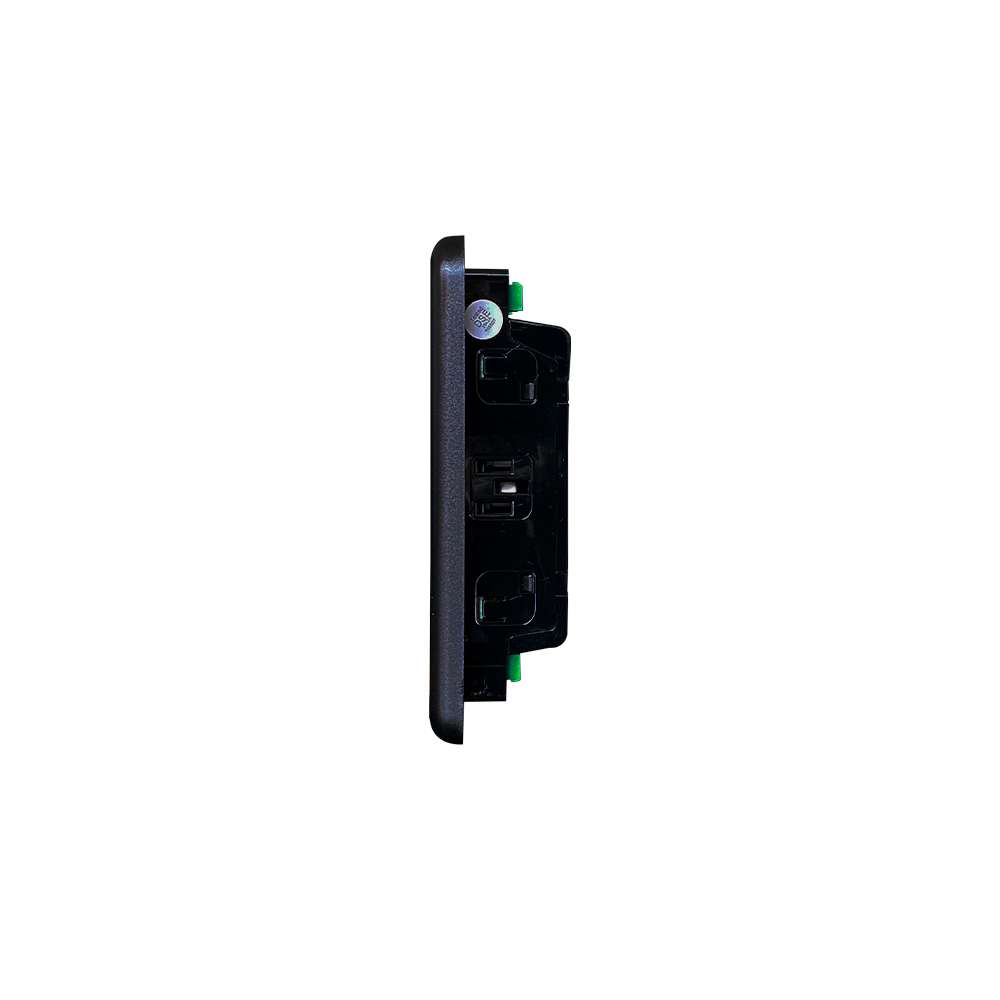

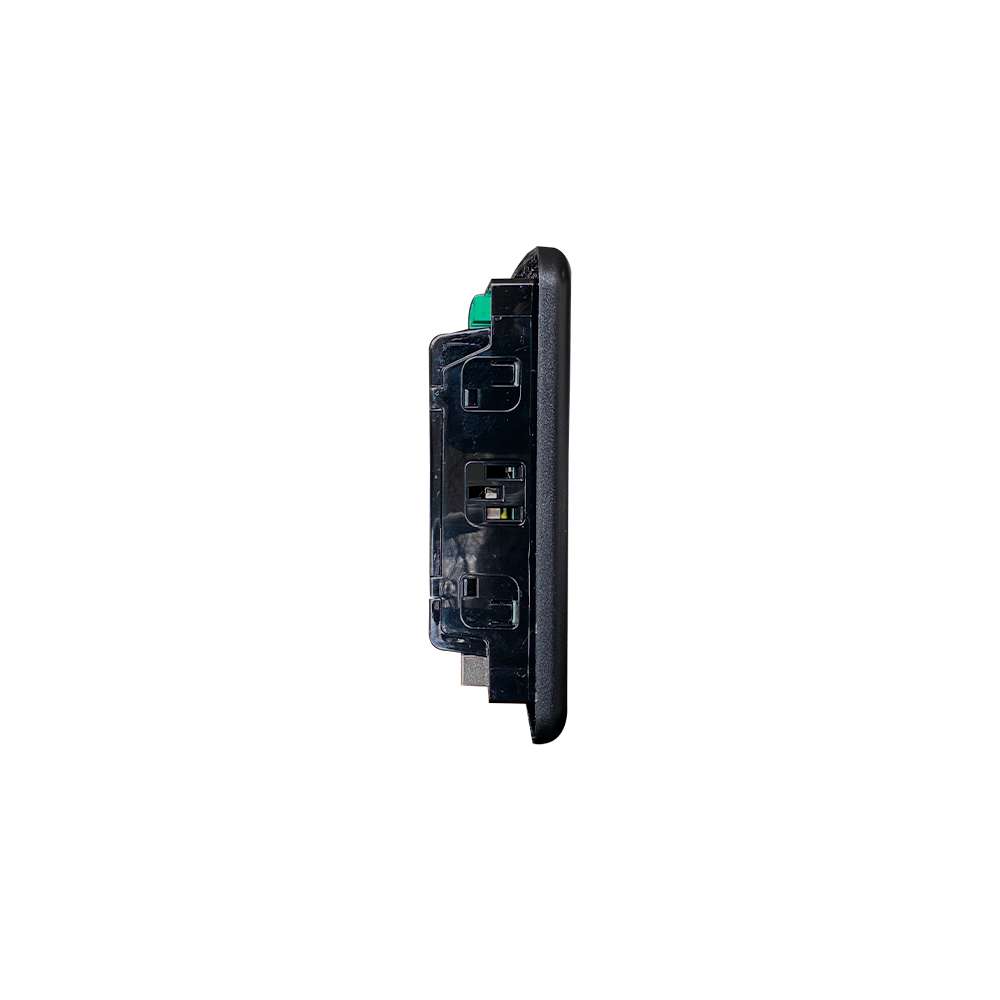

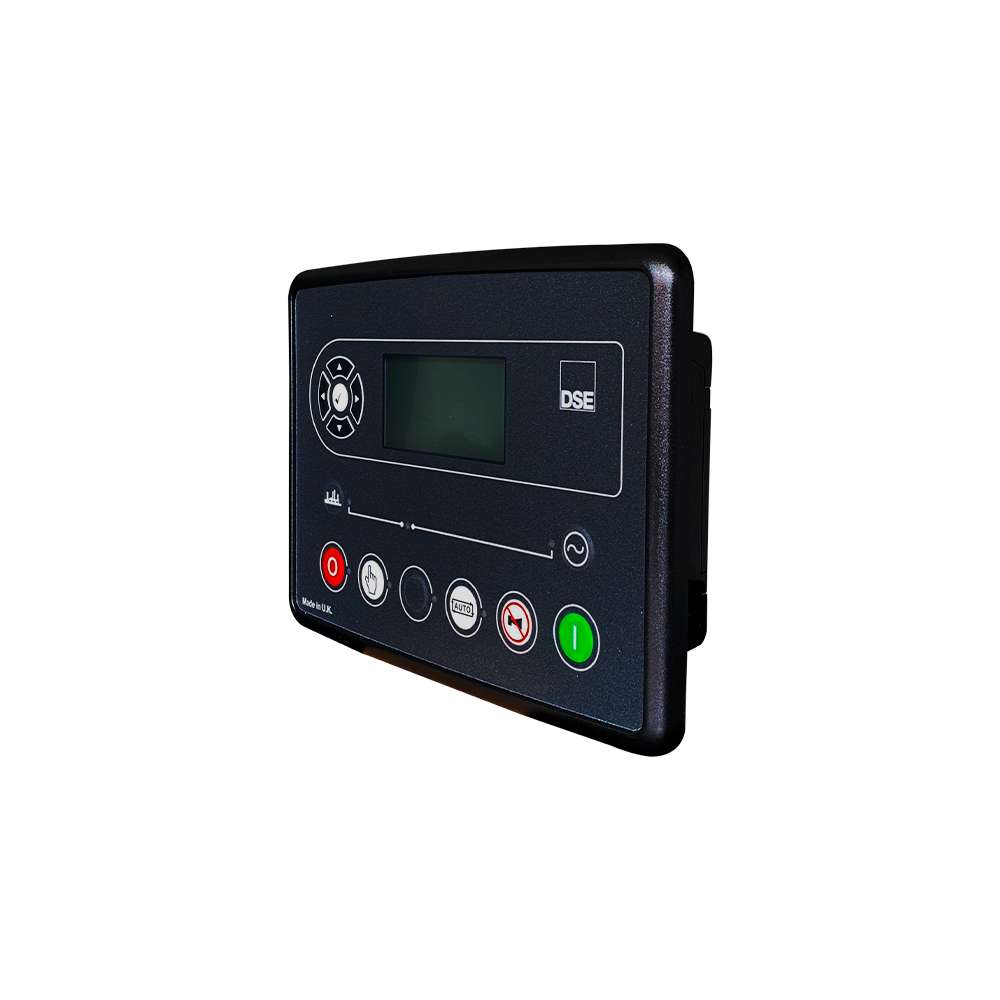

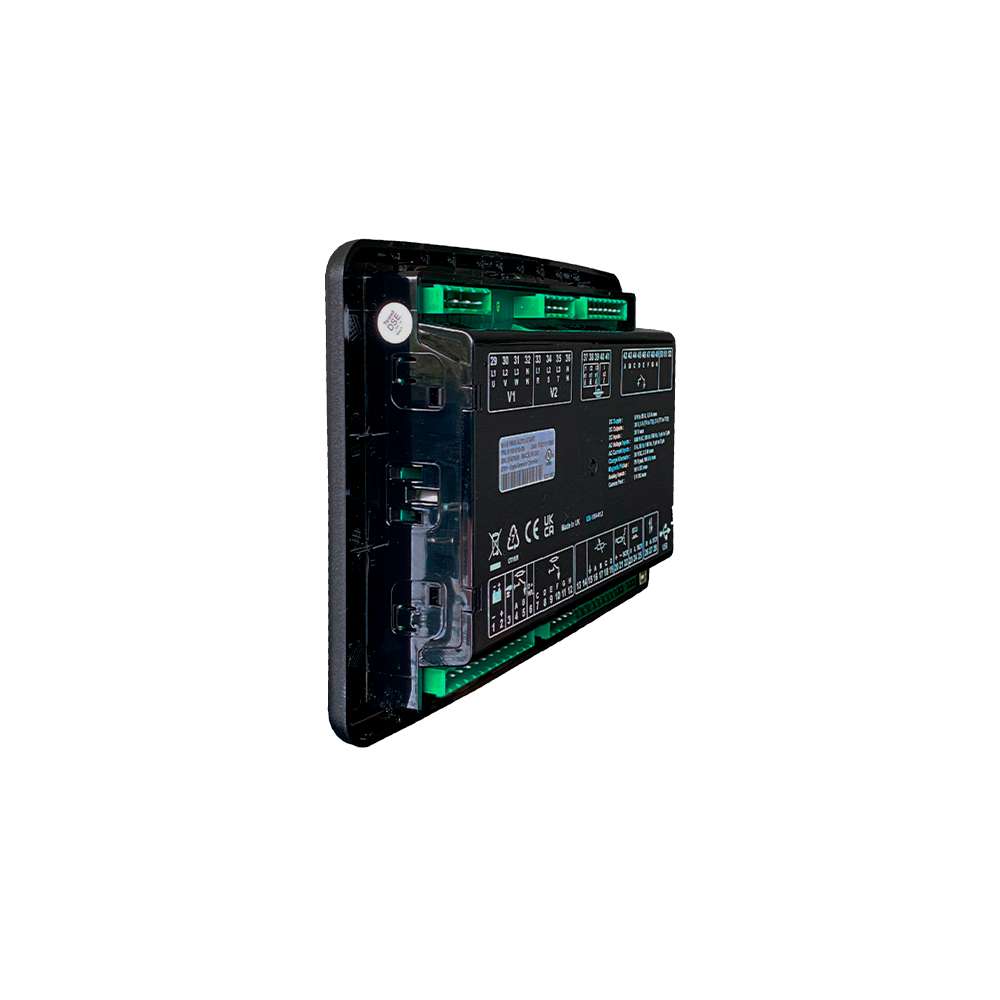

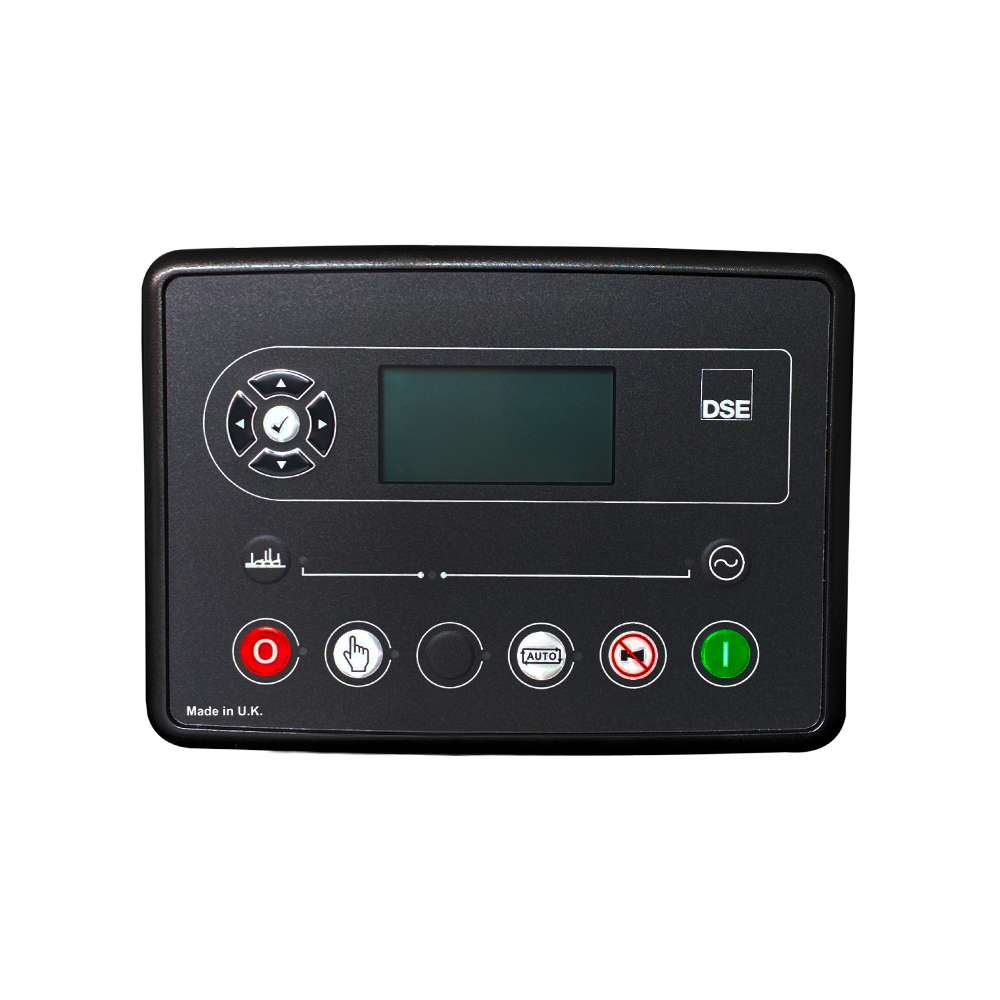

DSE 6110-05 MKIII Auto Start Control Module.***020-521 (gasket not included) Original

https://powermaster.odoo.com/web/image/product.template/9624/image_1920?unique=e30138b

DSE6110 MKIII Auto Start Control Module.***020-521 gasket not included

$ 487.99 487.99 USD $ 487.99

$ 487.99

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

  VOLTAGE RATING
8 V to 35 V Continuous 5 V
for up to 1 minute

PRODUCT VARIANTS
6110-05 - 6110 MKIII Auto Start Control Module
WEIGHT
1.10 POUNDS
SIZE
8 x 6 x 1 Inches
FREQUENCY RANGE

3.5 Hz to 75 Hz




PRODUCT VARIANTS

6110-05 – 6110 MKIII Auto Start Control Module (gasket not included)

6110-35 – Genset 6110 MKIII Auto Start Control Module (CC)



INTERNAL PLC EDITOR

Adds increased flexibility to the product.

DATA LOGGING FACILITY

Data can be used for gathering system information.

FIVE KEY MENU NAVIGATION

Data can be used for gathering system information.

  • Continuous Voltage Rating - ◖8 V to 35 V Continuous 5 V for up to 1 minute
  • Cranking Dropouts - ◖Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖260 mA at 12 V, 150 mA at 24 V
  • Maximum Standby Current - ◖145 mA at 12 V, 85 mA at 24 V
  • Charge Fail/Excitation Range - ◖0 V to 35 V
  • Generator & Mains (Utility) - ◖Voltage Range : 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Magnetic Pickup - ◖Voltage Range : +/- 0.5 V to 70 V ◖Frequency Range : 10,000 Hz (max)
  • Inputs - ◖Digital Inputs A To H : Negative switching ◖Analogue Inputs A & D : Configurable as: Negative switching digital input 0 V to 10 V sensor 4 mA to 20 mA sensor Resistive sensor ◖Analogue Inputs B & C : Configurable as: Negative switching digital input Resistive sensor
  • Outputs - ◖Output A & B (Fuel & Start) : 10 A DC at supply voltage ◖Auxiliary Outputs C, D, E, F, G & H : 2 A DC at supply voltage
  • Dimensions - ◖Overall : 216 mm x 158 mm x 43 mm 8.5” x 6.2” x 1.5” ◖Panel Cut-Out : 184 mm x 137 mm 7.2” x 5.3” ◖Maximum Panel Thickness : 8 mm 0.3”
  • Storage Temperature Range - ◖-40°C to +85°C (-40 °F to +185 °F)
  • Operating Temperature Range - ◖Non-Heated Display Variant : -30°C to +70°C (-22 °F to +158 °F) ◖Heated Display Variant : -40 °C to +70 °C (-40 °F to +158 °F)


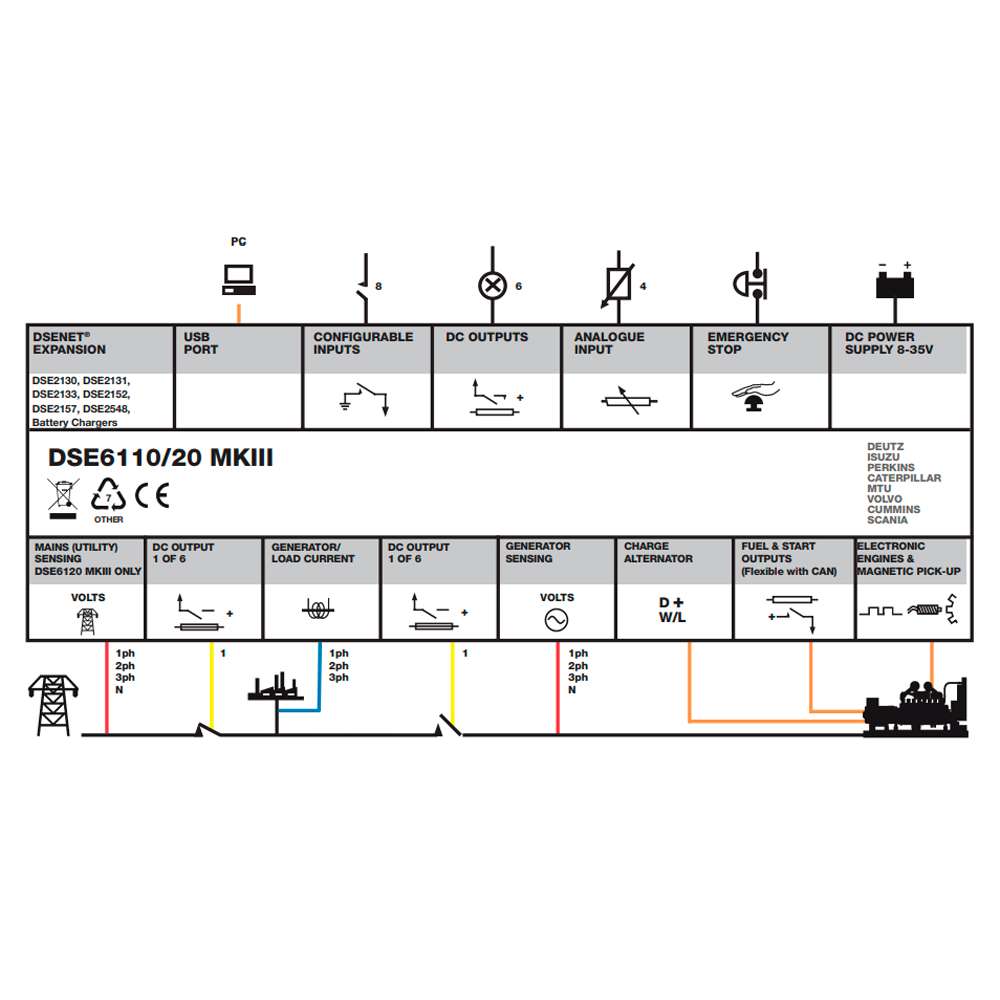

The DSE6110 MKIII is an Auto Start Control Module suitable for a wide variety of single, diesel or gas, genset applications. The module includes USB connection and dedicated DSENet® terminals for system expansion.

Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC.

The module includes USB connection and dedicated DSENet® terminals for system expansion.

The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offers an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained

during cranking.

MAXIMUM OPERATING CURRENT

260 mA at 12 V, 150 mA at 24 V

MAXIMUM STANDBY CURRENT

145 mA at 12 V, 85 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

GENERATOR & MAINS (UTILITY)

VOLTAGE  RANGE

15 V to 415 V AC (Ph to N)

26 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAGNETIC PICKUP

VOLTAGE  RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE



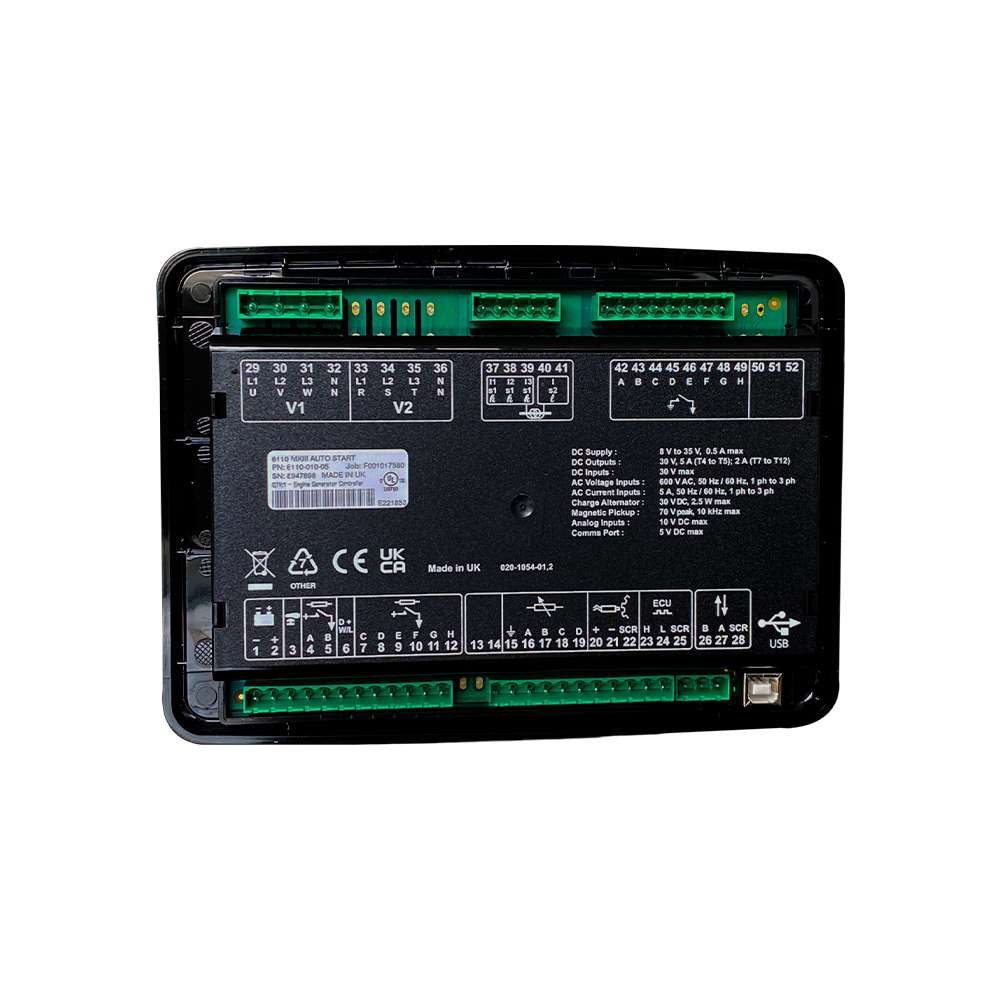

INPUTS

DIGITAL INPUTS A to H

Negative switching

ANALOGUE INPUTS A & D

Configurable as:

Negative switching digital input

0 V to 10 V sensor

4 mA to 20 mA sensor

Resistive sensor

ANALOGUE INPUTS B & C

Configurable as:

Negative switching digital input

Resistive sensor



OUTPUTS

OUTPUT A & B (FUEL & START)

15 A DC at supply voltage

AUXILIARY OUTPUTS C, D, E,  F, G & H

2 A DC at supply voltage
