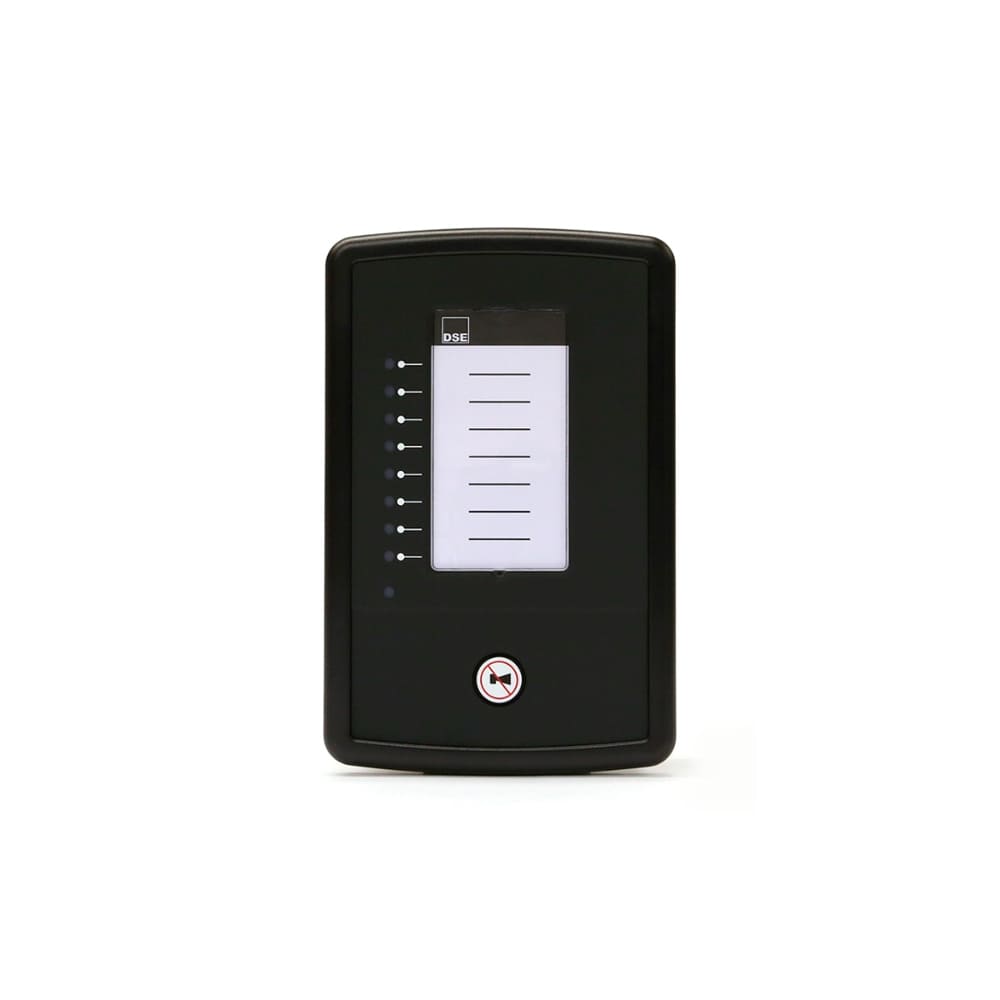

DSE 2548-01 Net® LED Output (8) Expansion Module Original

https://powermaster.odoo.com/web/image/product.template/9635/image_1920?unique=0cb4694

DSENet® LED Output (8) Expansion Module

$ 219.29 219.29 USD $ 219.29

$ 219.29

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE RATING
8 V to 35 V Continuous
PRODUCT VARIANTS

  2548-01 - 2548 Output Expansion Module

WEIGHT
0.6 POUNDS
SIZE
7 x 3 x 2 Inches
MAXIMUM STANDBY CURRENT

  74 mA at 12 V, 35 mA at 24 V


The DSE2548 is an output expansion module that can display a maximum of eight individual LED indications. Each indication is user configurable via the host module.

Up to 10 DSE2548 modules can be linked together to provide up to 80 additional LED outputs.

The DSE2548 can be located up to a maximum of 1 km (0.6 mile) away from the host control module.

PRODUCT VARIANTS

2548-01 - 2548 Output Expansion Module

CONNECT MAXIMUM OF 10

x DSE2548’s to a single host controller.

VERTICAL
Design.

POWER ON/LINK
Lost LED.
  • Continuous Voltage Rating - ◖8 V to 35 V Continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖112 mA at 12 V, 53 mA at 24 V
  • Maximum Standby Current - ◖74 mA at 12 V, 35 mA at 24 V
  • Dimensions - ◖Overall : 180 mm x 116 mm x 42.7 mm 7.07” x 4.57” x 1.68” ◖Panel Cut-Out : 154 mm x 98 mm 6.06” x 3.86” ◖Maximum Panel Thickness : 8 mm 0.3

The DSE2548 is an output expansion module that can display a maximum of eight individual LED indications. Each indication is user configurable via the host module.  Up to 10 DSE2548 modules can be linked together to provide up to 80 additional LED outputs.

The DSE2548 can be located up to a maximum of 1 km (0.6 mile) away from the host control module.
