Eliminates the requirement for external control equipment.
AUTOMATIC AND MANUAL SPEED CONTROL
Provides the user the option to manually raise the engine speed.
Continuous Votlage Rating - ◖8 V to 35 V
continuous
Cranking Droputs - ◖Able to survive 0 V for 50 mS, providing
supply was at least 10 V before dropout and supply recovers to 5 V. This is
achieved without the need for internal batteries.
Maximum Operating Current - ◖510 mA at 12 V,
238 mA at 24 V
Maximum Standby Current - ◖226 mA at 12 V, 107 mA at 24 V
Maximum Off Mode Current - ◖180 mA at 12 V,
86 mA at 24 V
Charge Fail/Excitation Range - ◖0 V to 35 V

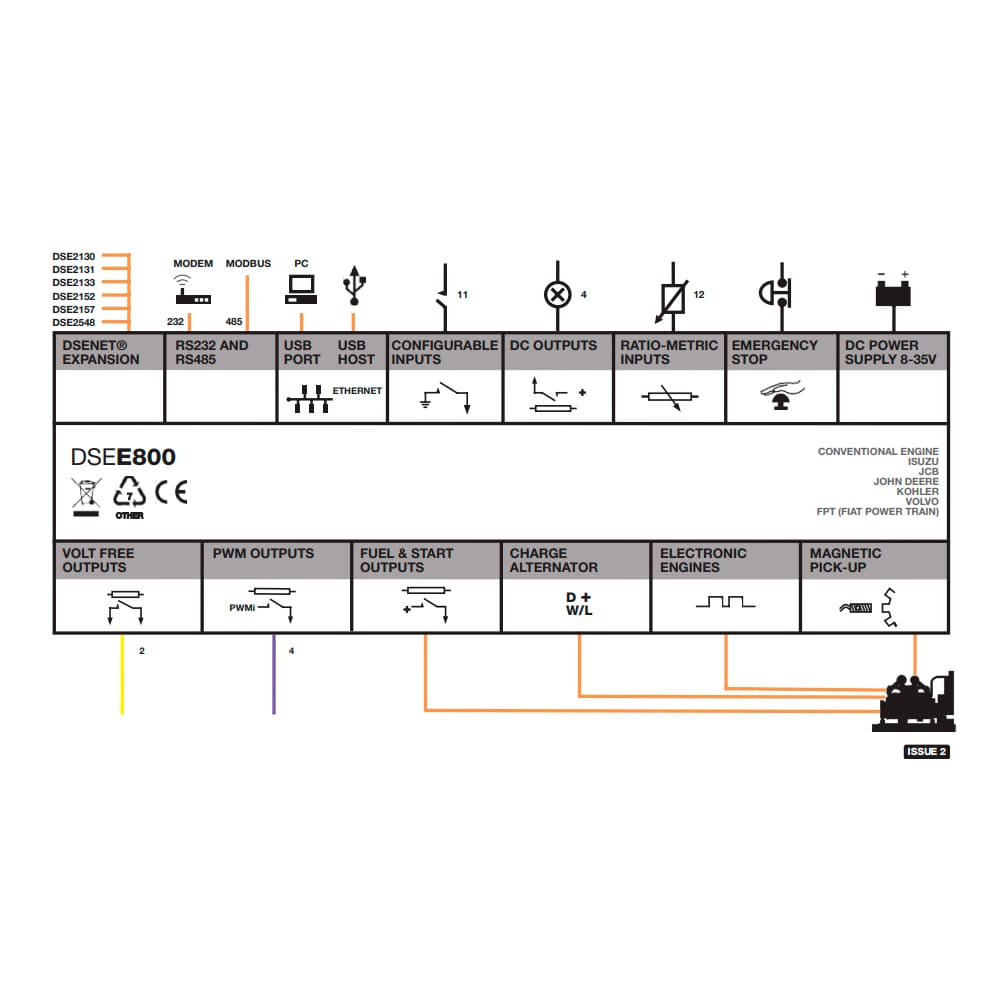

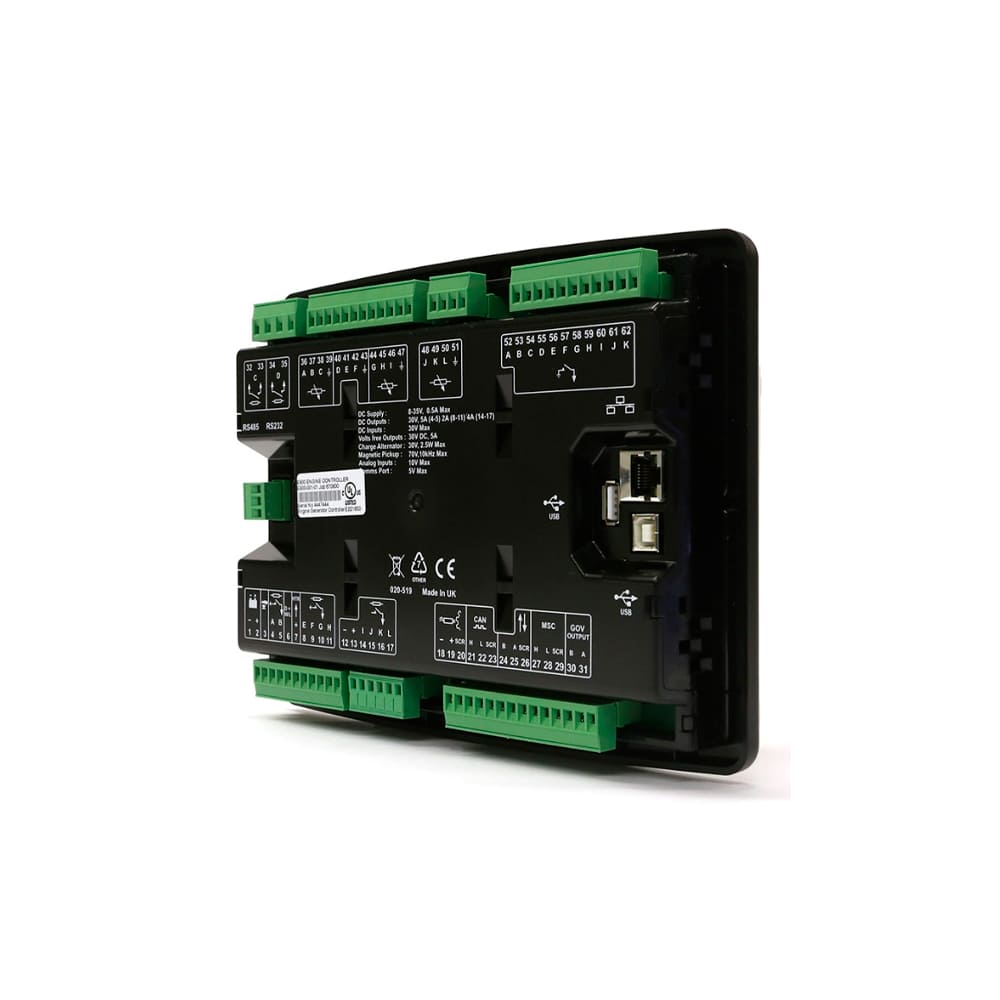

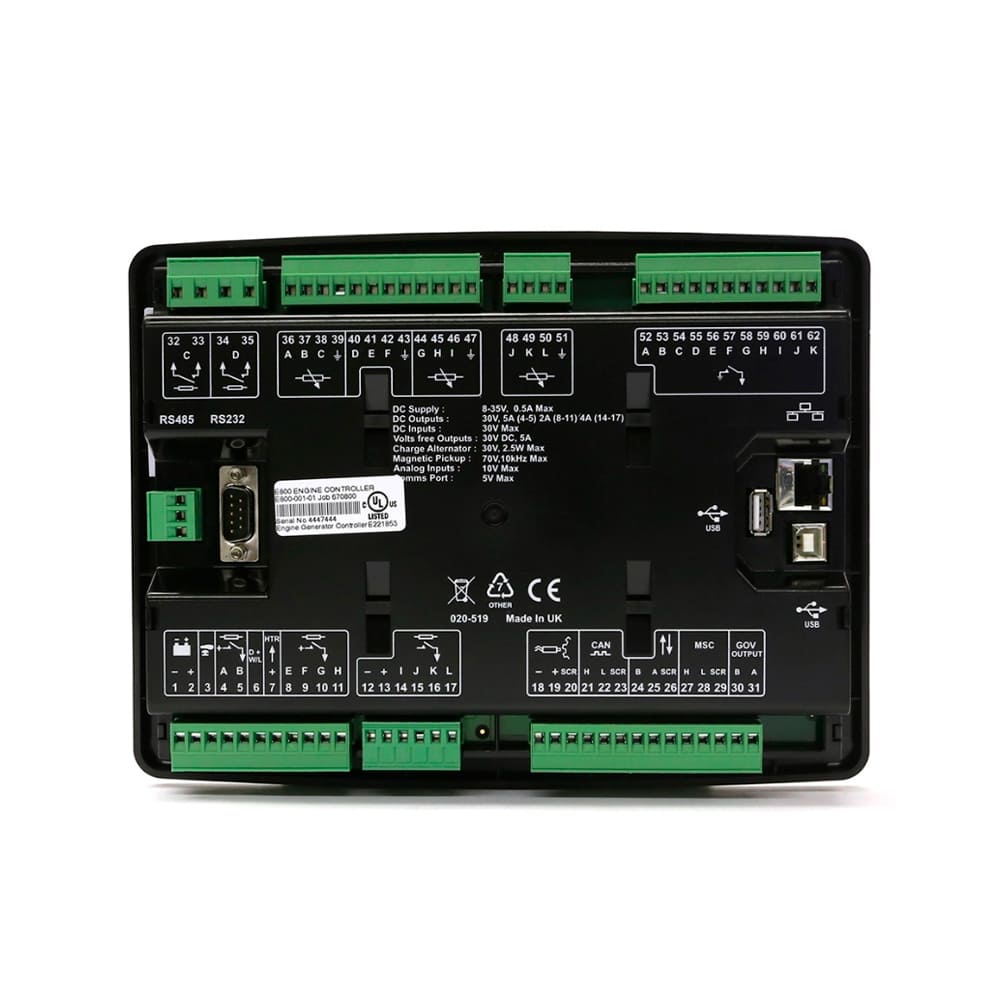

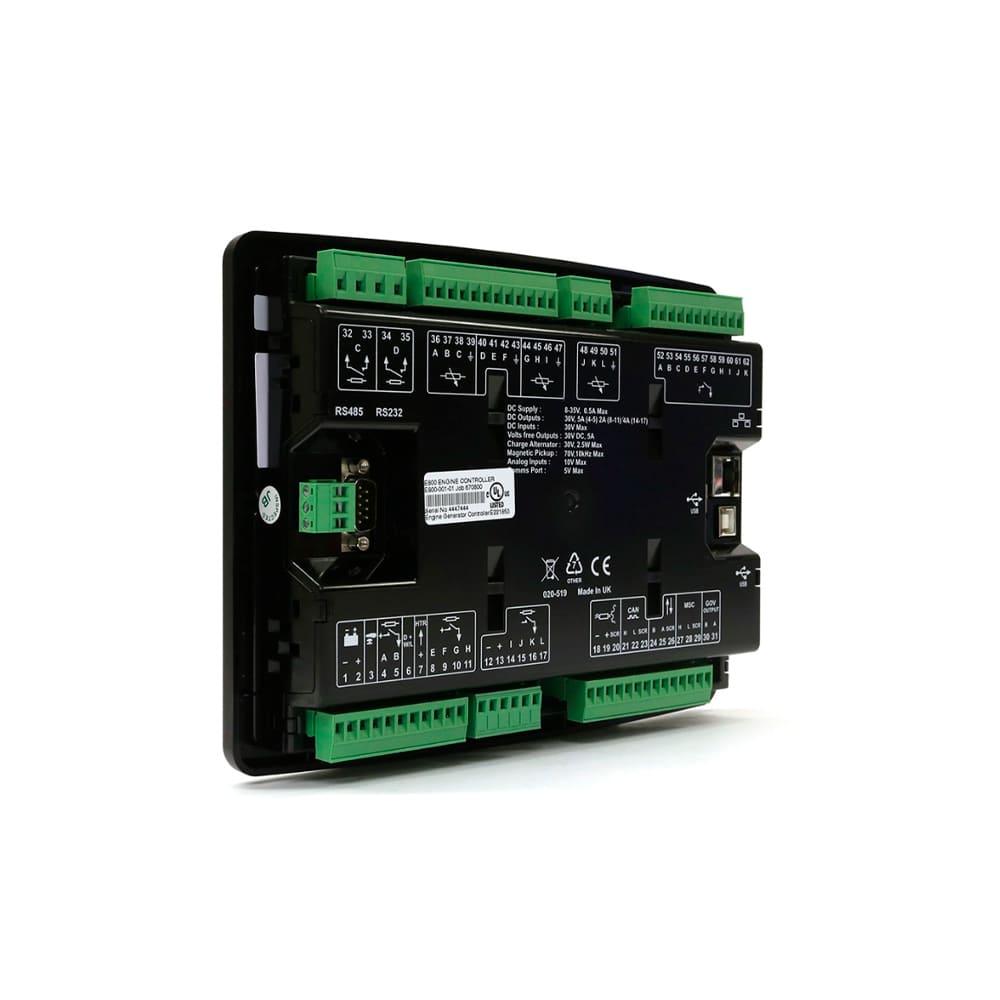

Inputs - ◖Digital Inputs A to K : Configurable as:
Positive switching Negative switching ◖Ratiometric Input A : Configurable
as: Negative switching digital input 0 V to 10 V 4 mA to 20 mA 0 Ω to 480 Ω ◖Ratiometric
Inputs B To L : Configurable as: Negative switching digital input 0 V to 10 V
4 mA to 20 mA 0 Ω to 1920 Ω
Outputs - ◖DC Output A (Fuel) & B (Start) : 10 A short term,
5 A continuous at supply voltage ◖Volt-Free Outputs C & D : 5 A DC at
35 V DC 8 A AC at 250 V AC ◖DC Outputs E, F, G & H : 2 A DC at supply
voltage ◖PWMi Outputs I, J, K & L : 4 A at supply voltage 20 Hz to 250
Hz
Pulse Pick-Up - ◖Voltage Range : ±0.5 V to 60 V
RMS Fully isolated ◖Frequency Range : 10,000 Hz (max)
Built-In Governor Control - ◖Minimum Load
Impedance 1000 Ω Fully isolated ◖Gain Voltage : 0 V to 10 V DC ◖Offset Voltage : ±10 V DC
Dimensions - ◖Overall : 240 mm x 172 mm x 57 mm 9.4” x
6.8” x 2.2” ◖Panel Cutout : 220 mm x 160 mm 8.7” x 6.3” ◖Maximum Panel
Thickness : 8 mm 0.3”
Operating Temperature Range - ◖-40 °C to +80 °C
Storage Temperature Range - ◖-40 °C to +85 °C

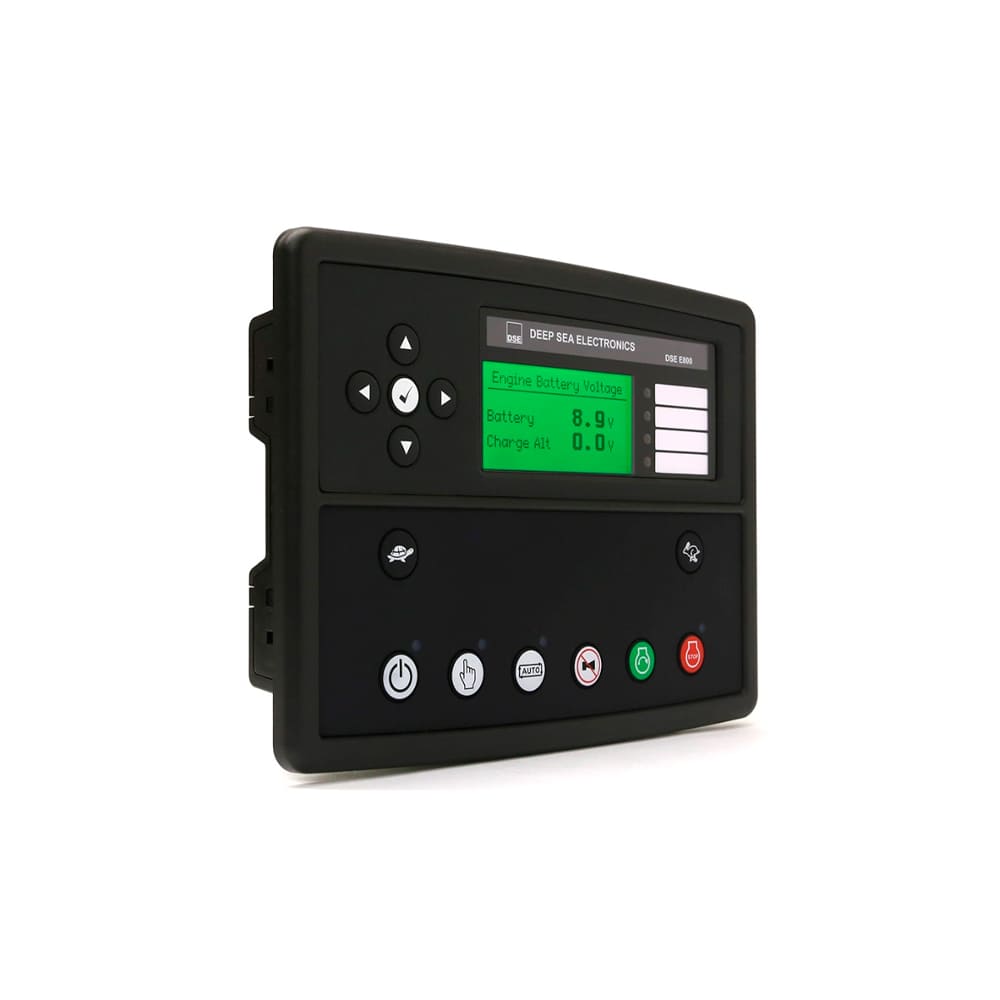

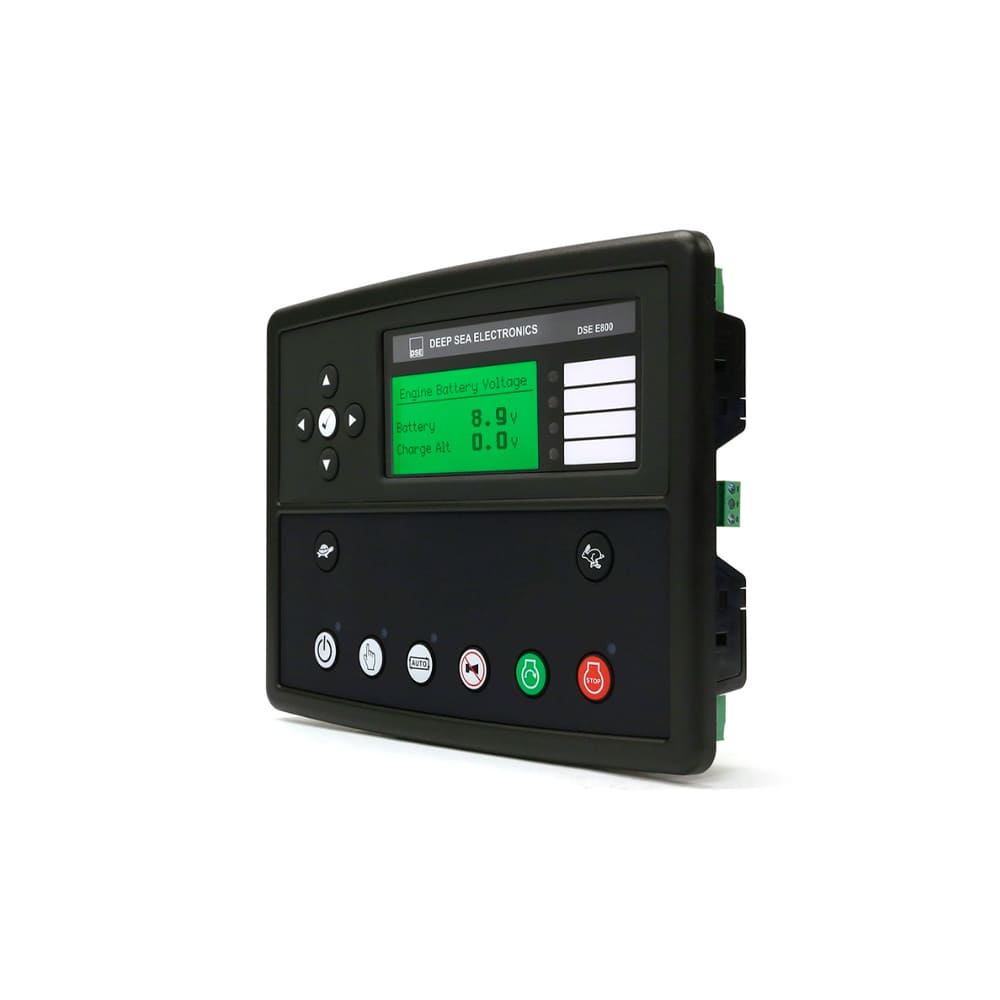

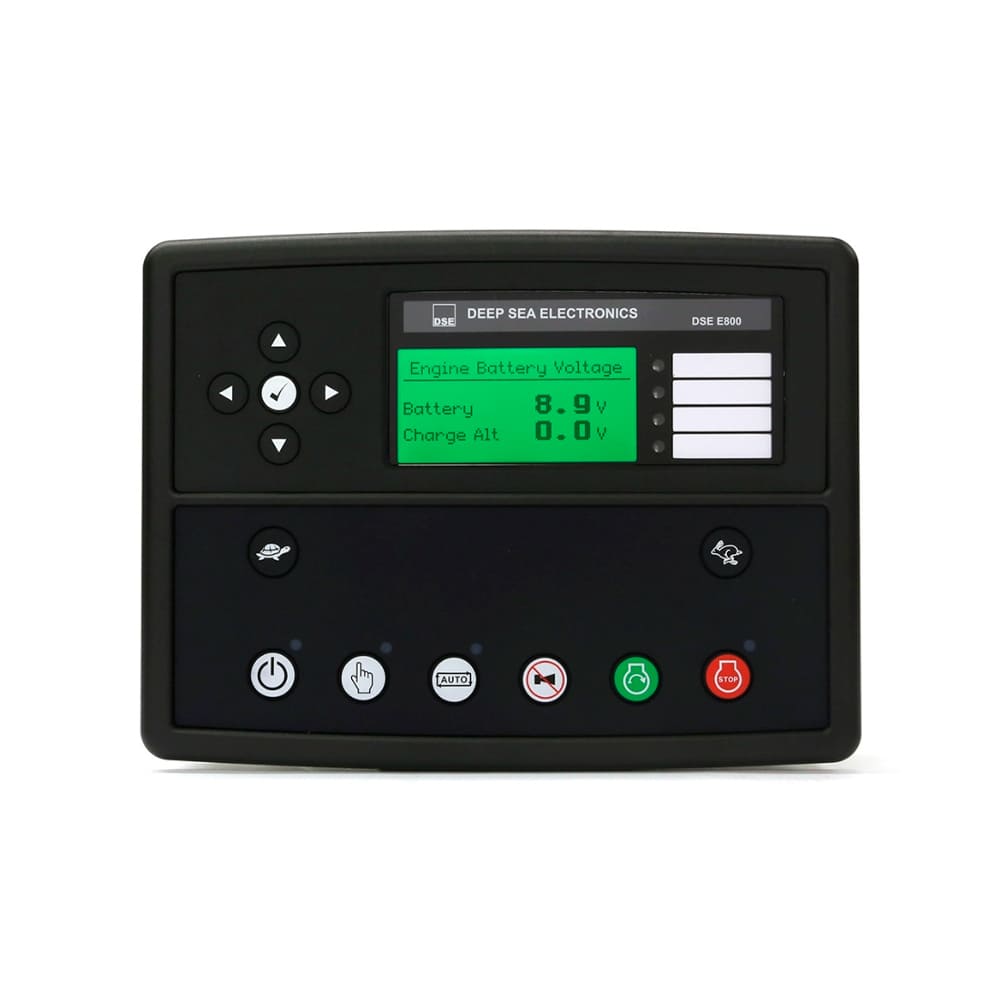

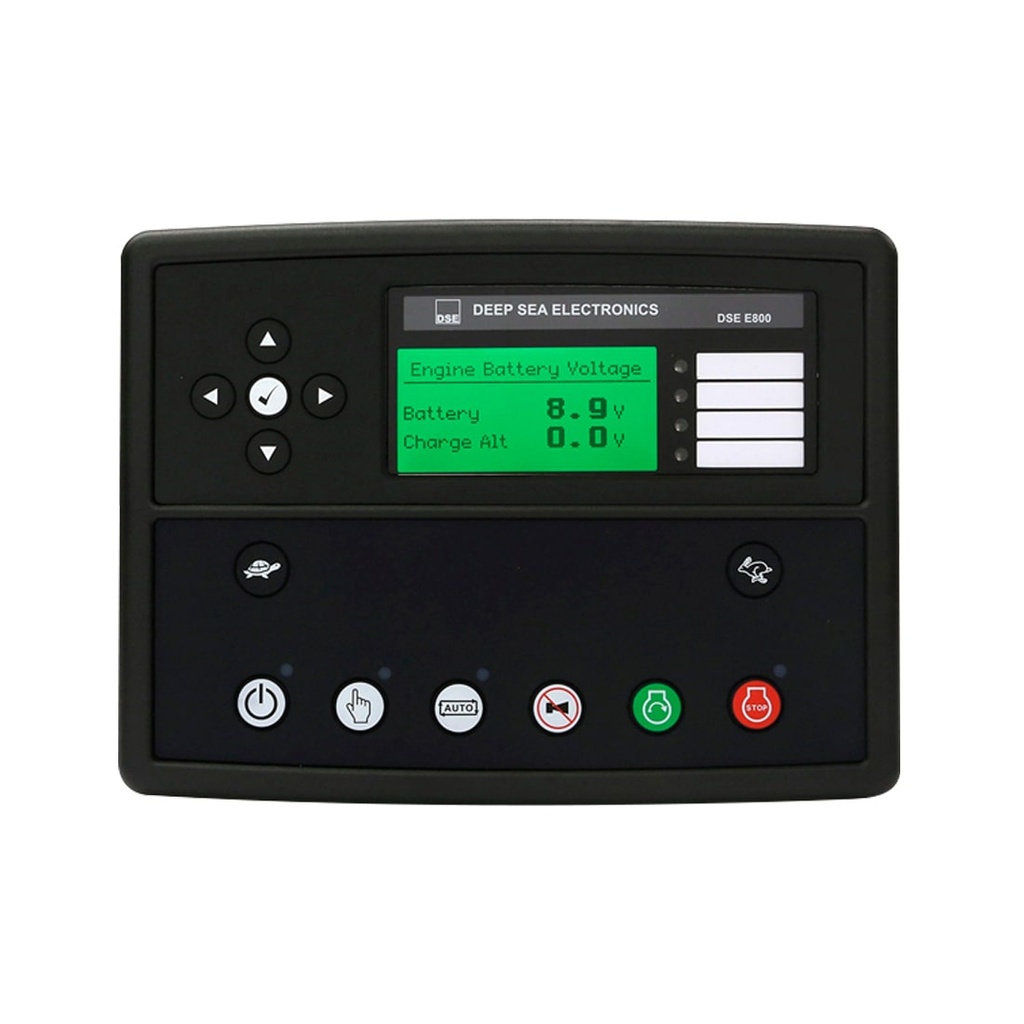

The DSEE800 engine control module has been designed to provide flexible control and monitoring for engine driven pumps, compressors, hydraulic power packs and off-highway machinery. The control module can be used with electronic and mechanical diesel engines and offers outstanding flexibility via its integrated PLC editor.
This flexibility enables users to match required operating modes unique to their applications. A number of comprehensive communication and system expansion options allows users to extend the input/output capabilities of the system and communicate across complex networks.
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V continuous
CRANKING DROPUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
