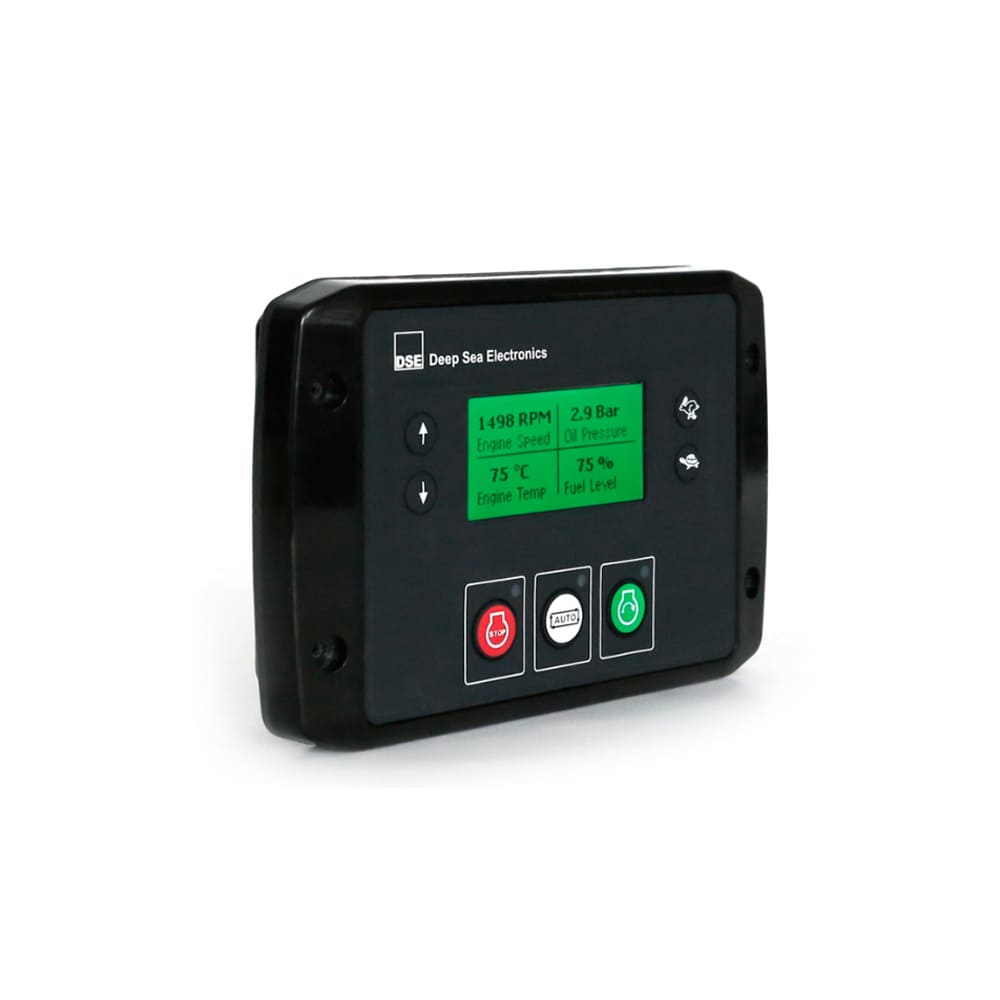

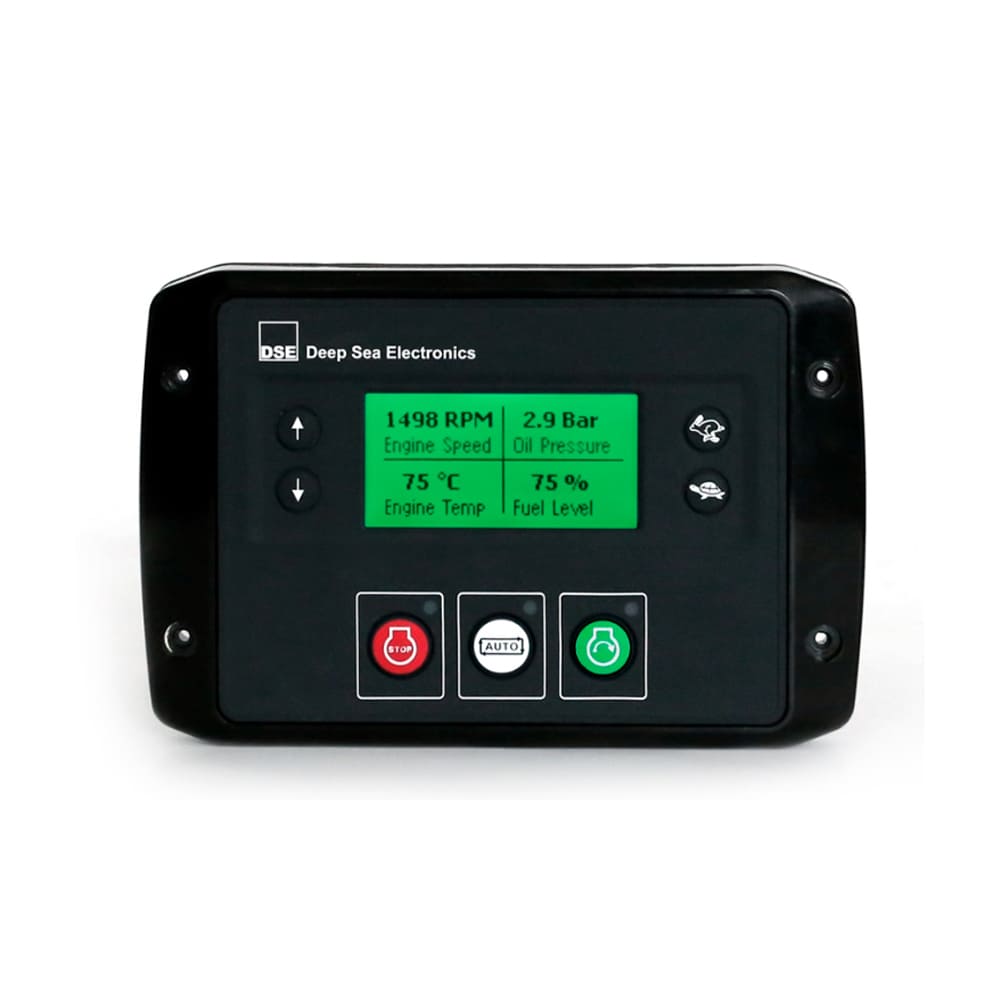

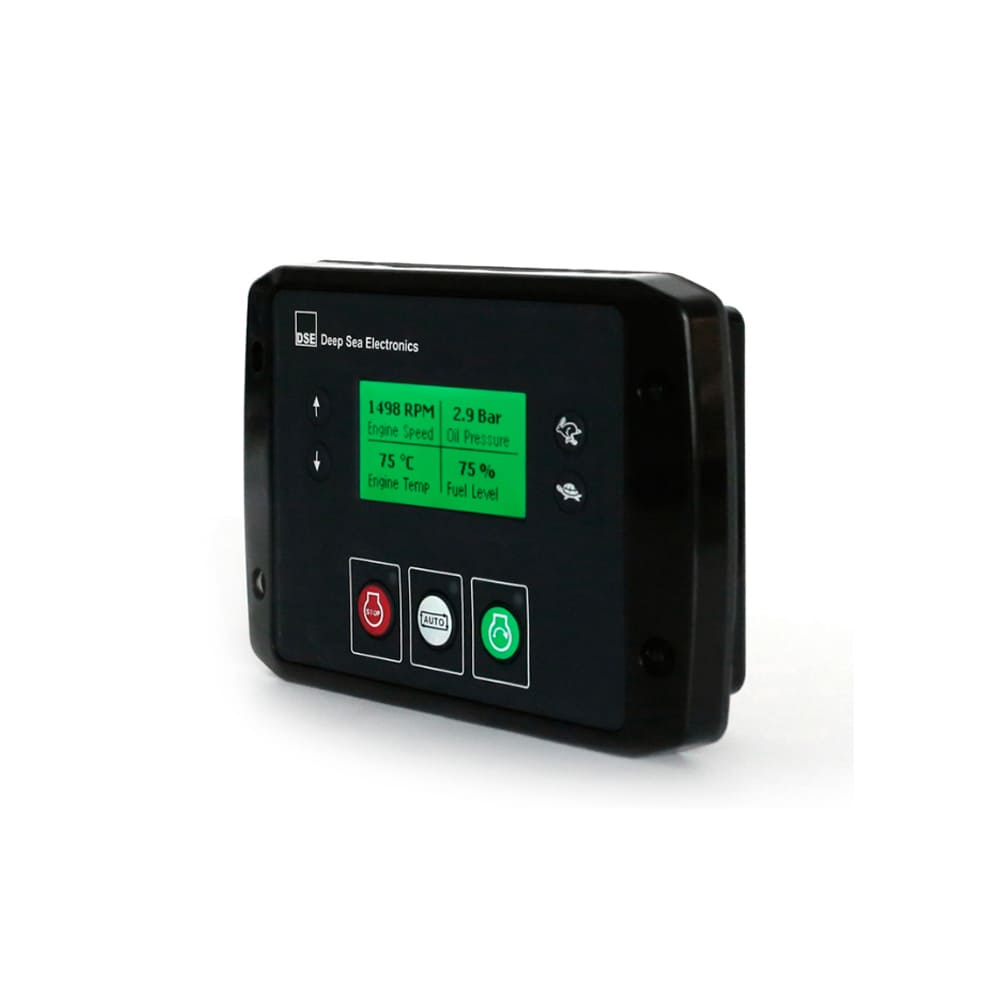

DSE E400-01 | Engine Control Module | Original

https://powermaster.odoo.com/web/image/product.template/9643/image_1920?unique=dd2aeb4

DSEE400 Engine Controller

$ 730.89 730.89 USD $ 730.89

$ 730.89

Not Available For Sale

This combination does not exist.

Contact Us
DSE DSEE400

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE RANGE
8 V to 35 V continuous
PRODUCT VARIANTS

E400-01 - E400
Engine Controller

WEIGHT
1 POUNDS
SIZE
8 x 5 x 3 Inches
FREQUENCY RANGE
  5 Hz to 10,000 Hz


The DSEE400 is an IP67 rated engine control module that offers flexible control with built-in monitoring and protection. The control module is compatible with both electronic and mechanical diesel engines and be fully configured for a wide range of applications including engine driven pumps and compressors.

All engine control functions including engine start, speed and clutch control can be achieved automatically and manually.



​ CONFIGURABLE FRONT PANEL EDITOR
Provides high levels of flexibility.
AUTO RUN INHIBIT ​
 Allows configurable start parameters to be set.

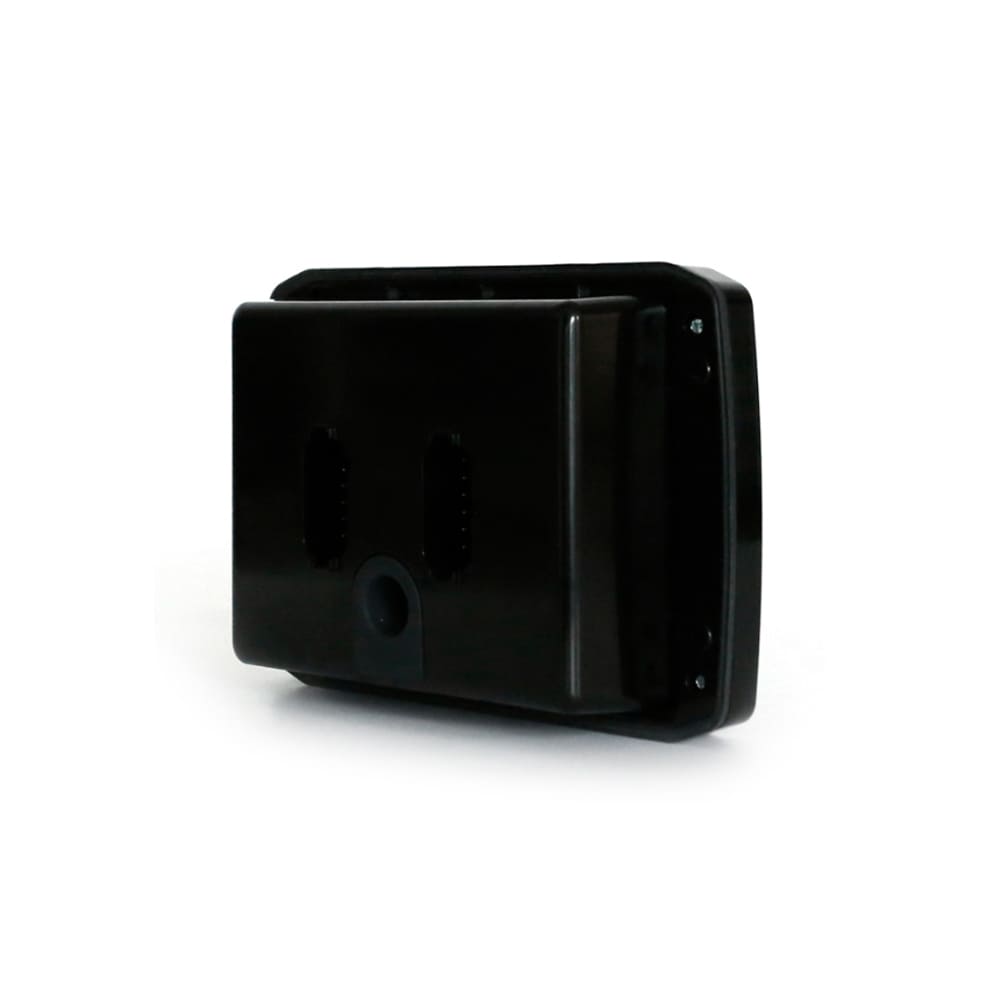

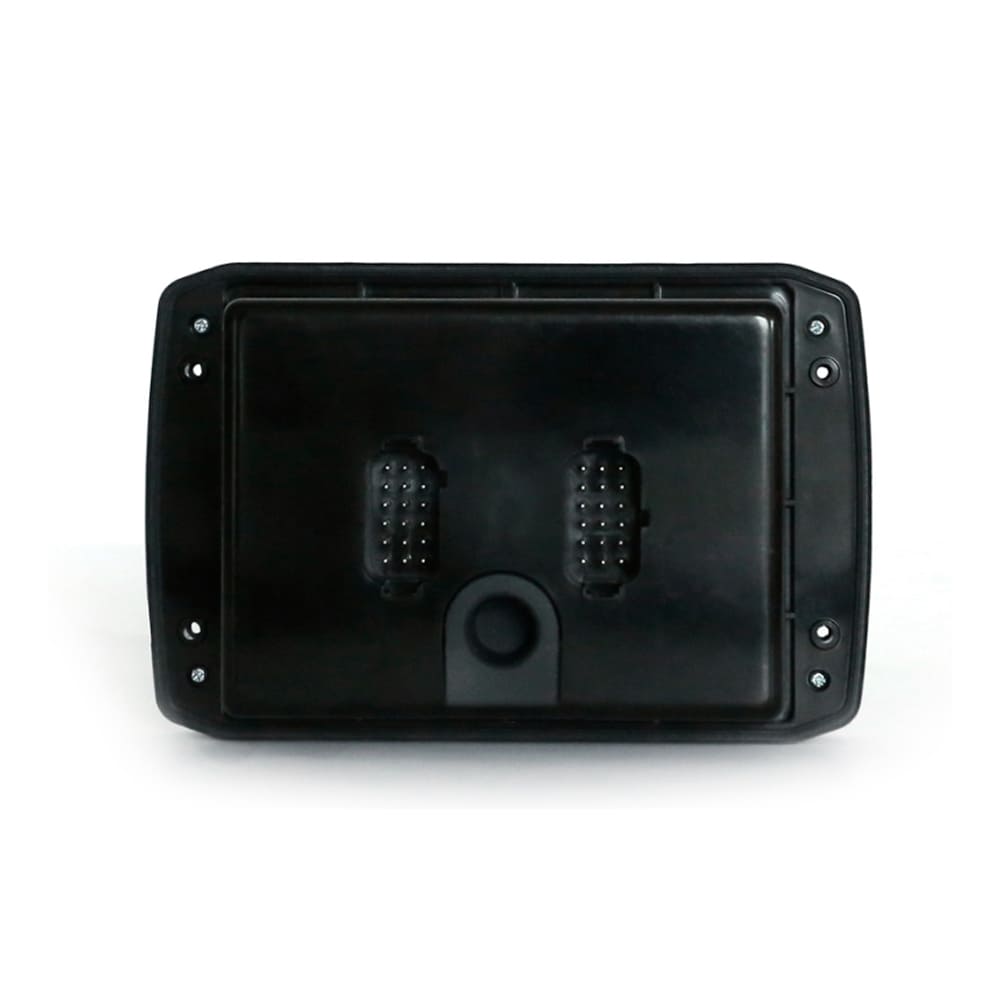

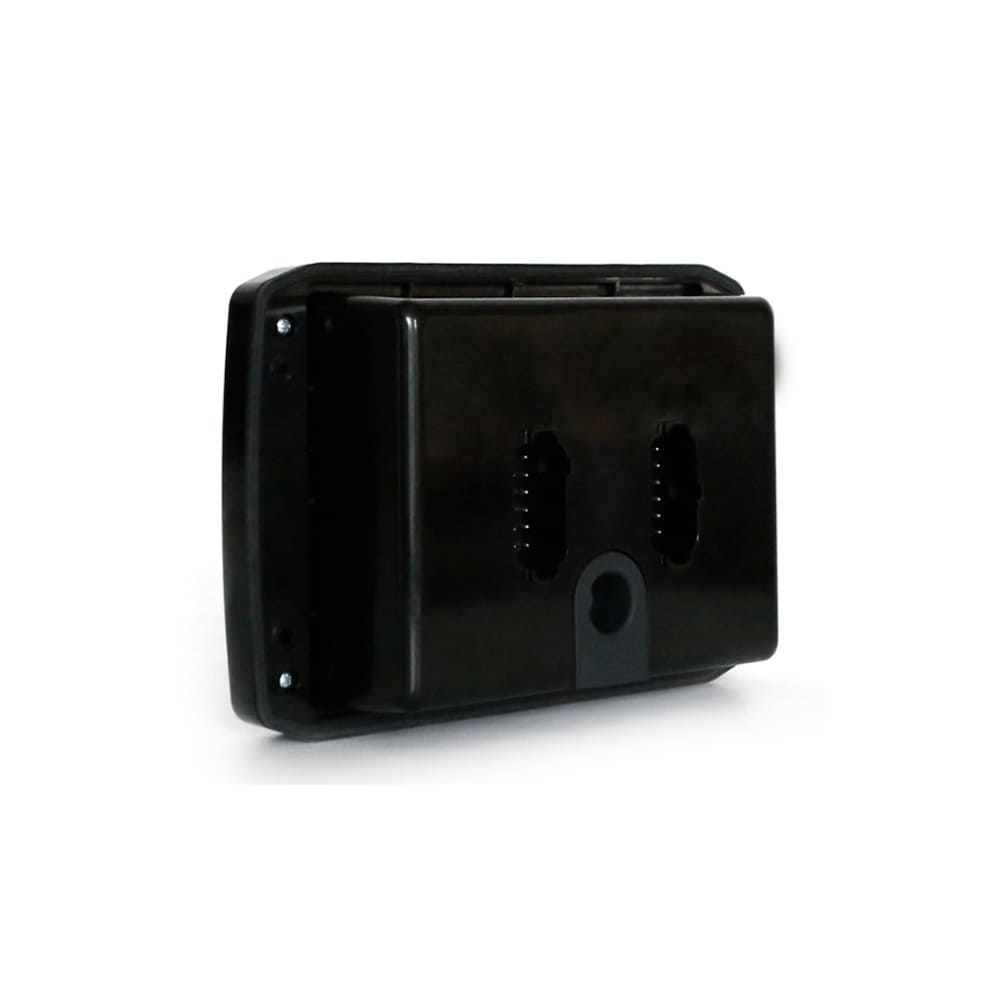

DEUTSCH CONNECTORS ​
Quick and easy sealed connection.
  • Continuous Voltage Rating - ◖8 V to 35 V continuous
  • Cranking Droputs - ◖Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
  • Maximum Operating Current - ◖326 mA at 12 V, 164 mA at 24 V
  • Maximum Standby Current - ◖119 mA at 12 V, 60 mA at 24 V
  • Maximum Off Mode Current - ◖76 mA at 12 V, 38 mA at 24 V
  • Charge Fail/Excitation Range - ◖0 V to 35 V
  • Inputs - ◖Digital Inputs A to D : Configurable as: Positive switching Negative switching ◖Analogue Inputs A to G : Configurable as: Negative switching digital input 0 V to 10 V 4 mA to 20 mA Resistive



  • Outputs - ◖DC Output A (Fuel) & B (Start) : 10 A for 10 seconds, 5 A continuous at supply voltaje ◖Volt-Free Outputs C & D : 2 A DC at supply voltaje ◖Pwmi Outputs E & F : 4 A at supply voltaje 20 Hz to 250 Hz
  • Pulse Pick-Up - ◖Voltage Range : 0.5 V to 60 V RMS Fully isolated ◖Frequency Range : 5 Hz to 10,000 Hz
  • Governor Output - ◖Fully isolated ◖Voltage Output : 0 V to 10 V range 1000 Ω minimum load impedance ◖Current Output : 0 V to 20 mA range 500 Ω maximum load



The DSEE400 is an IP67 rated engine control module that offers flexible control with built-in monitoring and protection. The control module is compatible with both electronic and mechanical diesel engines and be fully configured for a wide range of applications including engine driven pumps and compressors.

All engine control functions including engine start, speed and clutch control can be achieved automatically and manually.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V continuous

CRANKING DROPUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.

MAXIMUM OPERATING CURRENT

326 mA at 12 V, 164 mA at 24 V

MAXIMUM STANDBY CURRENT

119 mA at 12 V, 60 mA at 24 V

MAXIMUM OFF MODE CURRENT

76 mA at 12 V, 38 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

INPUTS

DIGITAL INPUTS A to D

Configurable as:

Positive switching

Negative switching

ANALOGUE INPUTS A to G

Configurable as:

Negative switching digital input

0 V to 10 V

4 mA to 20 mA

Resistive



OUTPUTS

DC OUTPUT A (FUEL) & B (START)

10 A for 10 seconds,

5 A continuous at supply voltage

VOLT-FREE OUTPUTS C & D

2 A DC at supply voltage

PWMI OUTPUTS E & F

4 A at supply voltage

20 Hz to 250 Hz

PULSE PICK-UP

VOLTAGE RANGE

0.5 V to 60 V RMS

Fully isolated

FREQUENCY RANGE

5 Hz to 10,000 Hz



GOVERNOR OUTPUT

Fully isolated

VOLTAGE OUTPUT

0 V to 10 V range

1000 Ω minimum load impedance

CURRENT OUTPUT

0 V to 20 mA range

500 Ω maximum load impedance
